Exploded views for Suzuki DF250A, DF300A (E01) 2016 [DF300A_E01_016]

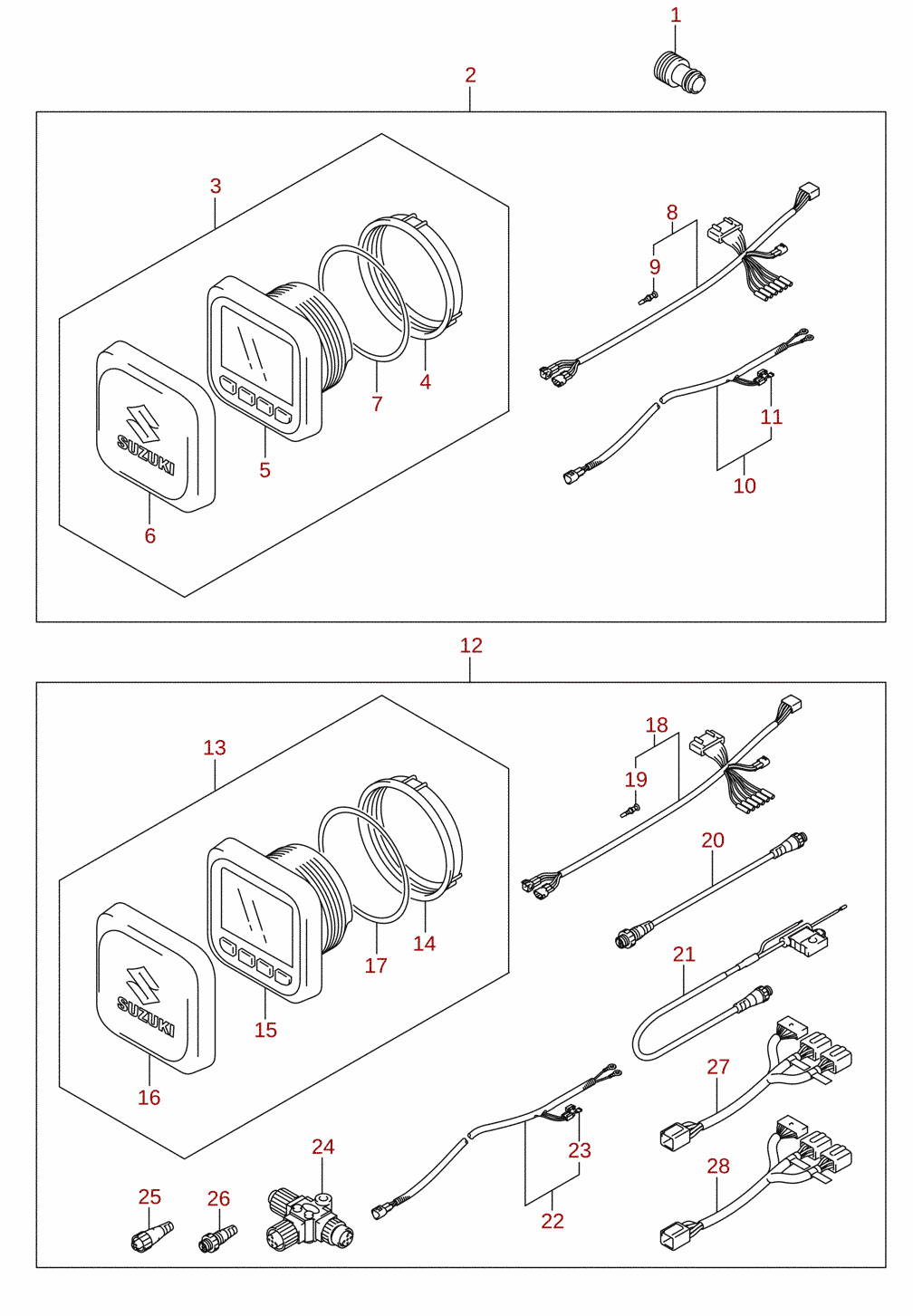

Meter (1) (optional)

Reference no. DF300A_E01_016 44

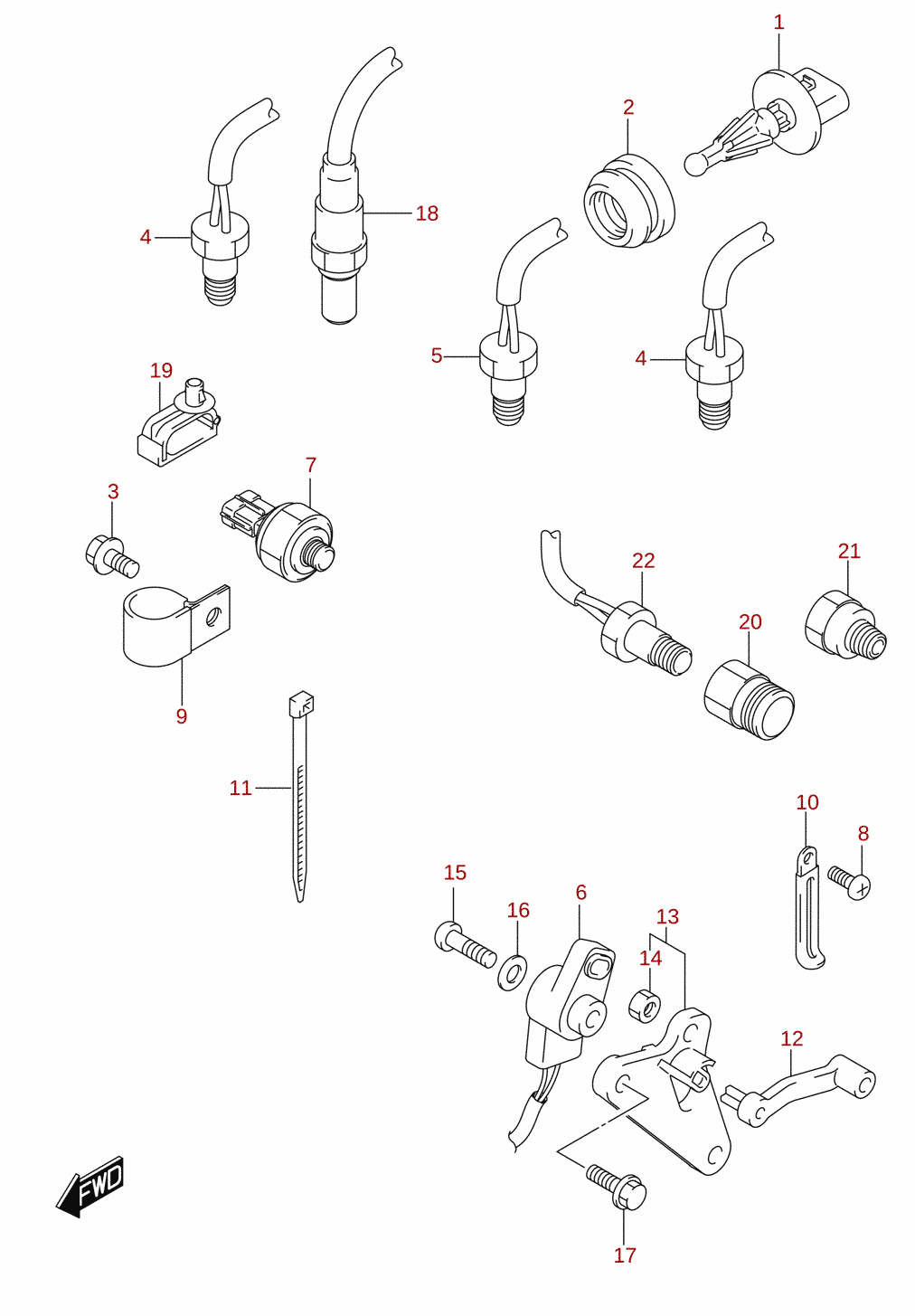

Sensor

Reference no. DF300A_E01_016 24

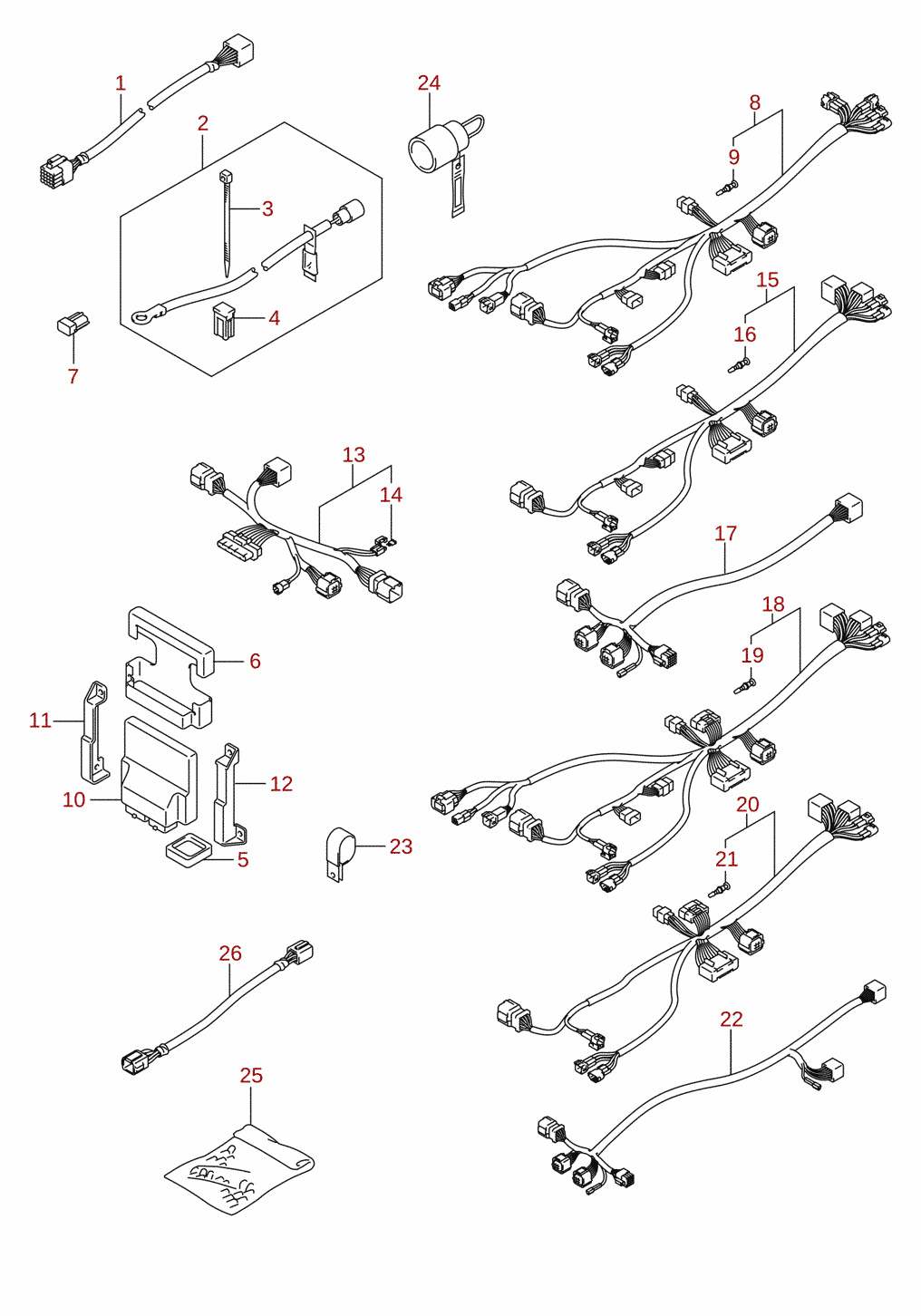

Harness (1) (optional)

Reference no. DF300A_E01_016 47

PTT switch / engine control unit (DF250A)

Reference no. DF300A_E01_016 27

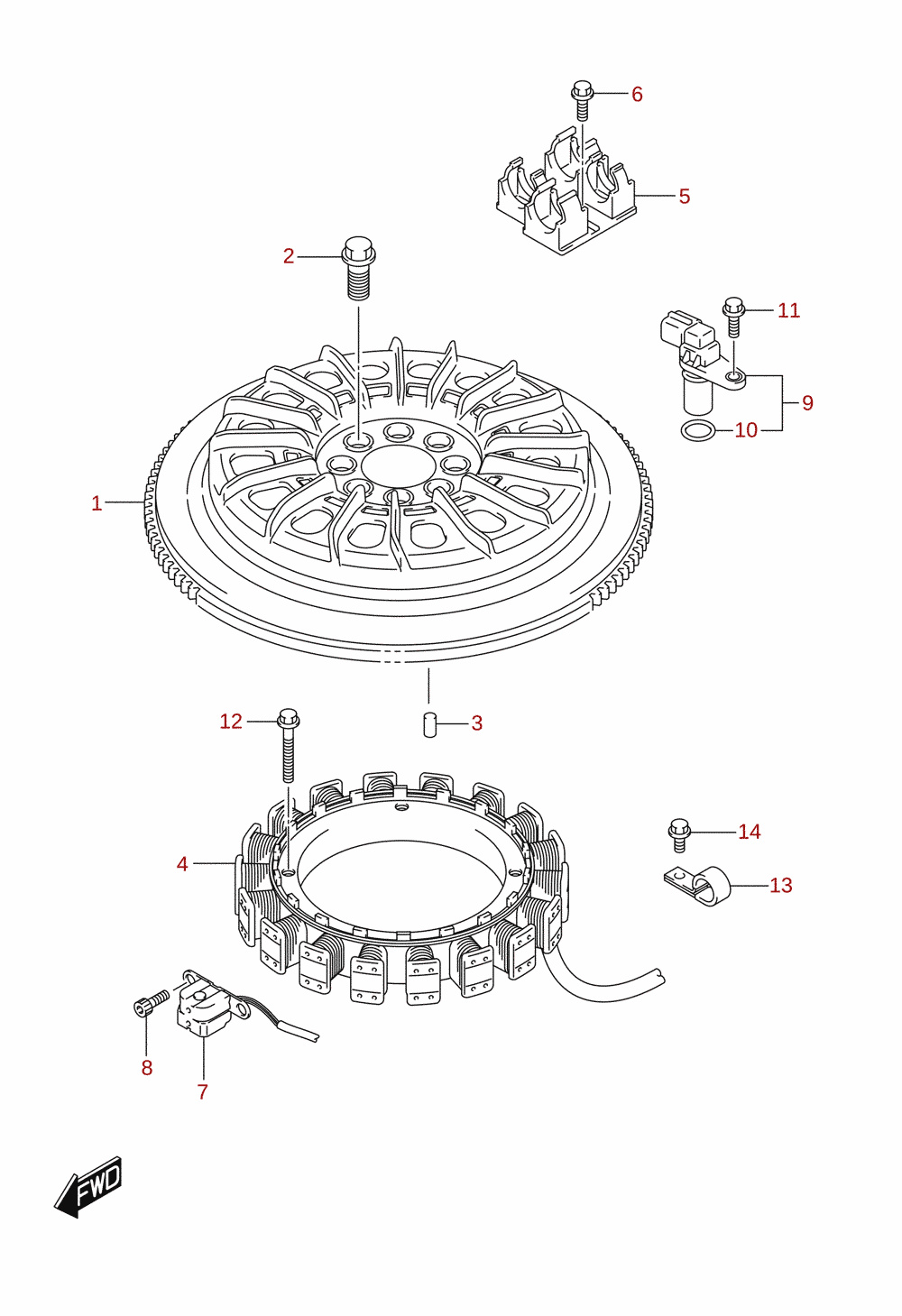

Magneto

Reference no. DF300A_E01_016 22

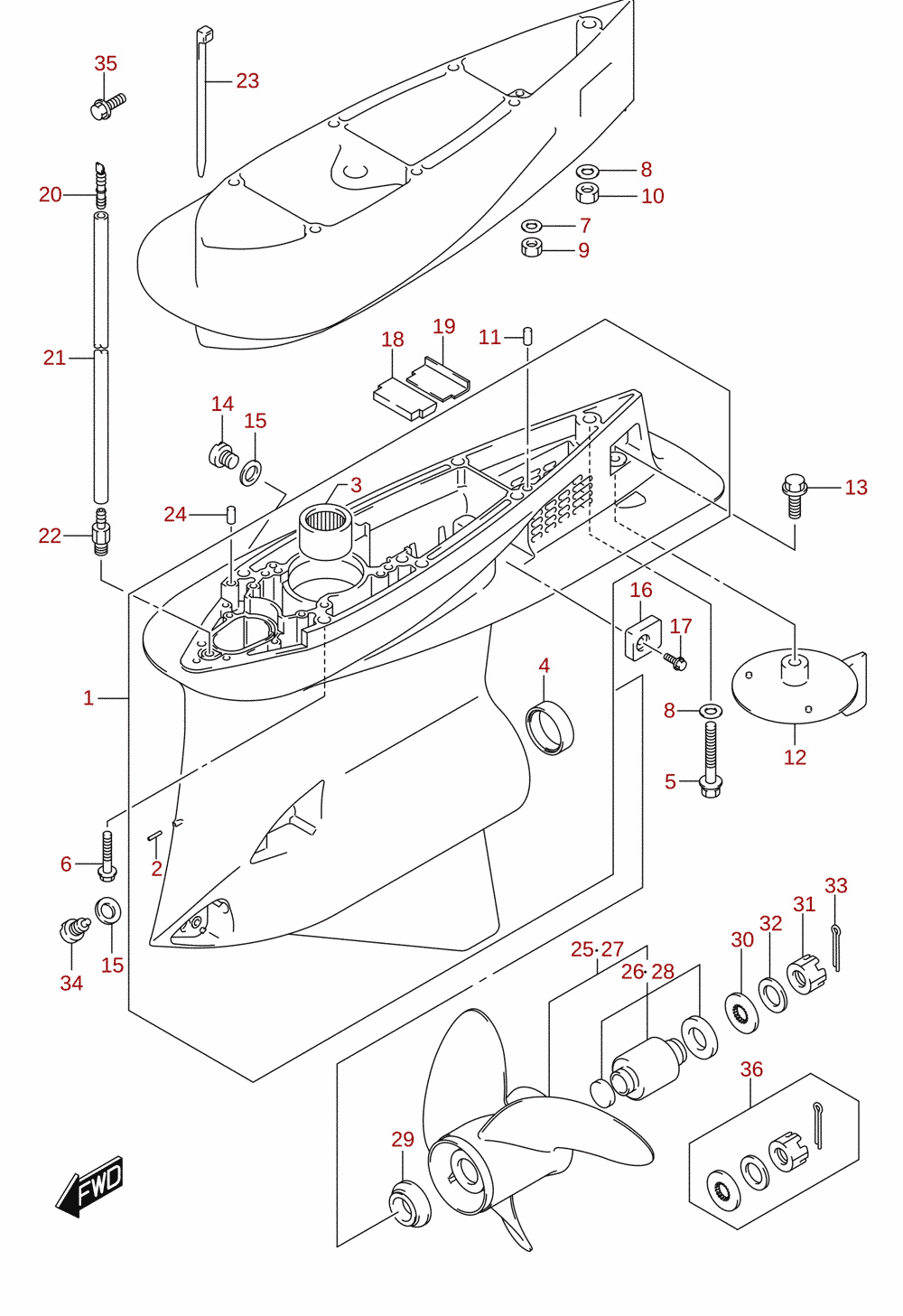

Gear case 2/2

Reference no. DF300A_E01_016 38

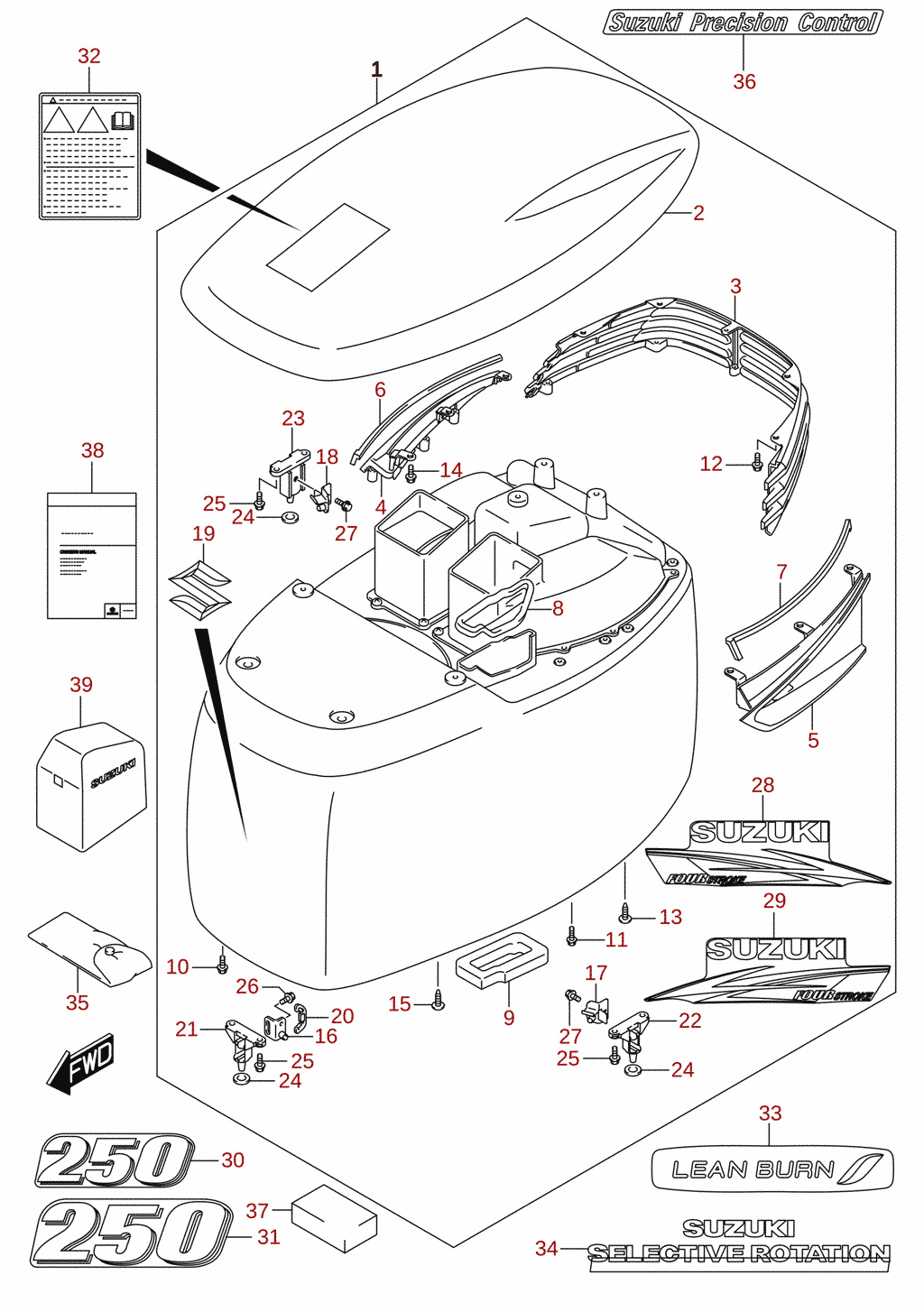

Engine cover (DF250A)

Reference no. DF300A_E01_016 41

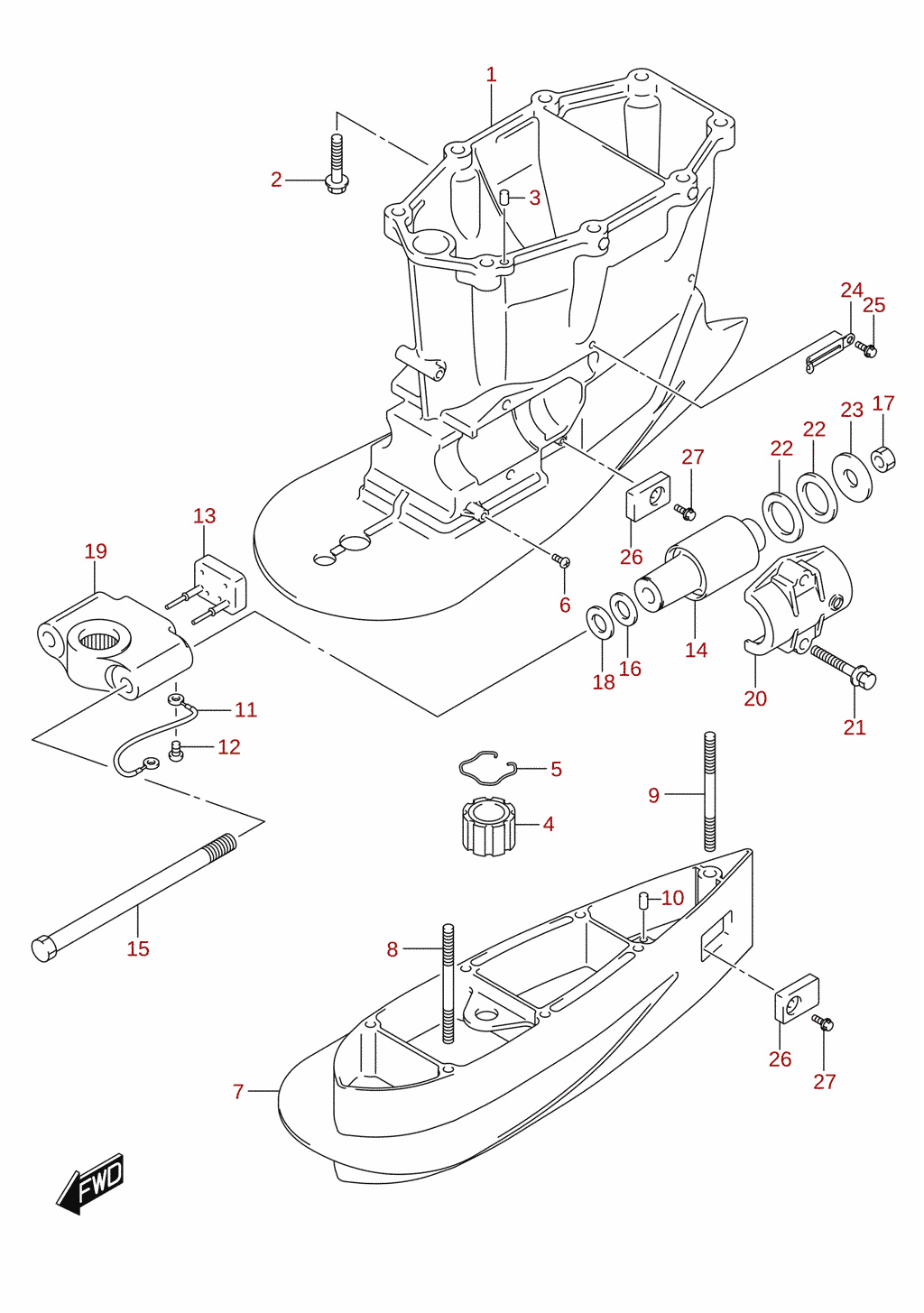

Drive shaft housing (XX-transom)

Reference no. DF300A_E01_016 36

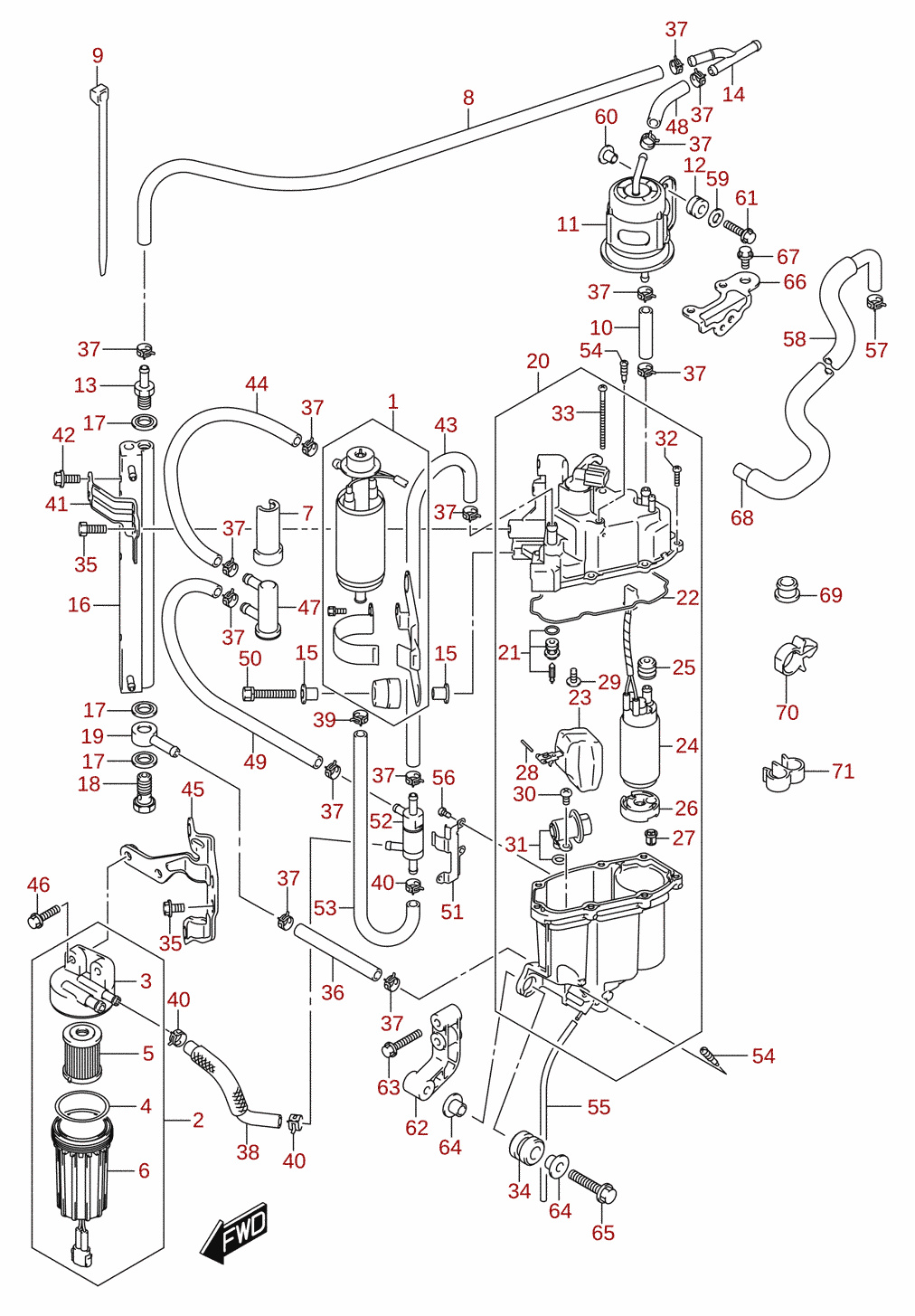

Fuel pump / fuel vapor separator

Reference no. DF300A_E01_016 9

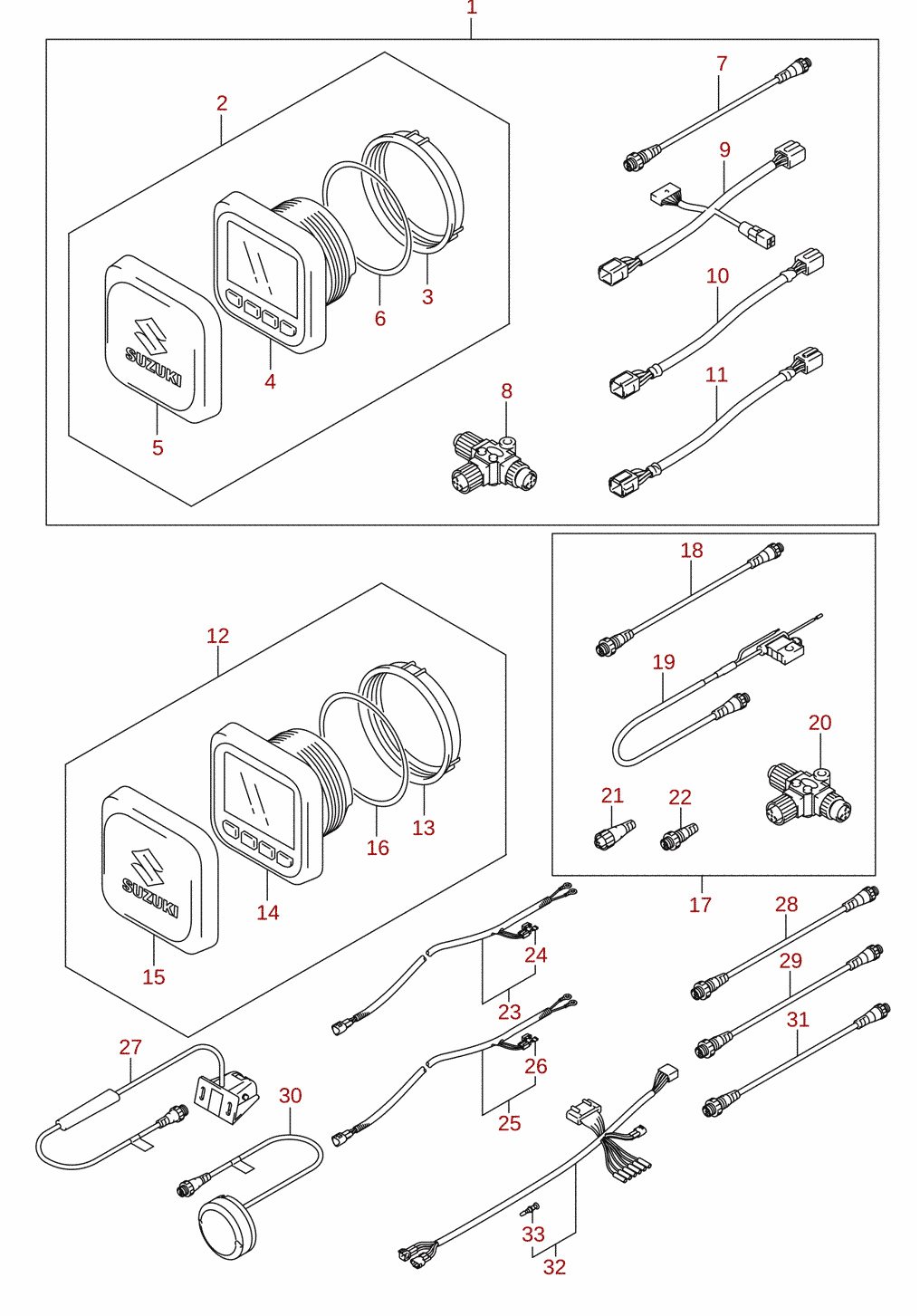

Meter (2) (optional)

Reference no. DF300A_E01_016 45

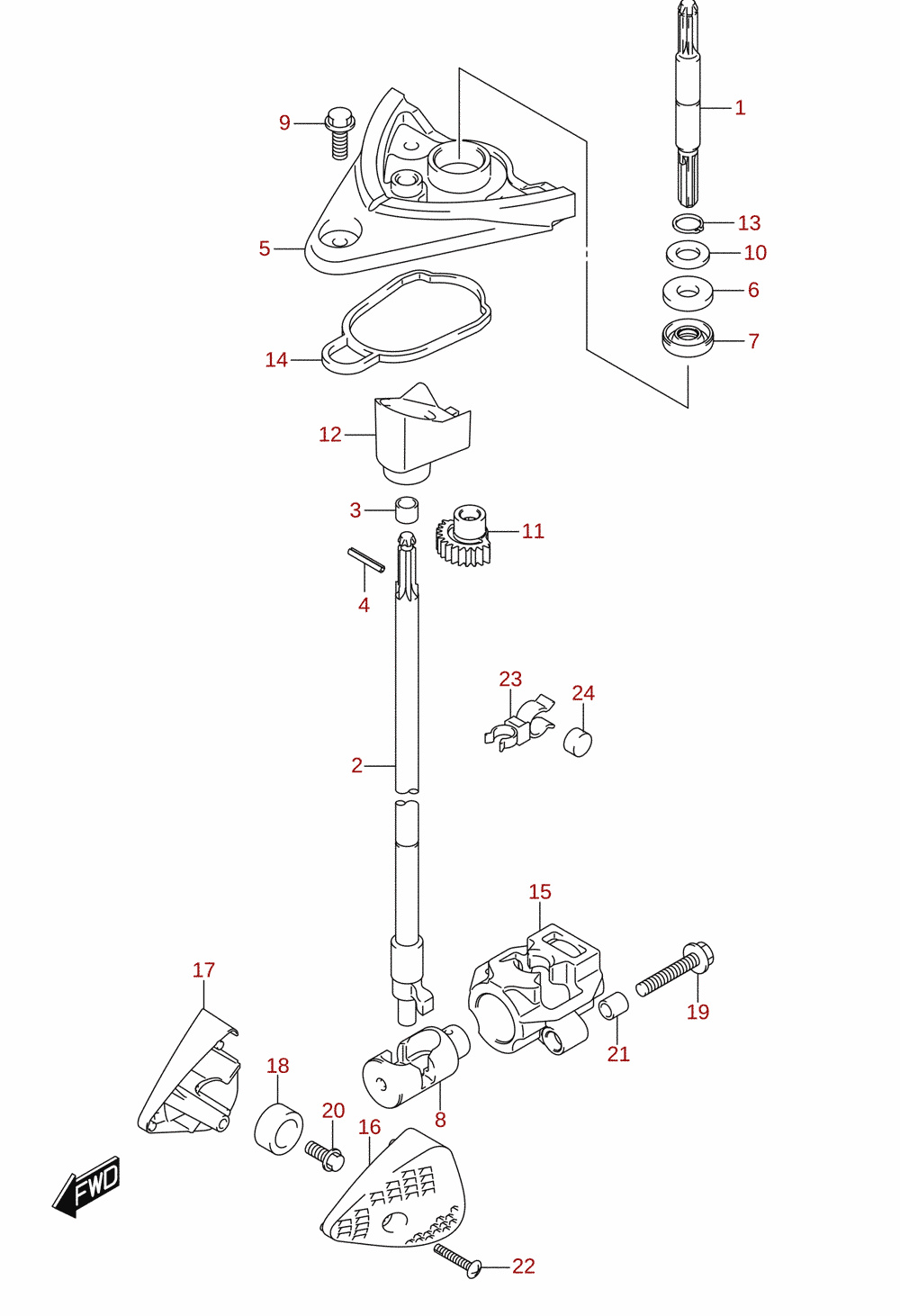

Clutch rod 2/2

Reference no. DF300A_E01_016 18

Keyless start (DF300A) (optional)

Reference no. DF300A_E01_016 50

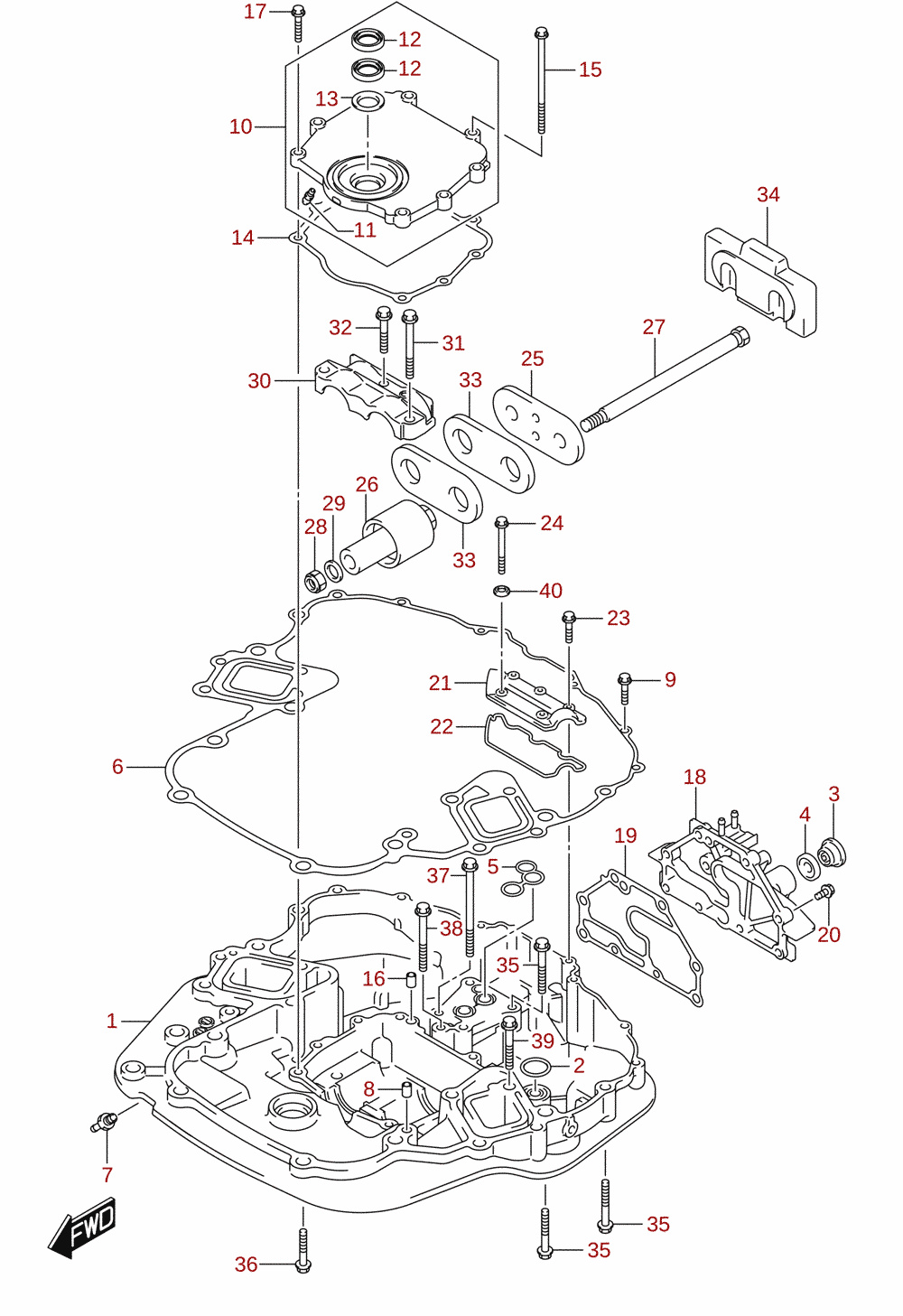

Engine holder

Reference no. DF300A_E01_016 34

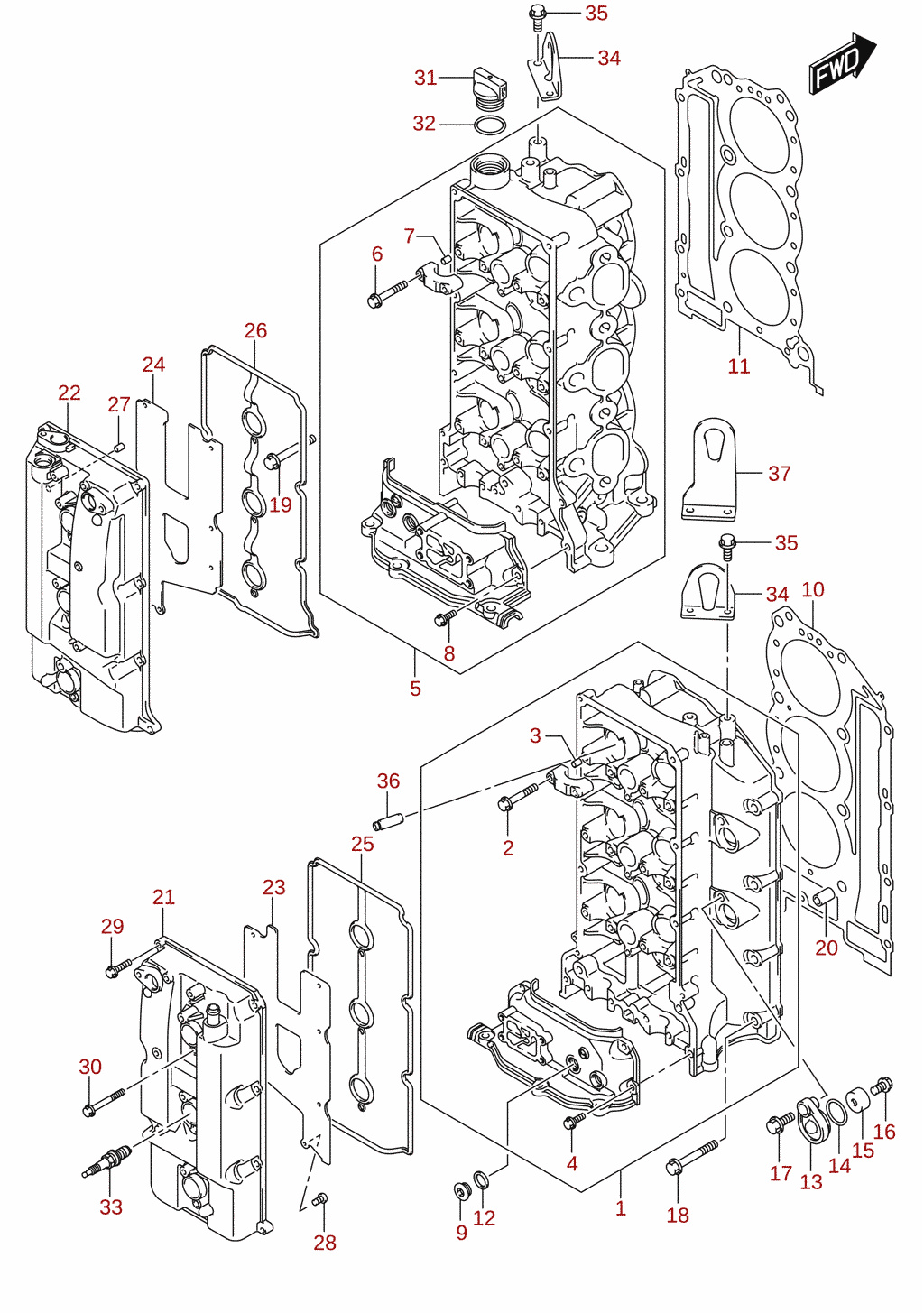

Cylinder head

Reference no. DF300A_E01_016 0

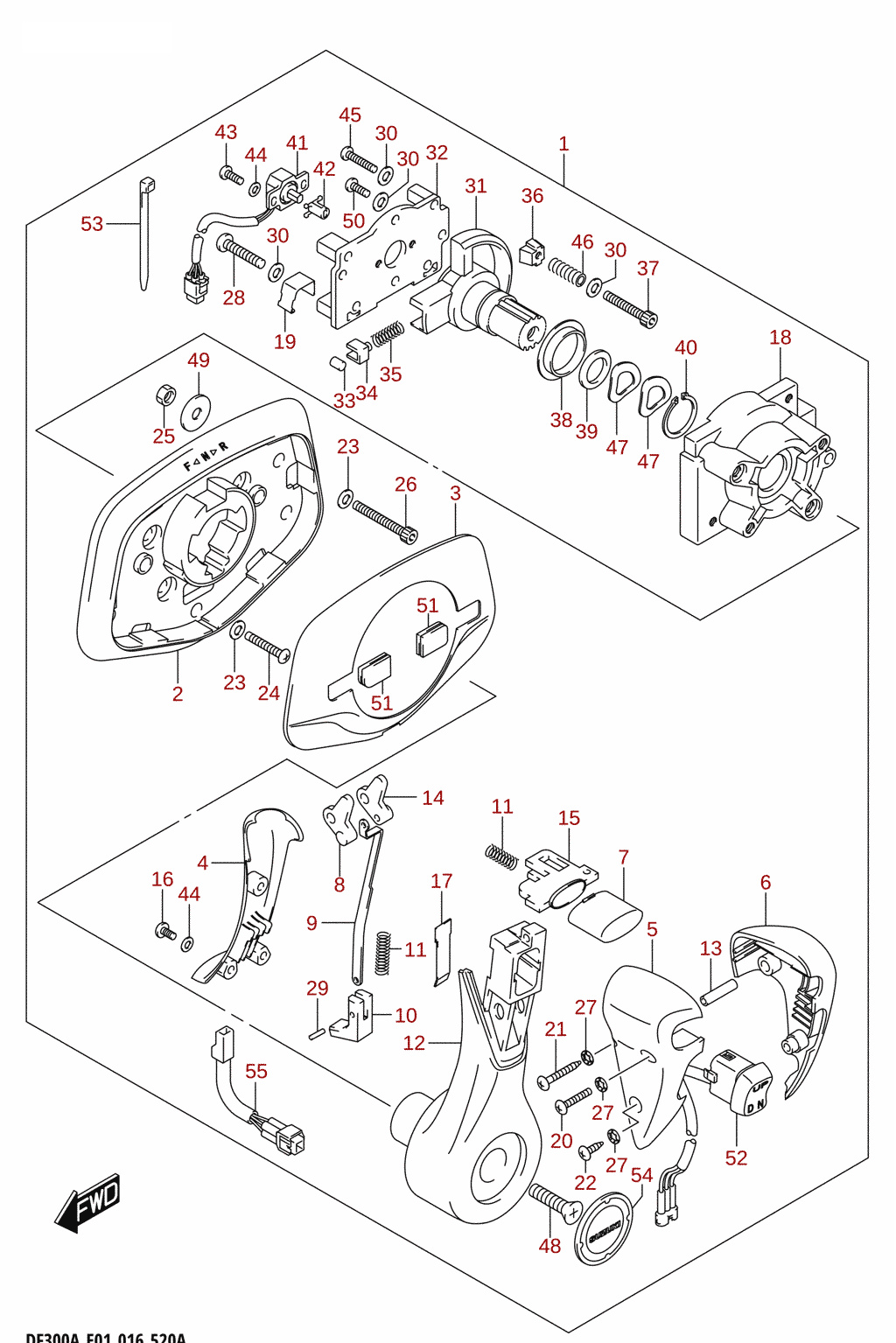

Flush mount remote control (optional)

Reference no. DF300A_E01_016 46

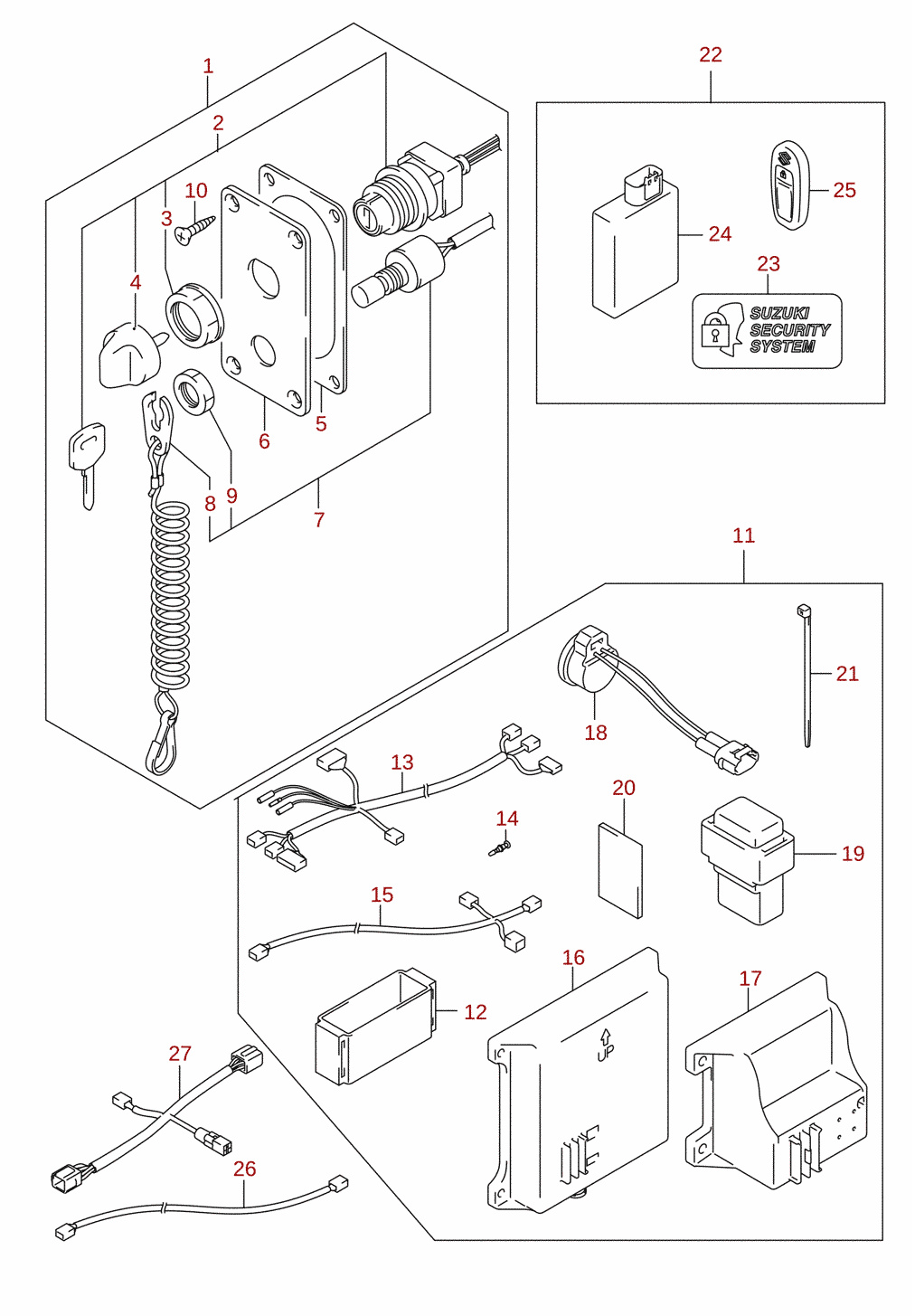

Keyless start (DF250A) (optional)

Reference no. DF300A_E01_016 51

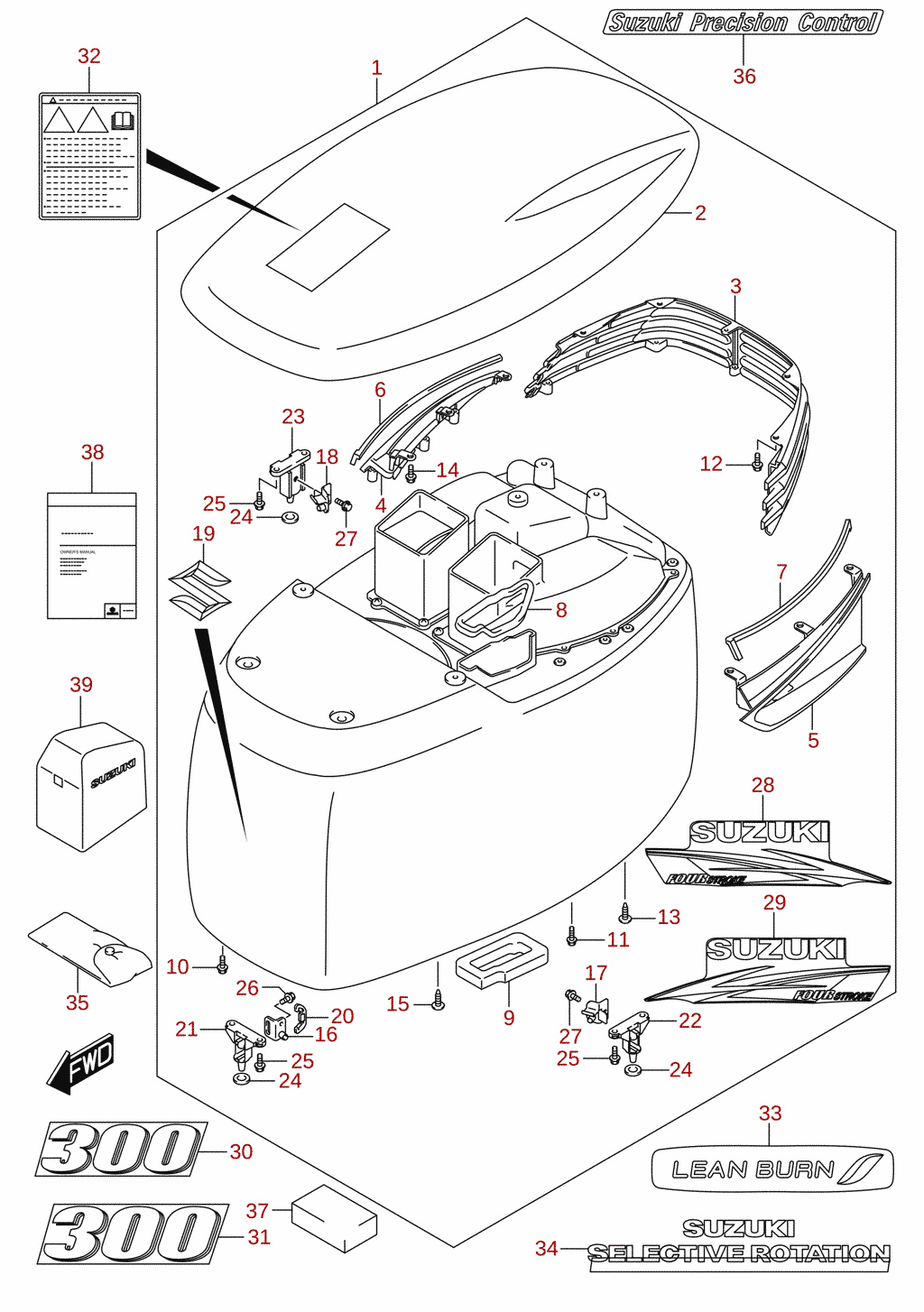

Engine cover (DF300A)

Reference no. DF300A_E01_016 40

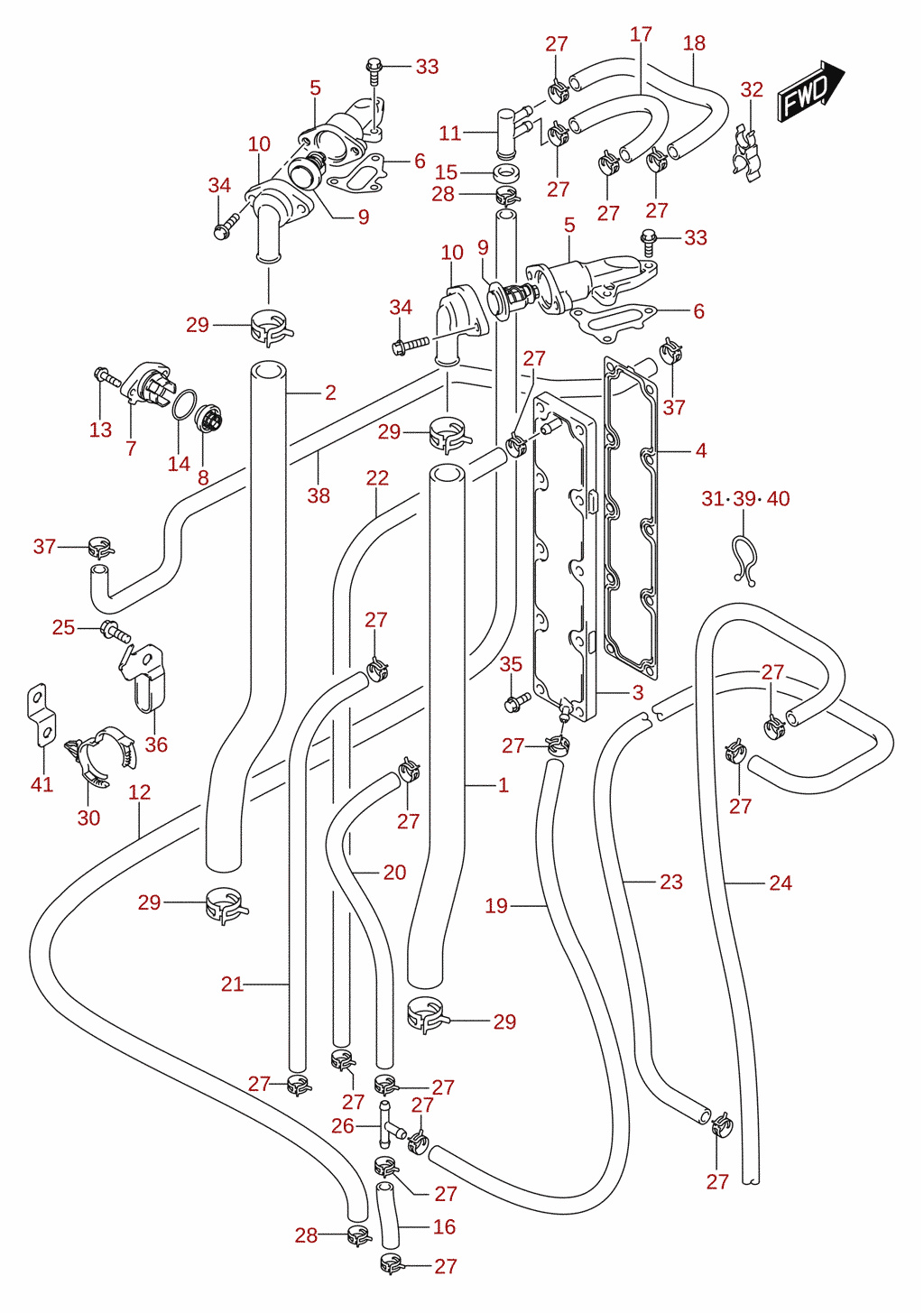

Thermostat

Reference no. DF300A_E01_016 12

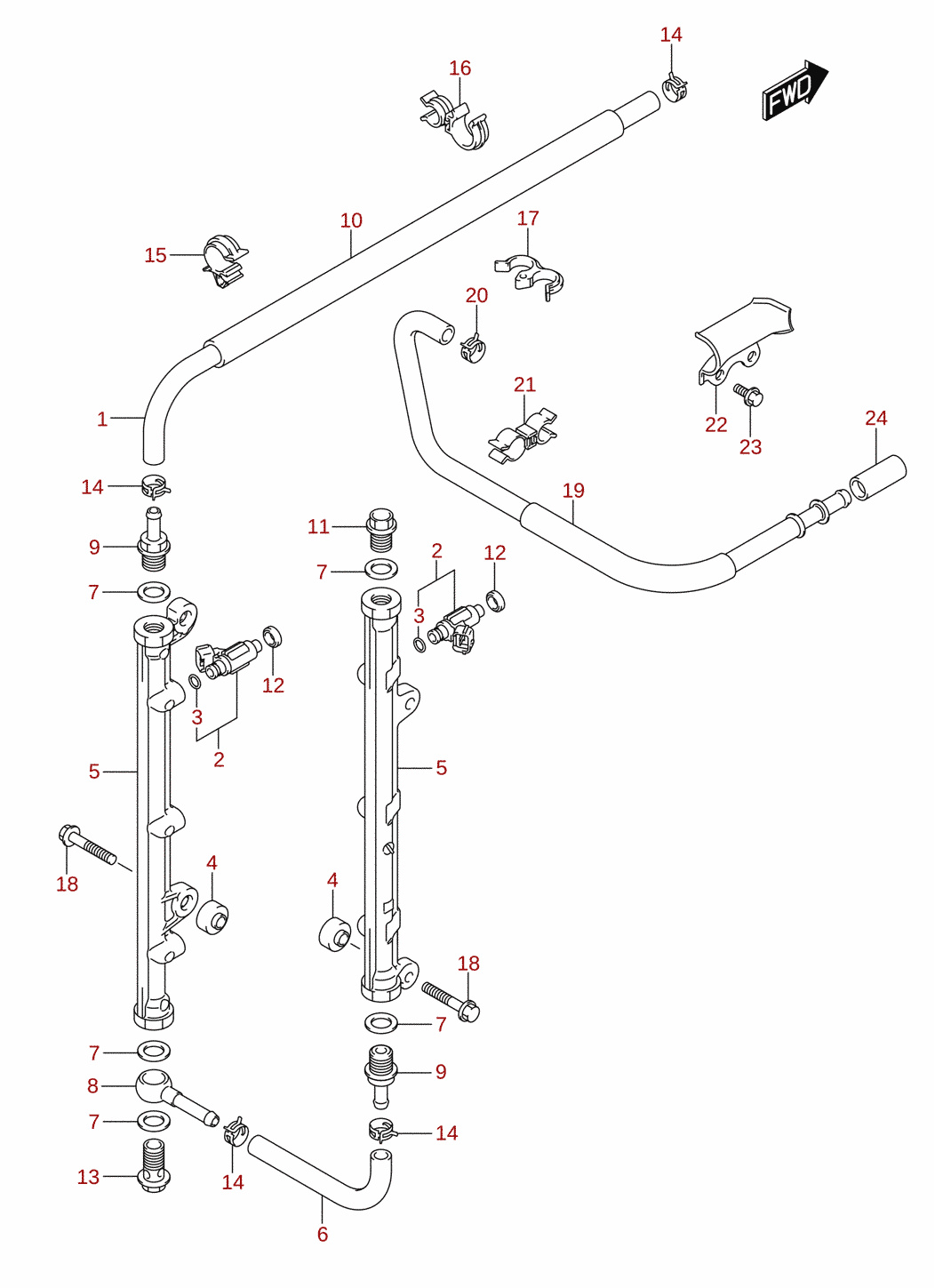

Fuel injector

Reference no. DF300A_E01_016 8

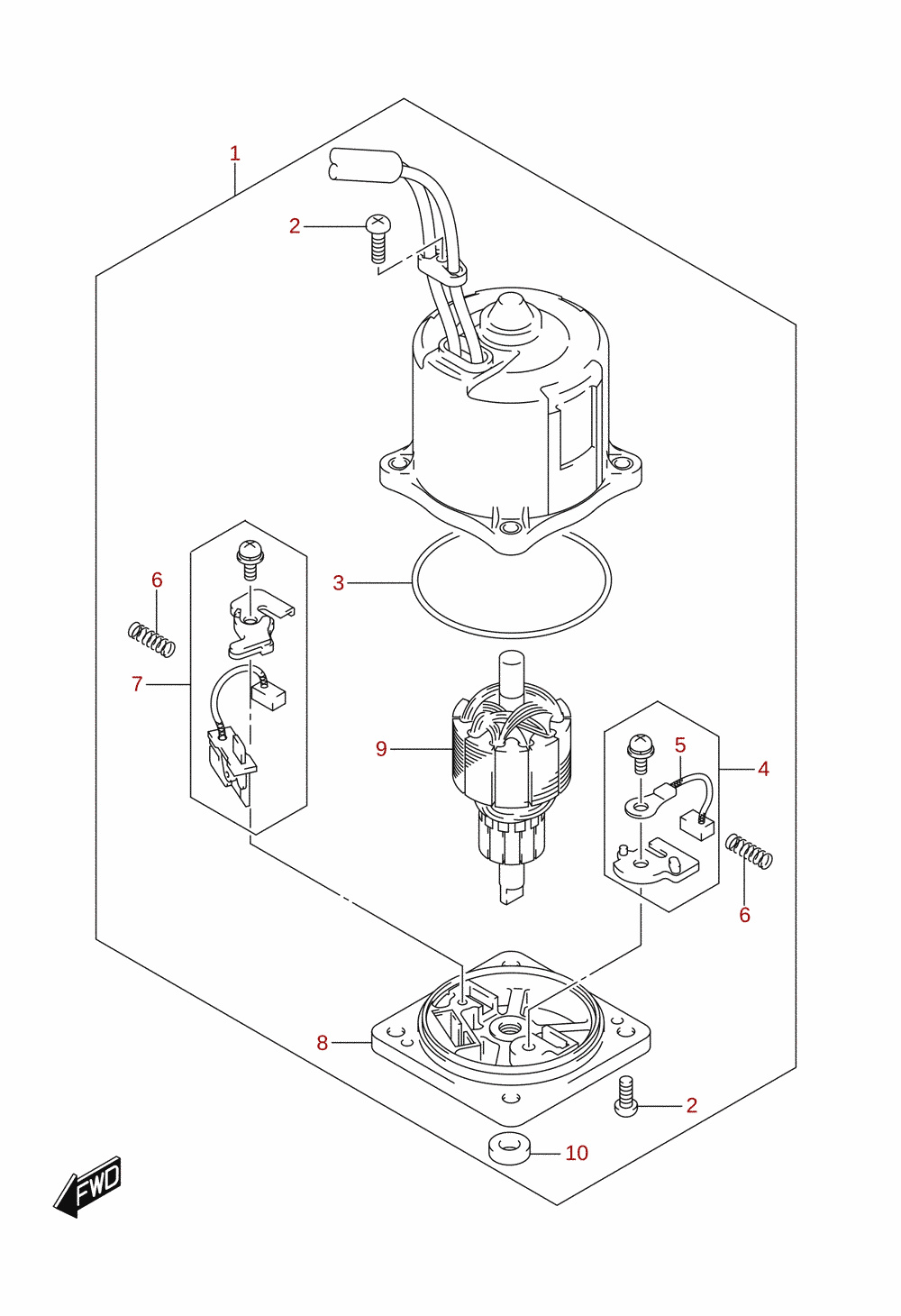

PTT motor

Reference no. DF300A_E01_016 33

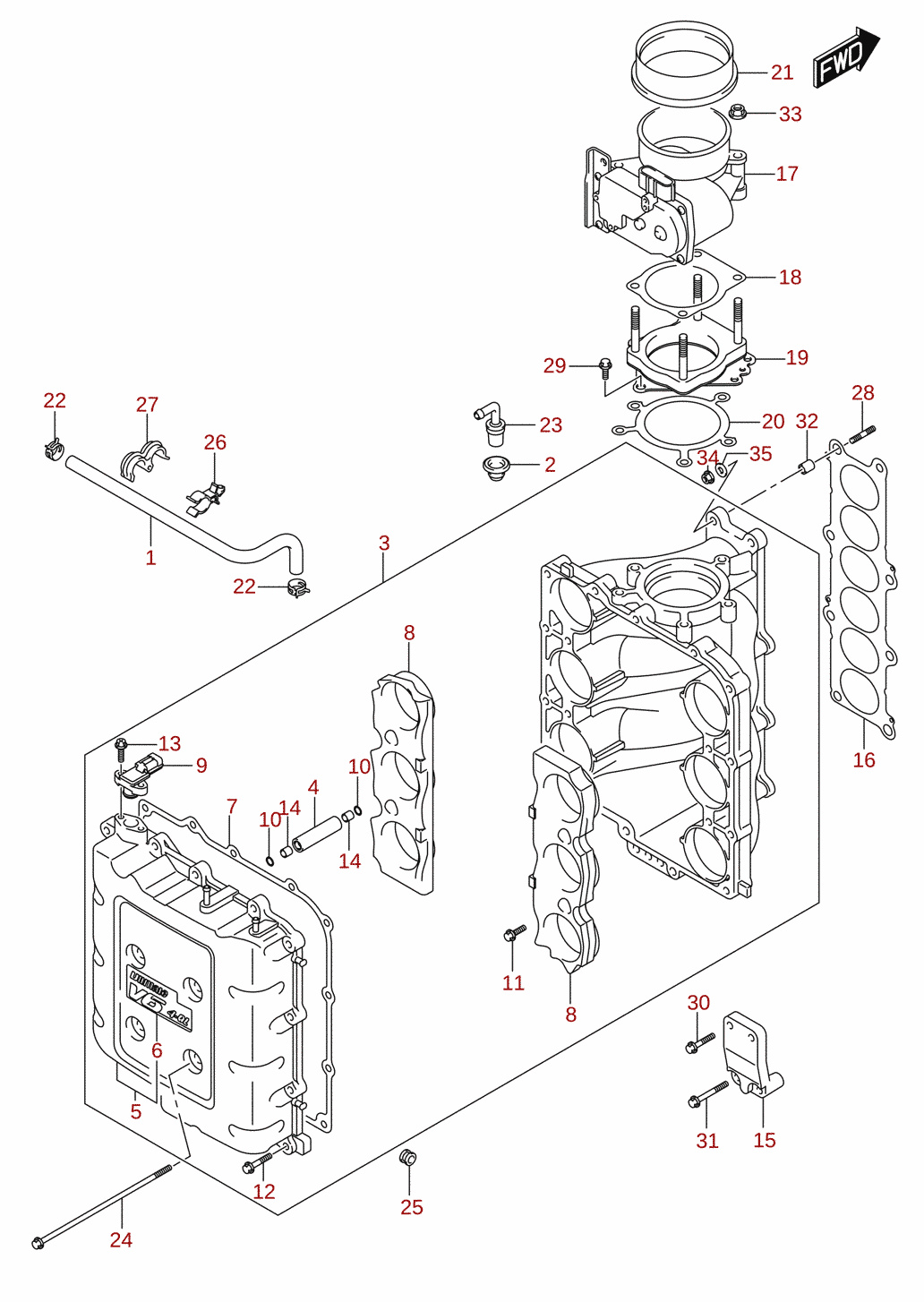

Throttle body

Reference no. DF300A_E01_016 13

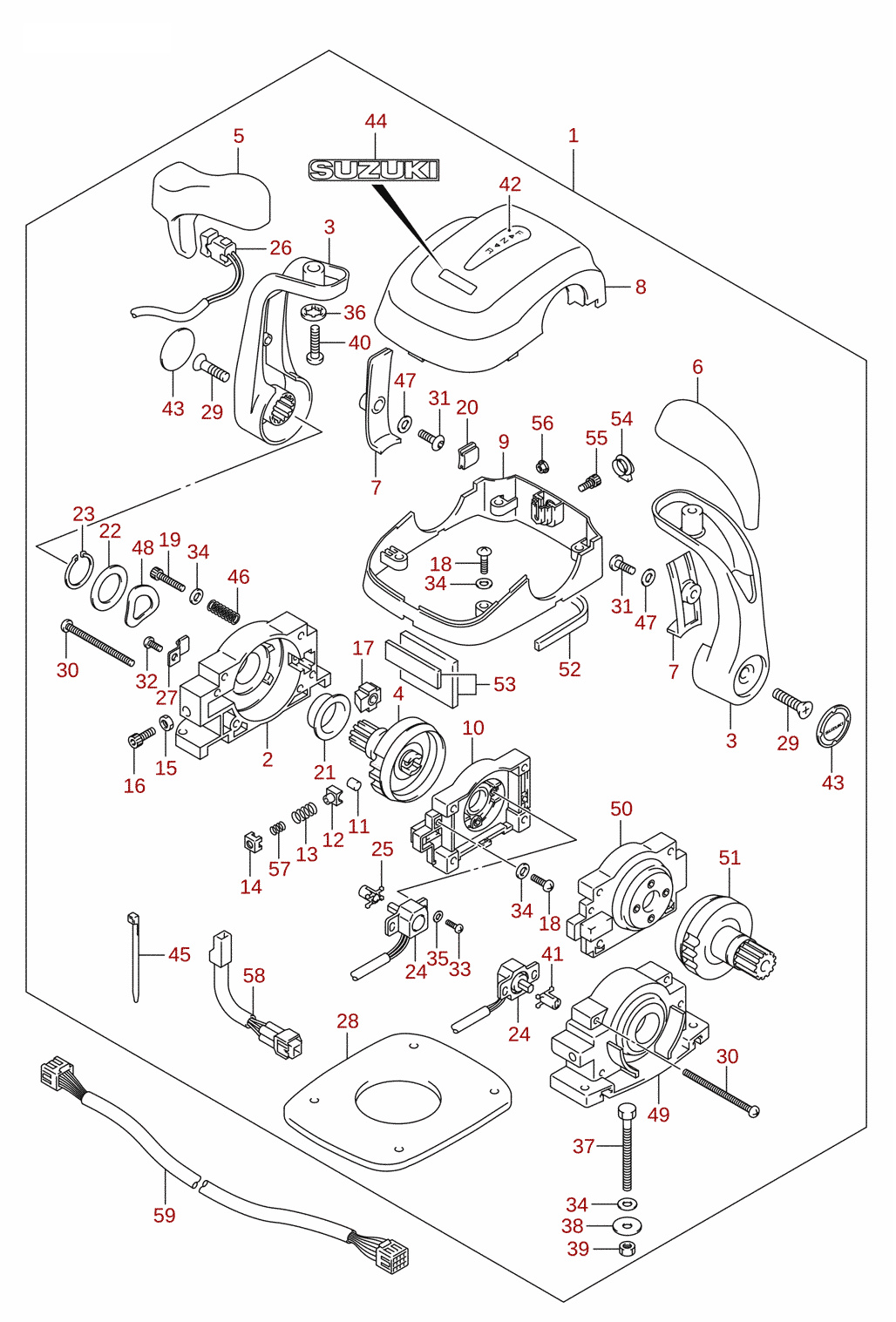

Remote control assembly dual (optional)

Reference no. DF300A_E01_016 52

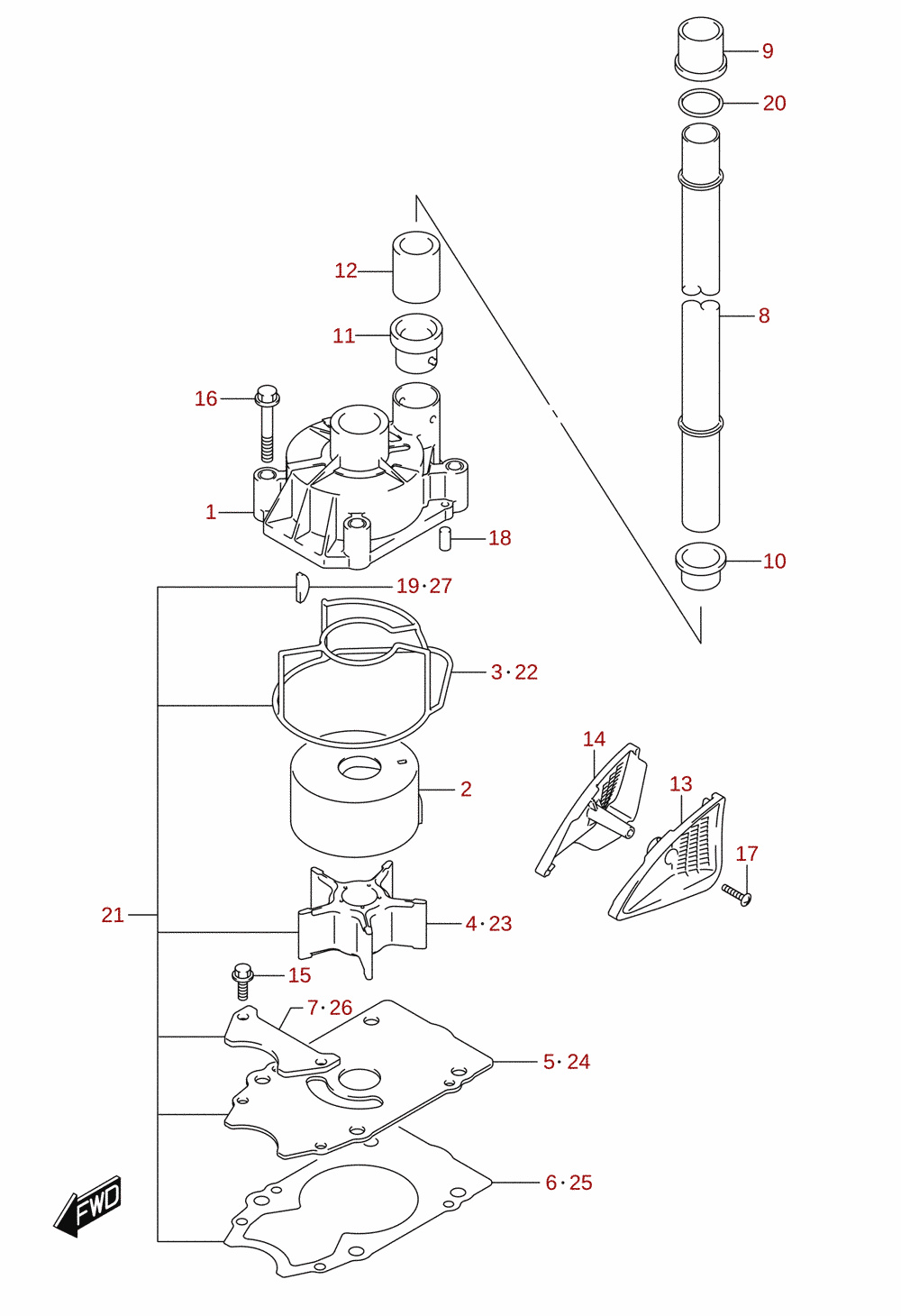

Water pump 1/2

Reference no. DF300A_E01_016 10

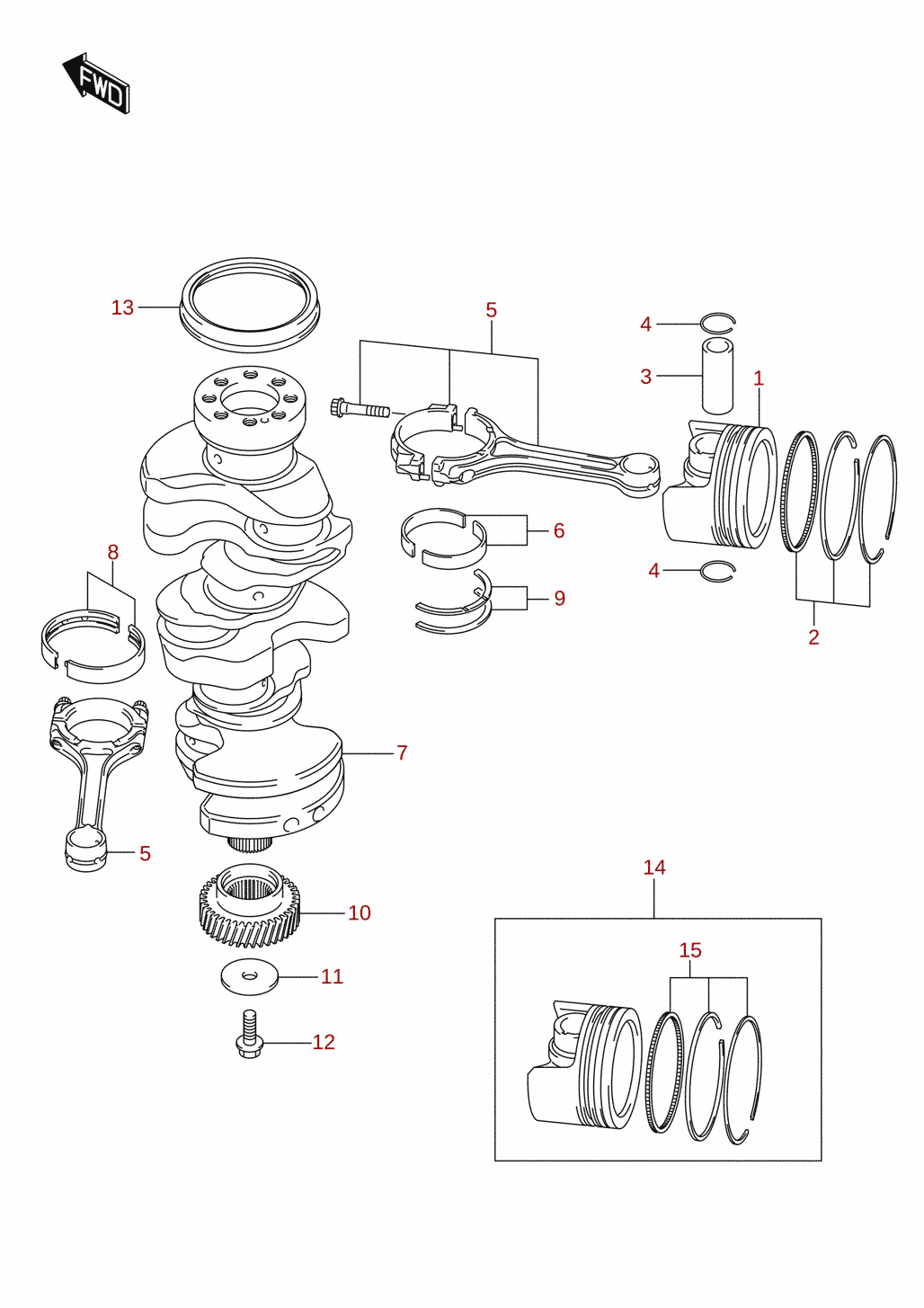

Crankshaft

Reference no. DF300A_E01_016 2

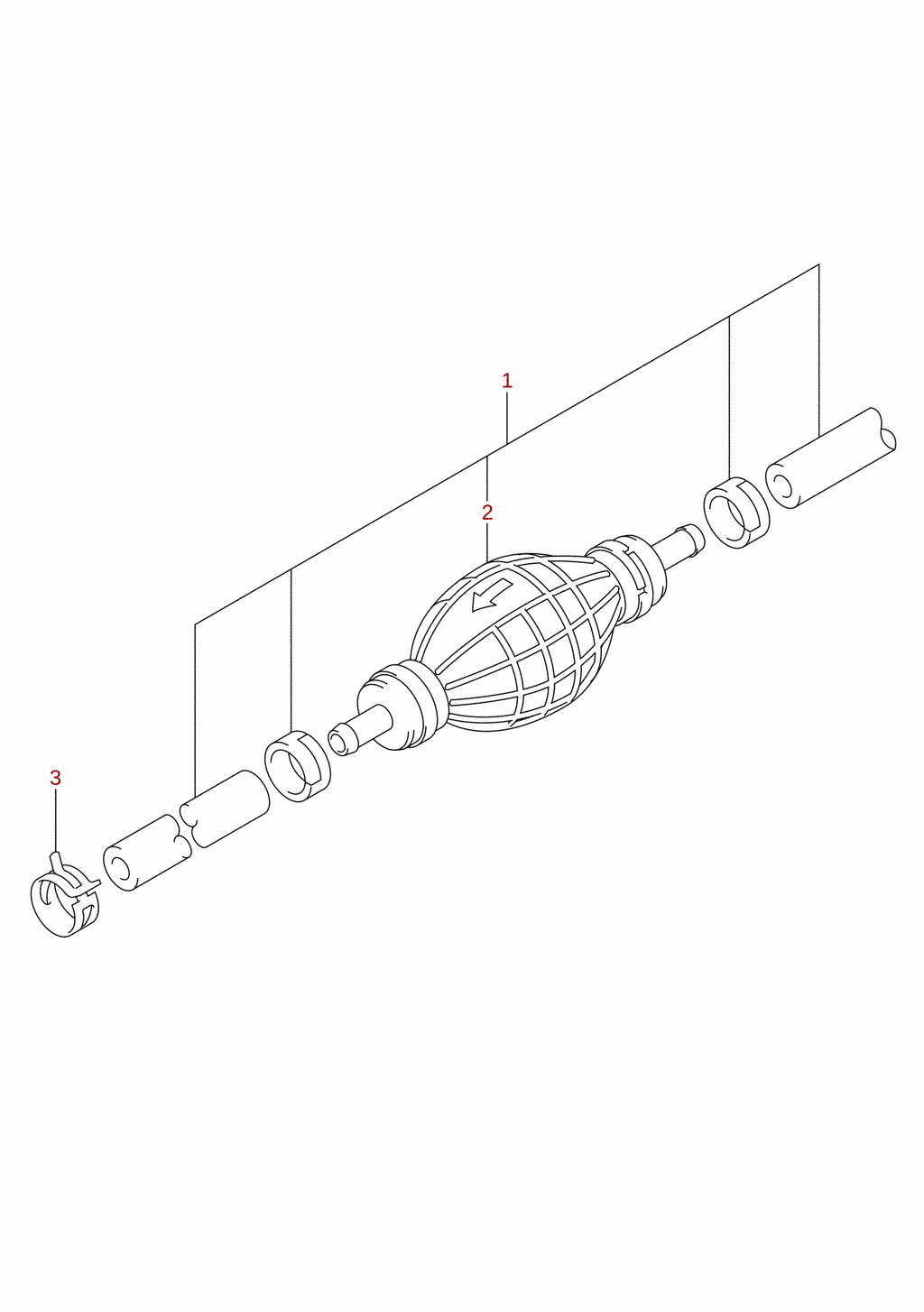

Fuel hose (DF300A)

Reference no. DF300A_E01_016 42

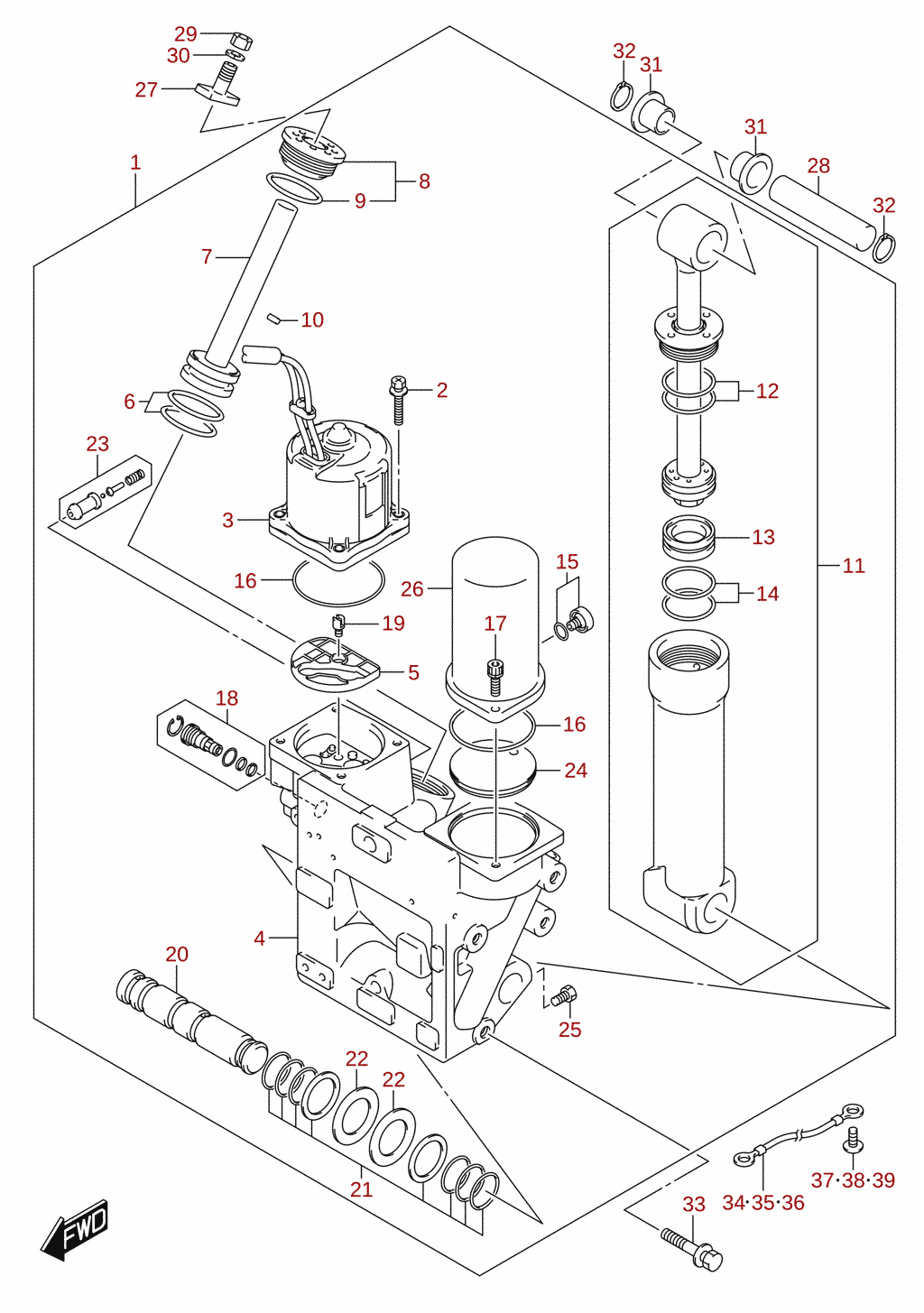

Trim cylinder

Reference no. DF300A_E01_016 32

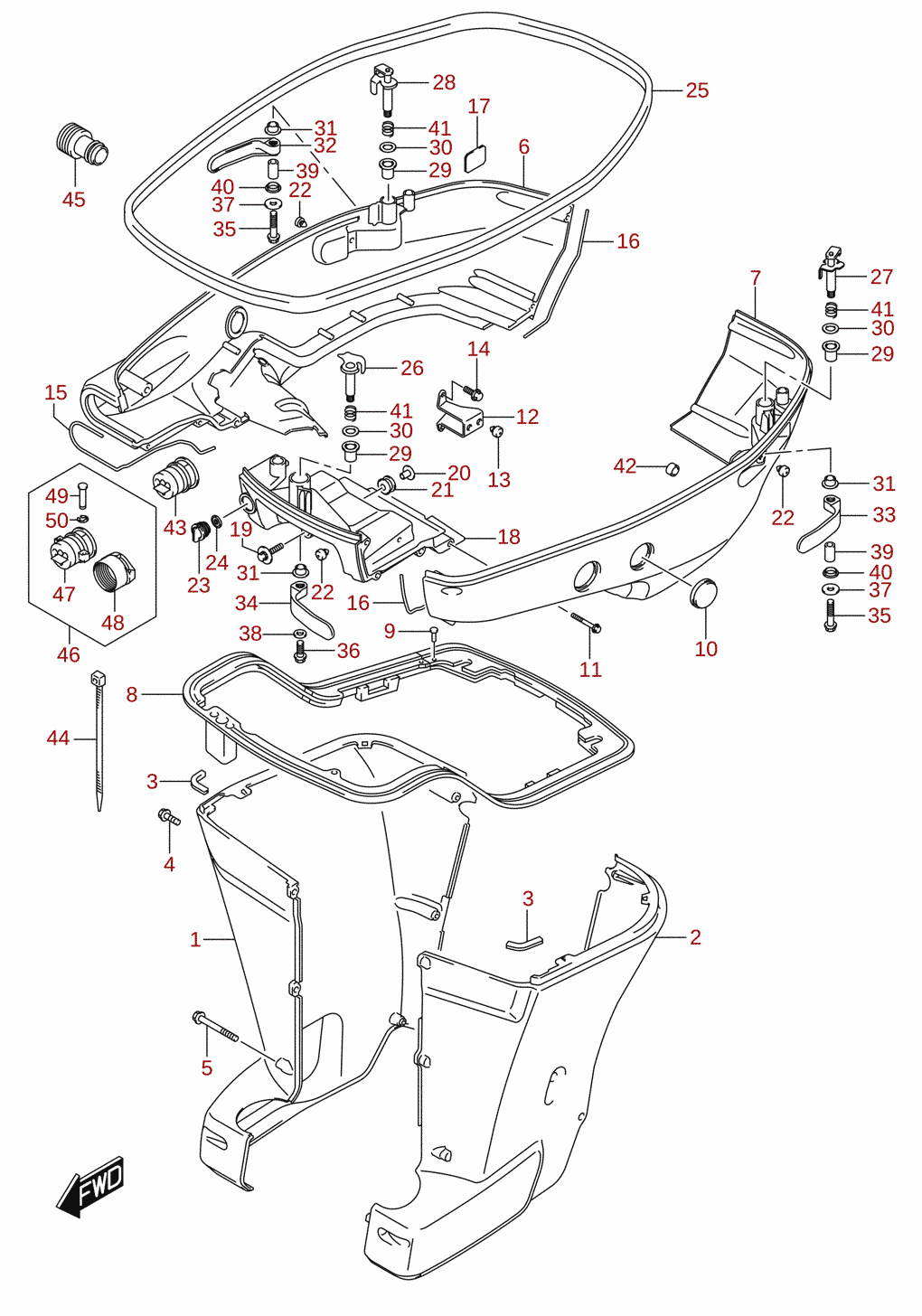

Side cover

Reference no. DF300A_E01_016 39

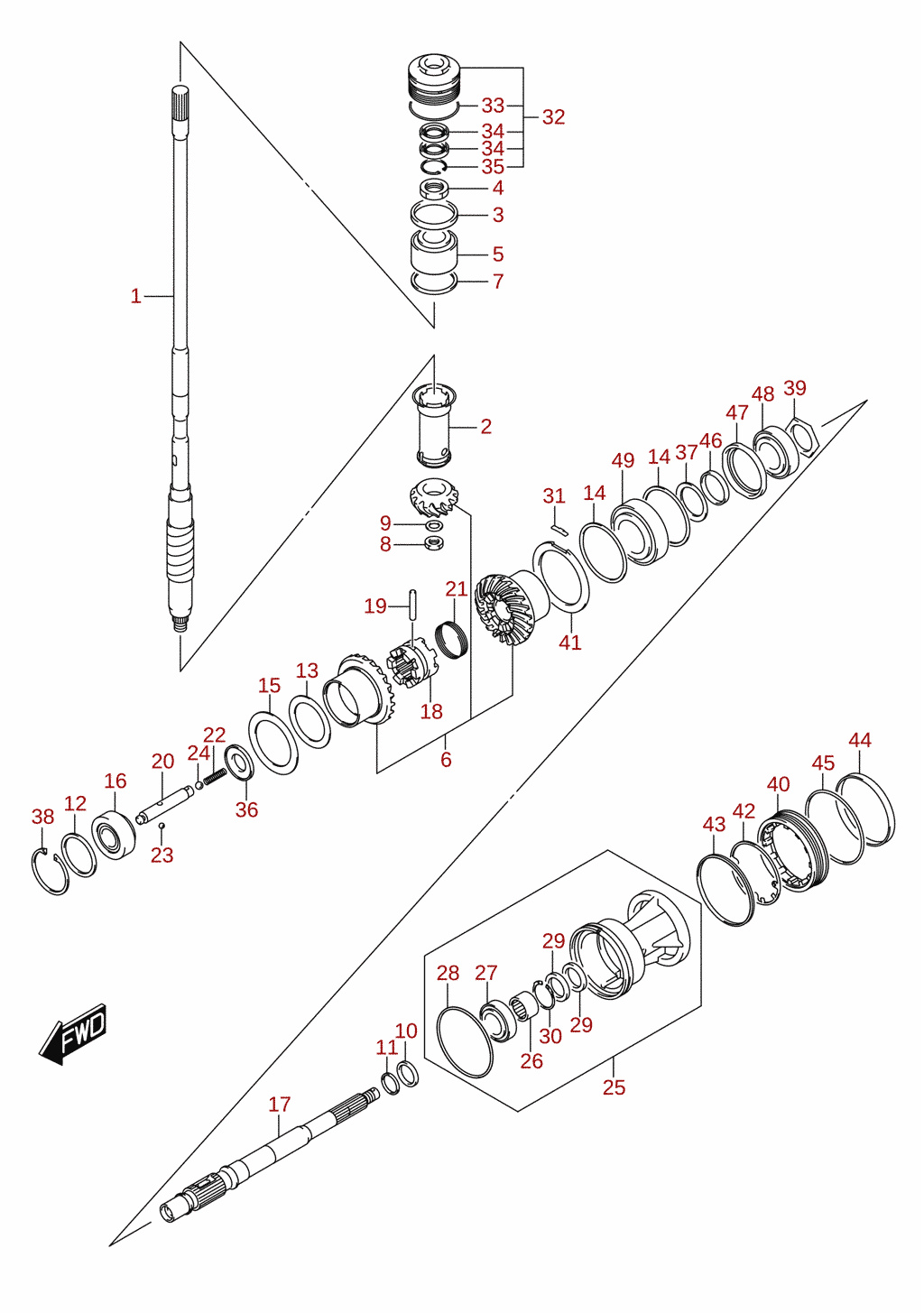

Transmission 2/2

Reference no. DF300A_E01_016 20

Ring gear cover

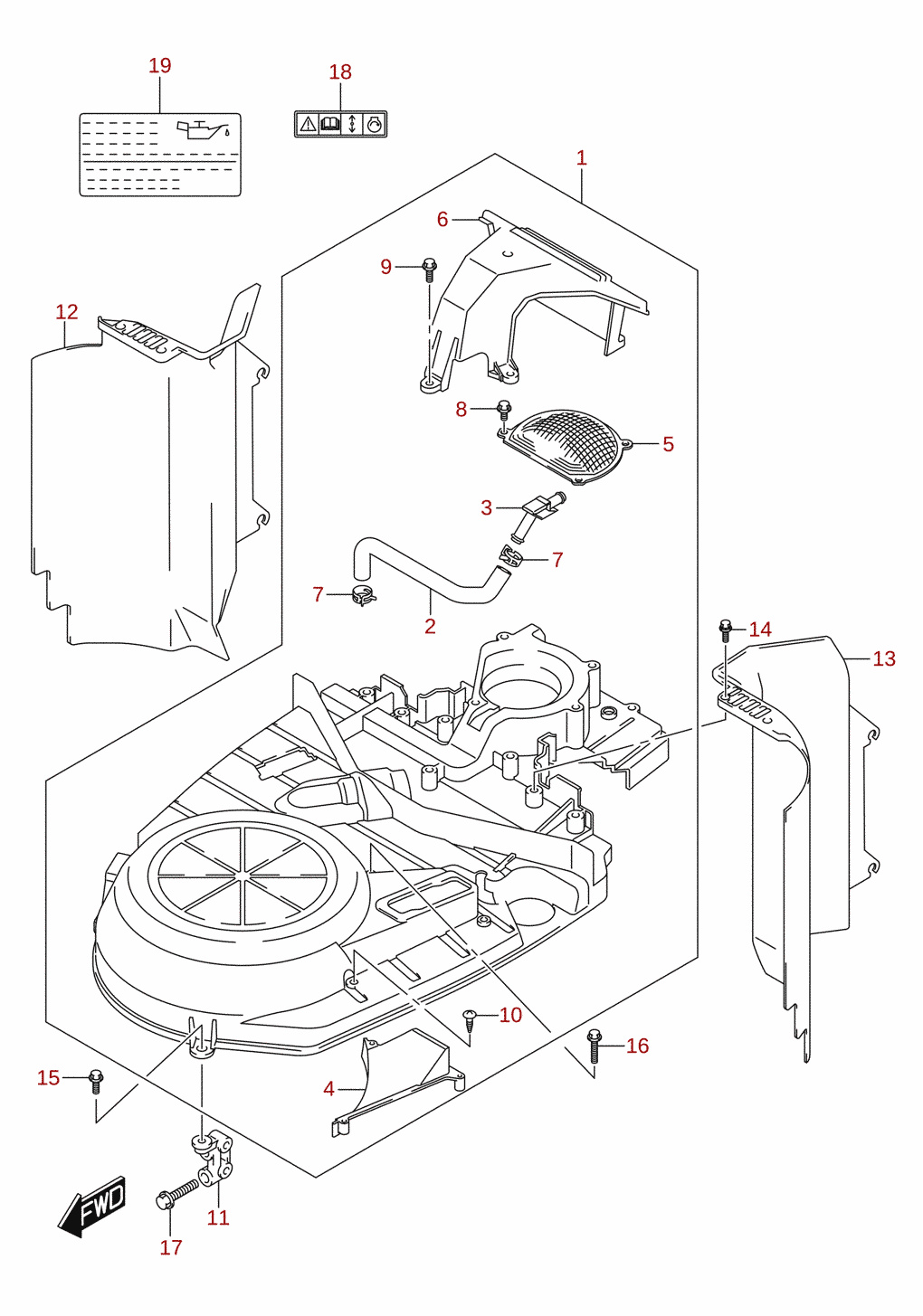

Reference no. DF300A_E01_016 6

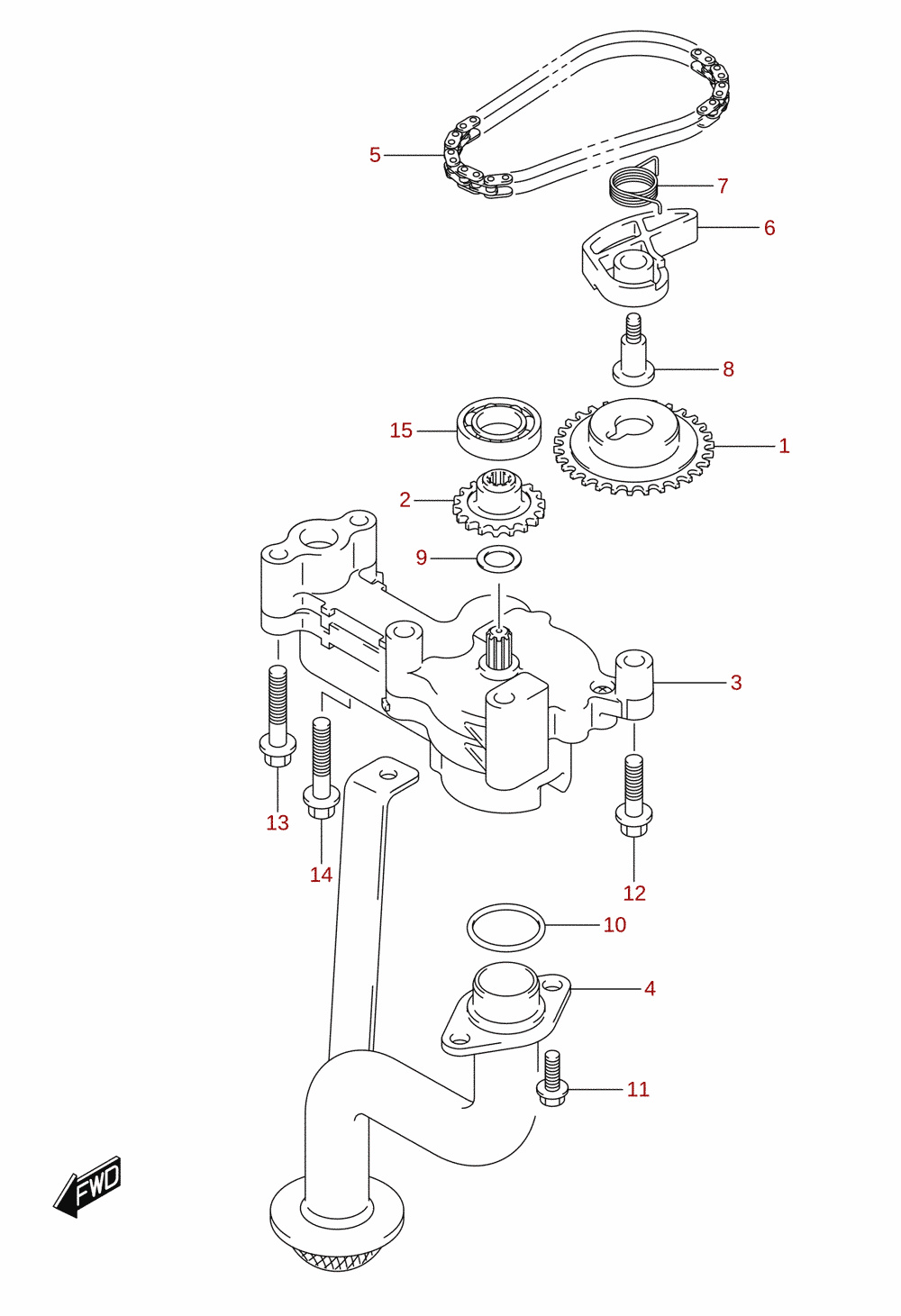

Oil pump

Reference no. DF300A_E01_016 14

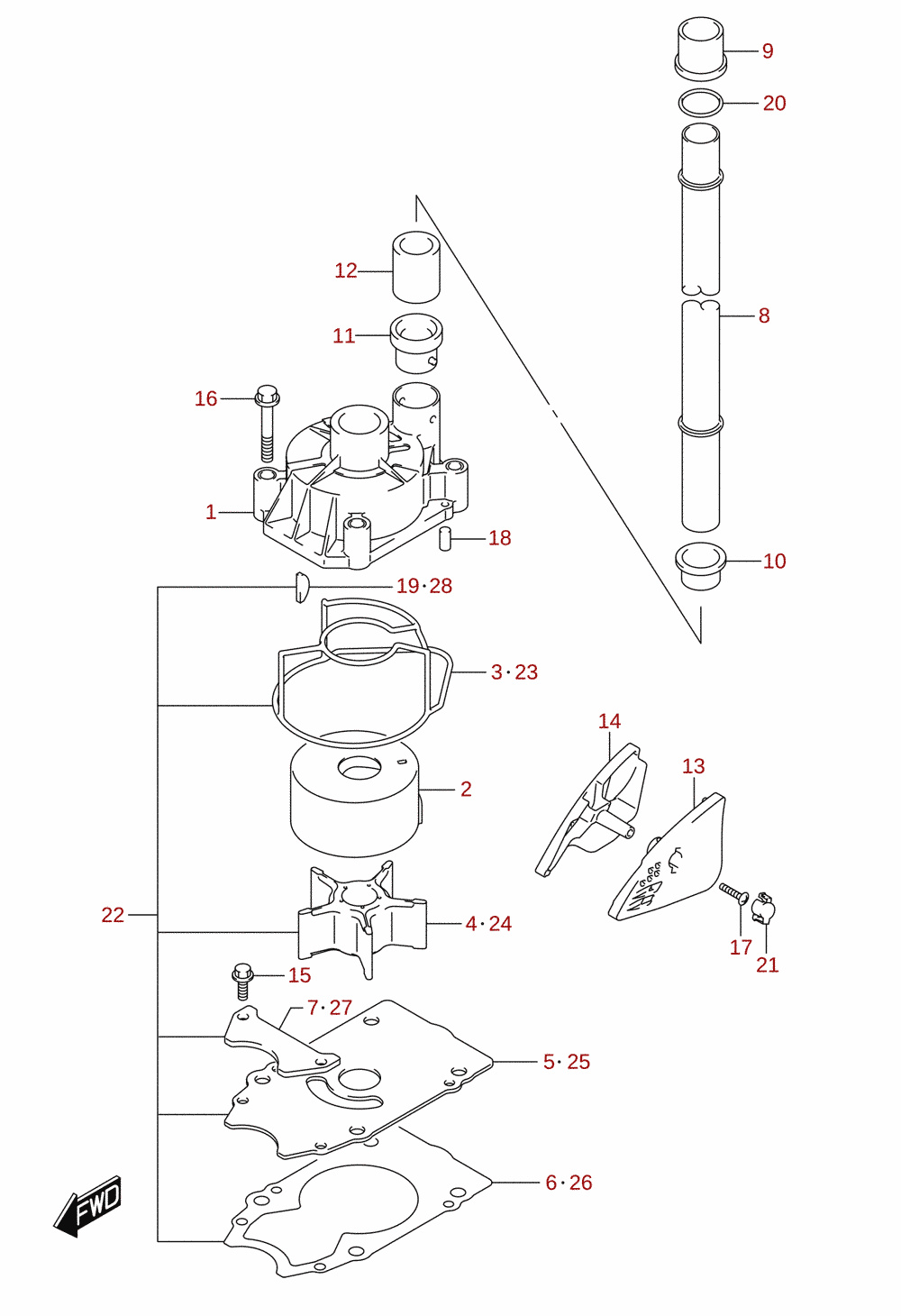

Water pump 2/2

Reference no. DF300A_E01_016 11

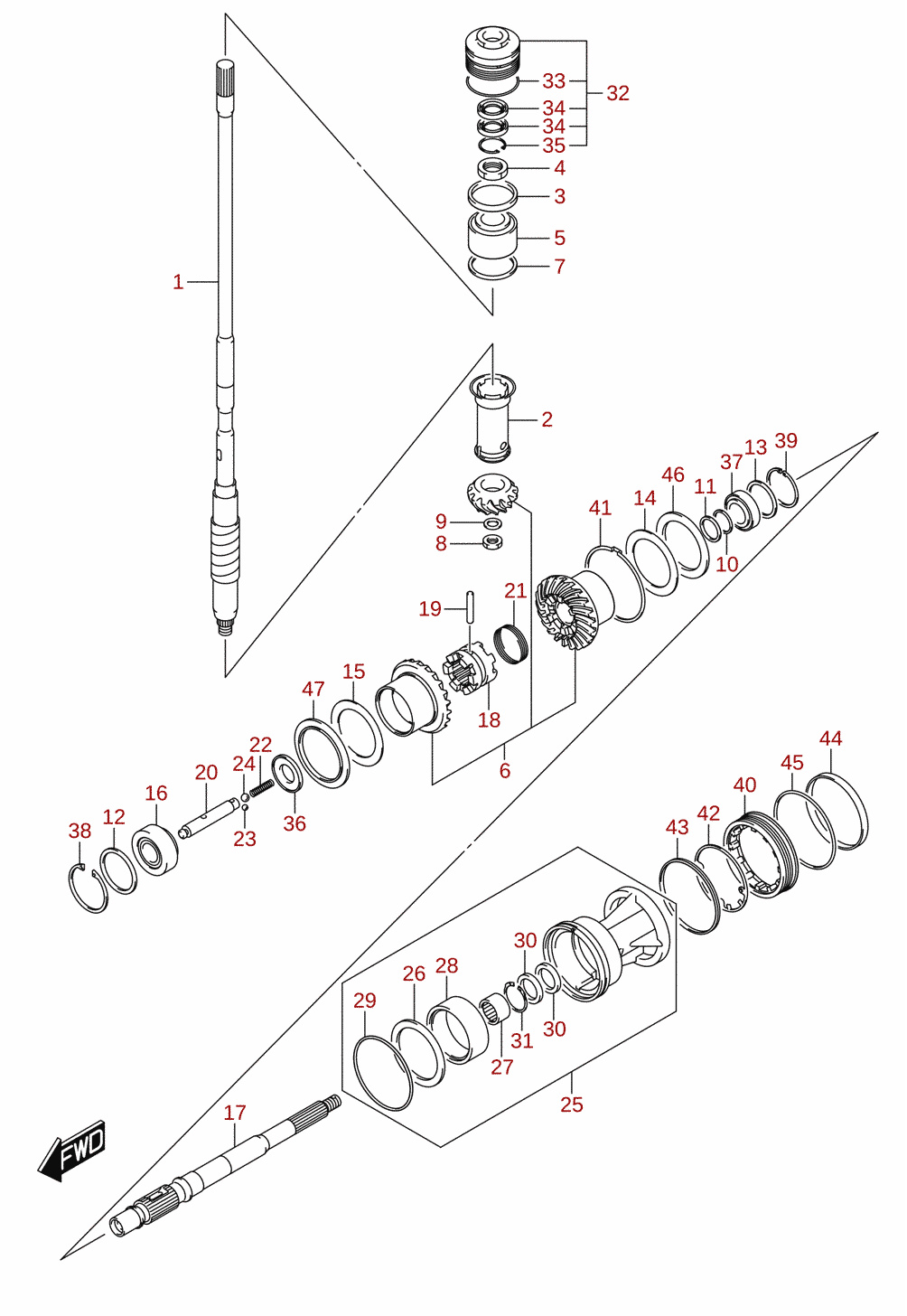

Transmission 1/2

Reference no. DF300A_E01_016 19

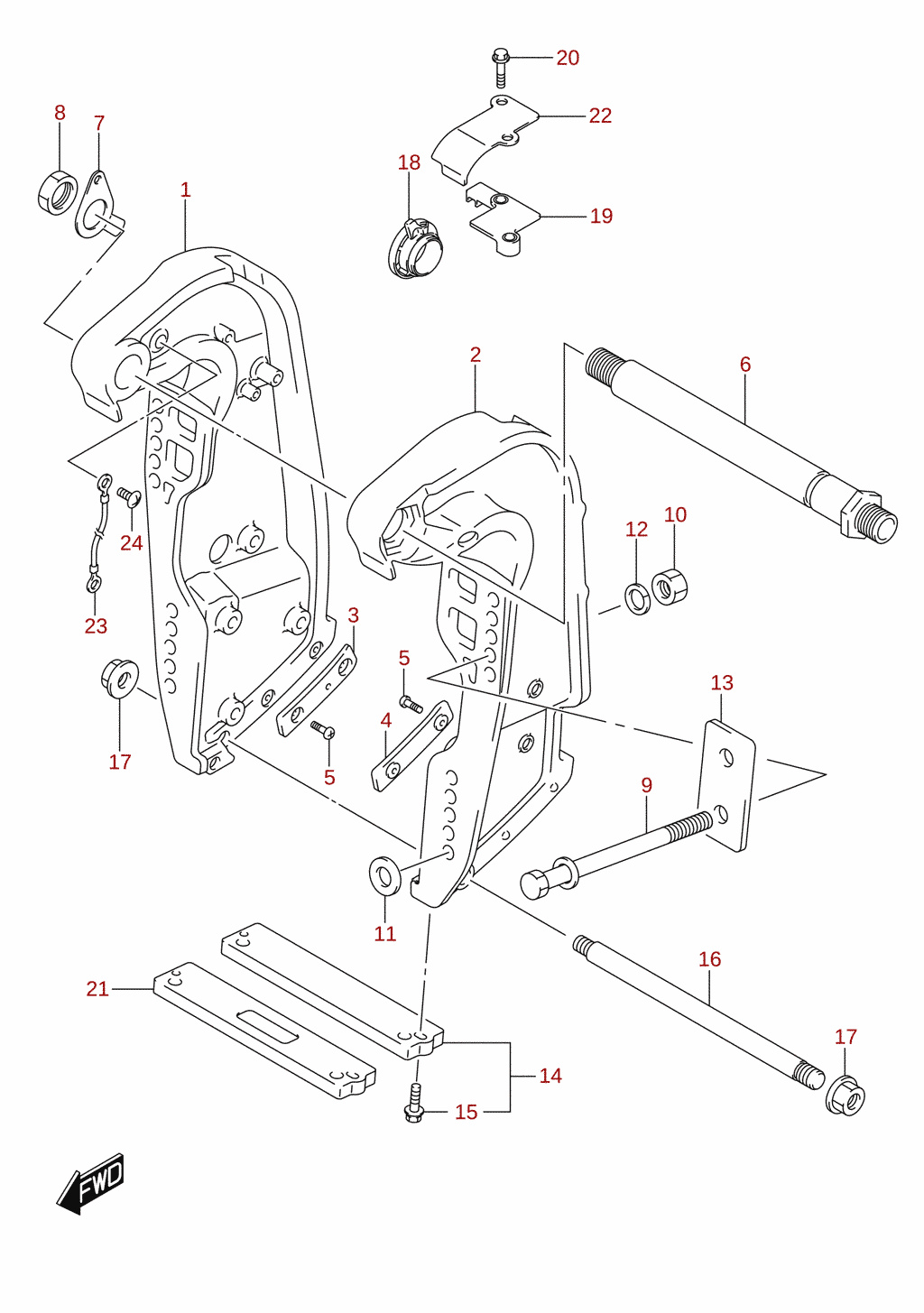

Clamp bracket

Reference no. DF300A_E01_016 30

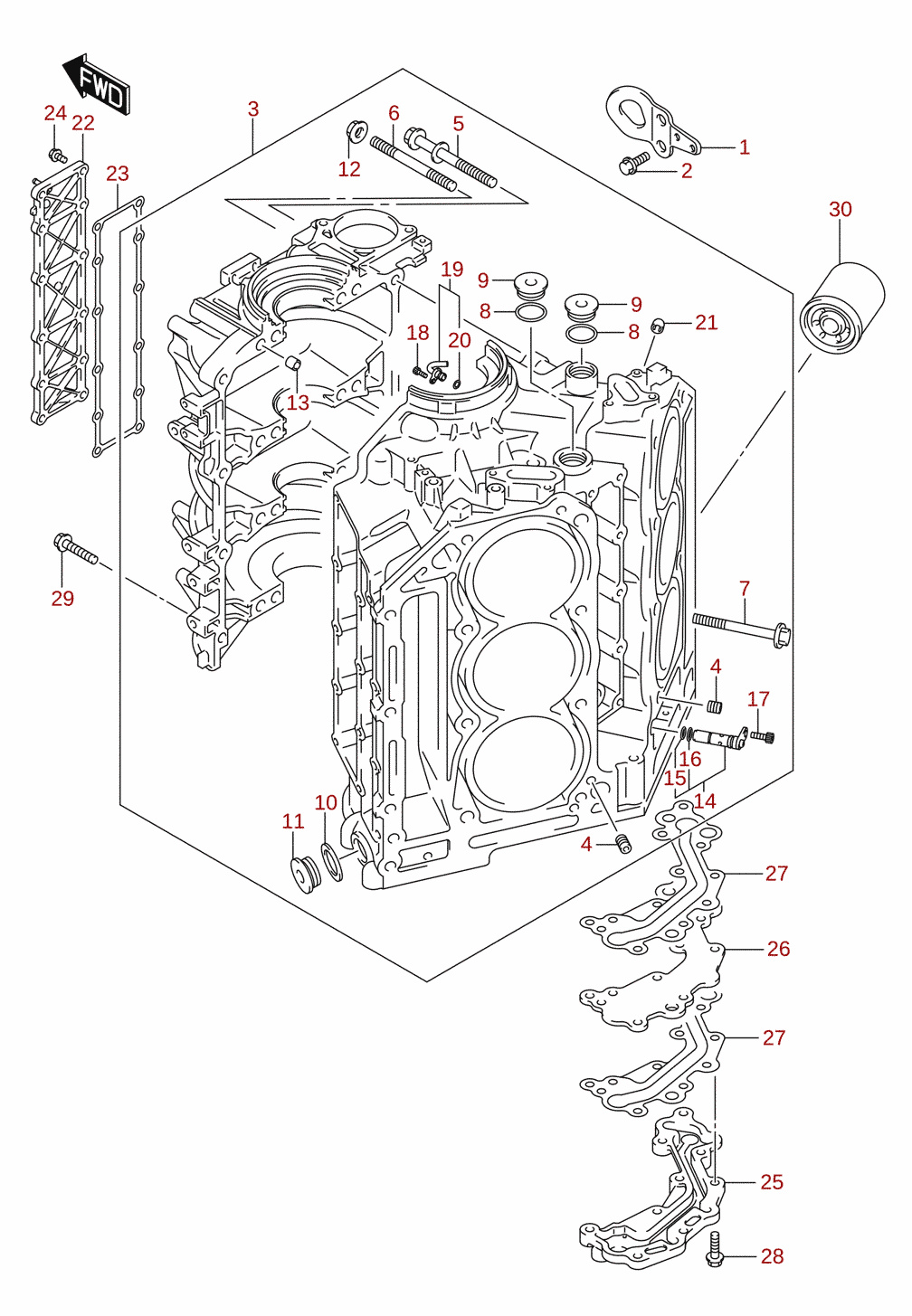

Cylinder block

Reference no. DF300A_E01_016 1

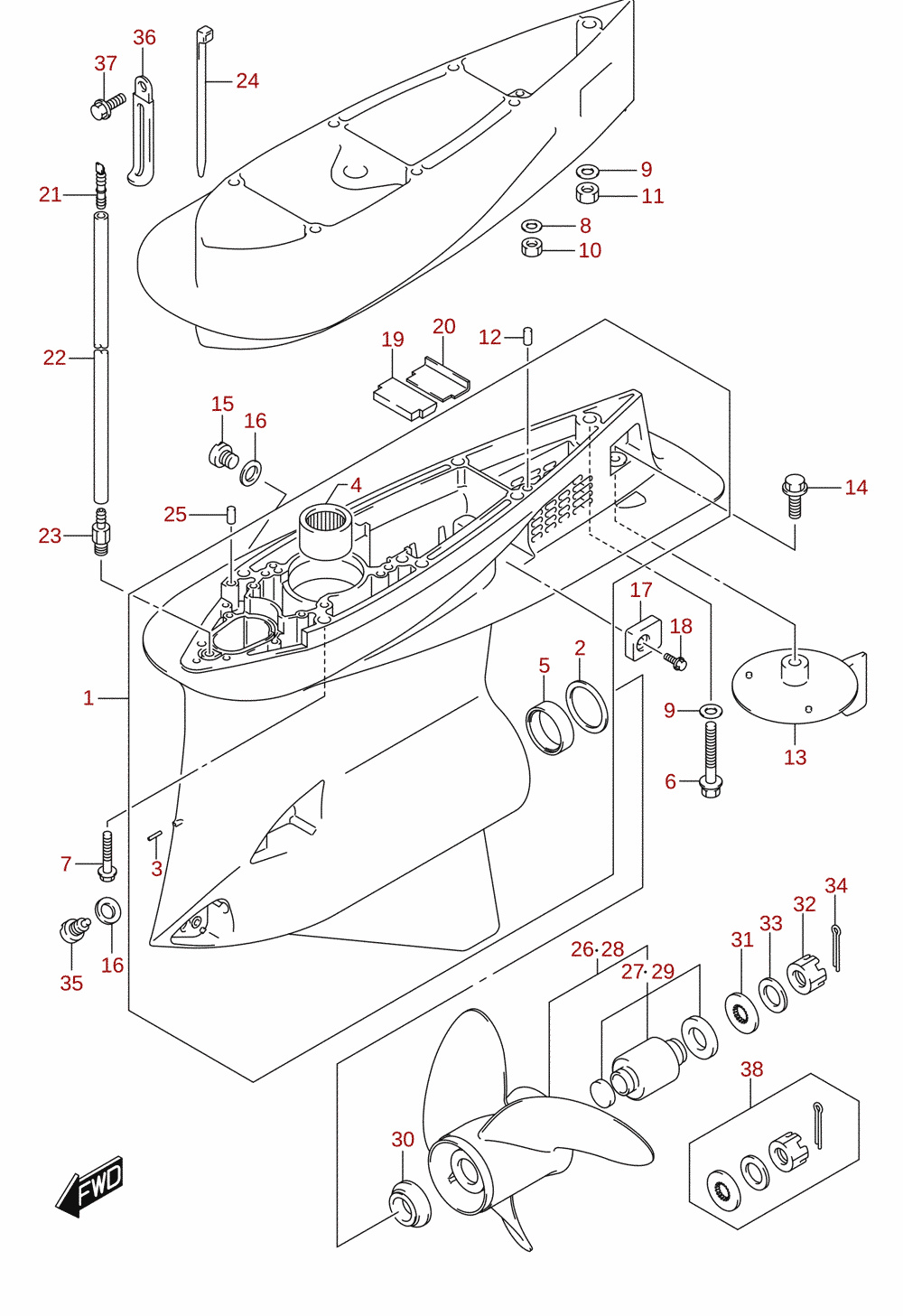

Gear case 1/2

Reference no. DF300A_E01_016 37

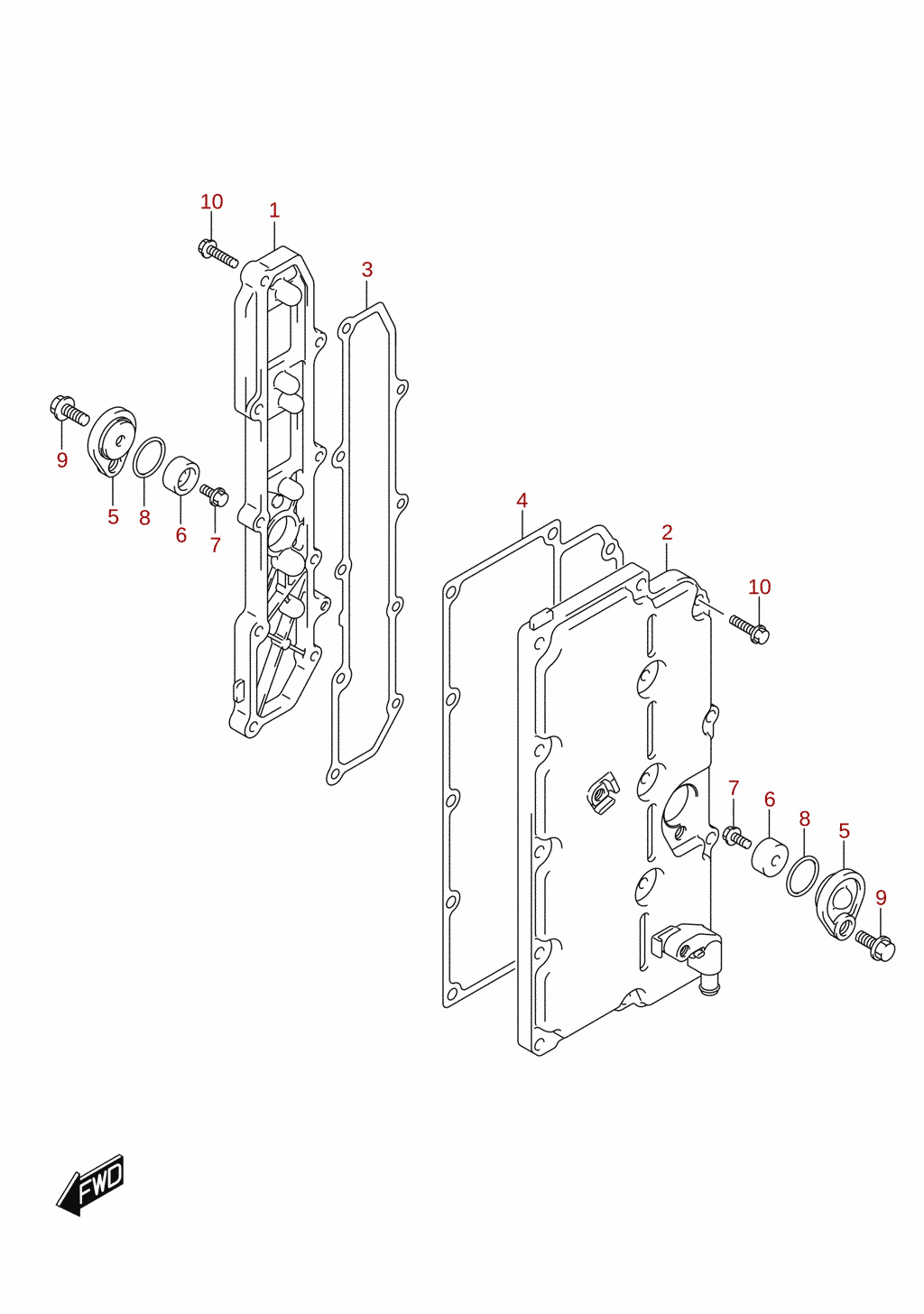

Exhaust cover

Reference no. DF300A_E01_016 7

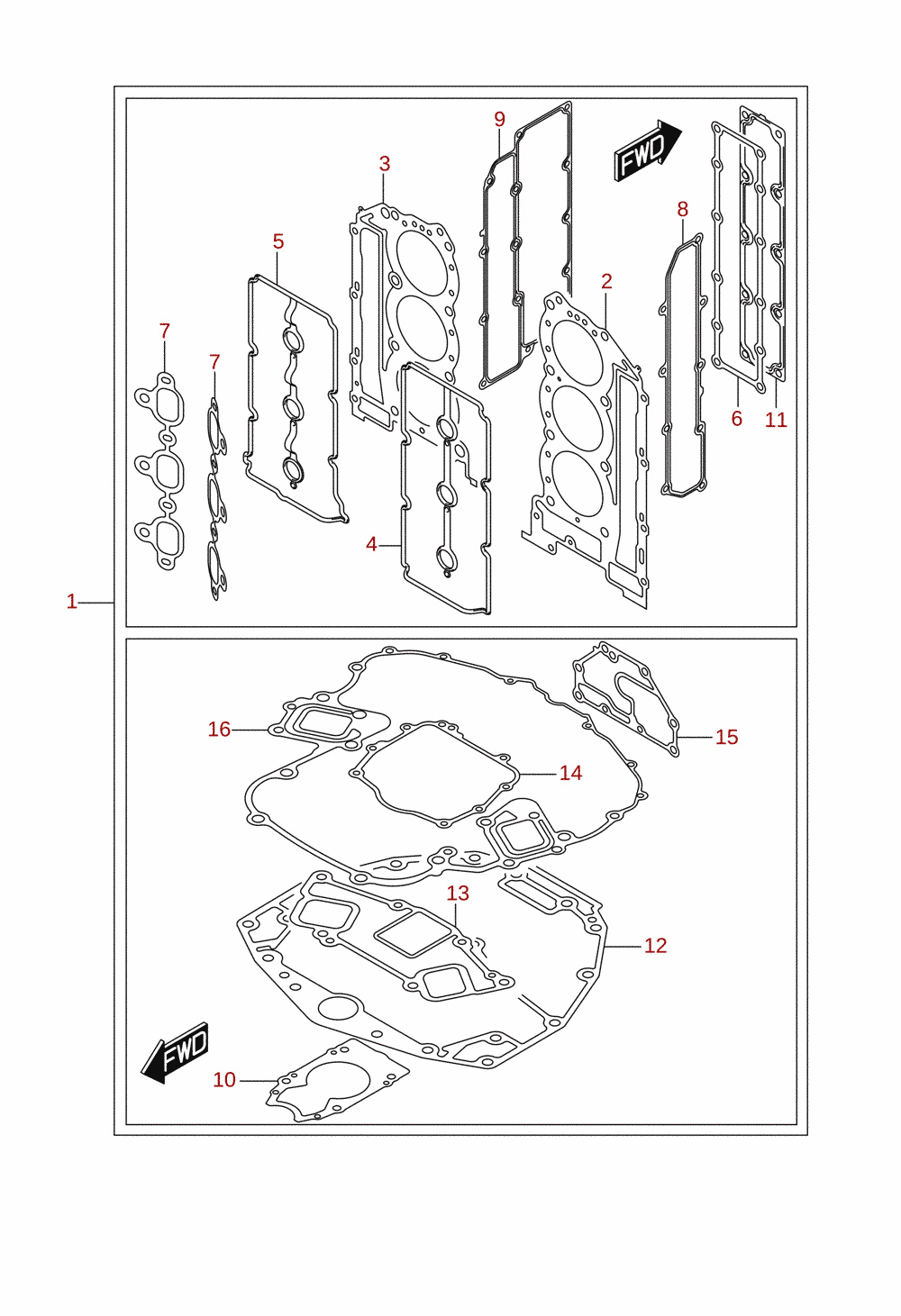

Gasket set (optional)

Reference no. DF300A_E01_016 54

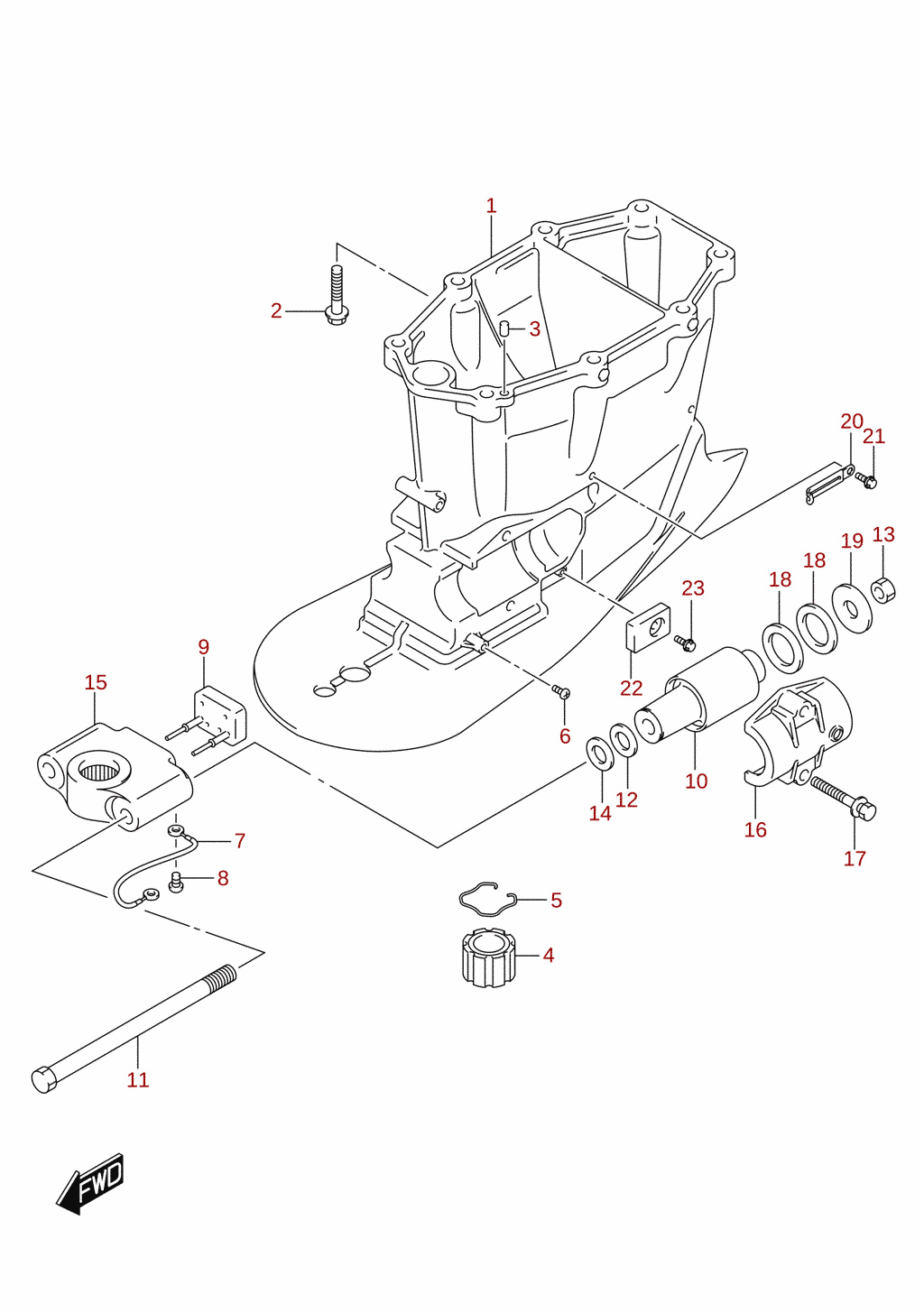

Drive shaft housing (X-transom) (DF300A)

Reference no. DF300A_E01_016 35

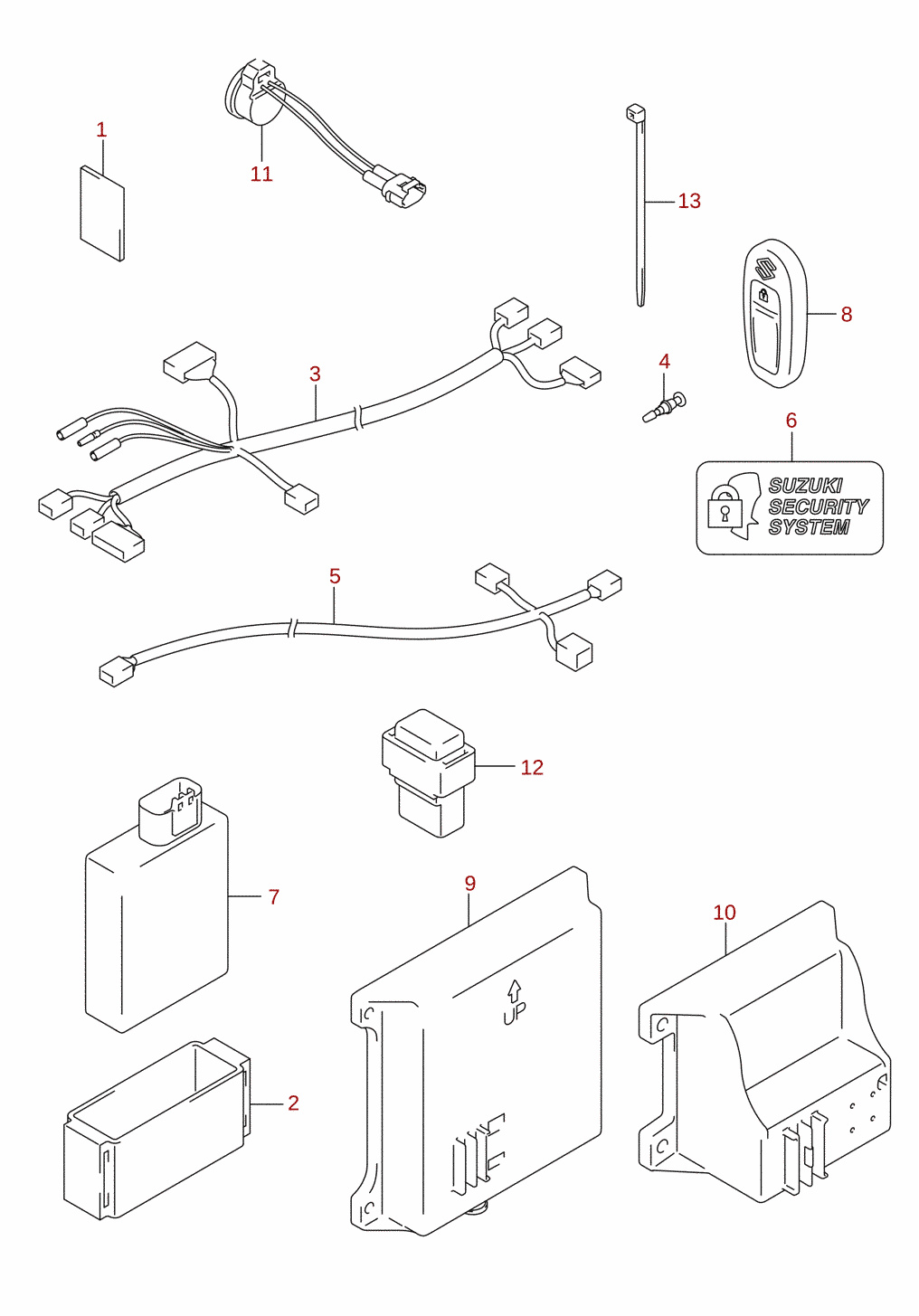

Keyless start (DF300A)

Reference no. DF300A_E01_016 28

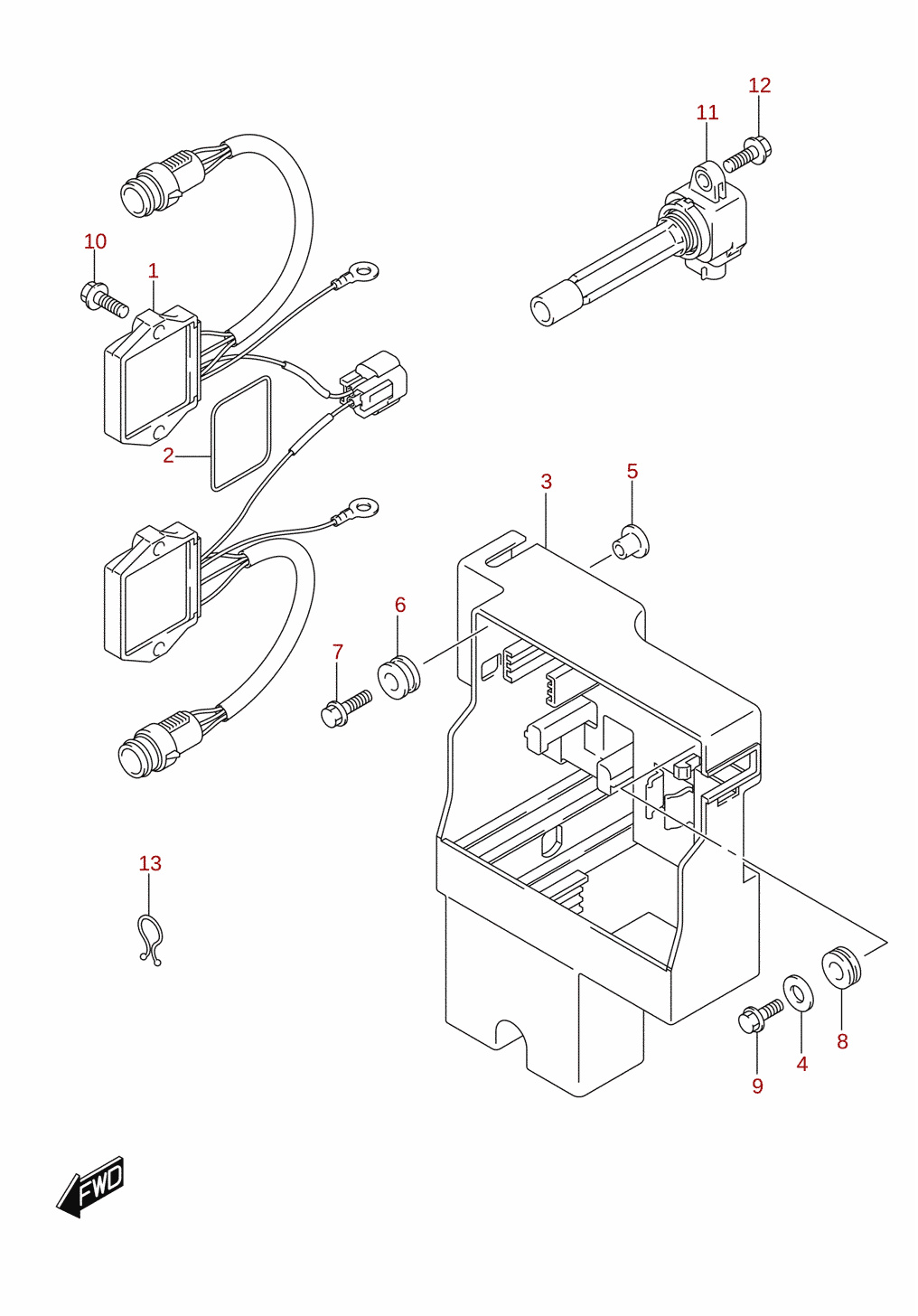

Rectifier / ignition coil

Reference no. DF300A_E01_016 23

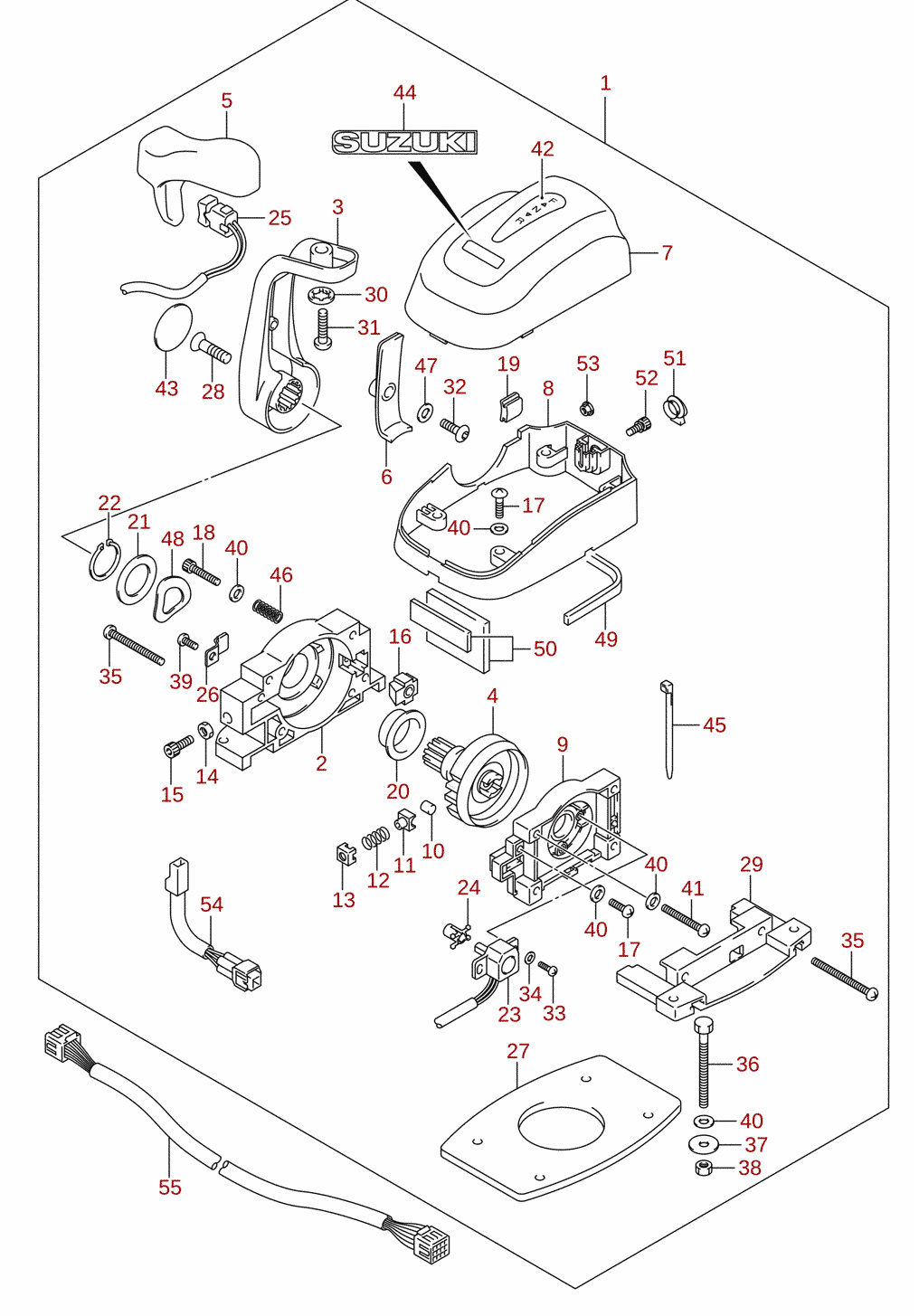

Remote control assembly single (optional)

Reference no. DF300A_E01_016 53

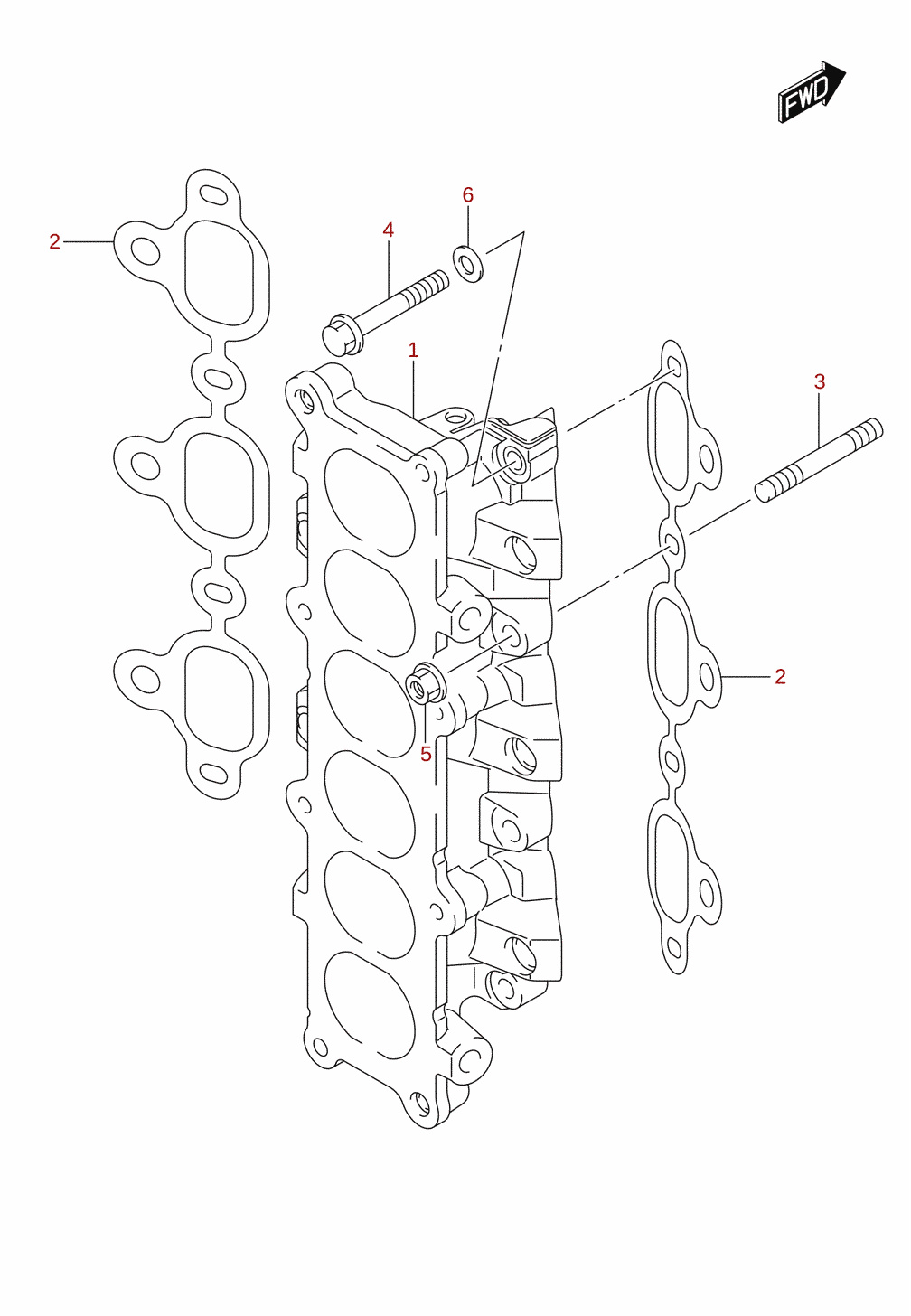

Intake manifold

Reference no. DF300A_E01_016 5

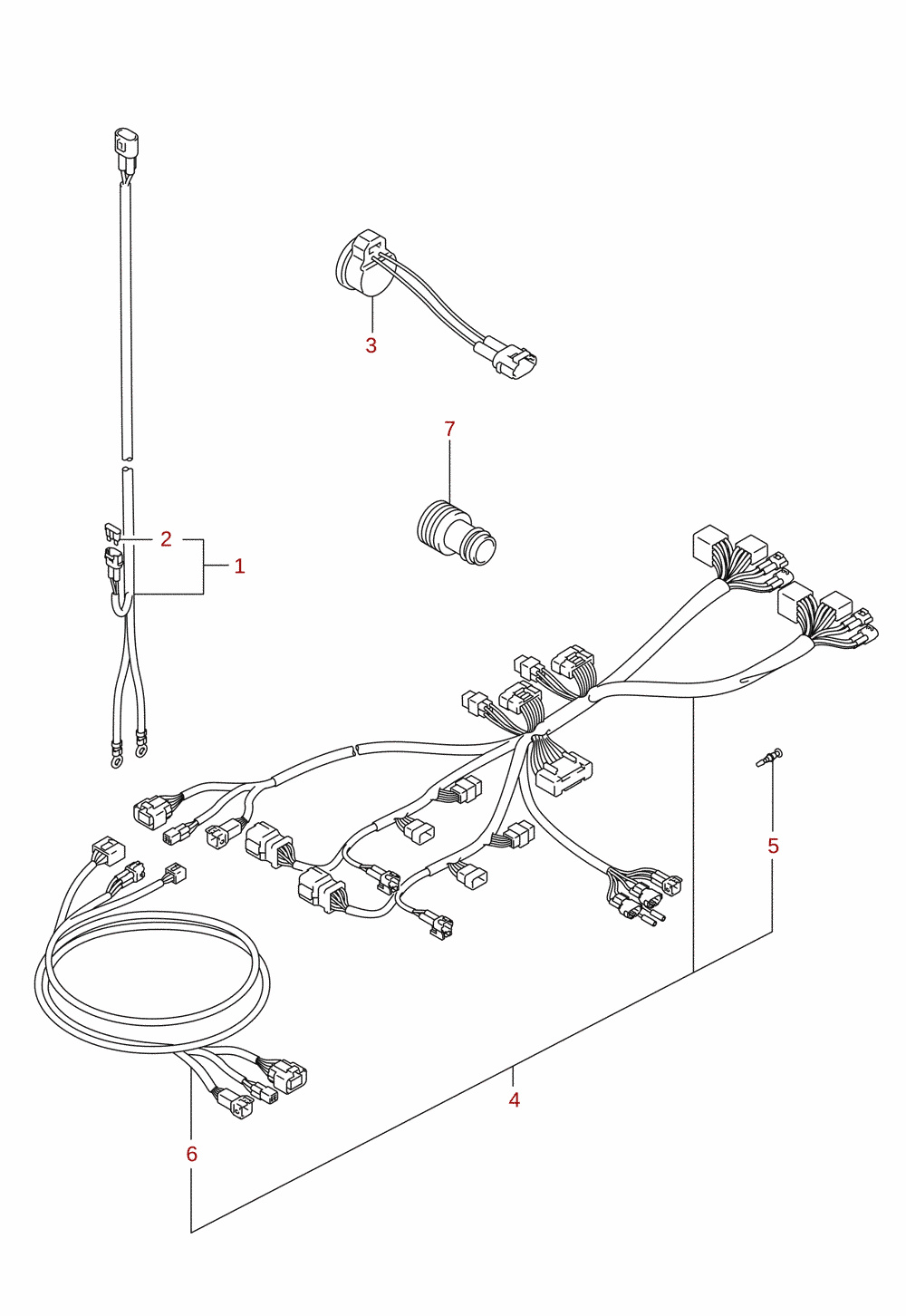

Harness (2) (optional)

Reference no. DF300A_E01_016 48

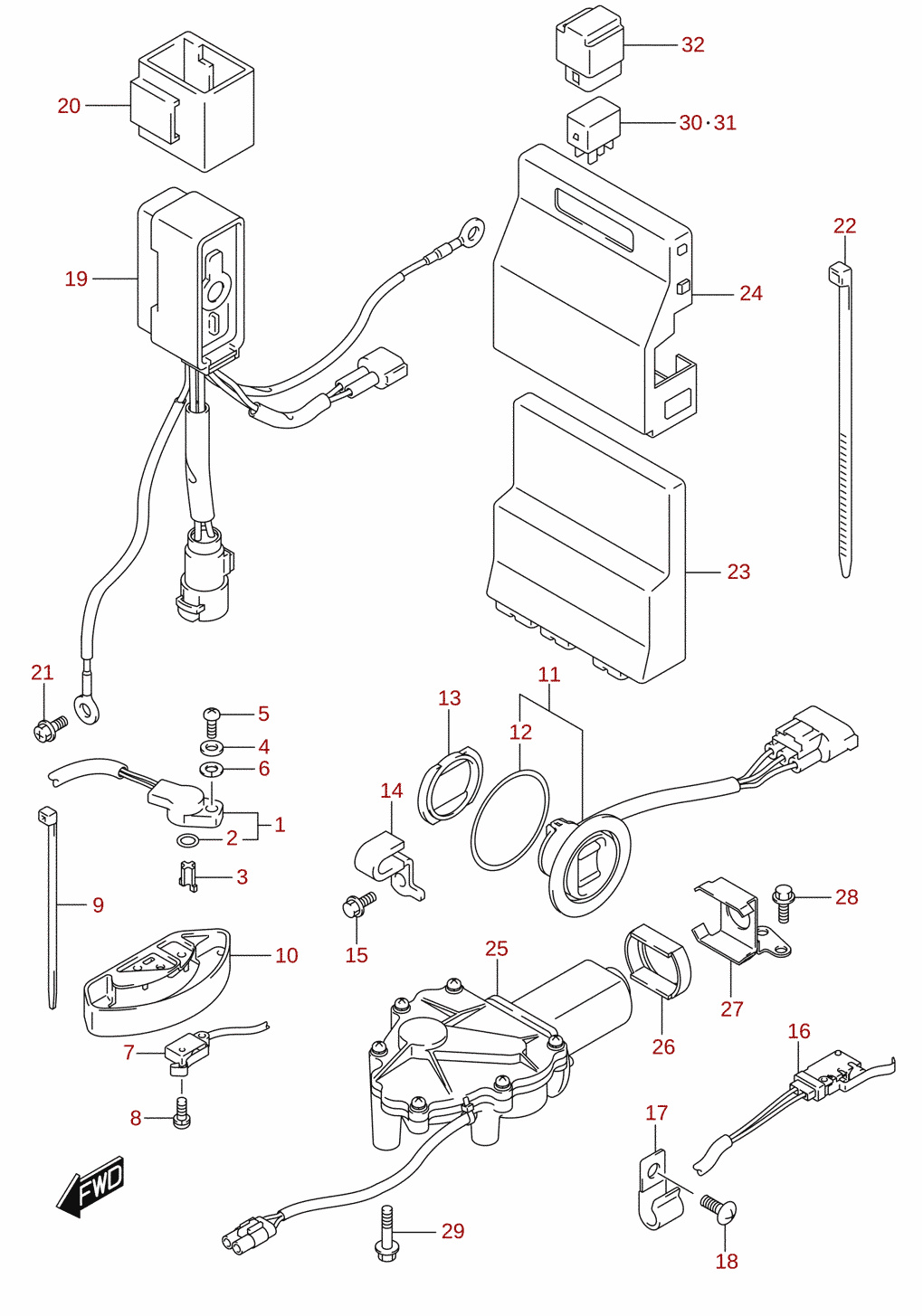

PTT switch / engine control unit (DF300A)

Reference no. DF300A_E01_016 26

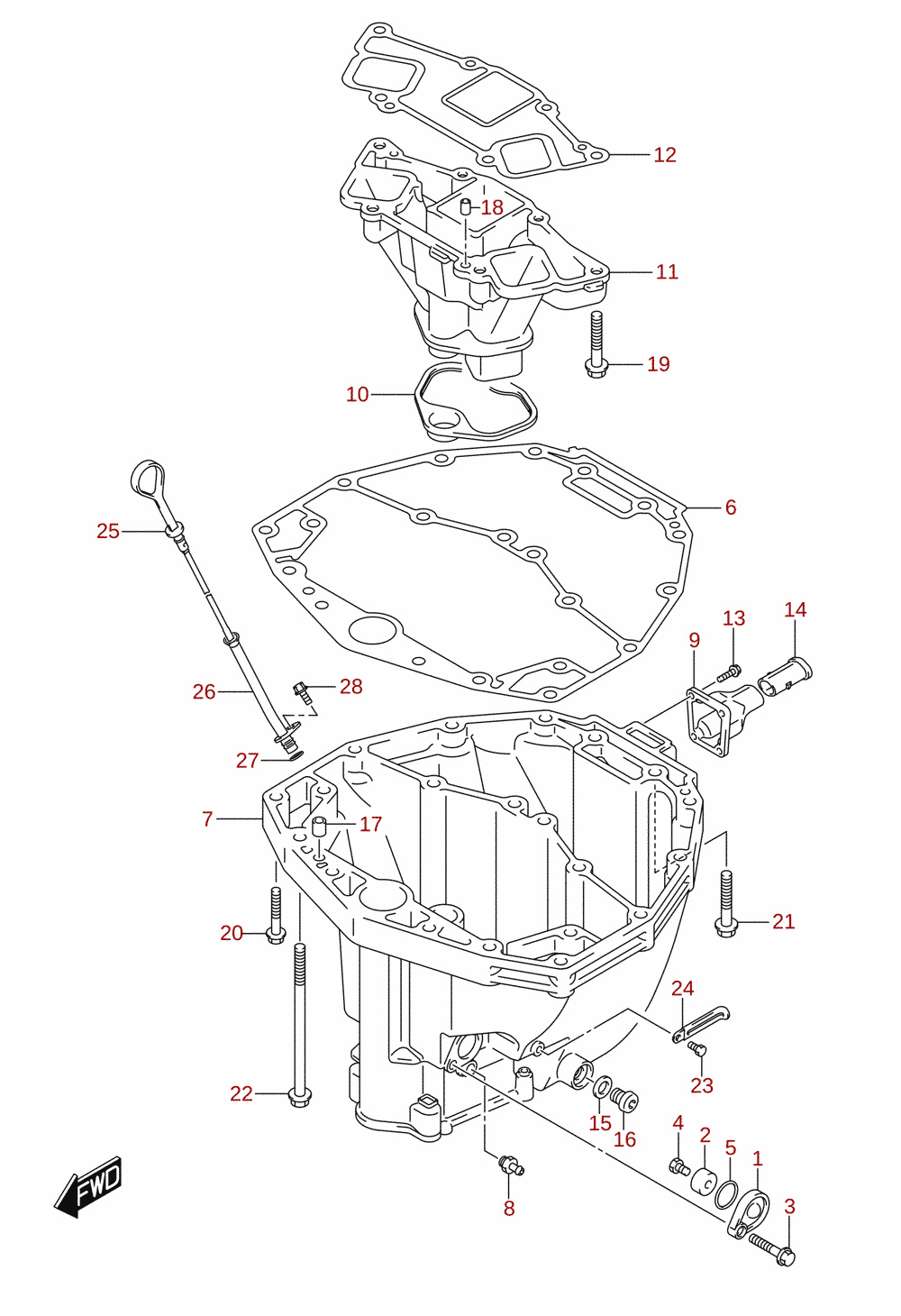

Oil pan

Reference no. DF300A_E01_016 15

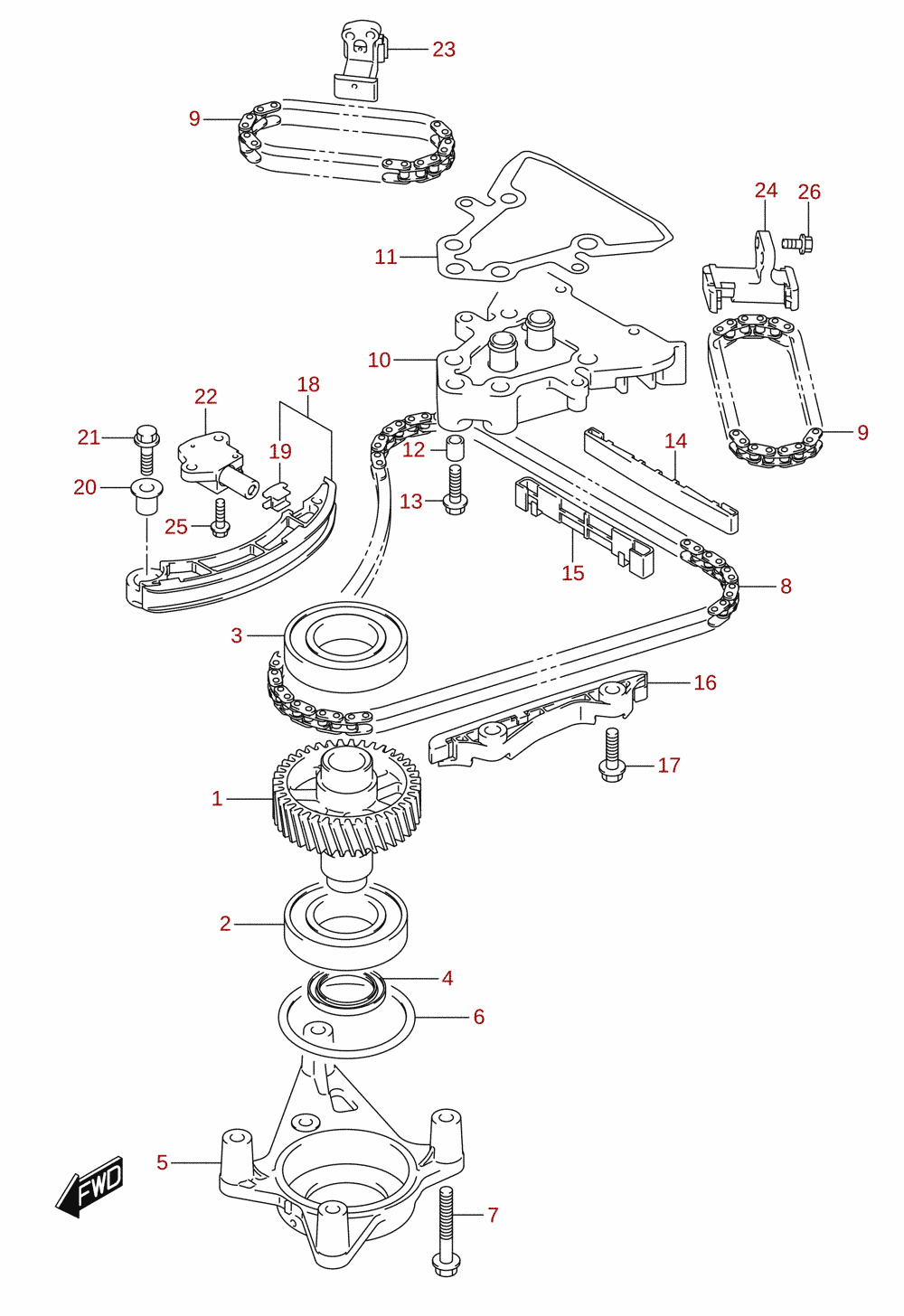

Timing chain

Reference no. DF300A_E01_016 3

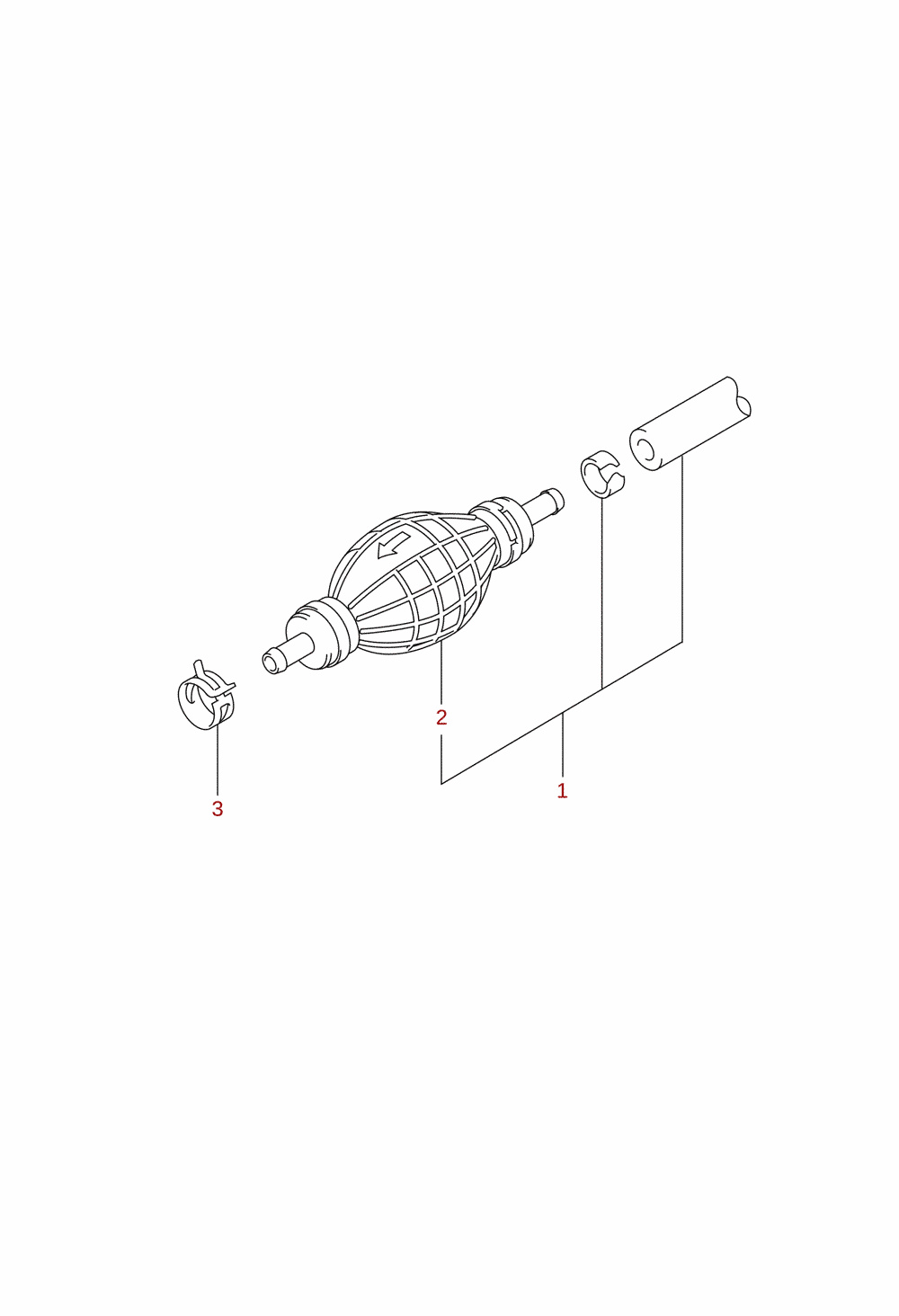

Fuel hose (DF250A)

Reference no. DF300A_E01_016 43

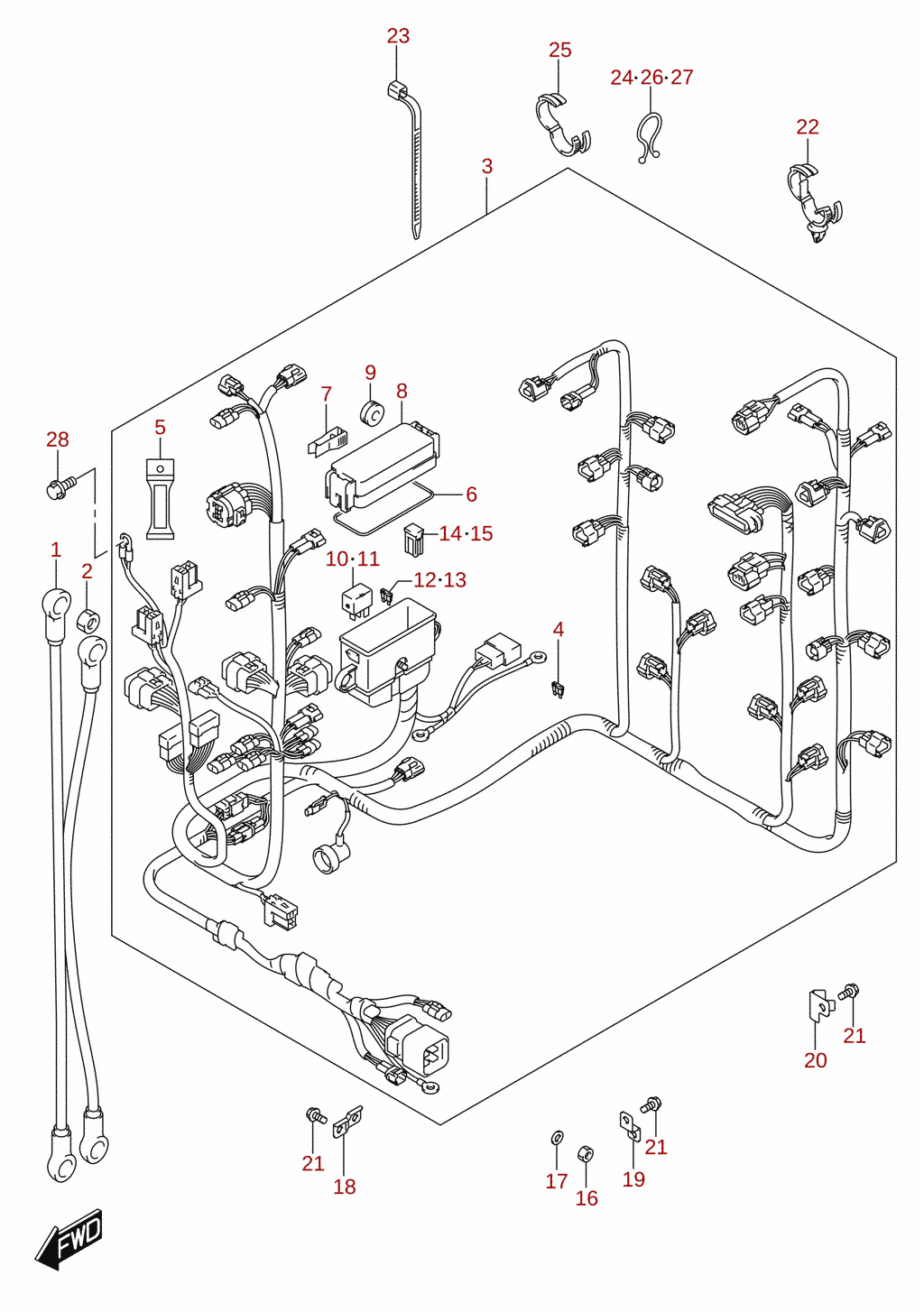

Harness

Reference no. DF300A_E01_016 25

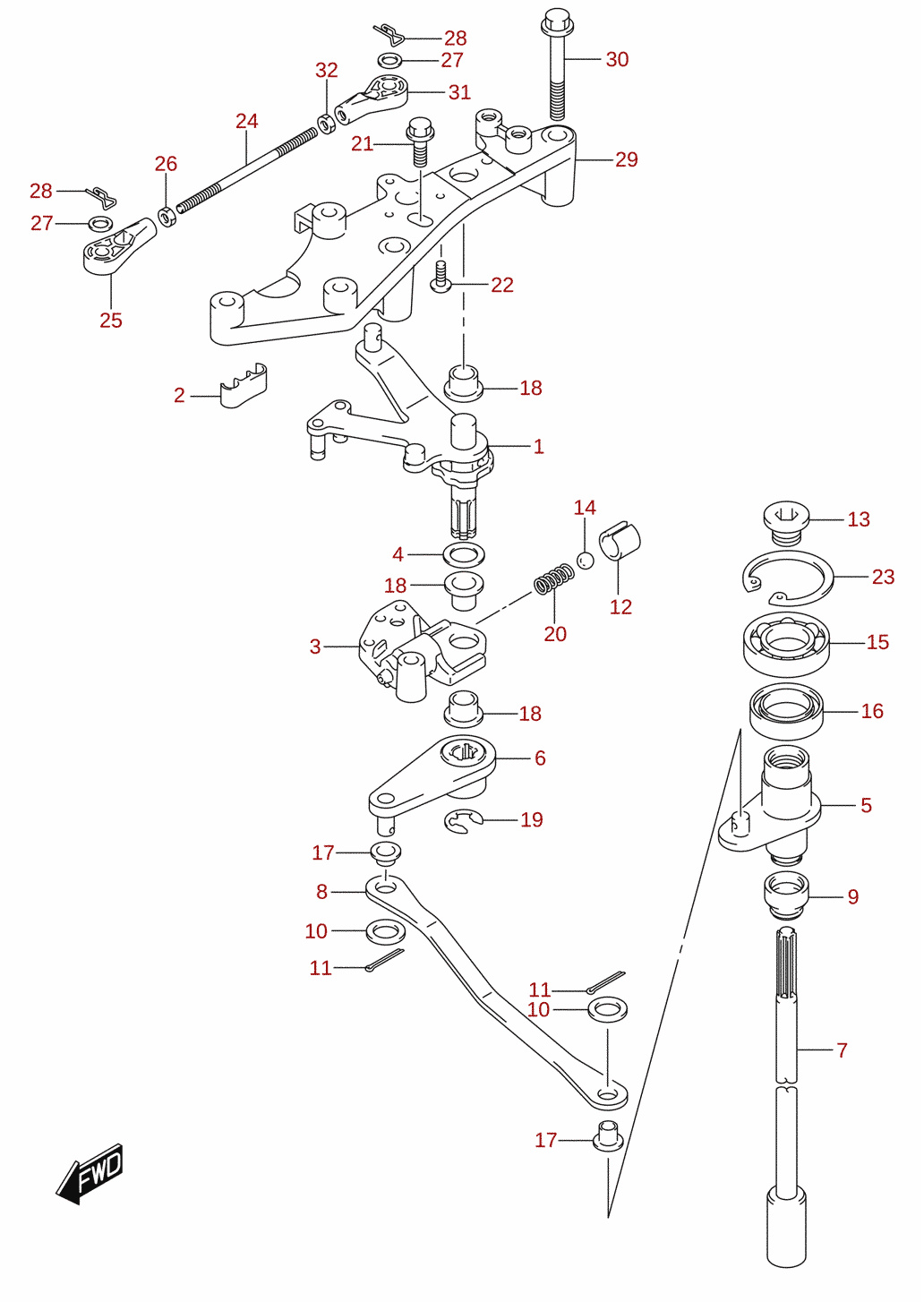

Clutch shaft

Reference no. DF300A_E01_016 16

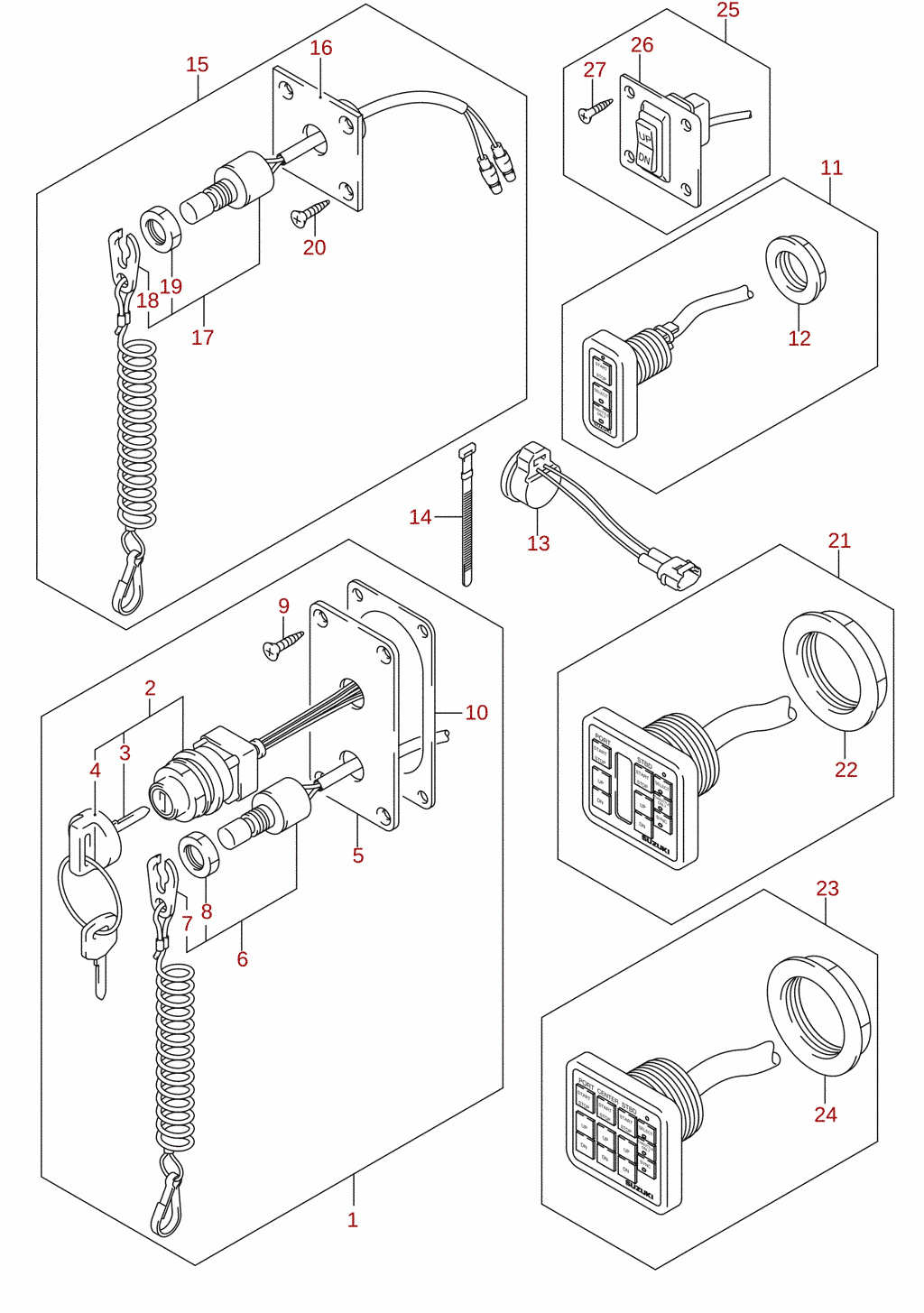

Switch (optional)

Reference no. DF300A_E01_016 49

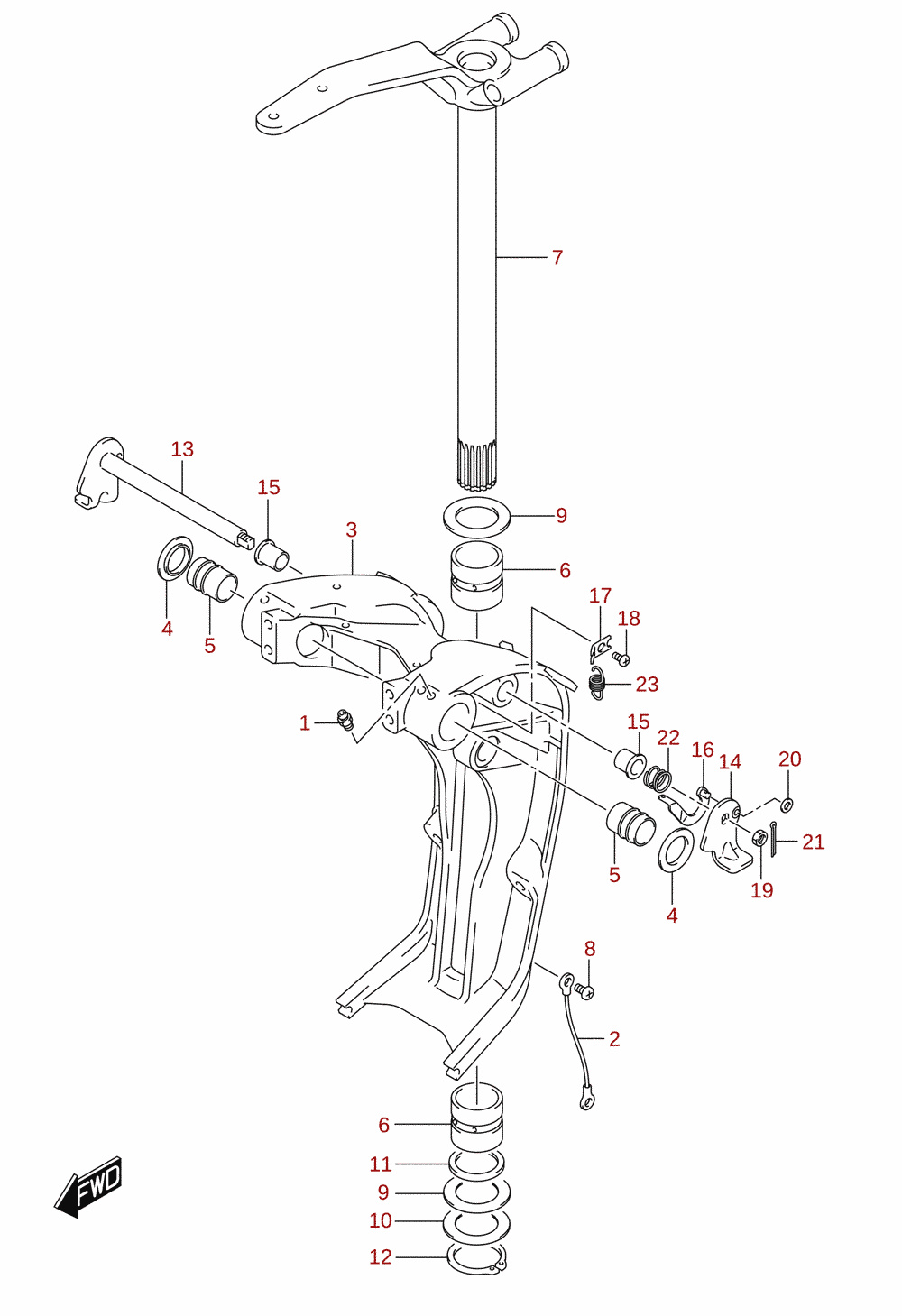

Swivel bracket

Reference no. DF300A_E01_016 31

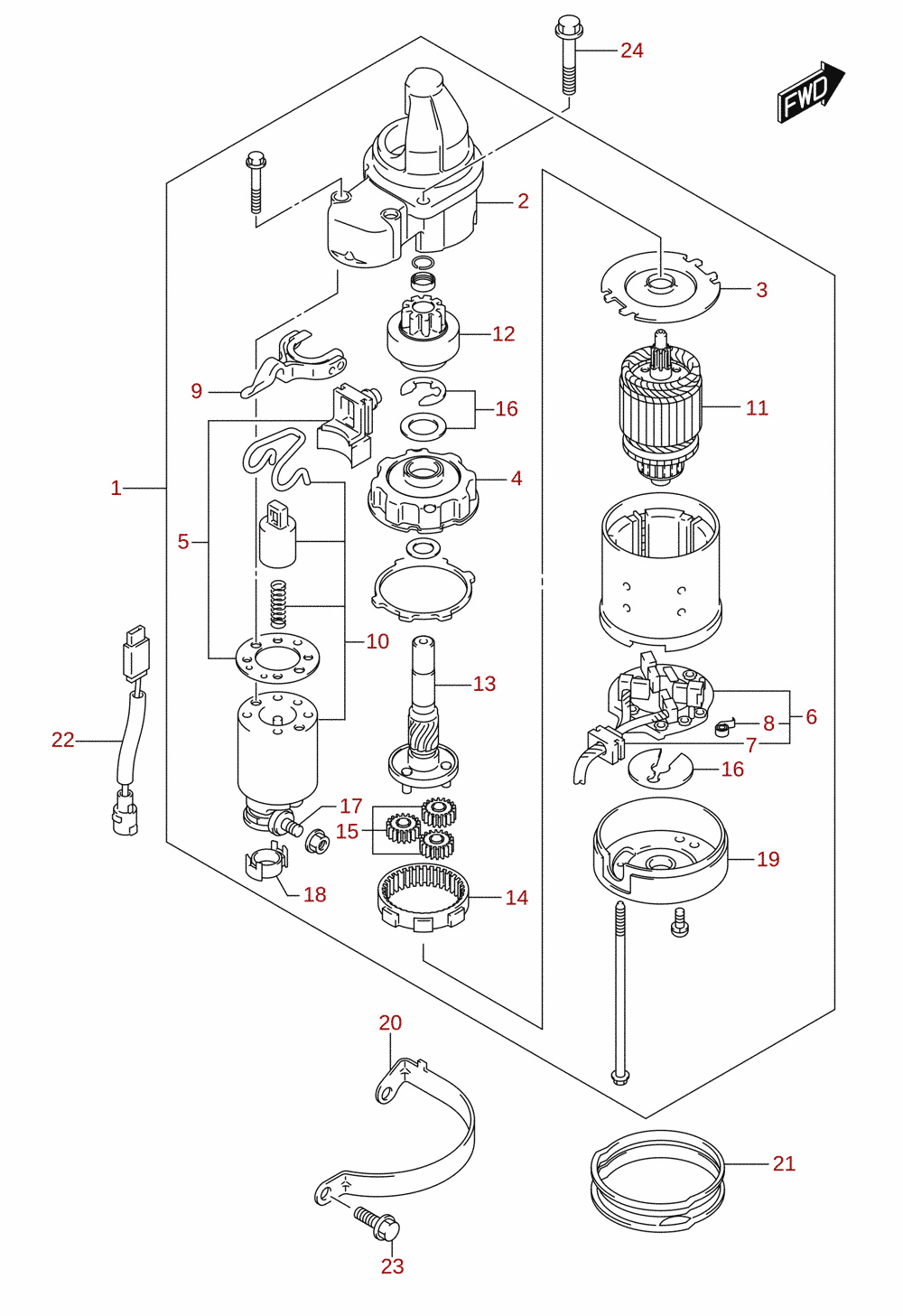

Starting motor

Reference no. DF300A_E01_016 21

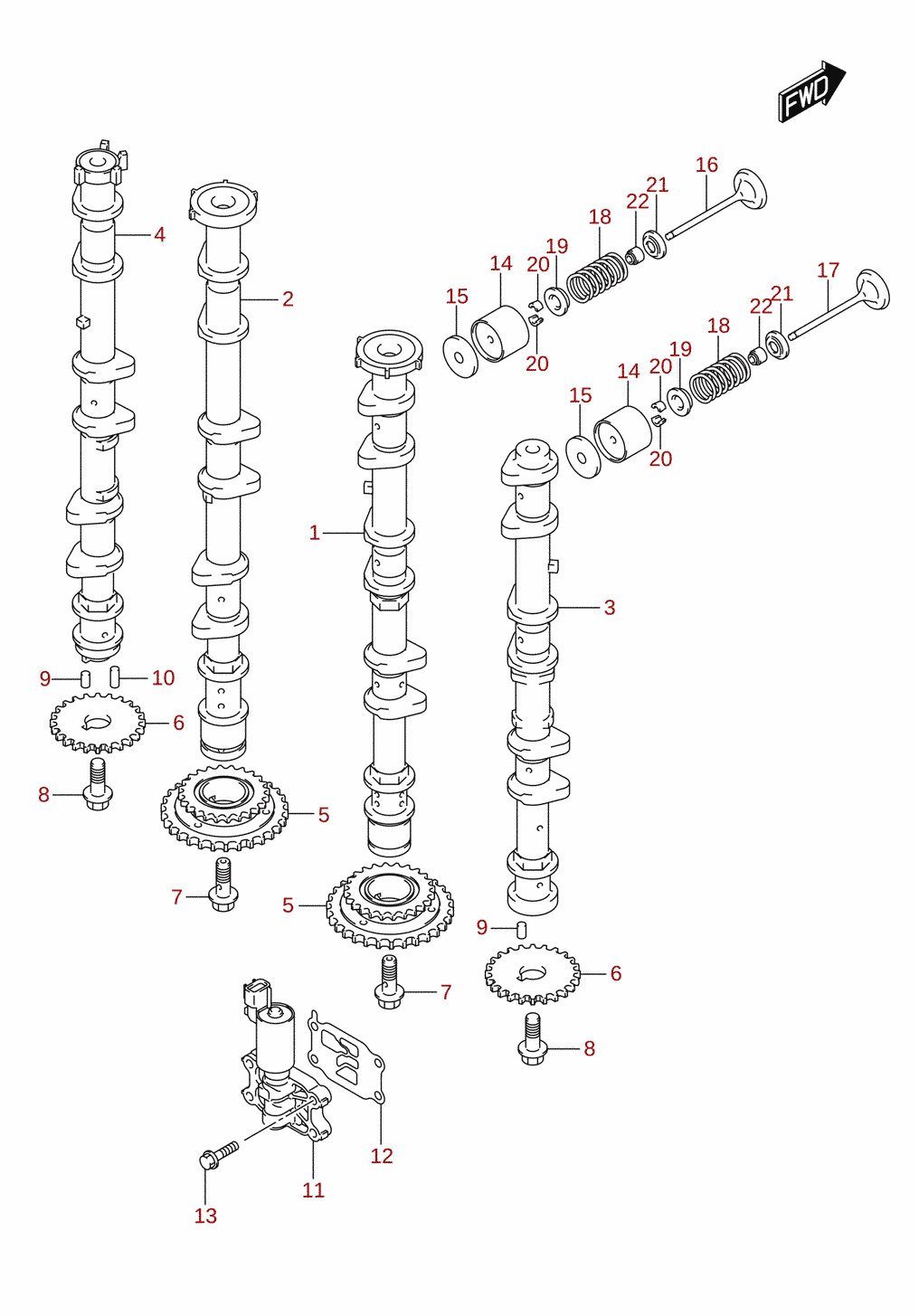

Camshaft

Reference no. DF300A_E01_016 4

Keyless start (DF250A)

Reference no. DF300A_E01_016 29

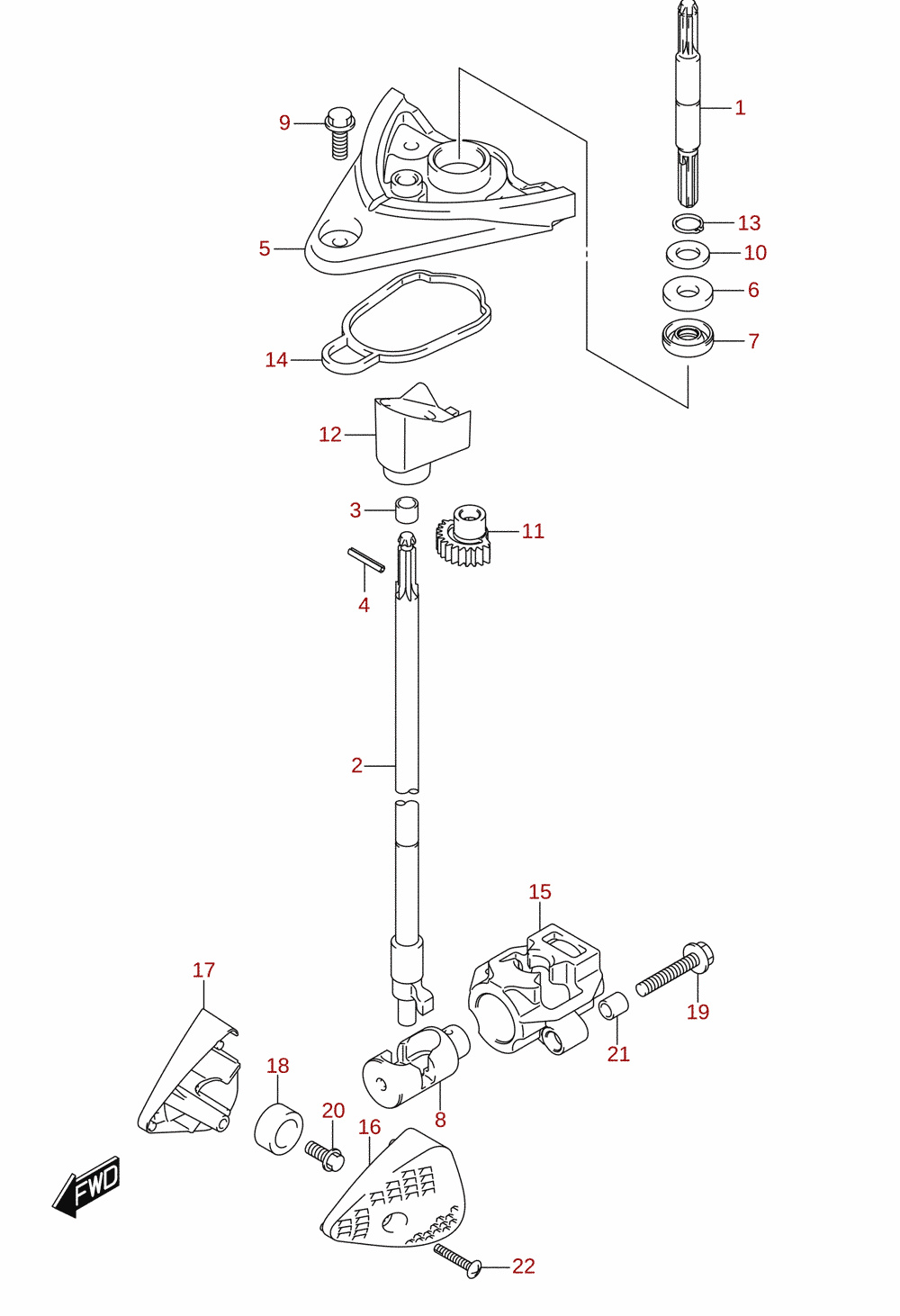

Clutch rod 1/2

Reference no. DF300A_E01_016 17
