Sprängskisser för Suzuki DF9.9B, DF15A, DF20A (P01) 2014 [DF20A_P01_014]
1
2
3
Läs mer
Läs mindre
Parts Pilot
Magnet / generator (M-starter) (DF15A)
Referensnr. DF20A_P01_014 31

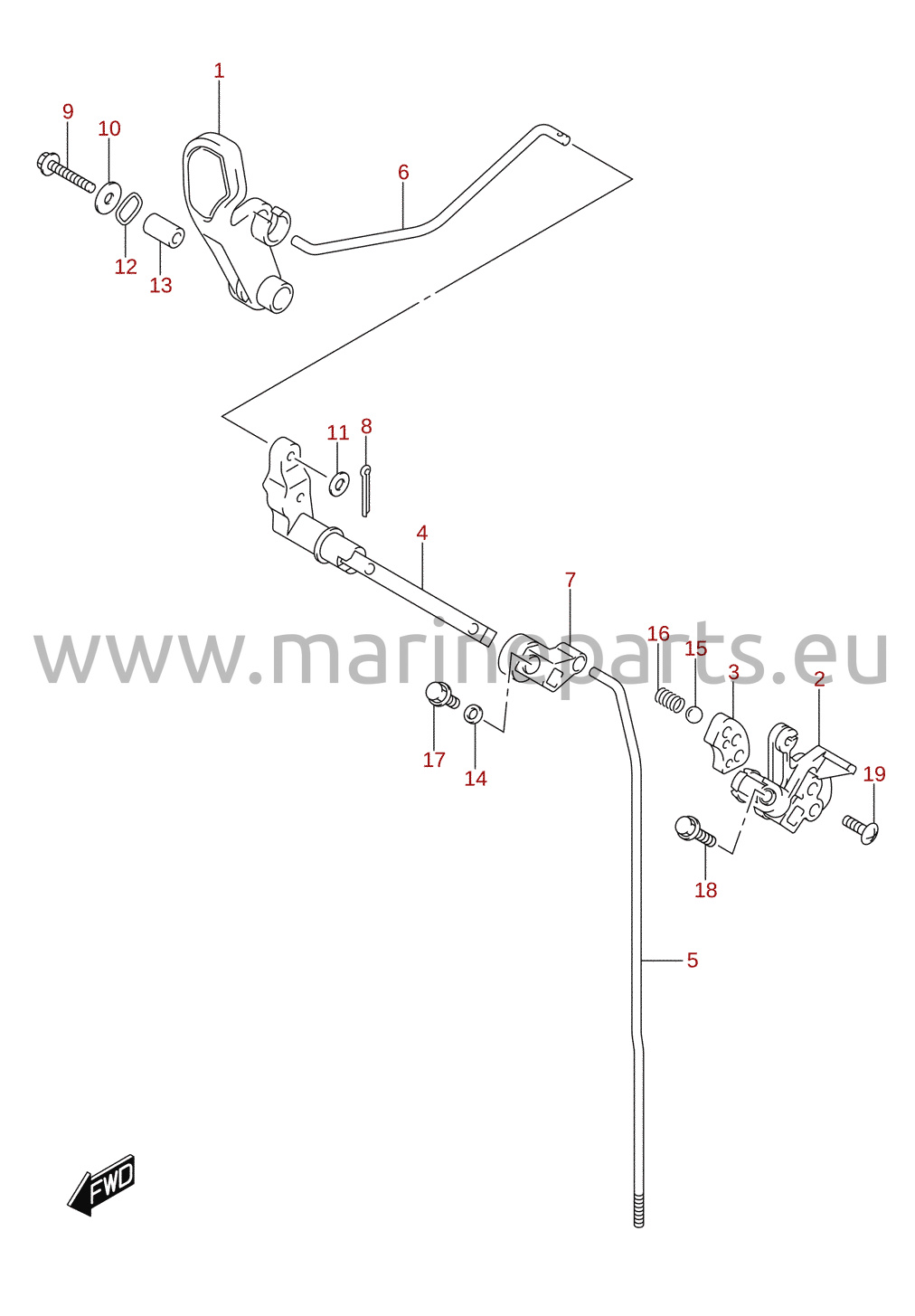

Kopplingsstång (DF15A, DF15ATH, DF20A, DF20ATH, DF9.9B)
Referensnr. DF20A_P01_014 24

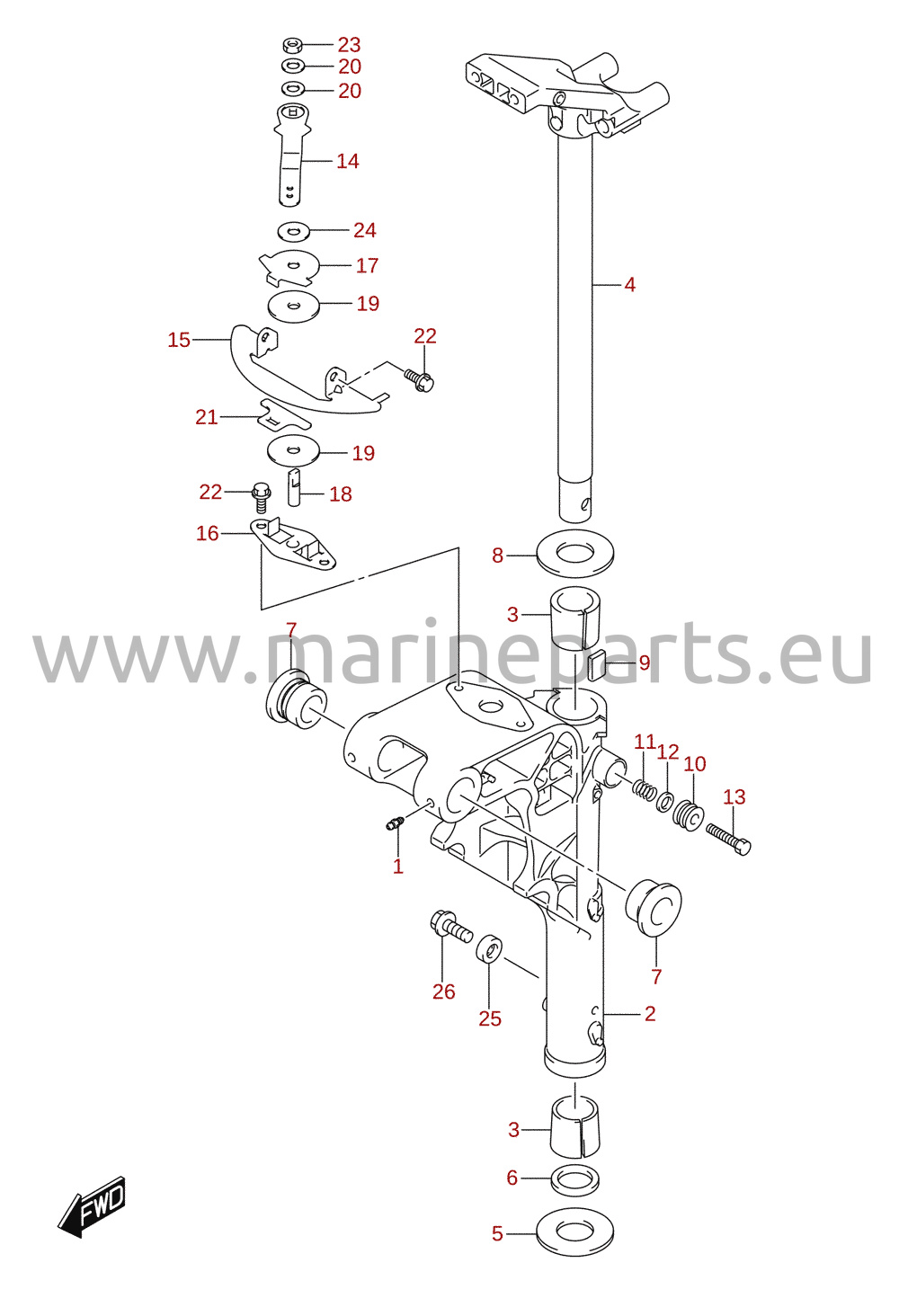

Svängfäste (DF15ATH, DF20ATH)
Referensnr. DF20A_P01_014 58
Transmission (DF15ATH, DF20AT, DF20ATH, DF9.9BT)
Referensnr. DF20A_P01_014 28

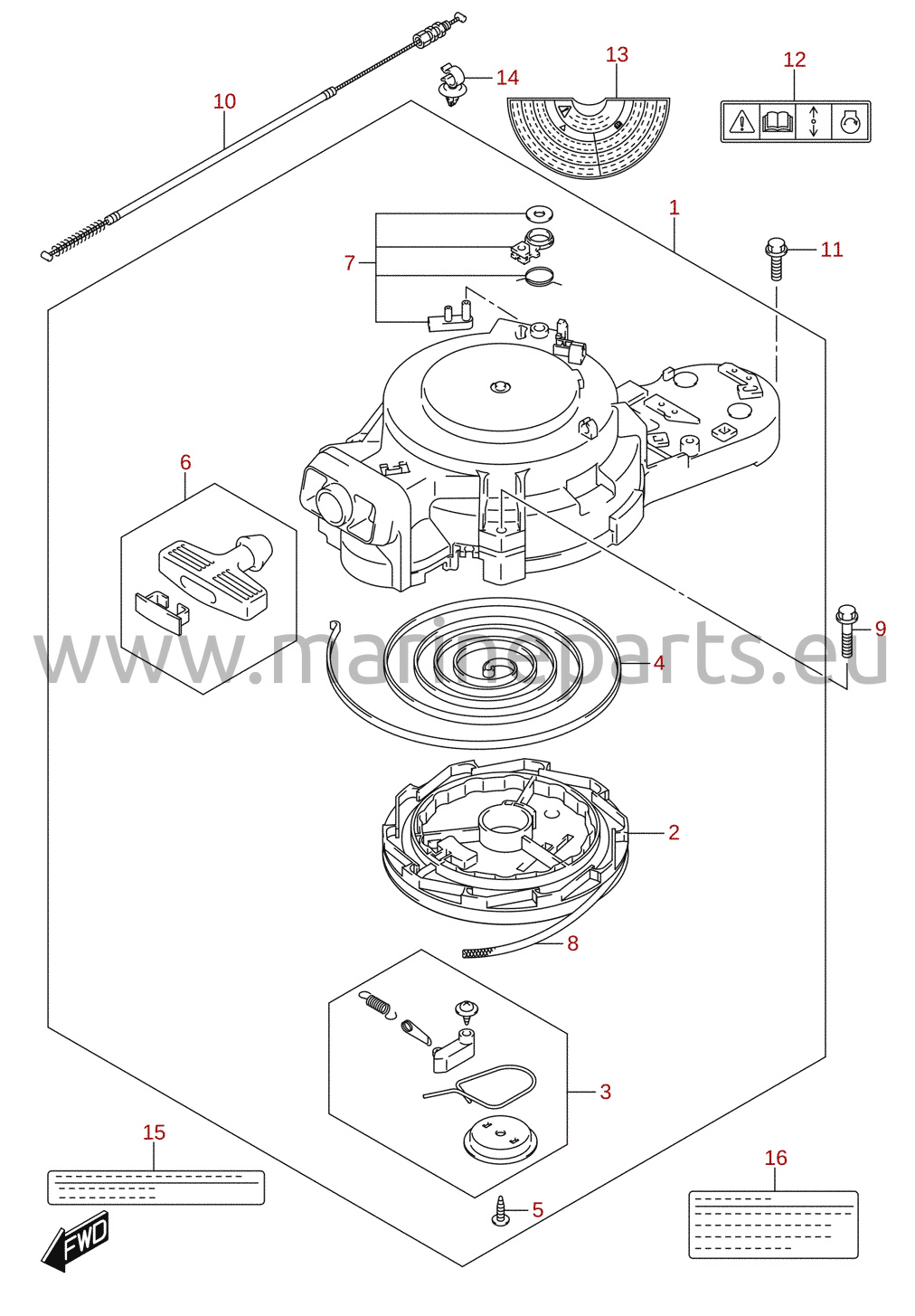

Snörstart (DF15A, DF15AR, DF20A, DF20AR, DF9.9B, DF9.9BR)
Referensnr. DF20A_P01_014 20

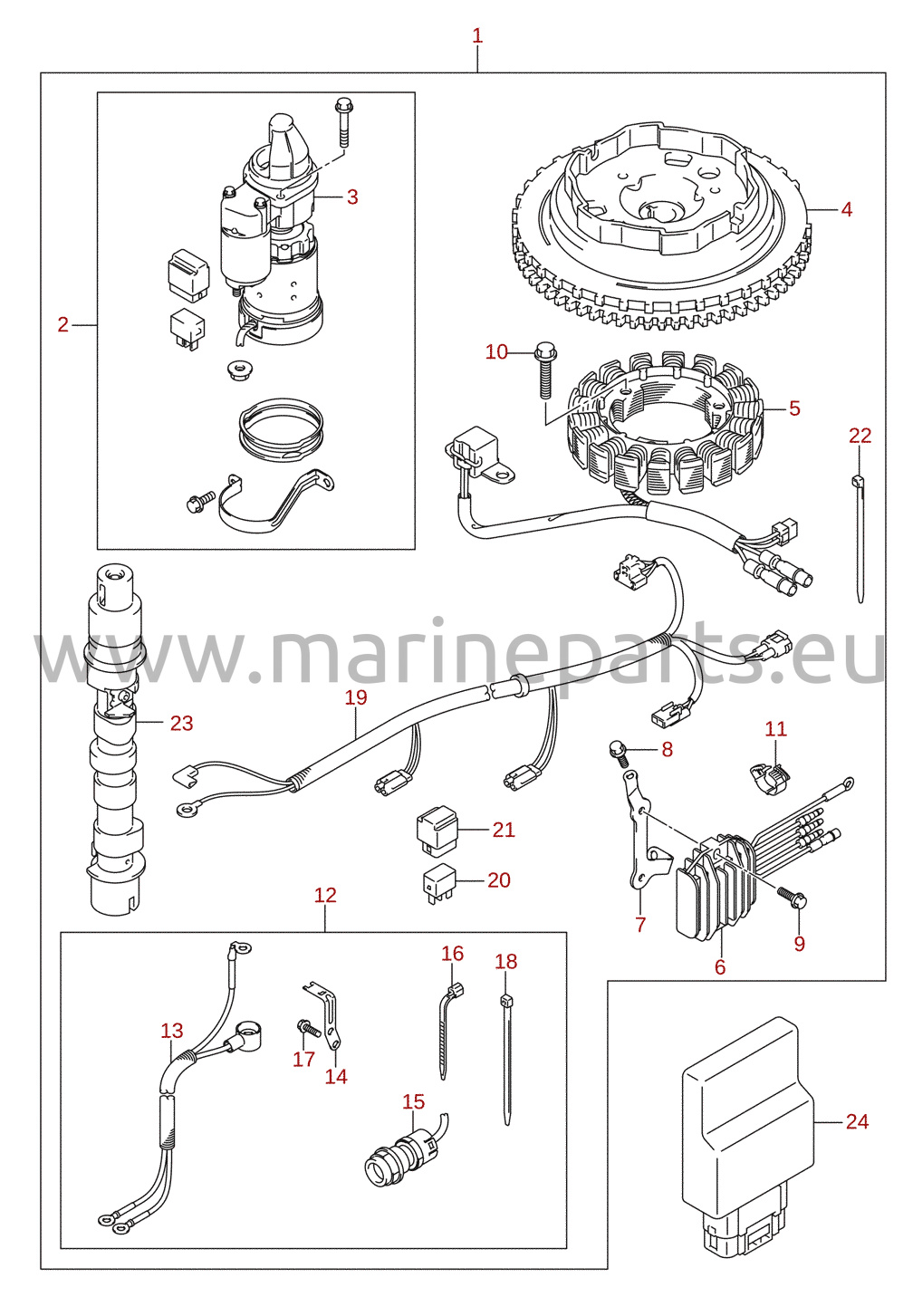

Startmotor (manuell start) (M-starter) (DF20A) (tillval) 1/2
Referensnr. DF20A_P01_014 90
Startmotor (manuell start) (M-starter) (DF9.9B) (tillval)
Referensnr. DF20A_P01_014 88

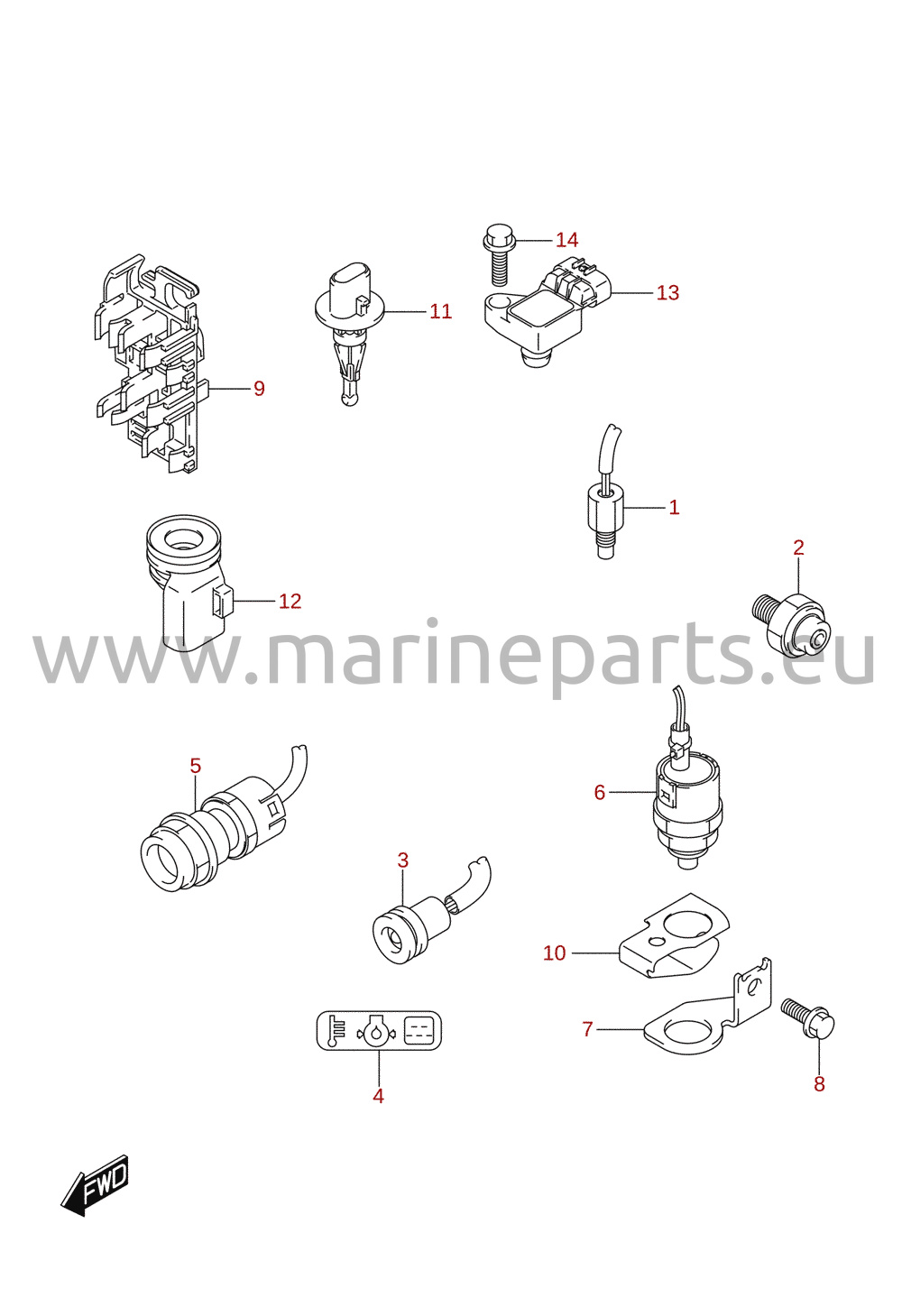

Givare / brytare (DF15ATH, DF20ATH)
Referensnr. DF20A_P01_014 50
Likriktare / tändspole (DF9.9B)
Referensnr. DF20A_P01_014 35

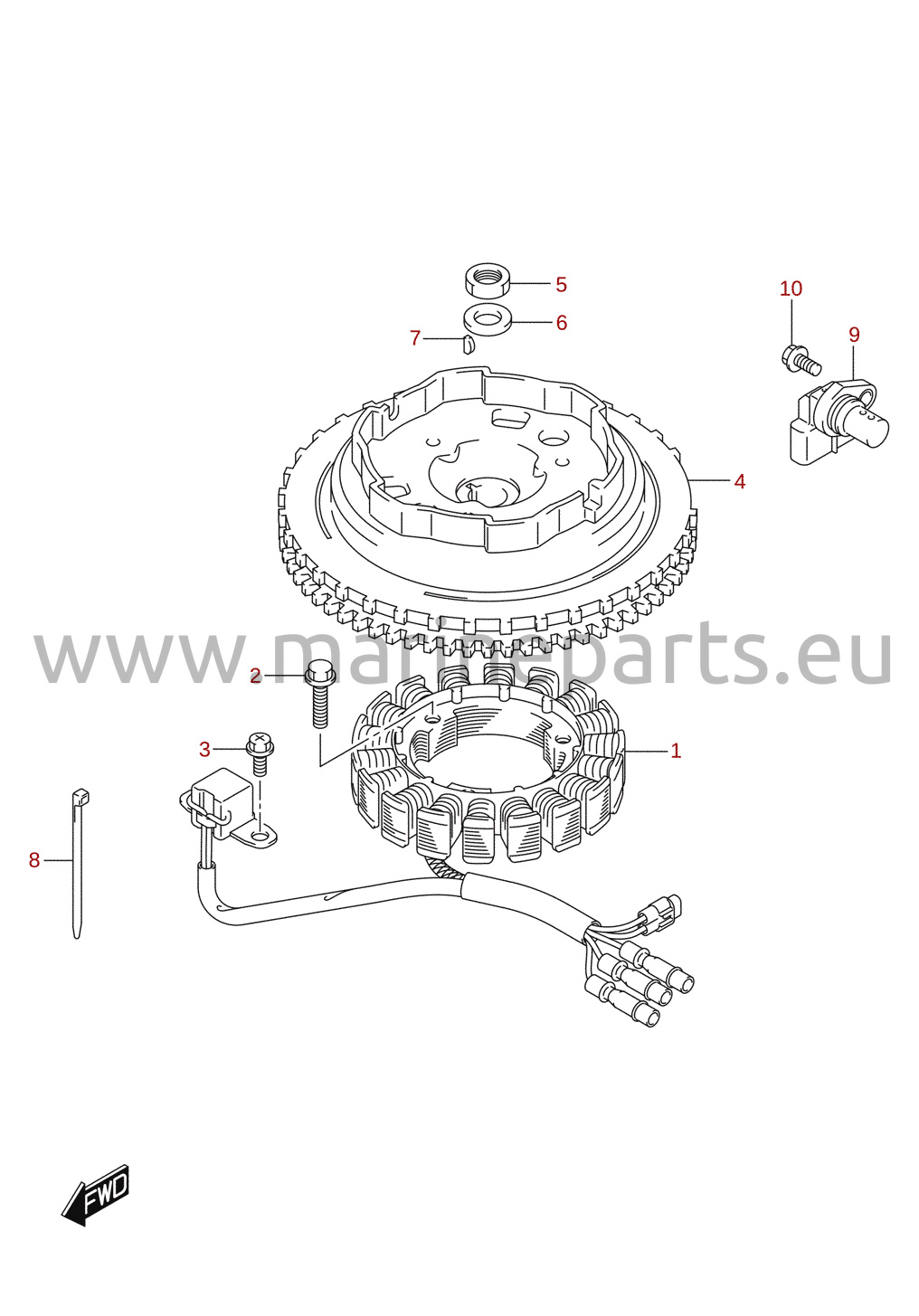

Magnet / generator (E-starter)
Referensnr. DF20A_P01_014 34

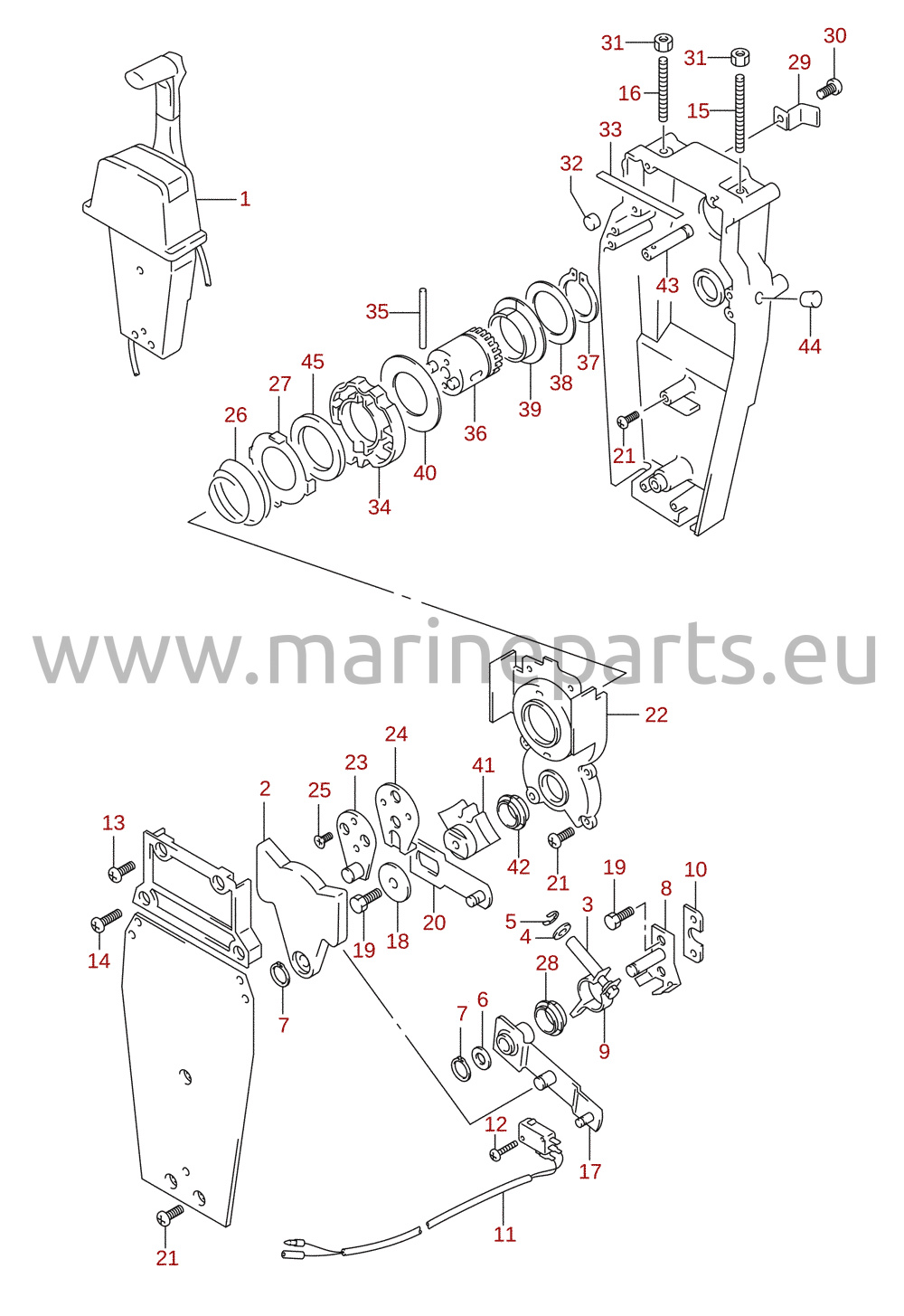

Reglage, enkelt (2) (DF15A, DF20A, DF9.9B) (tillval)
Referensnr. DF20A_P01_014 85

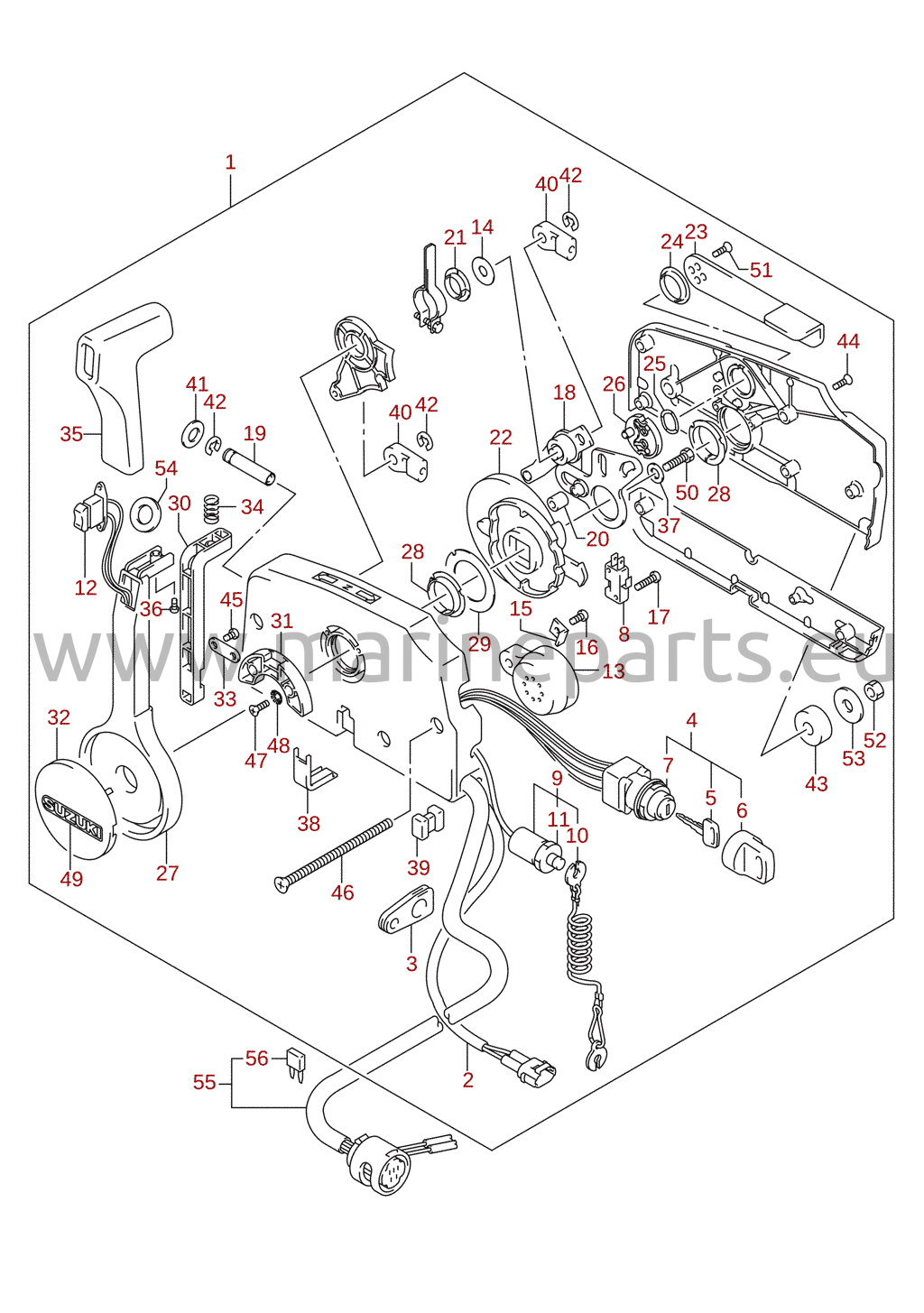

Reglage (DF20AT, DF9.9BT)
Referensnr. DF20A_P01_014 78

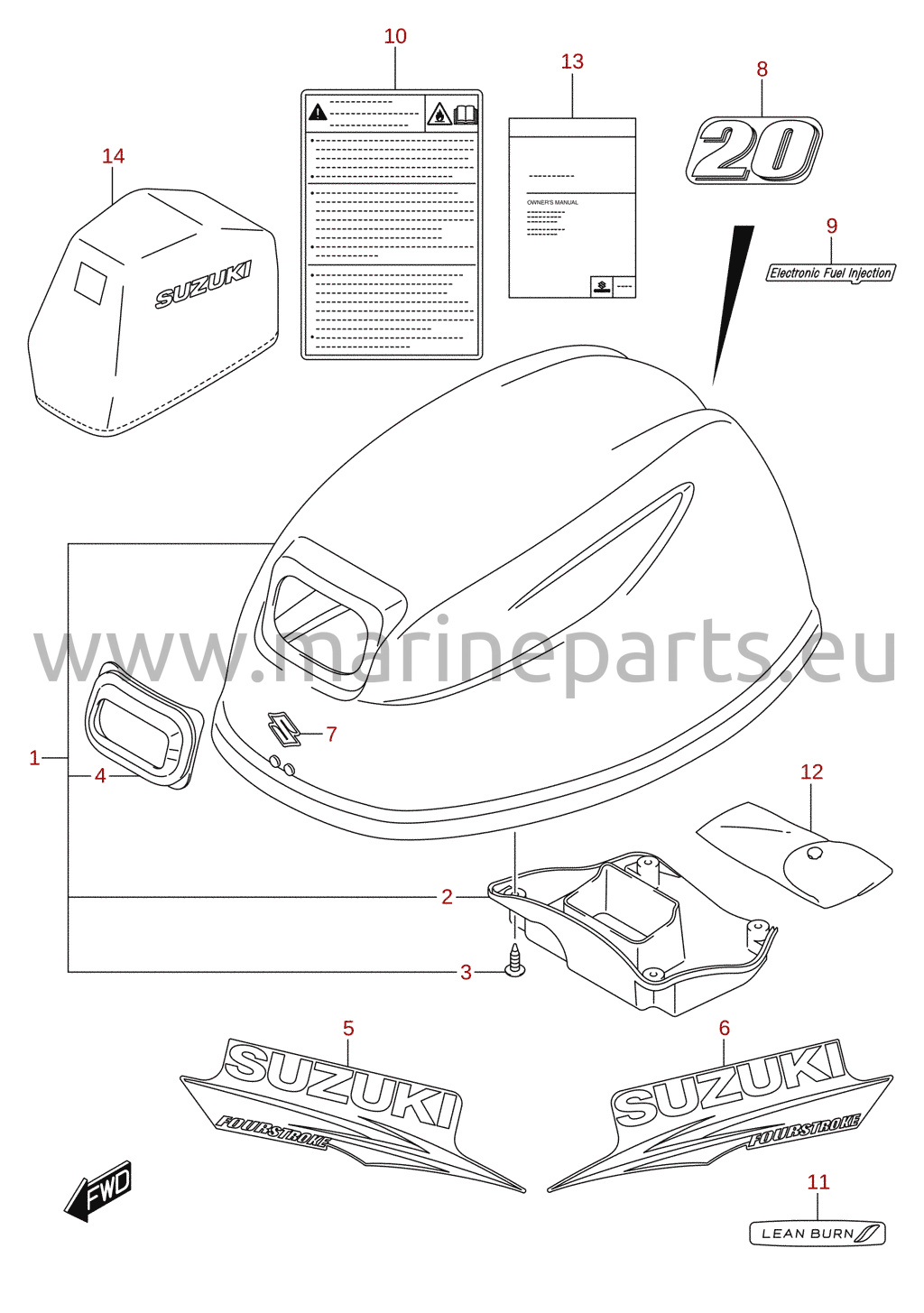

Motorkåpa (DF20A, DF20AR)
Referensnr. DF20A_P01_014 72

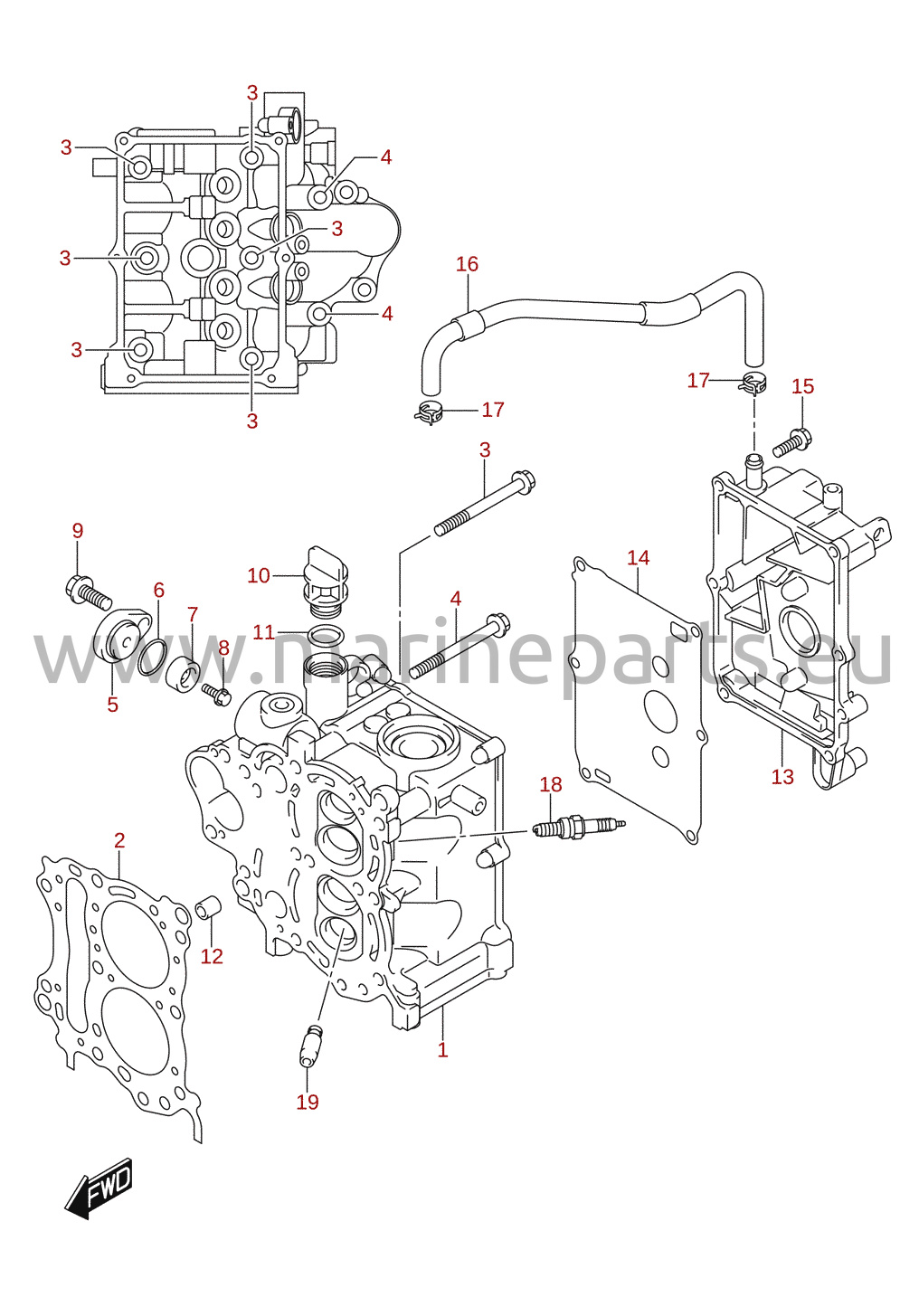

Topplock
Referensnr. DF20A_P01_014 1

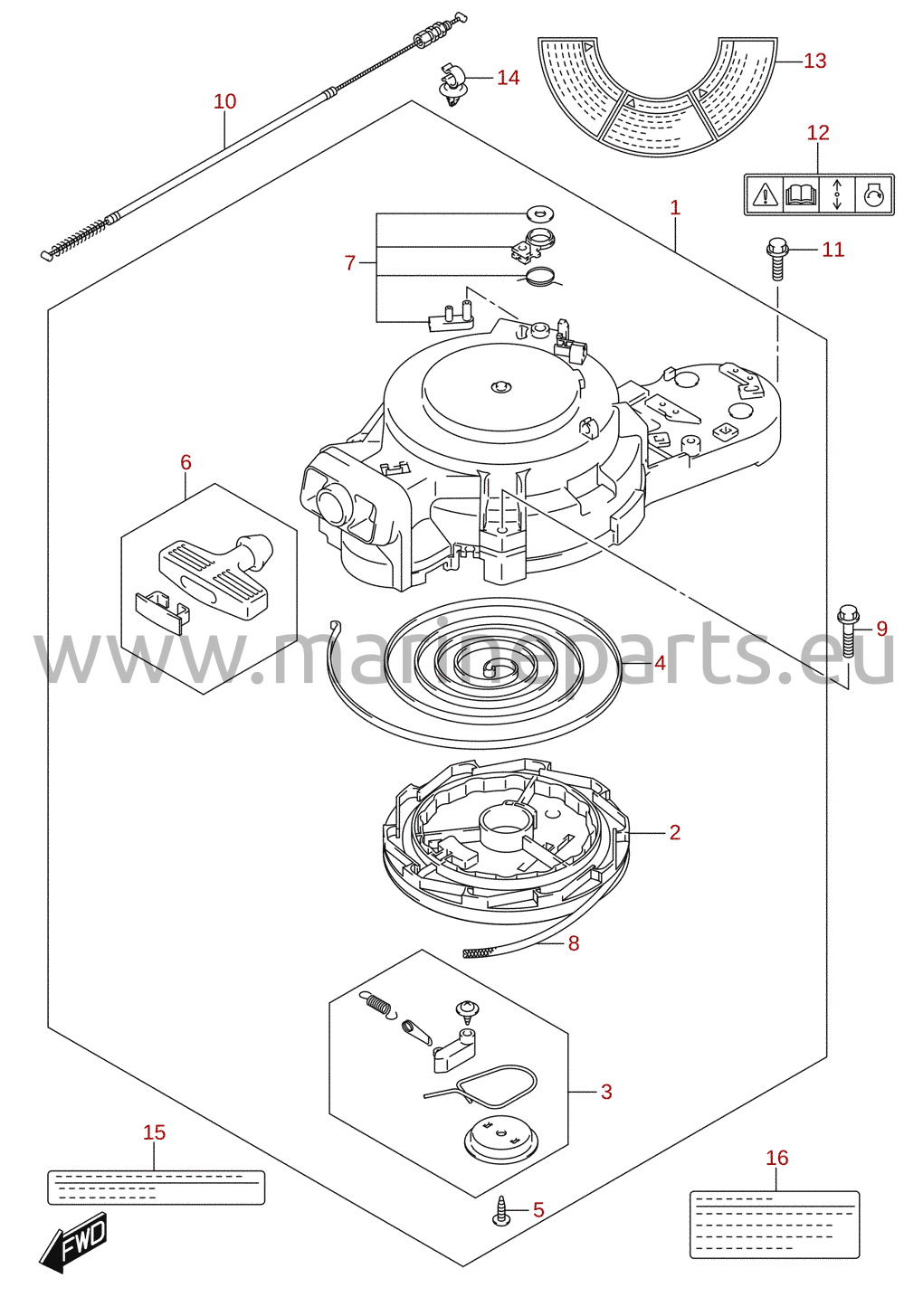

Snörstart (DF20A)
Referensnr. DF20A_P01_014 22

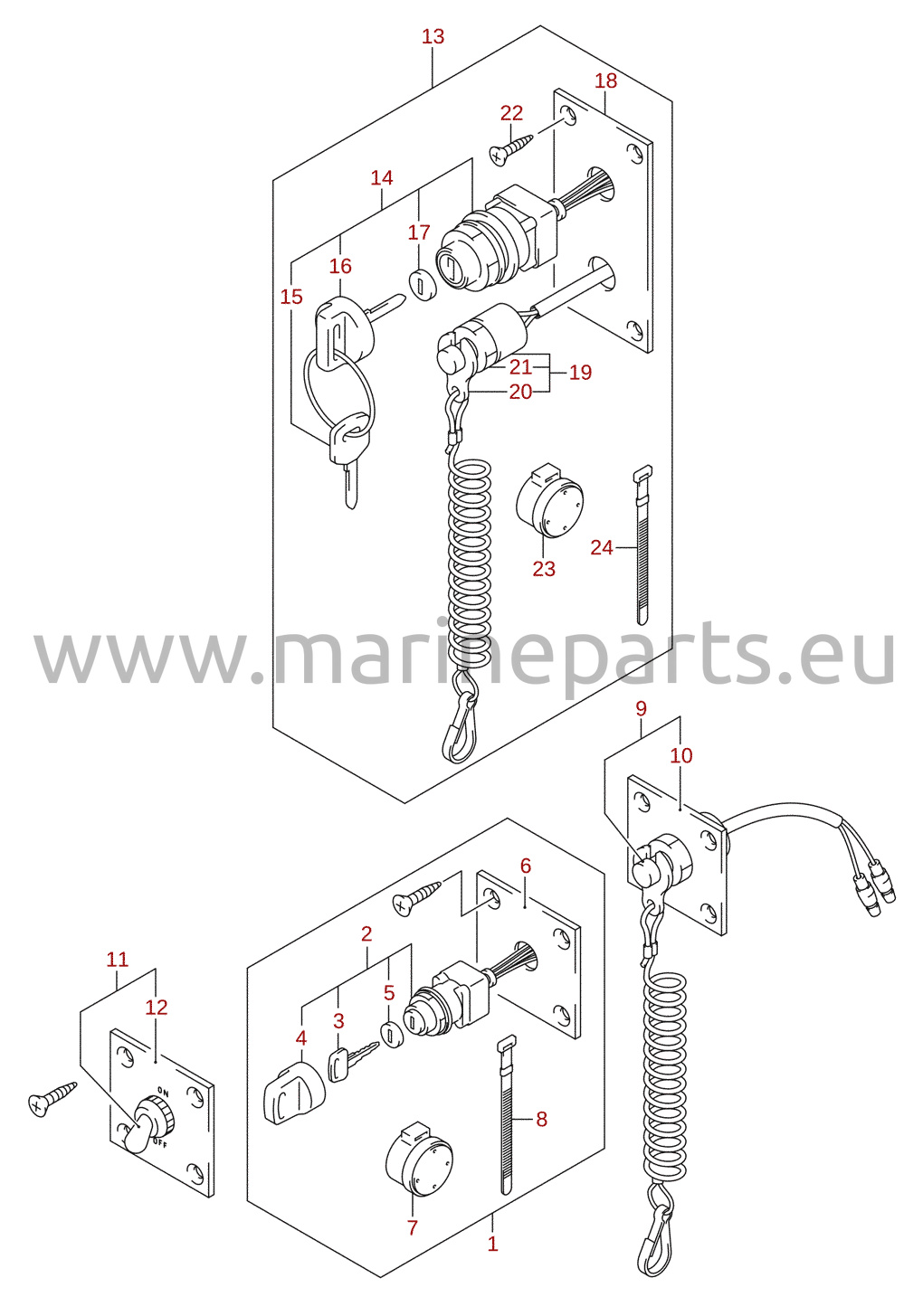

Brytare (DF15AR, DF20AR, DF20AT, DF9.9BR, DF9.9BT) (tillval)
Referensnr. DF20A_P01_014 83
Likriktare / tändspole (DF15A)
Referensnr. DF20A_P01_014 37
Likriktare / tändspole (DF15AR, DF15ATH)
Referensnr. DF20A_P01_014 38
Vattenpump (DF20A)
Referensnr. DF20A_P01_014 13

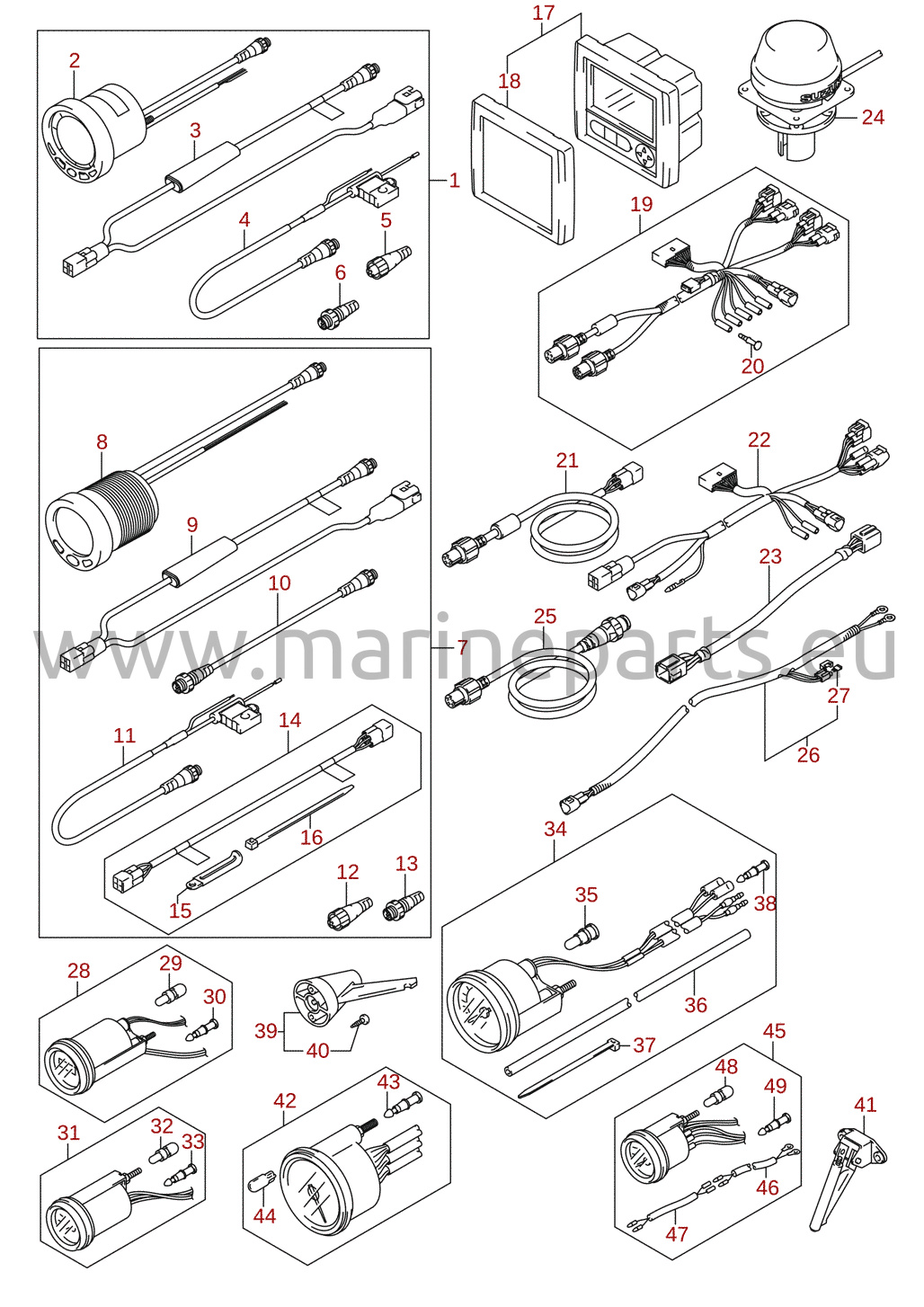

Instrument (DF15AR, DF20AR, DF20AT, DF9.9BR, DF9.9BT) (tillval)
Referensnr. DF20A_P01_014 79

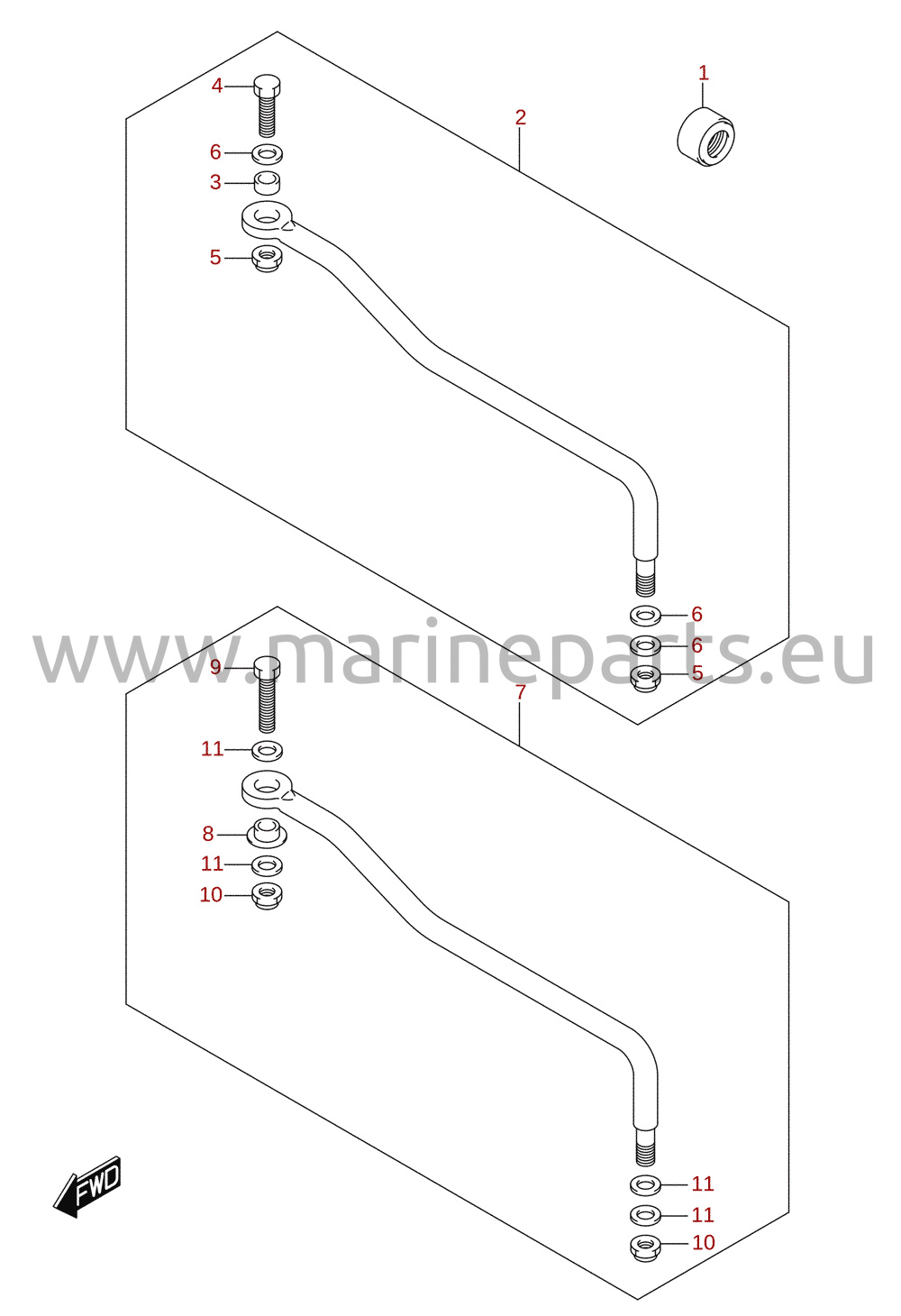

Styrstag (DF15A, DF20A, DF9.9B) (tillval)
Referensnr. DF20A_P01_014 92

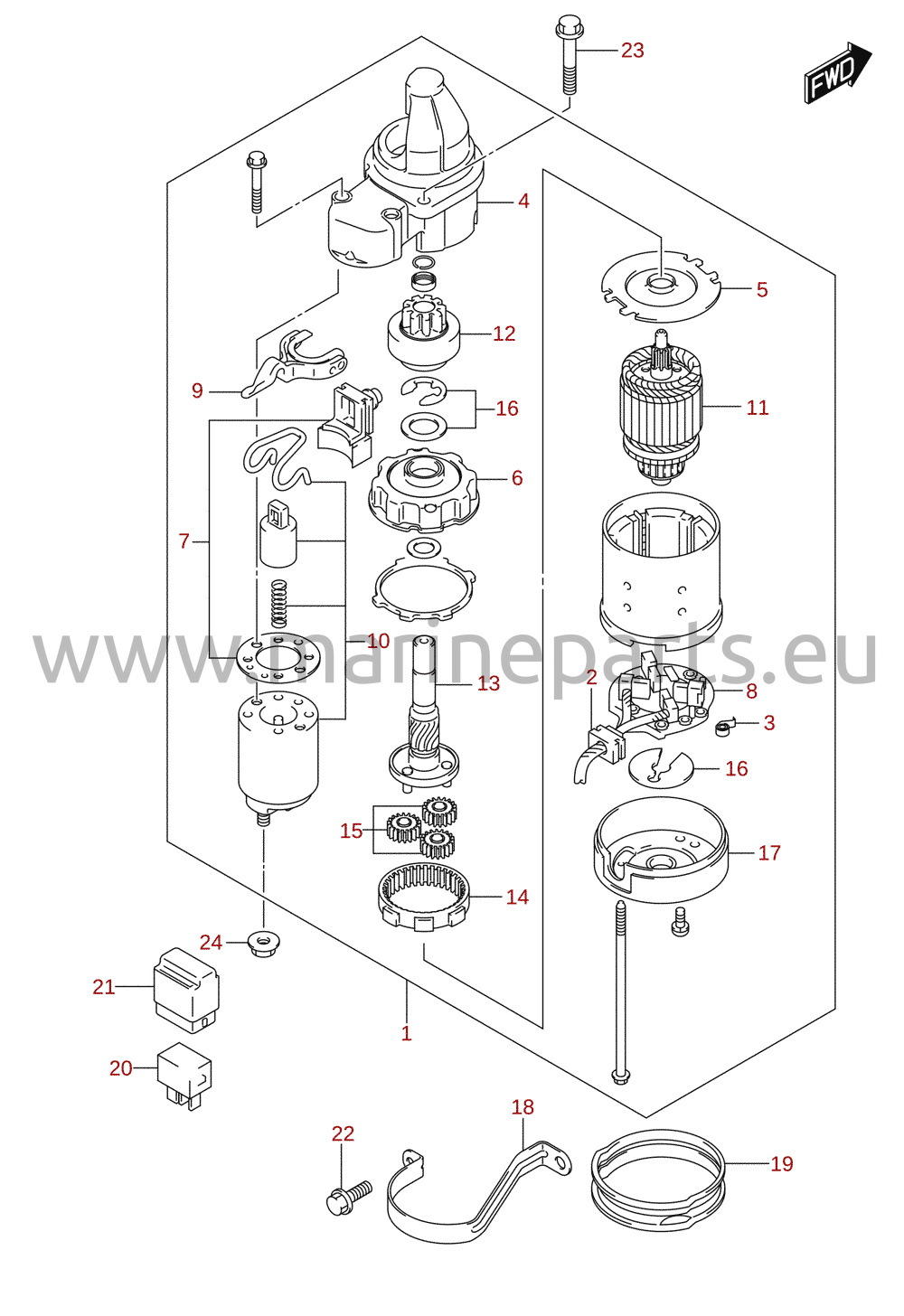

Startmotor (E-starter)
Referensnr. DF20A_P01_014 29

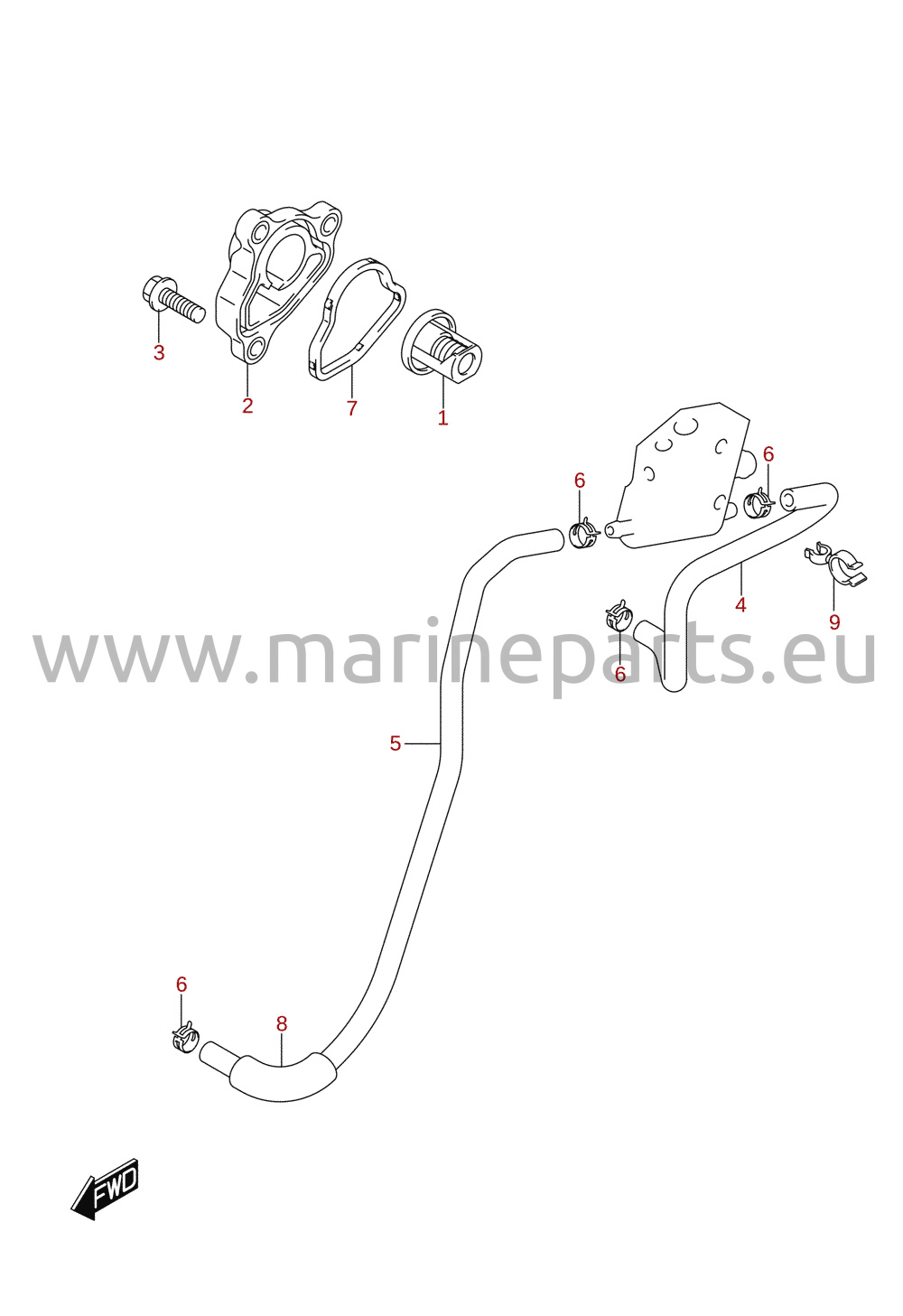

Termostat
Referensnr. DF20A_P01_014 14

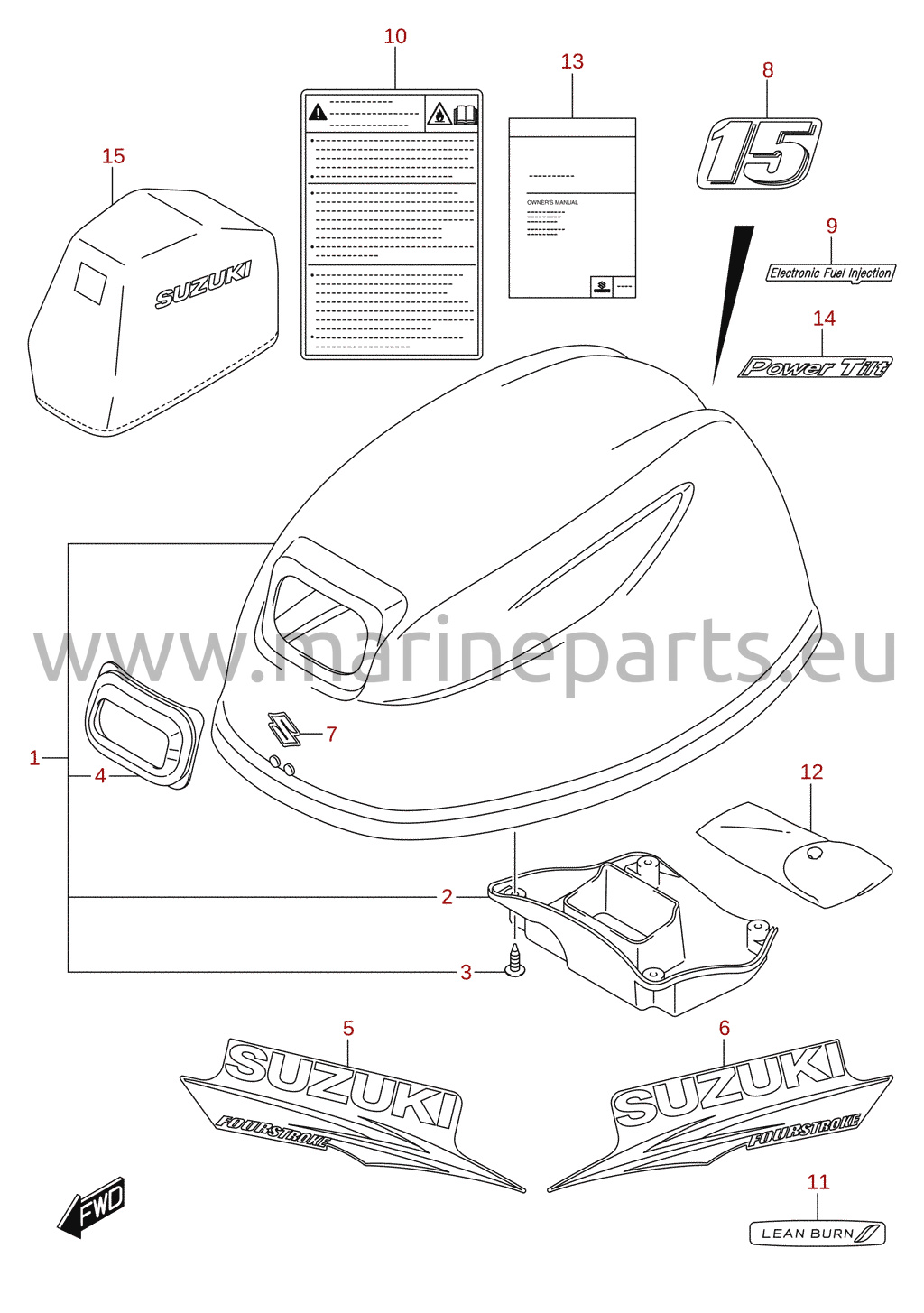

Motorkåpa (DF15ATH)
Referensnr. DF20A_P01_014 71

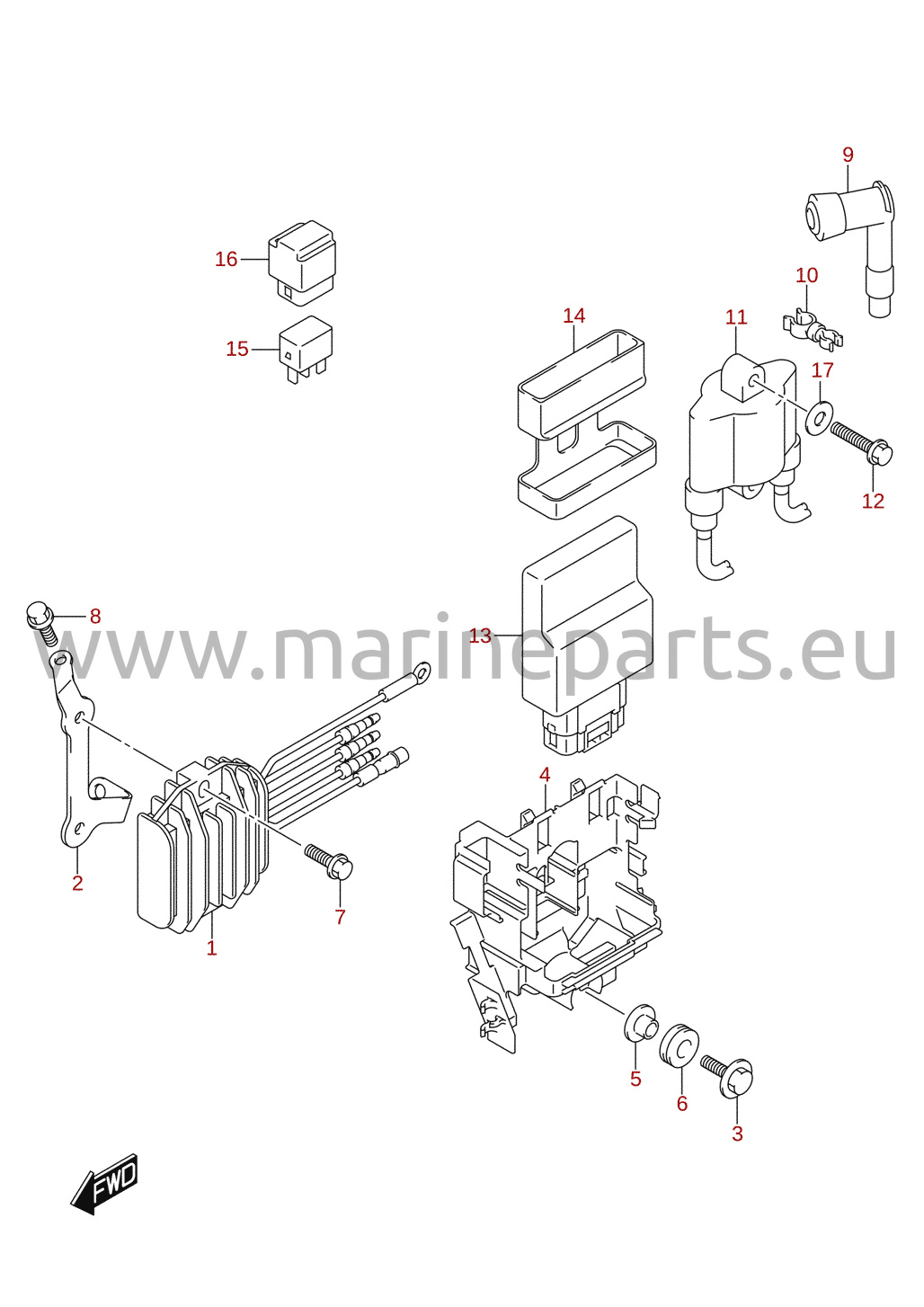

Likriktare / tändspole (DF20A) 2/2
Referensnr. DF20A_P01_014 40

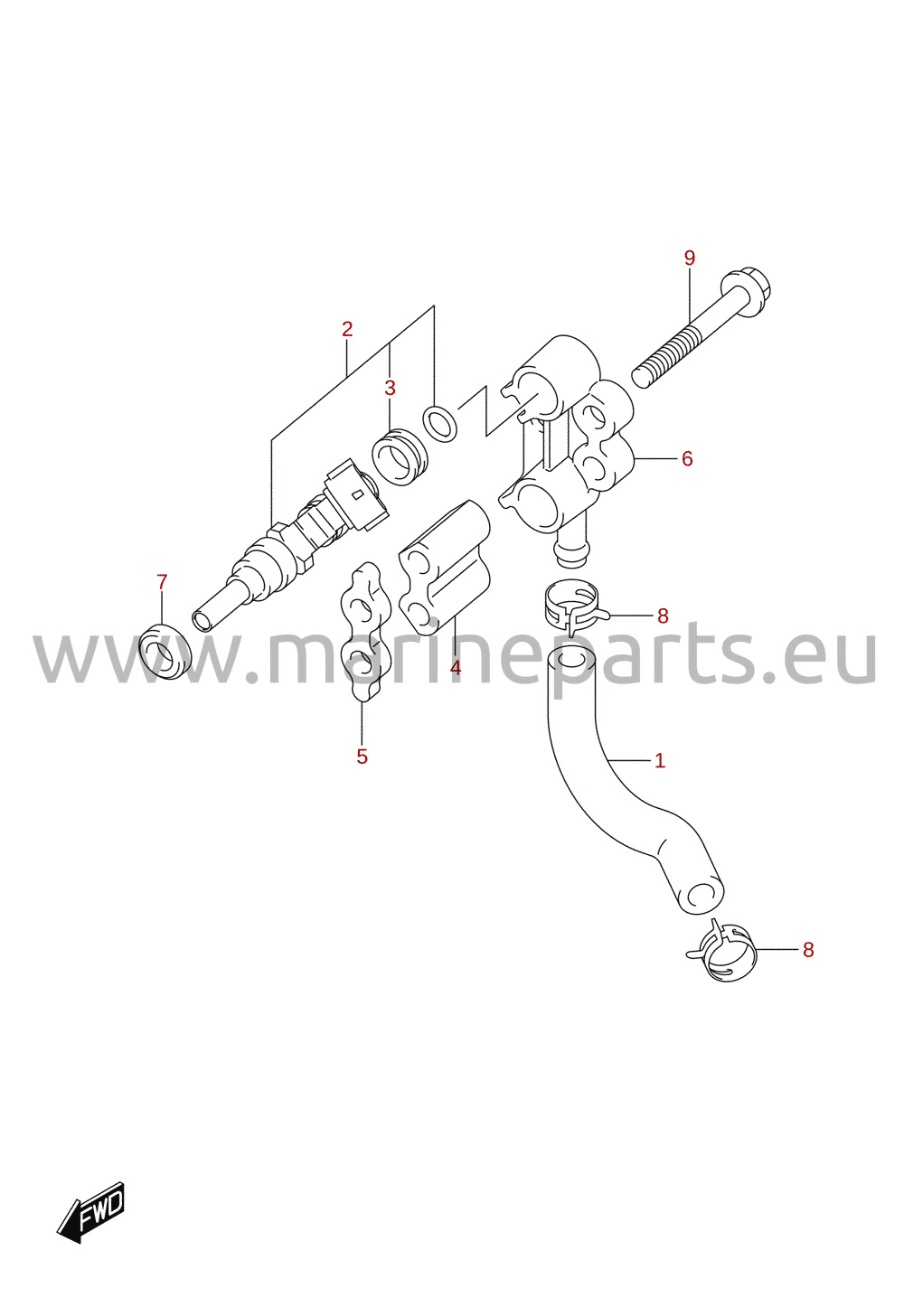

Bränsleinsprutare
Referensnr. DF20A_P01_014 10

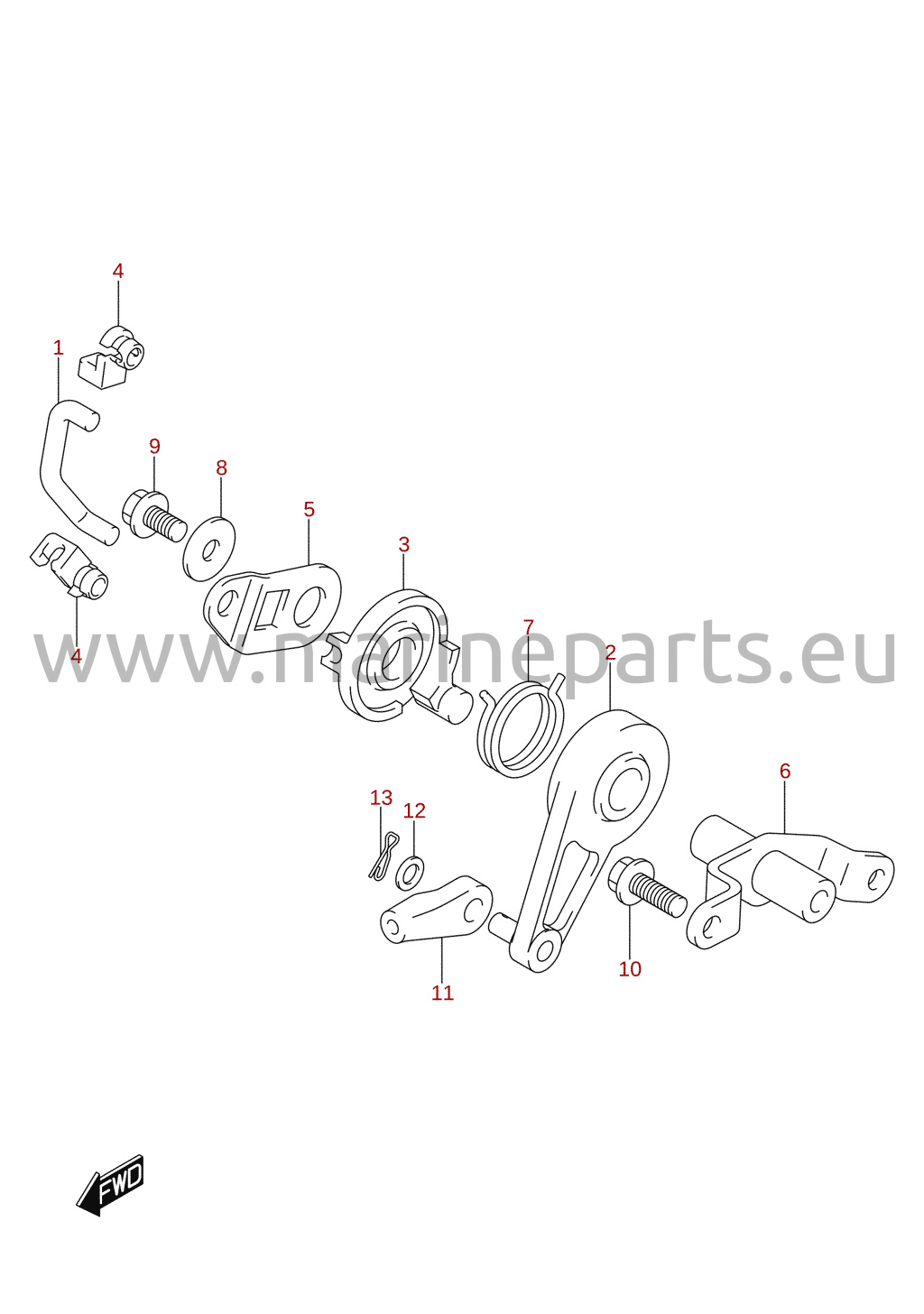

Gasreglage (DF15AR)
Referensnr. DF20A_P01_014 19

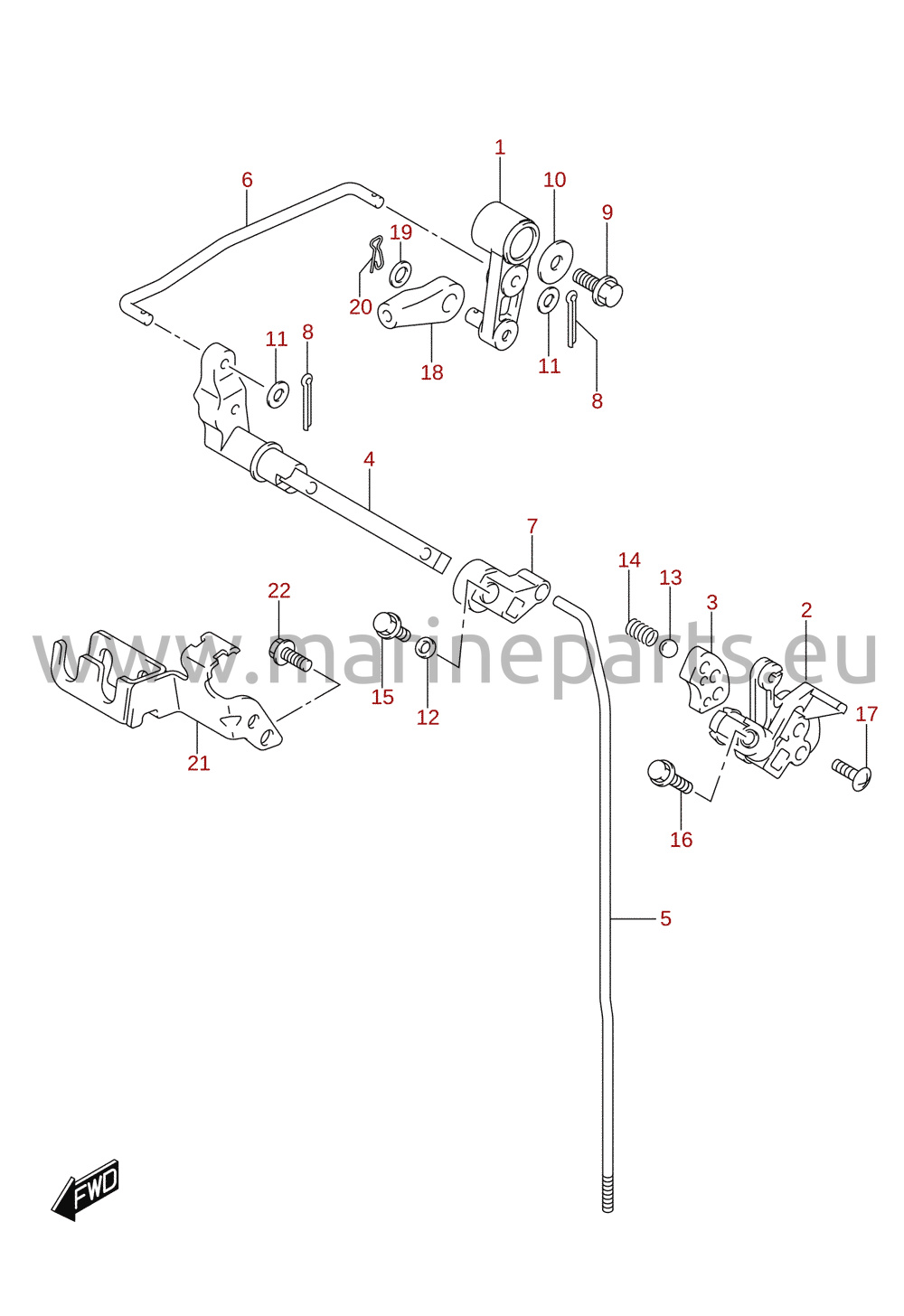

Kopplingsstång (DF15AR, DF20AR, DF20AT, DF9.9BR, DF9.9BT)
Referensnr. DF20A_P01_014 25

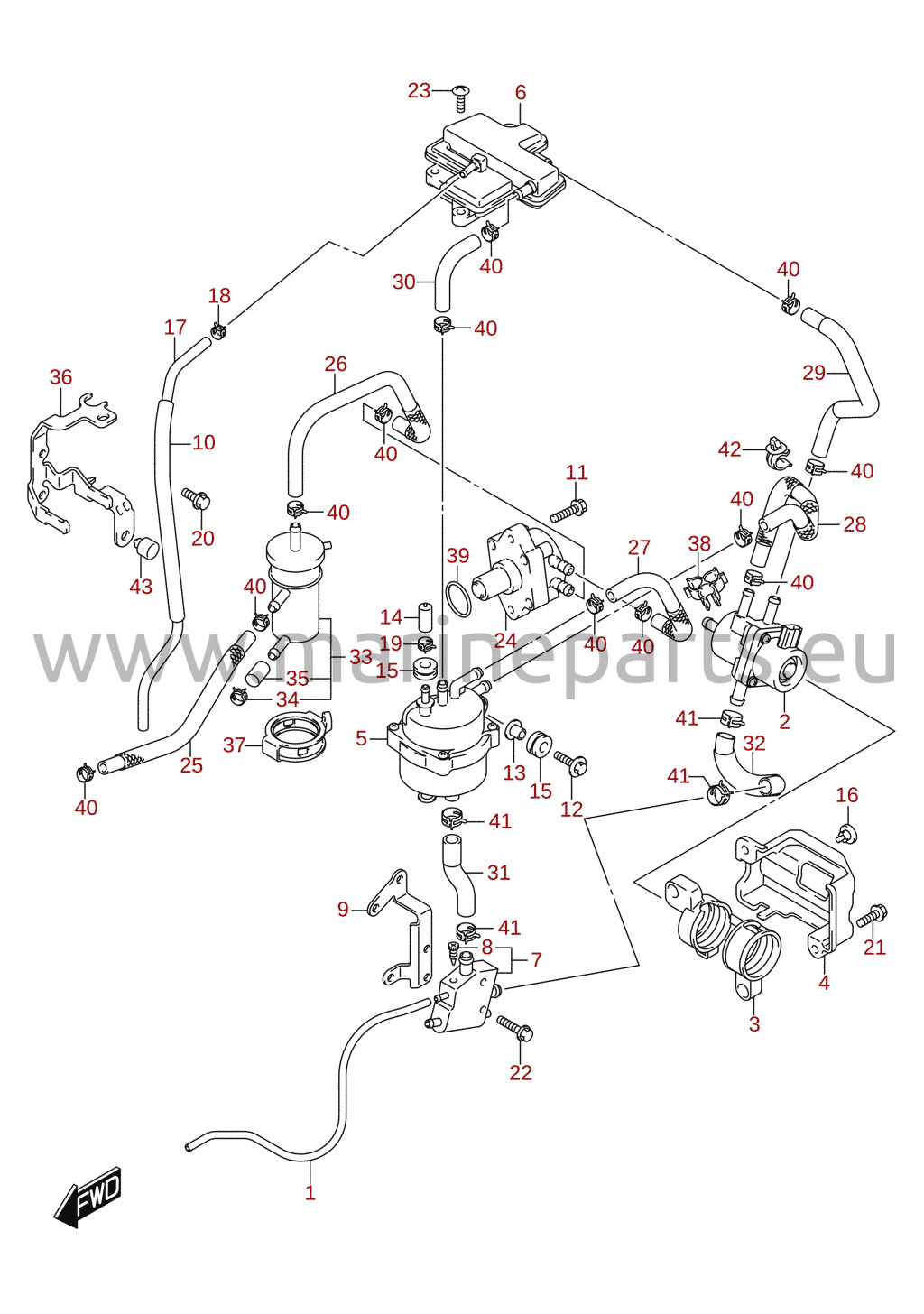

Bränslepump
Referensnr. DF20A_P01_014 11

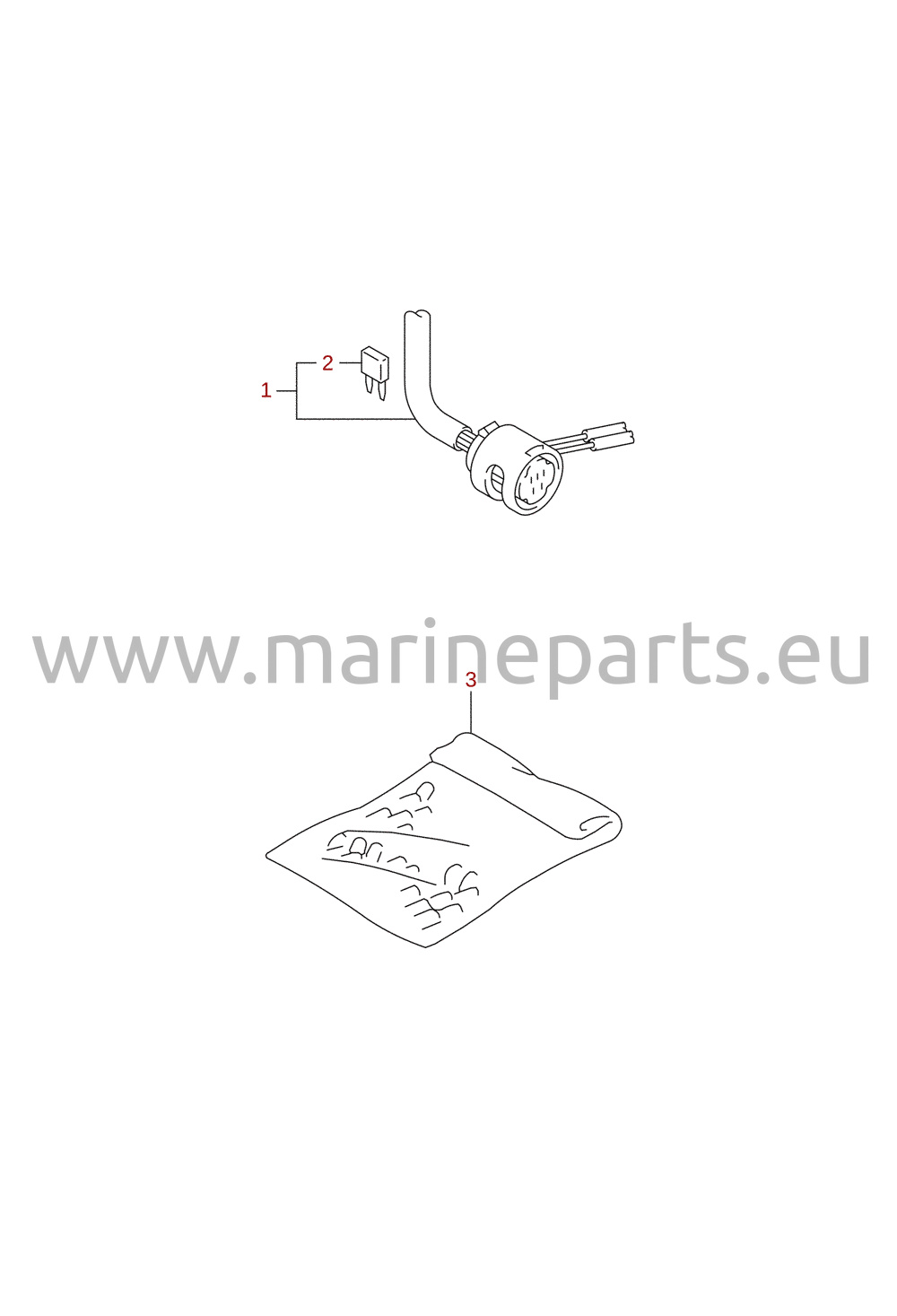

Reglagekabel (elstart) (DF15A, DF15ATH, DF20A, DF20ATH, DF9.9B) (tillval)
Referensnr. DF20A_P01_014 86

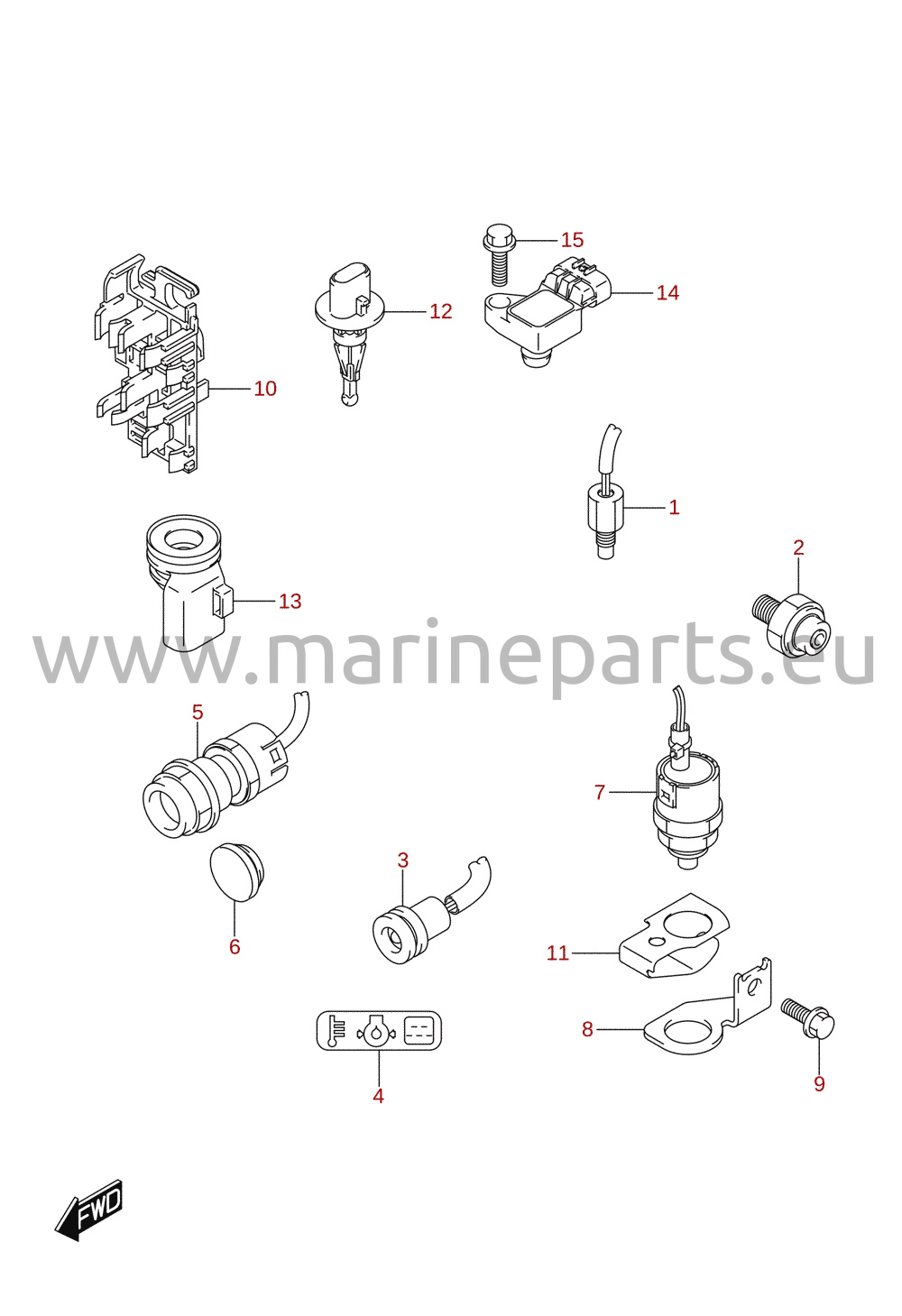

Givare / brytare (DF15A, DF20A, DF9.9B)
Referensnr. DF20A_P01_014 48

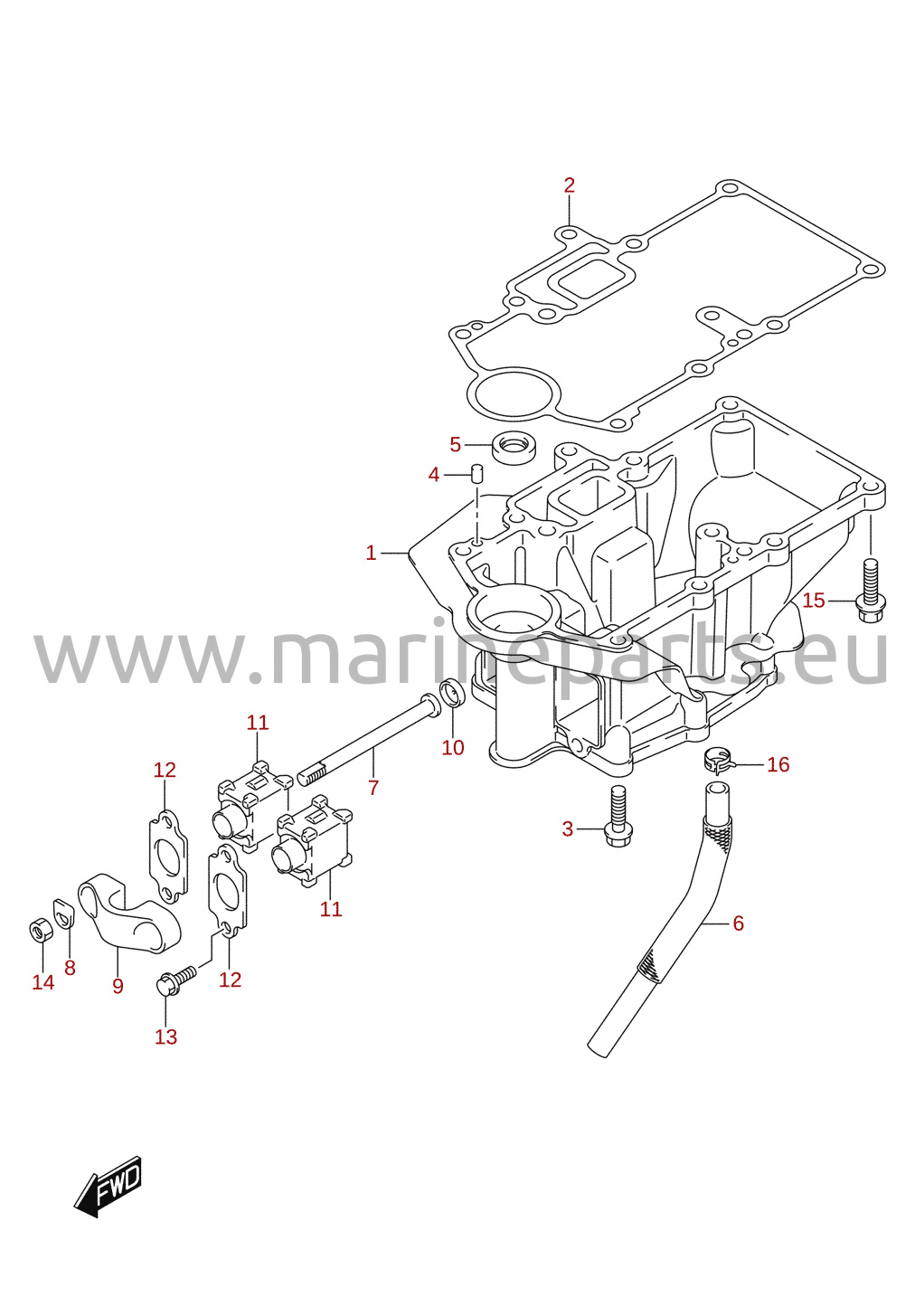

Motorhållare
Referensnr. DF20A_P01_014 61

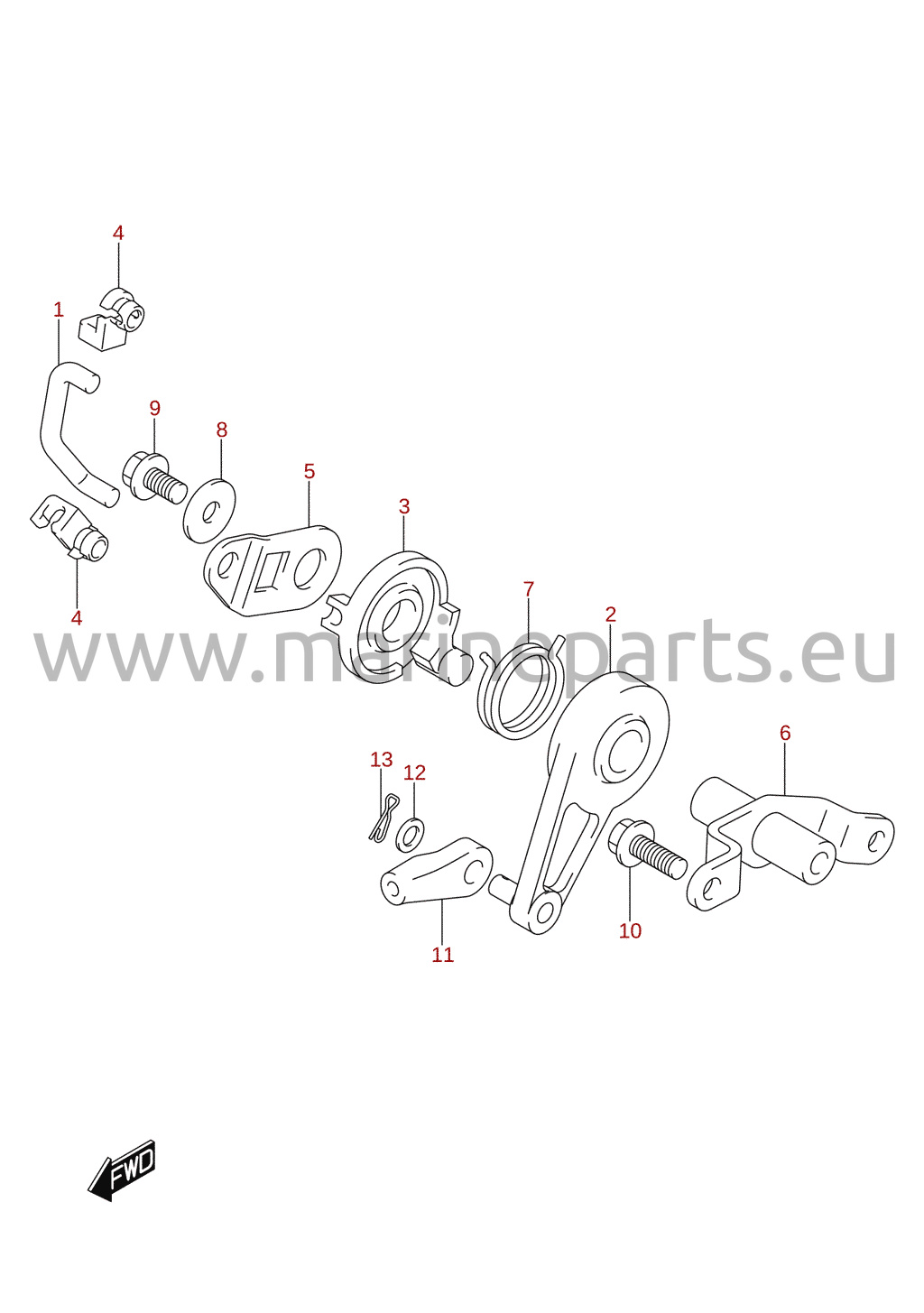

Gasreglage (DF20AR, DF20AT, DF9.9BR)
Referensnr. DF20A_P01_014 17

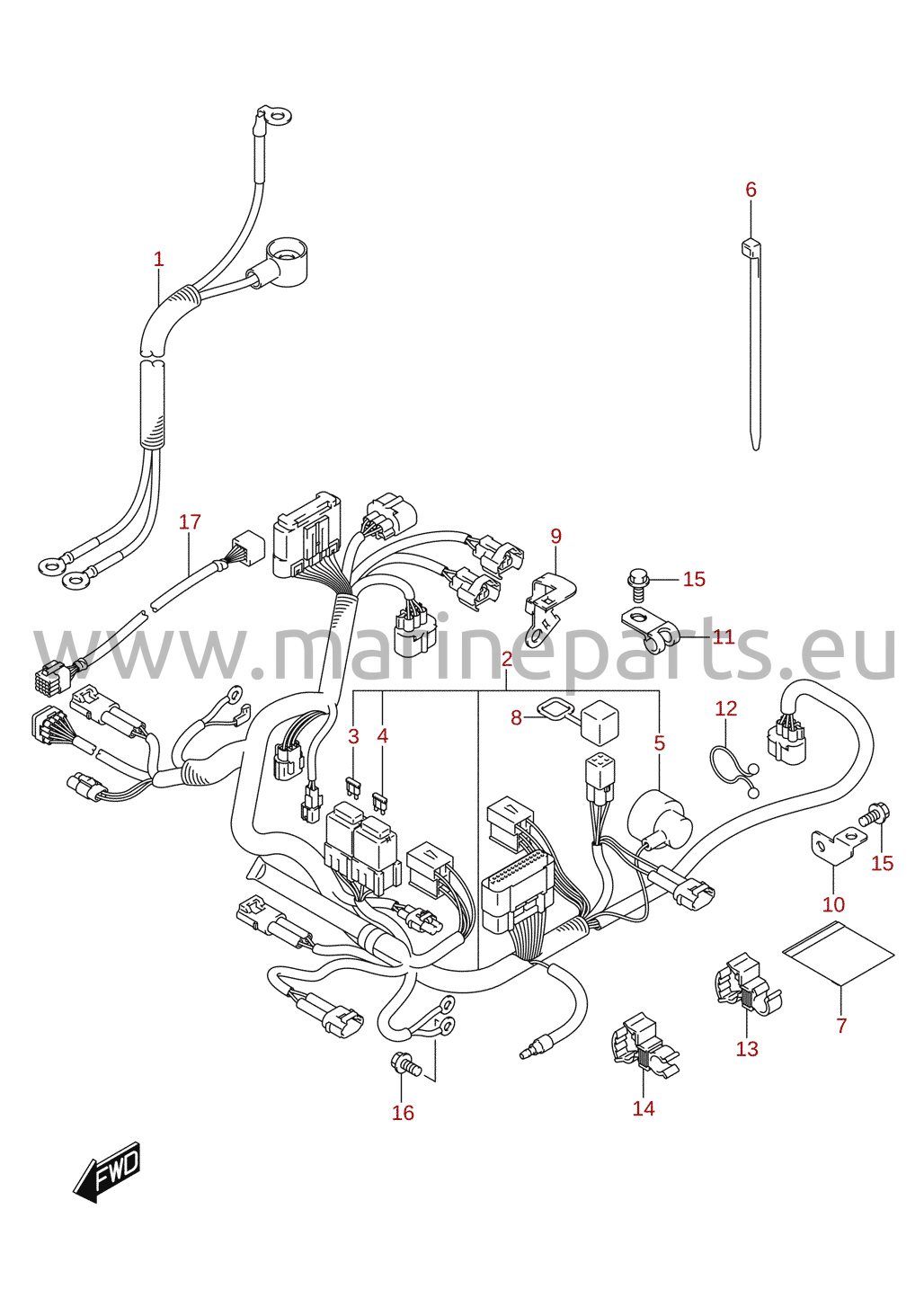

Kabelstam (DF15AR, DF20AR, DF9.9BR)
Referensnr. DF20A_P01_014 43

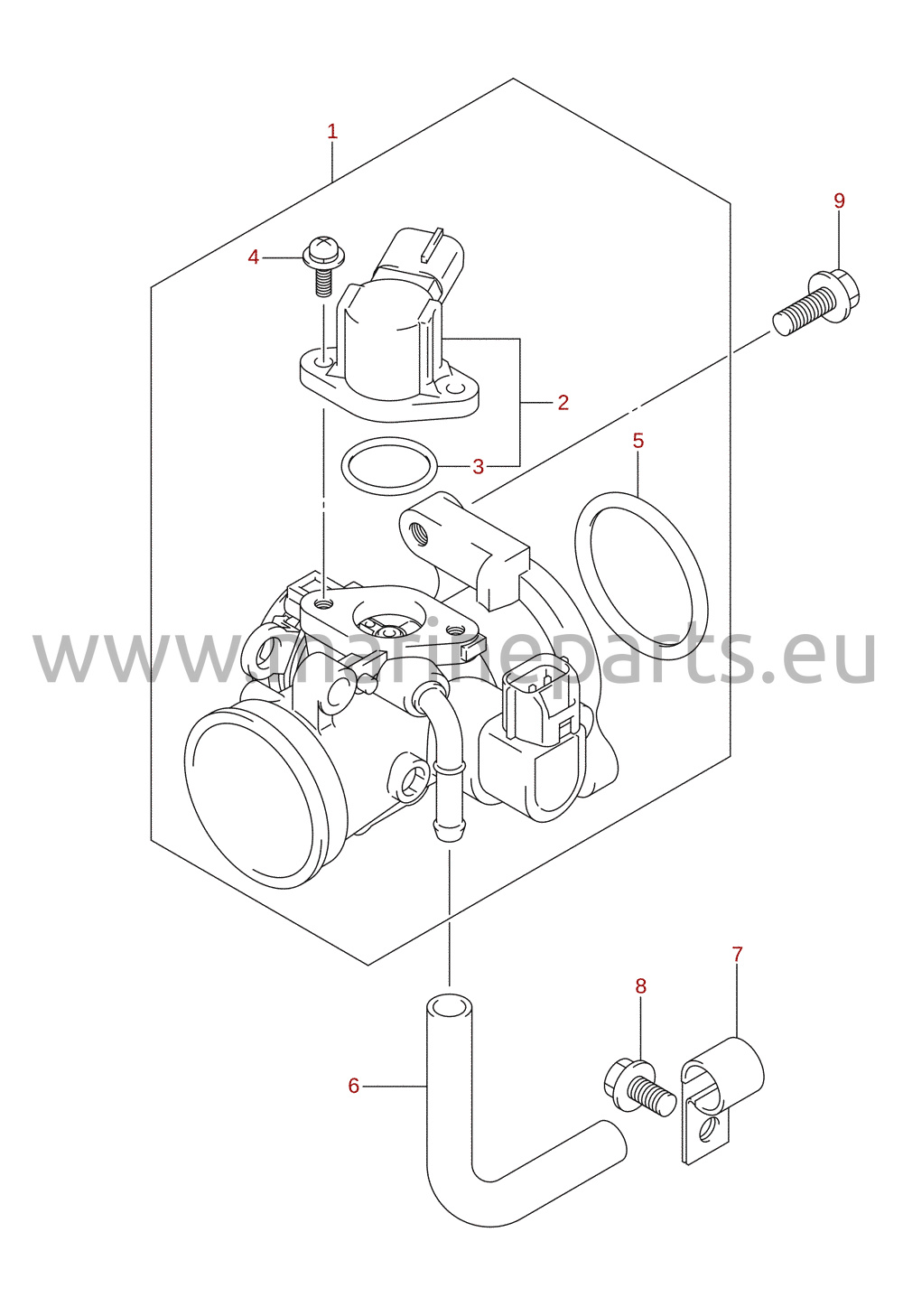

Gasspjällhus (DF15A, DF15ATH, DF20A, DF20ATH, DF9.9B)
Referensnr. DF20A_P01_014 15

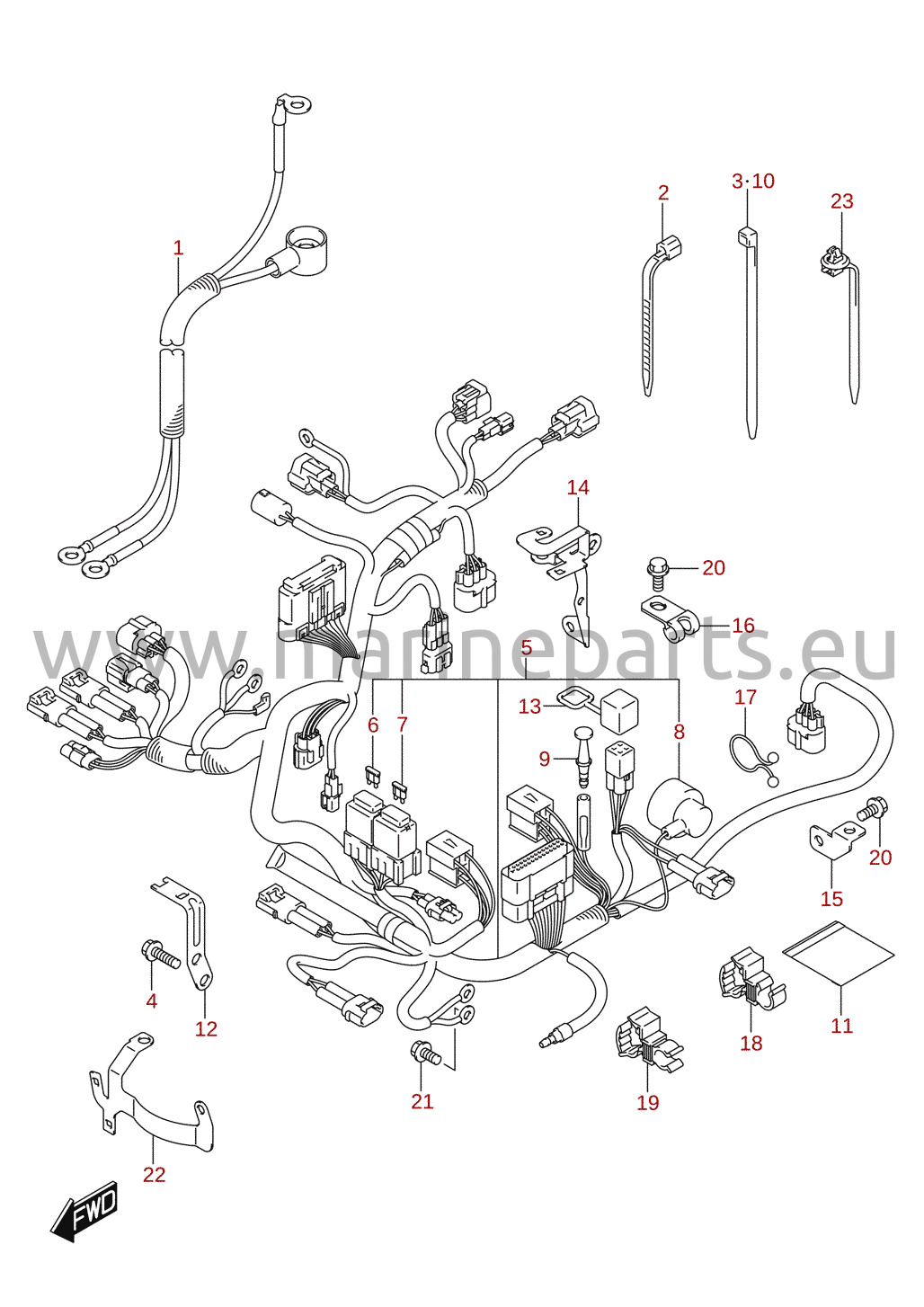

Kabelstam (DF15ATH, DF20ATH)
Referensnr. DF20A_P01_014 45

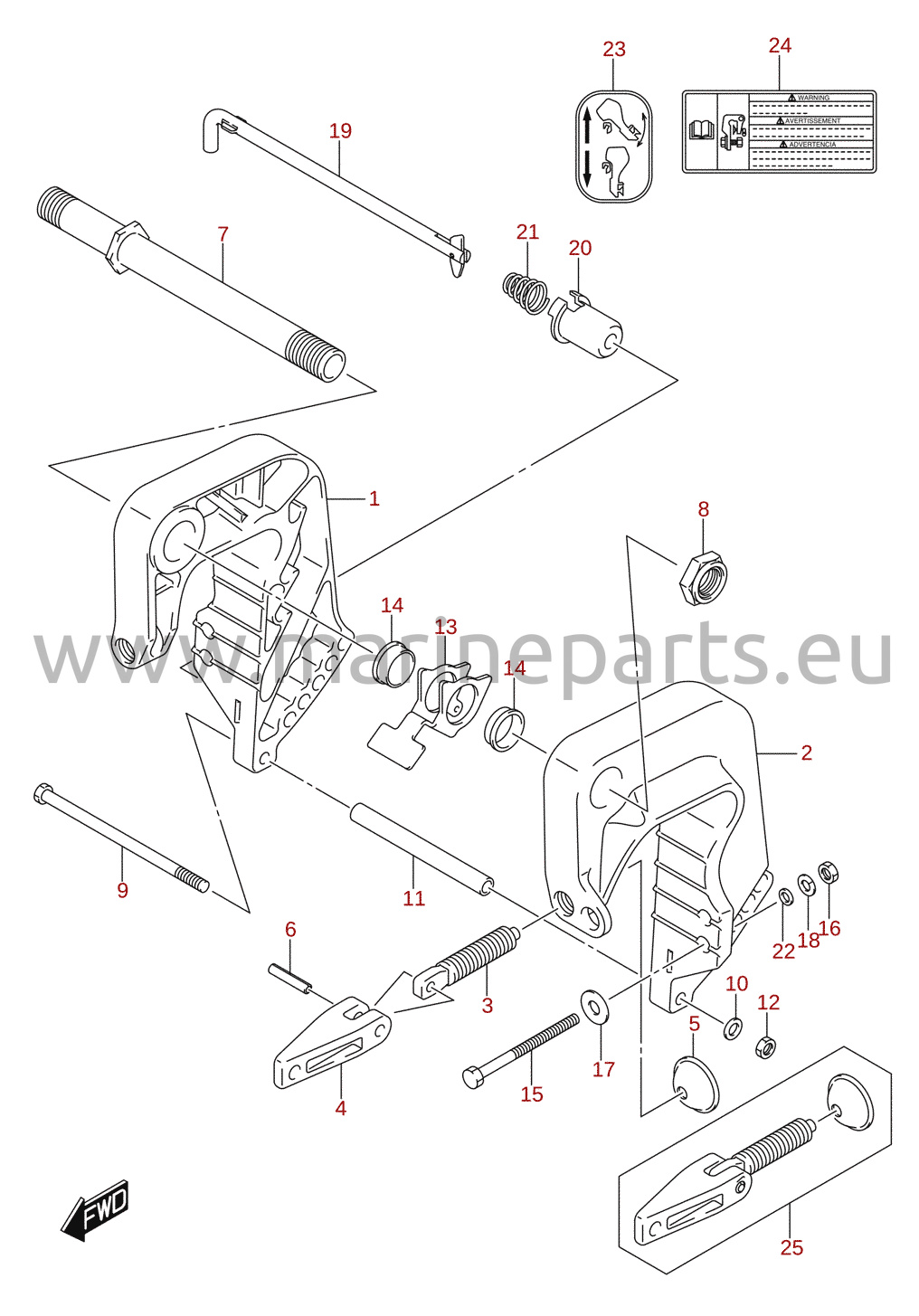

Akterspegelsfäste (DF15AR, DF20AR, DF9.9BR)
Referensnr. DF20A_P01_014 52

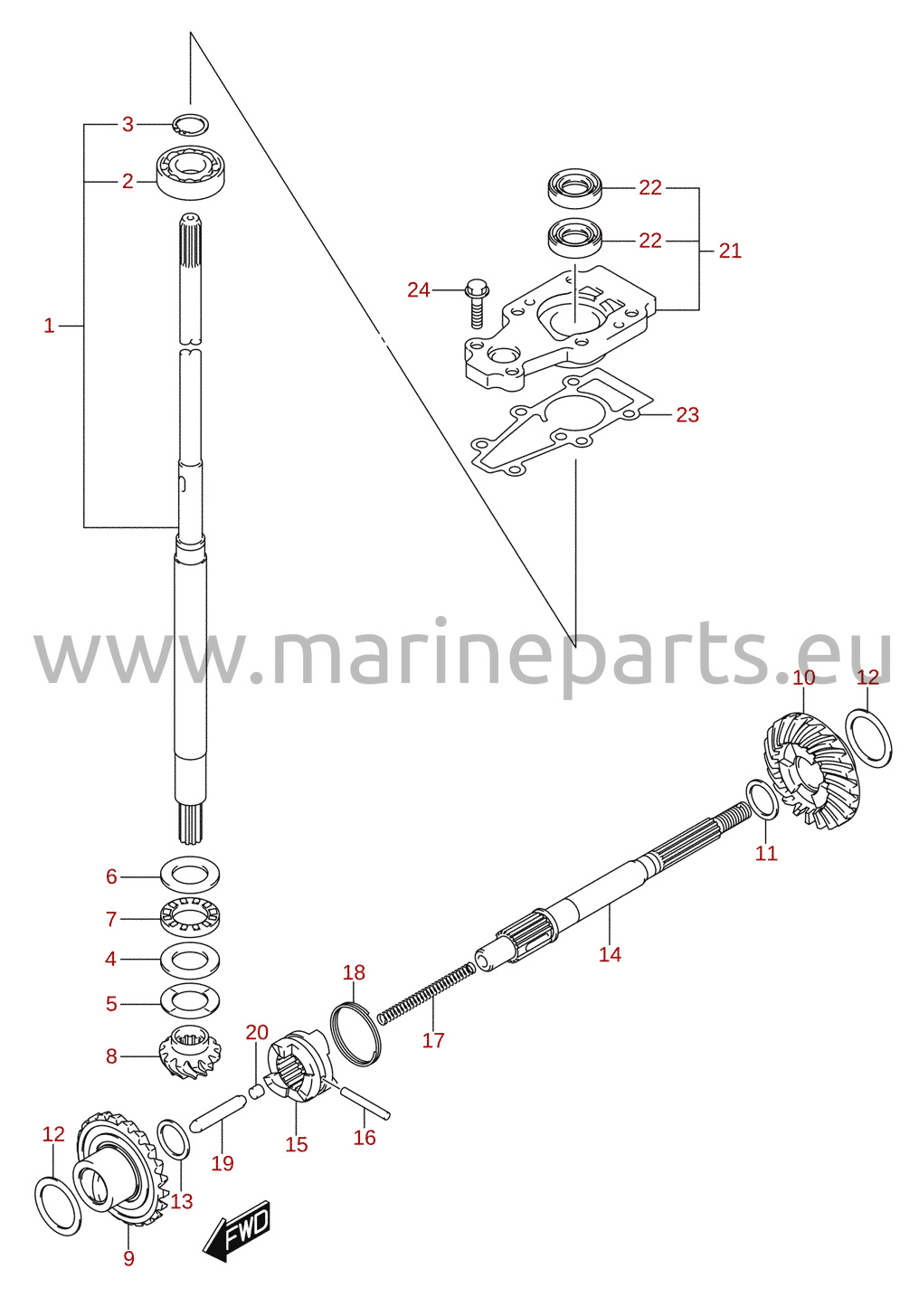

Transmission (DF15A, DF15AR, DF20A, DF20AR, DF9.9B, DF9.9BR)
Referensnr. DF20A_P01_014 27

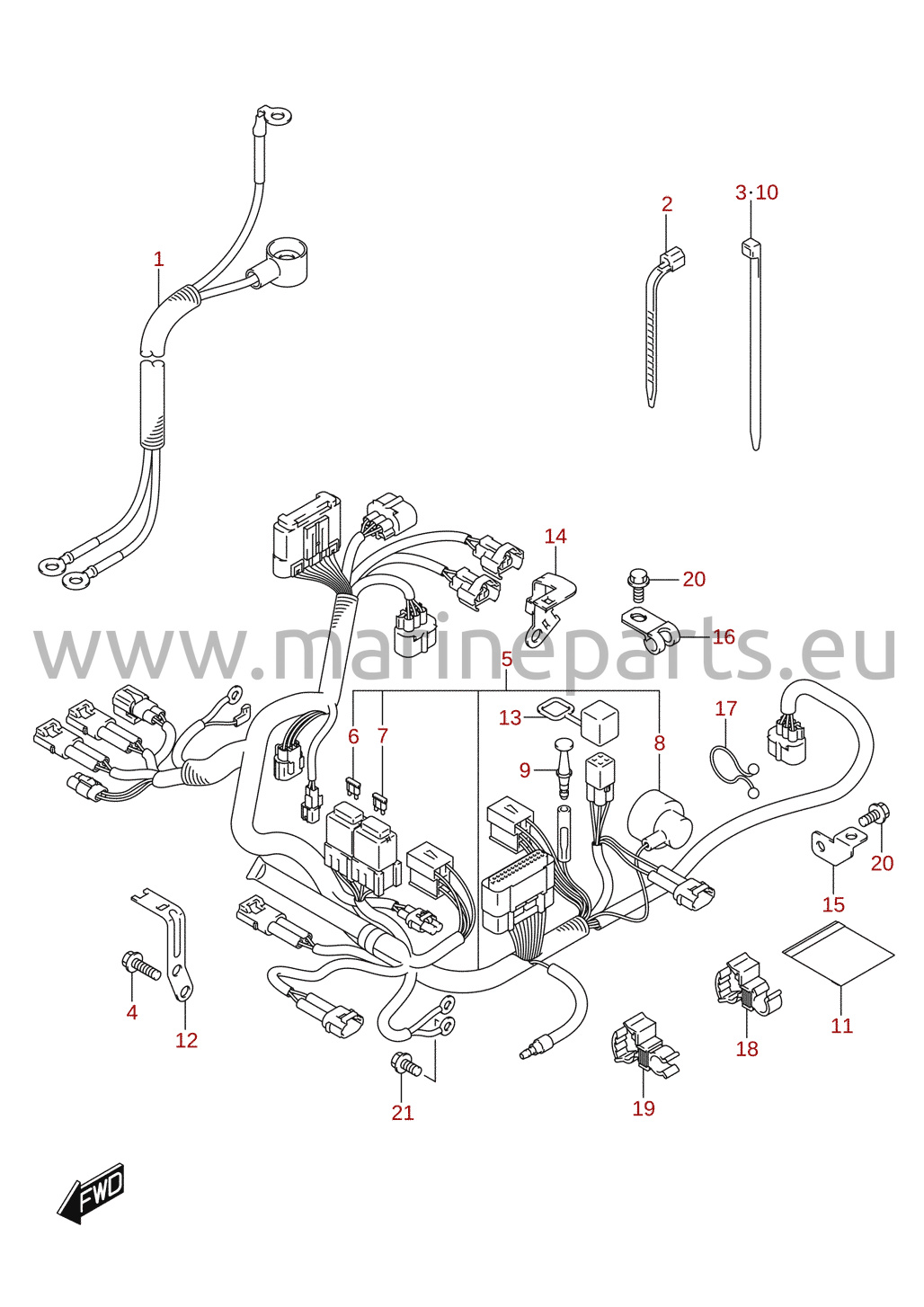

Kabelstam (DF15A, DF20A, DF9.9B)
Referensnr. DF20A_P01_014 42
Likriktare / tändspole (DF20AR, DF20AT, DF20ATH)
Referensnr. DF20A_P01_014 41

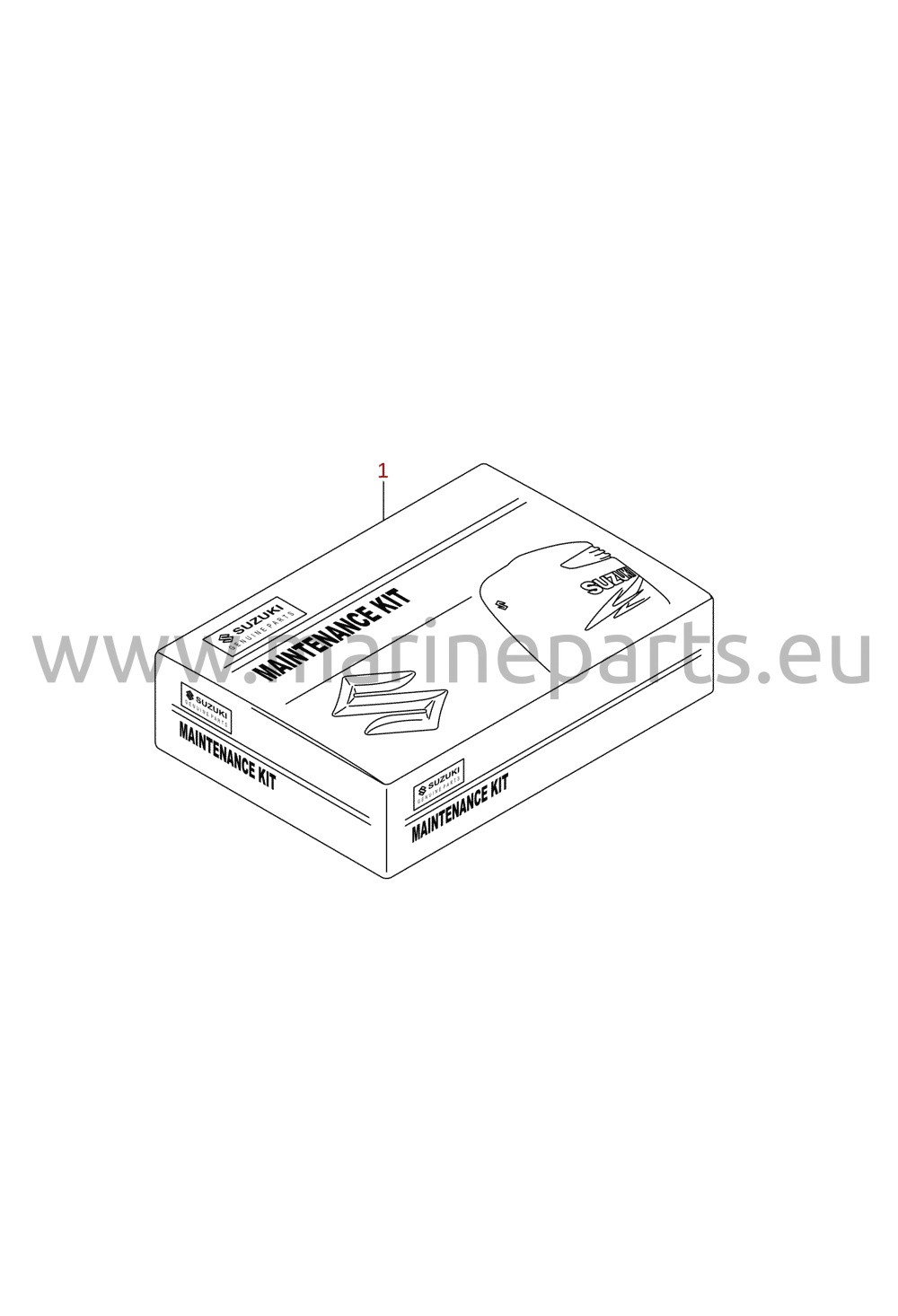

Servicesats (DF15A, DF20A, DF9.9B)
Referensnr. DF20A_P01_014 0
Startmotor (manuell start) (M-starter) (DF20A) (tillval) 2/2
Referensnr. DF20A_P01_014 91

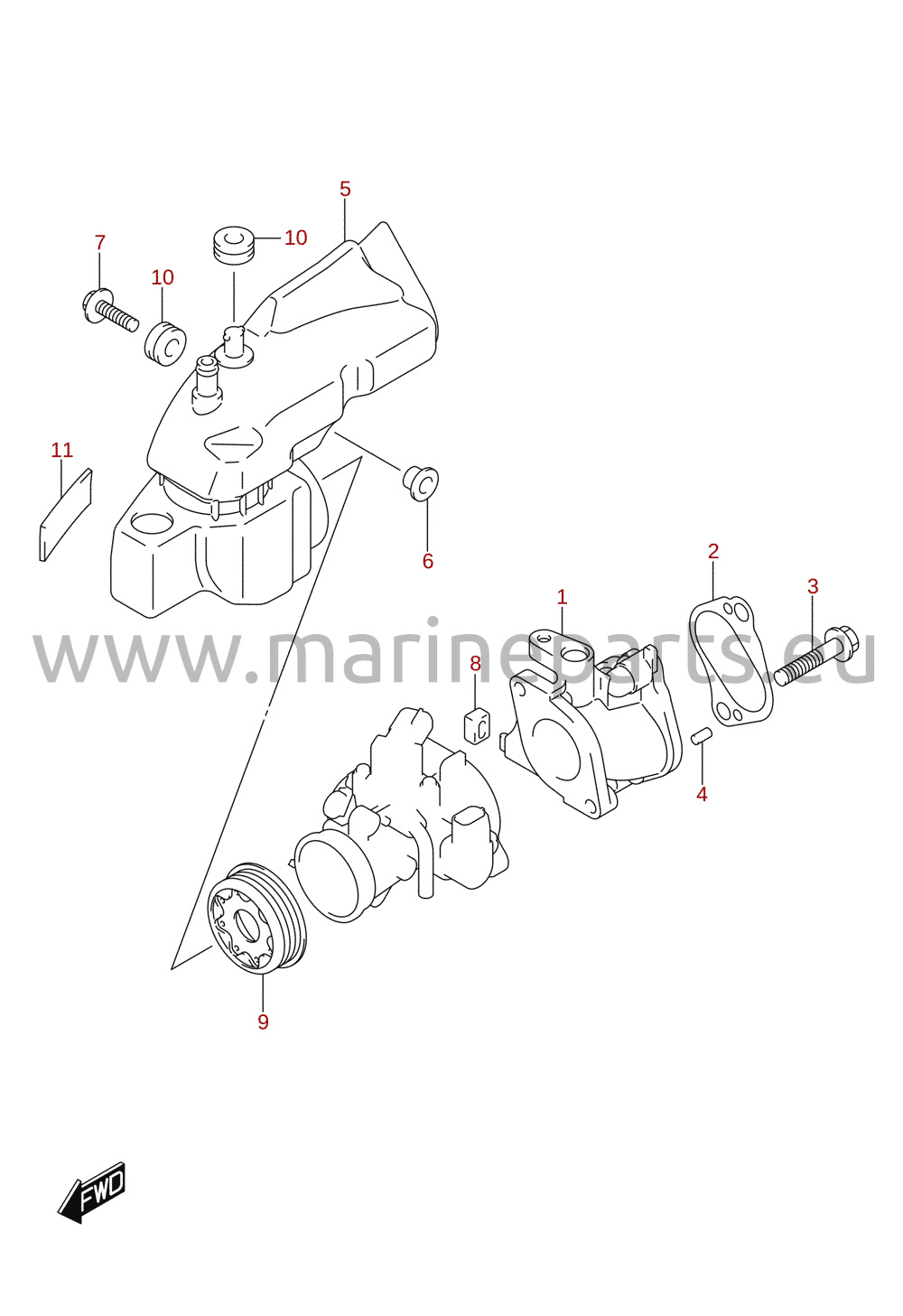

Insugningsrör (DF15)
Referensnr. DF20A_P01_014 8

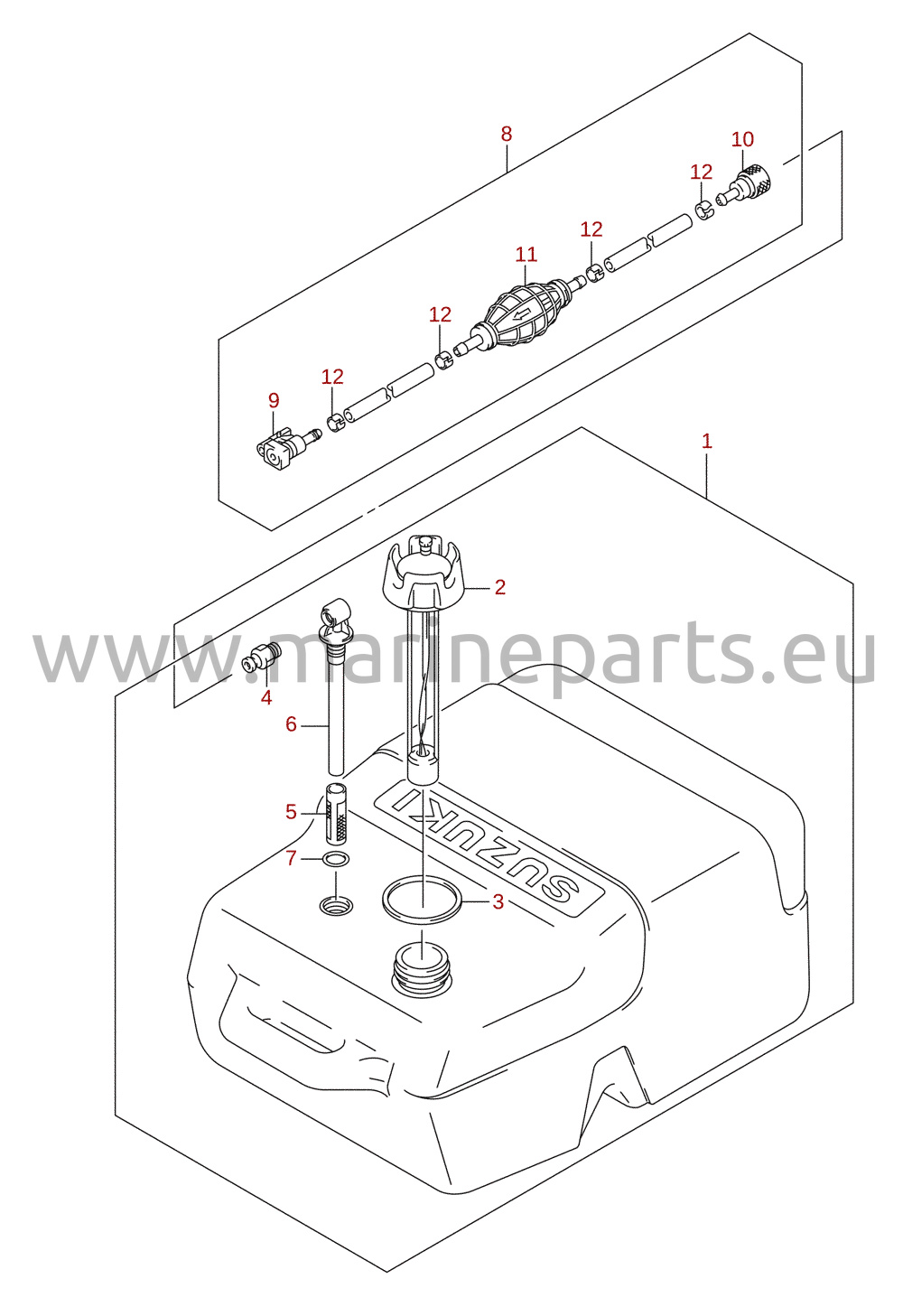

Bränsletank (tillval)
Referensnr. DF20A_P01_014 93

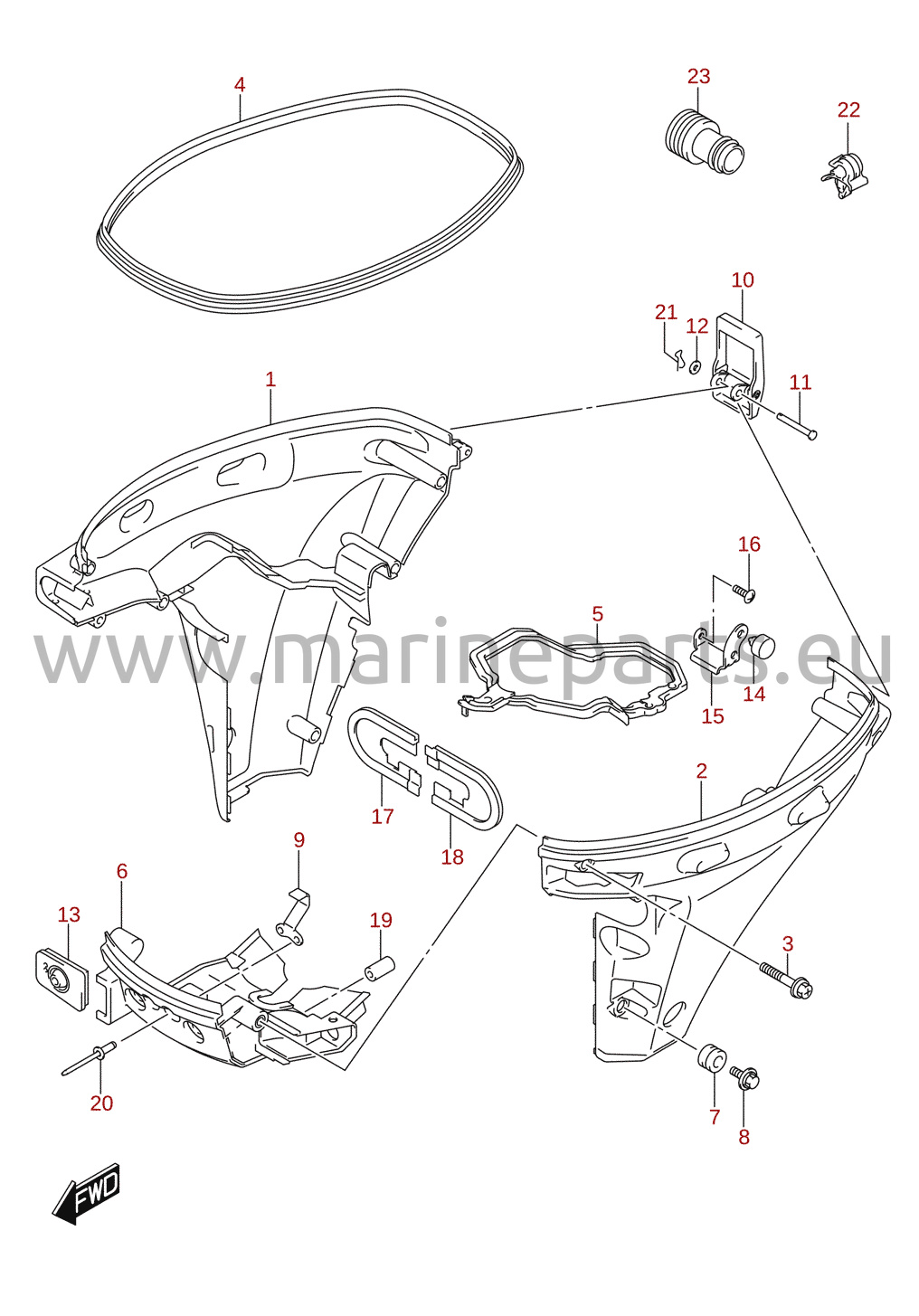

Sidokåpa (DF15ATH, DF20ATH)
Referensnr. DF20A_P01_014 67

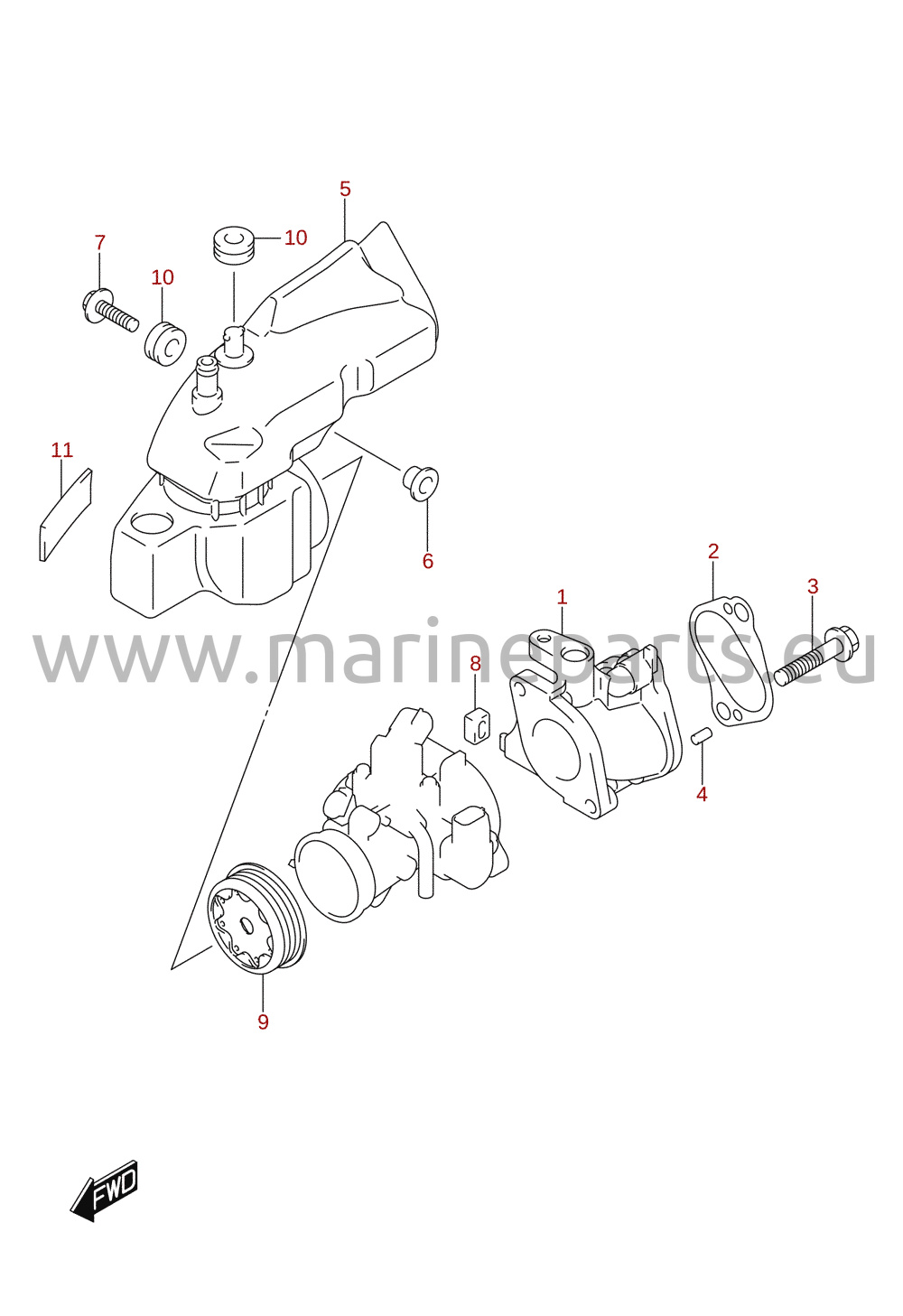

Insugningsrör (DF9.9)
Referensnr. DF20A_P01_014 7

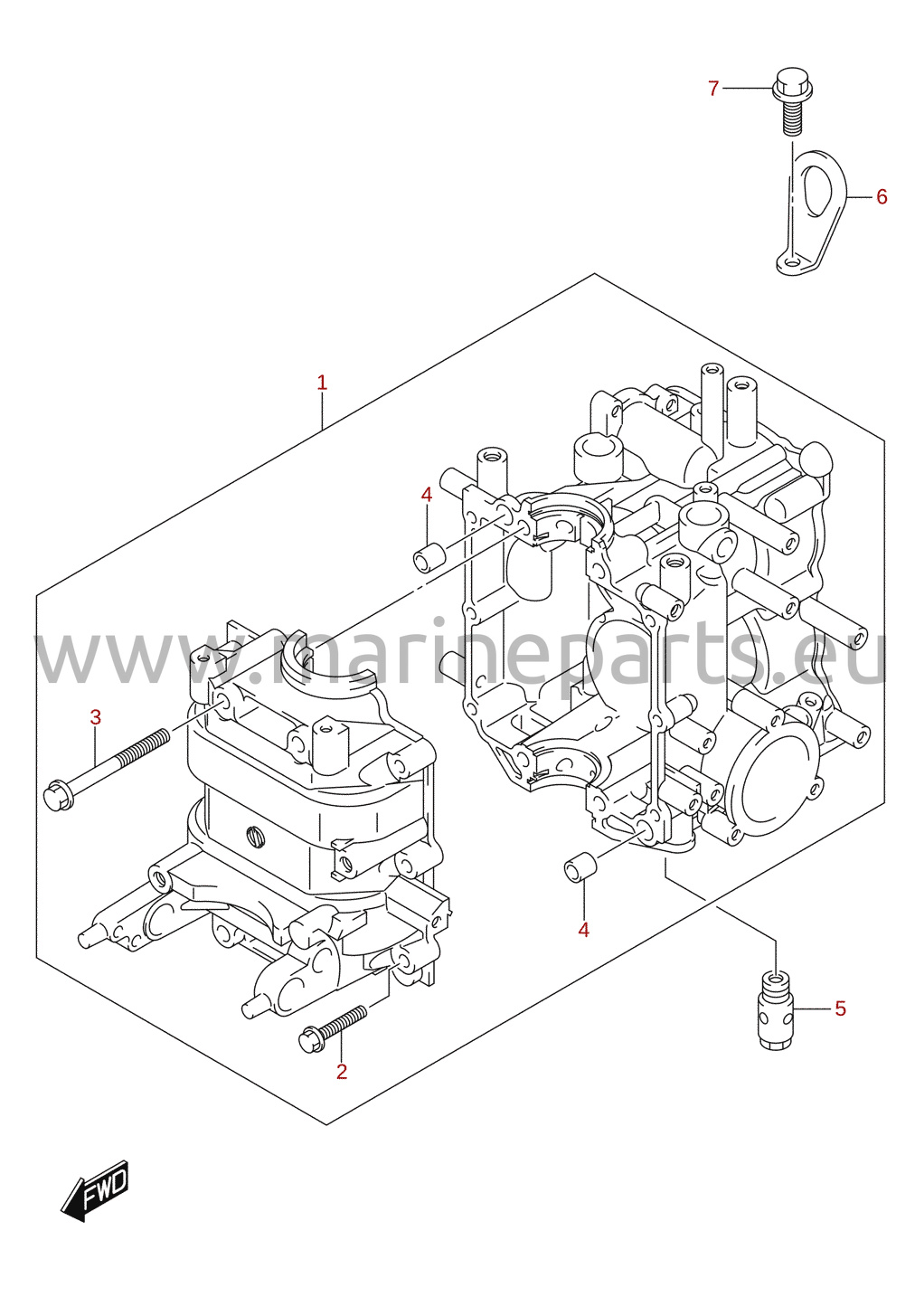

Cylinderblock
Referensnr. DF20A_P01_014 2

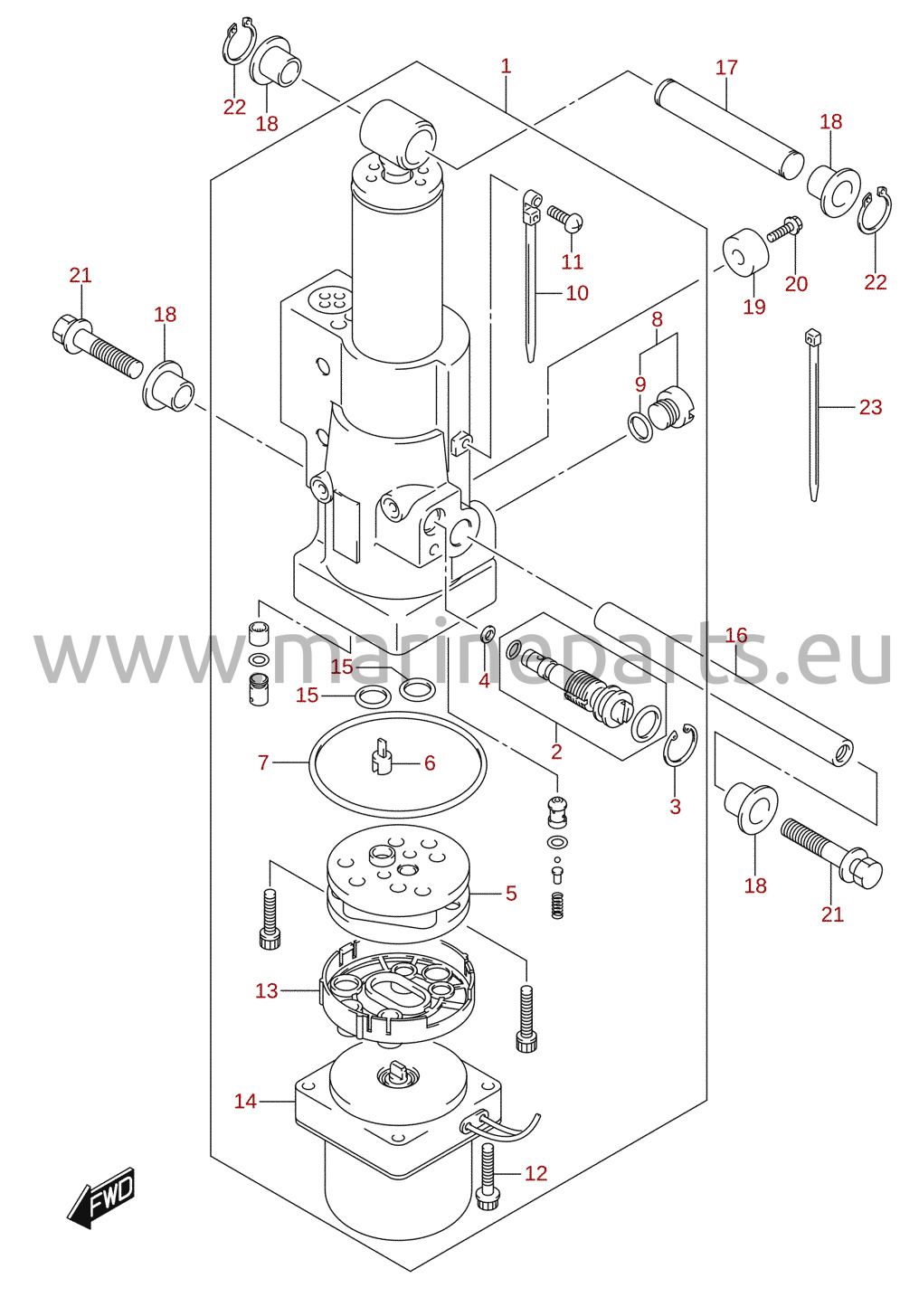

Tiltcylinder (DF15ATH, DF20AT, DF20ATH, DF9.9BT)
Referensnr. DF20A_P01_014 59

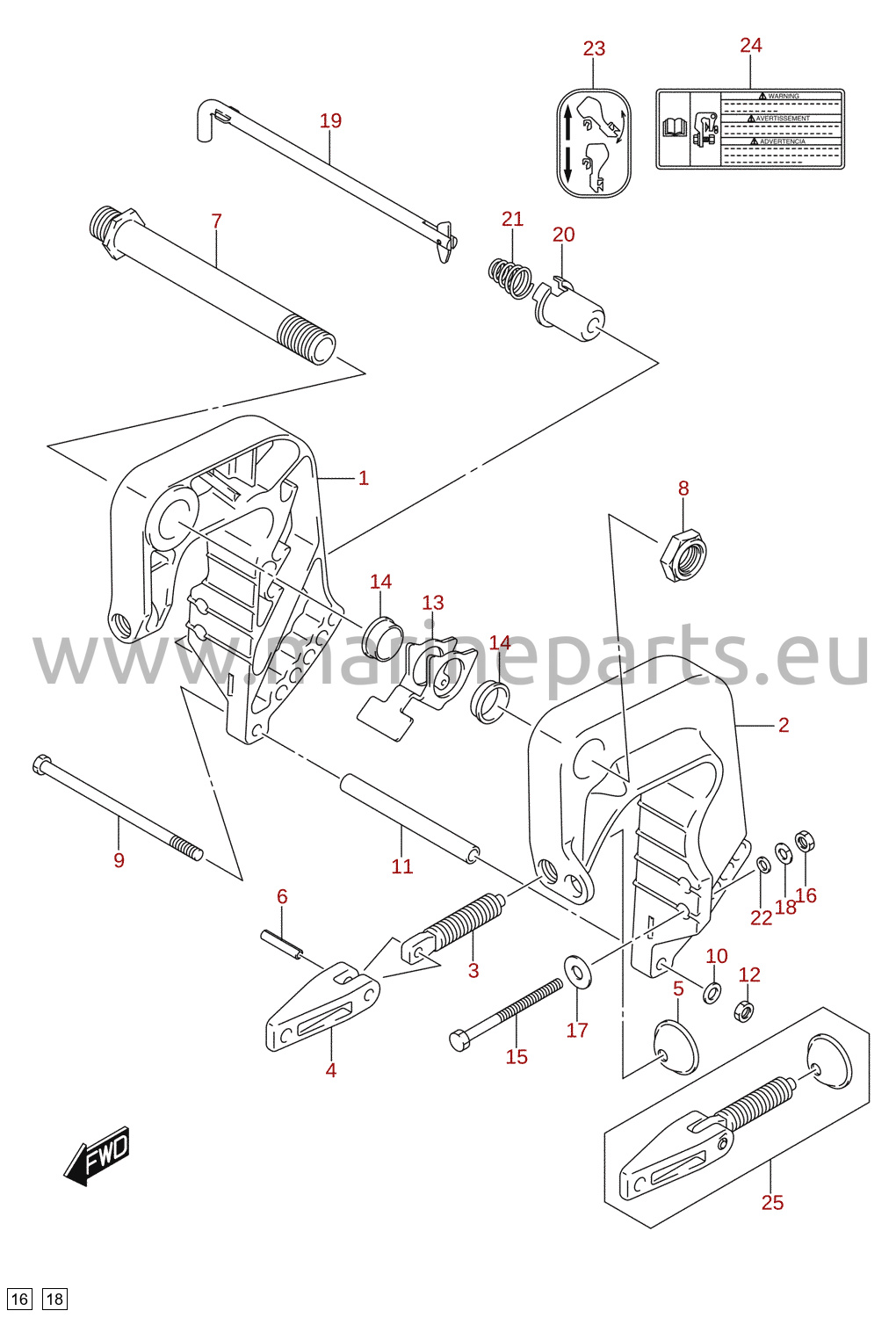

Akterspegelsfäste (DF15A, DF20A, DF9.9B)
Referensnr. DF20A_P01_014 51

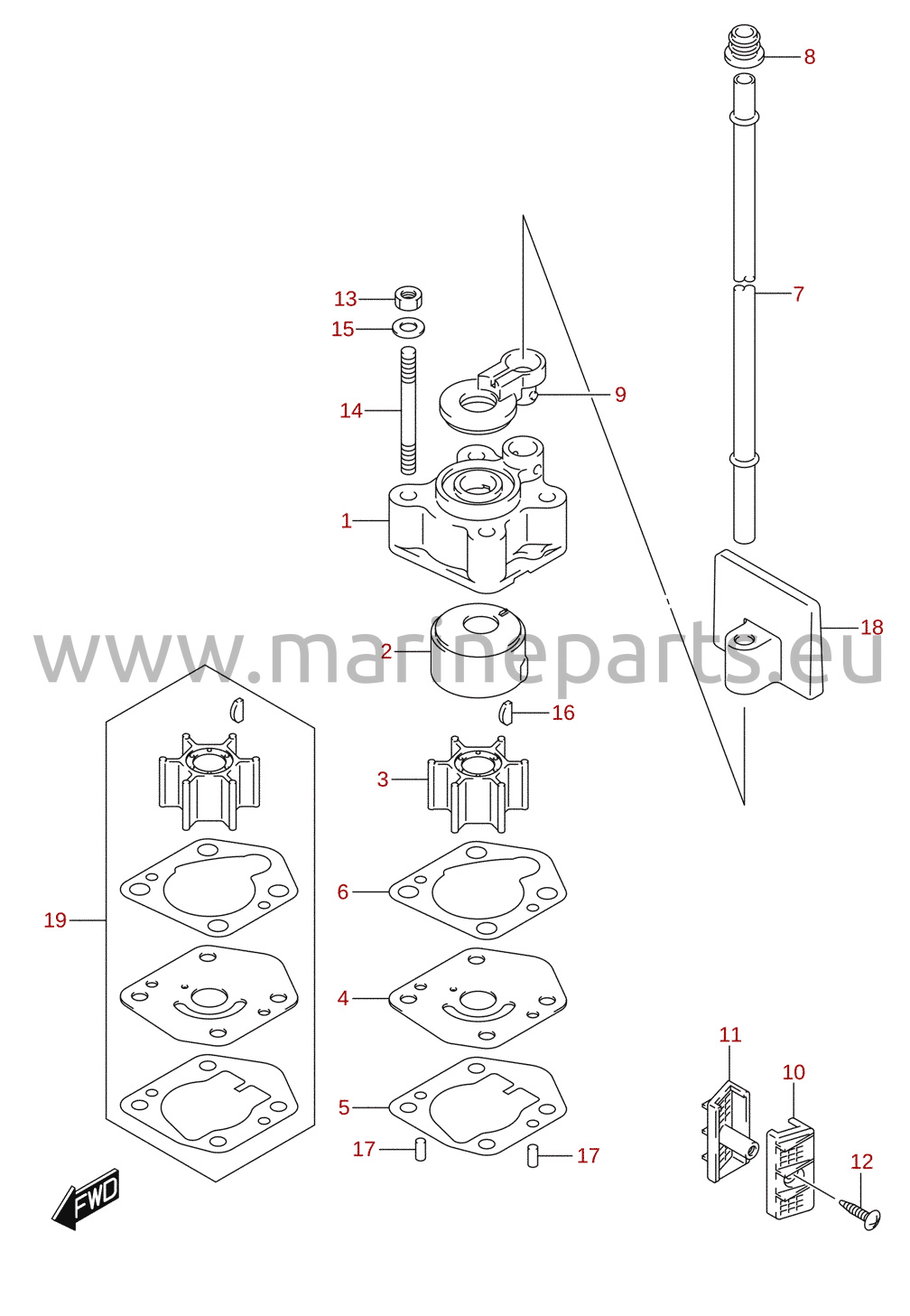

Vattenpump
Referensnr. DF20A_P01_014 12

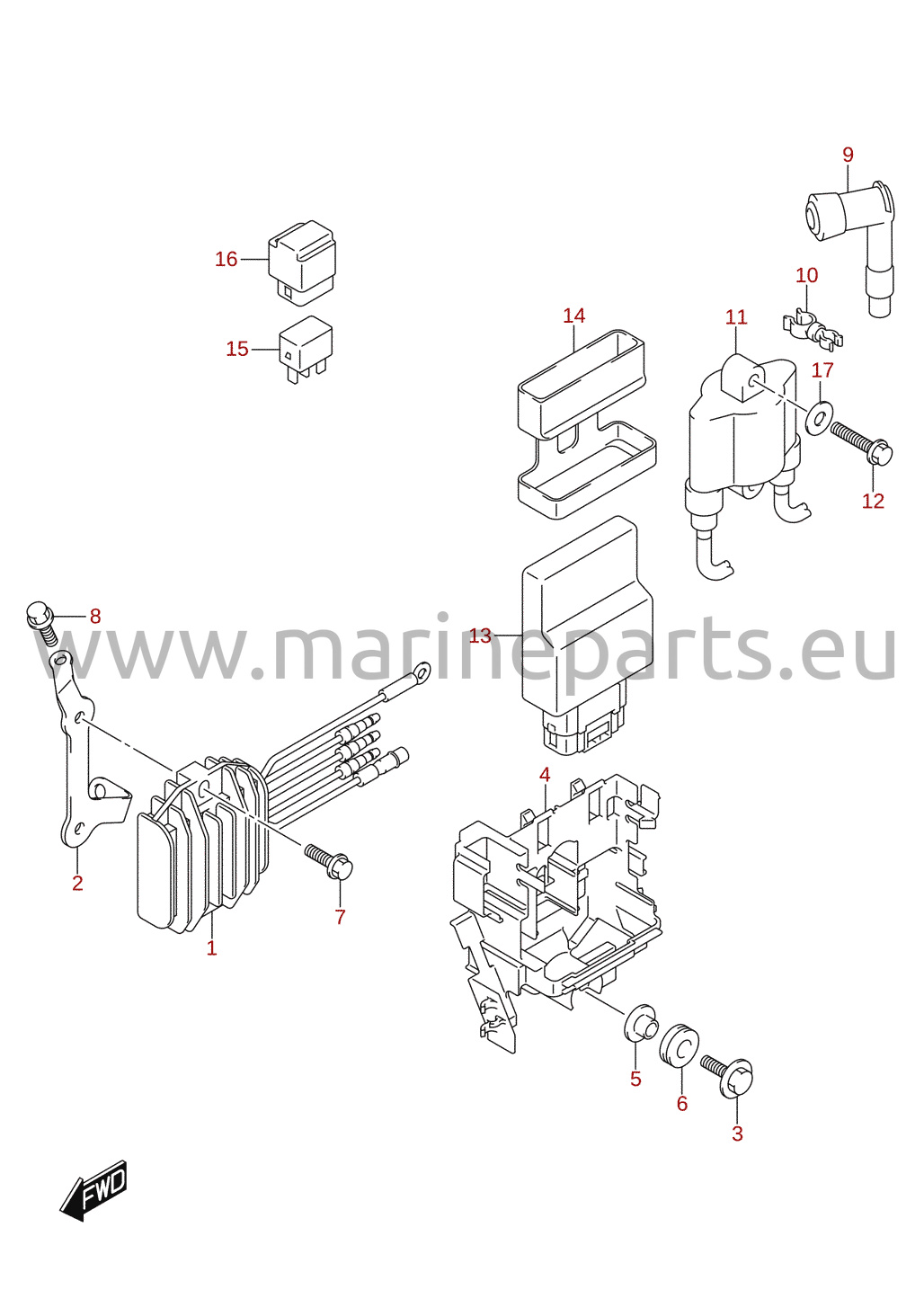

Likriktare / tändspole (DF9.9BR, DF9.9BT)
Referensnr. DF20A_P01_014 36

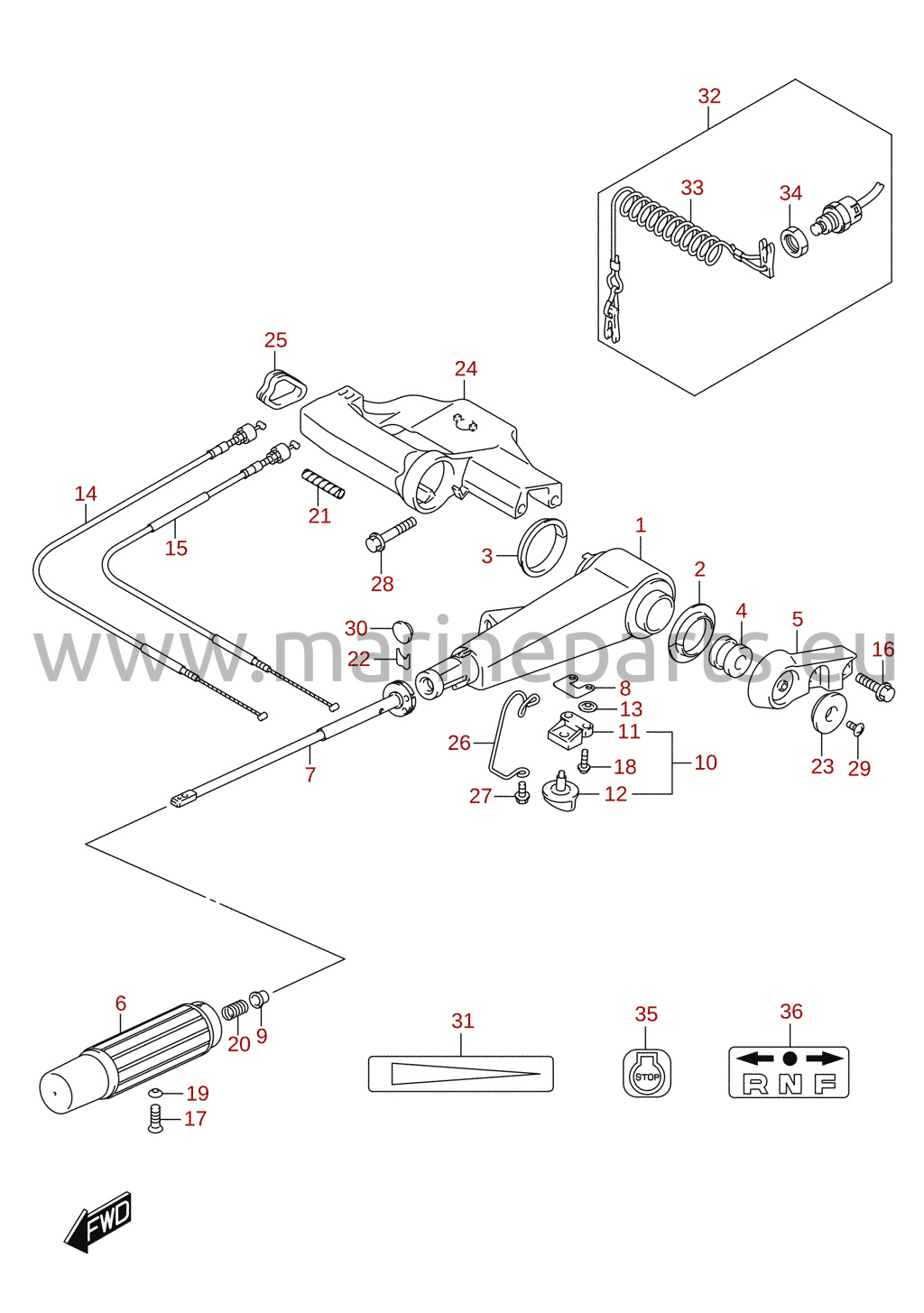

Styrkult (DF15A, DF15ATH, DF20A, DF20ATH, DF9.9B)
Referensnr. DF20A_P01_014 76
Startmotor (manuell start) (M-starter) (DF15A) (tillval)
Referensnr. DF20A_P01_014 89

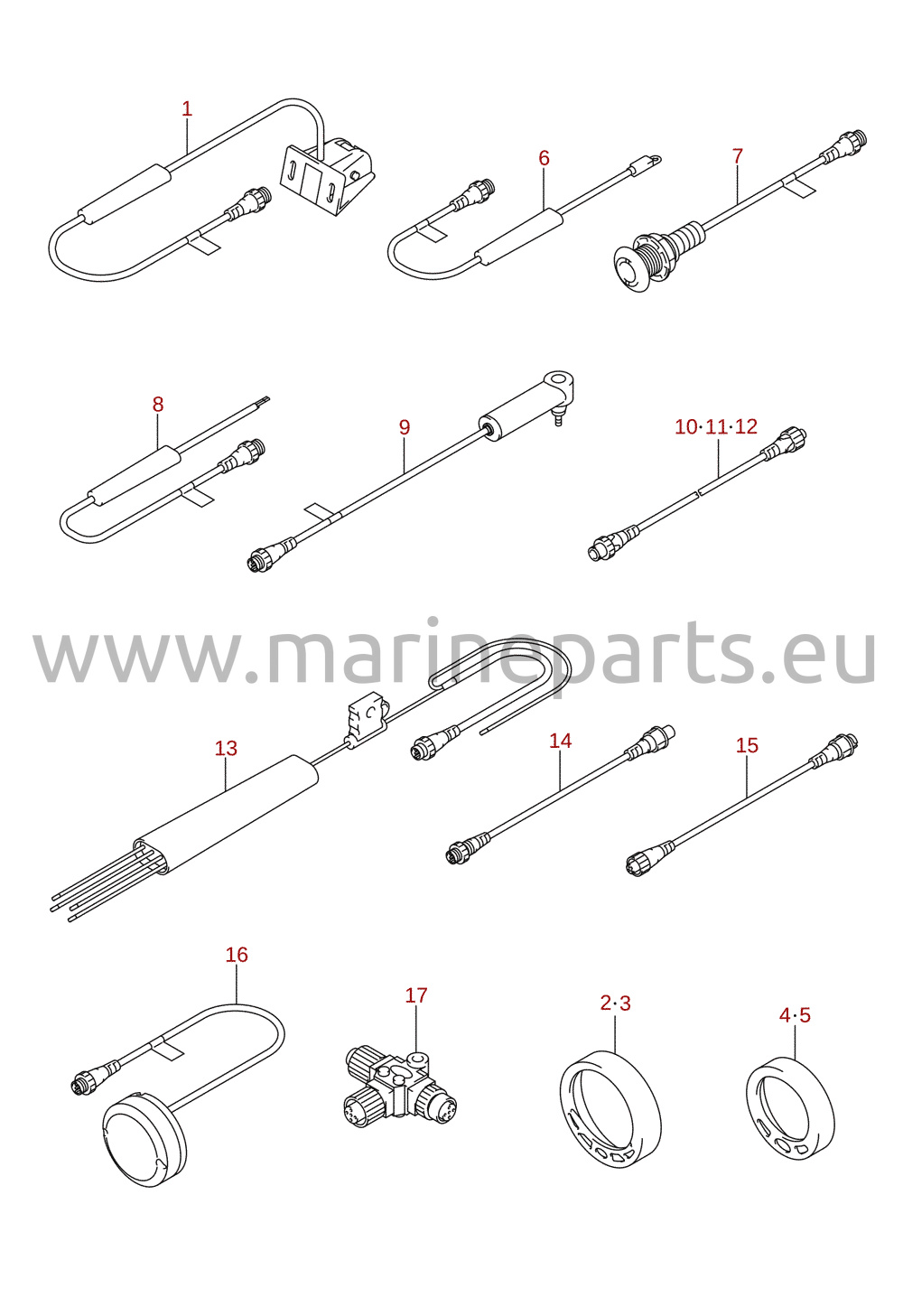

Lowrance-instrument (DF15AR, DF20AR, DF20AT, DF9.9BR, DF9.9BT) (tillval)
Referensnr. DF20A_P01_014 94

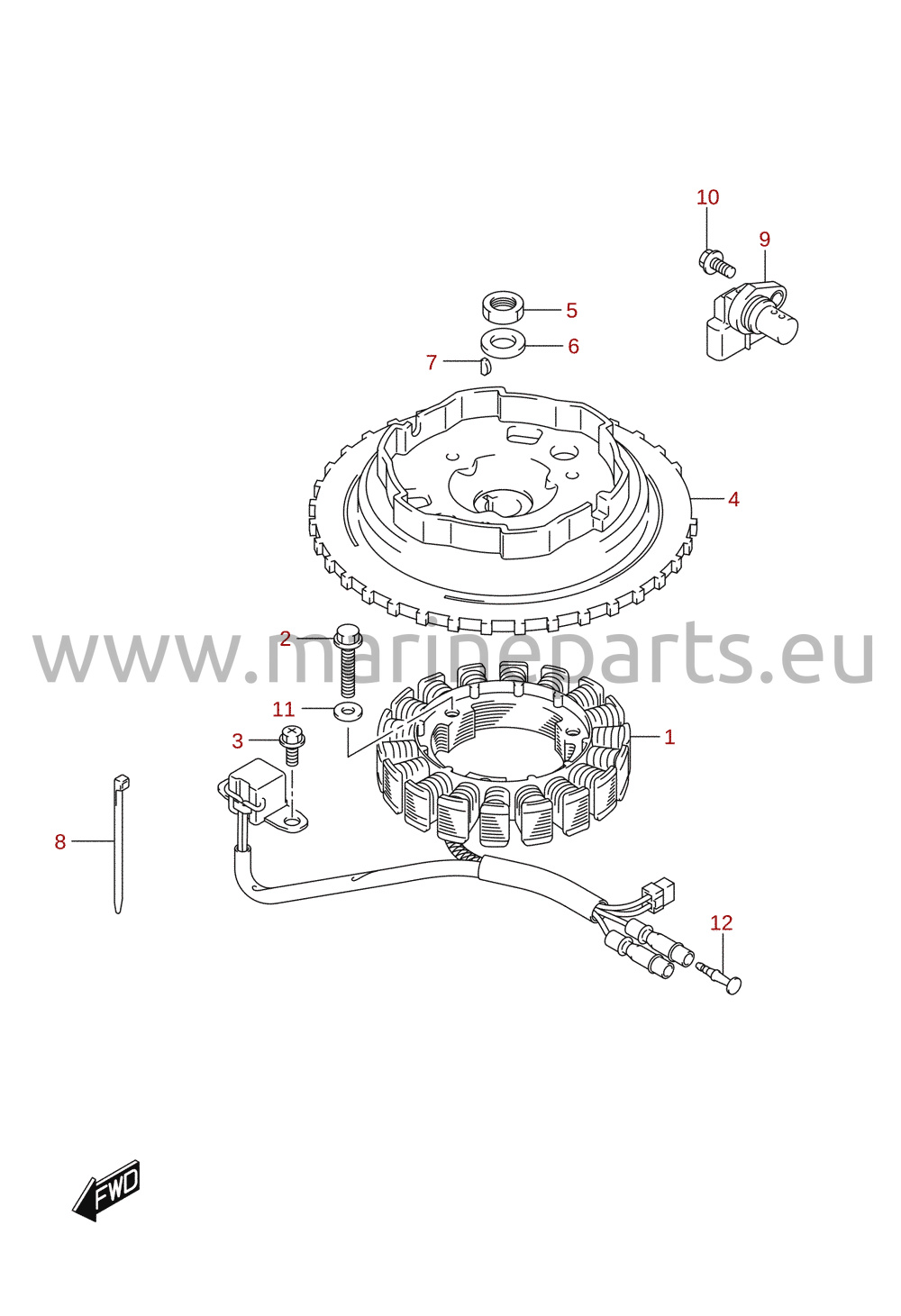

Magnet / generator (M-starter) (DF9.9B)
Referensnr. DF20A_P01_014 30

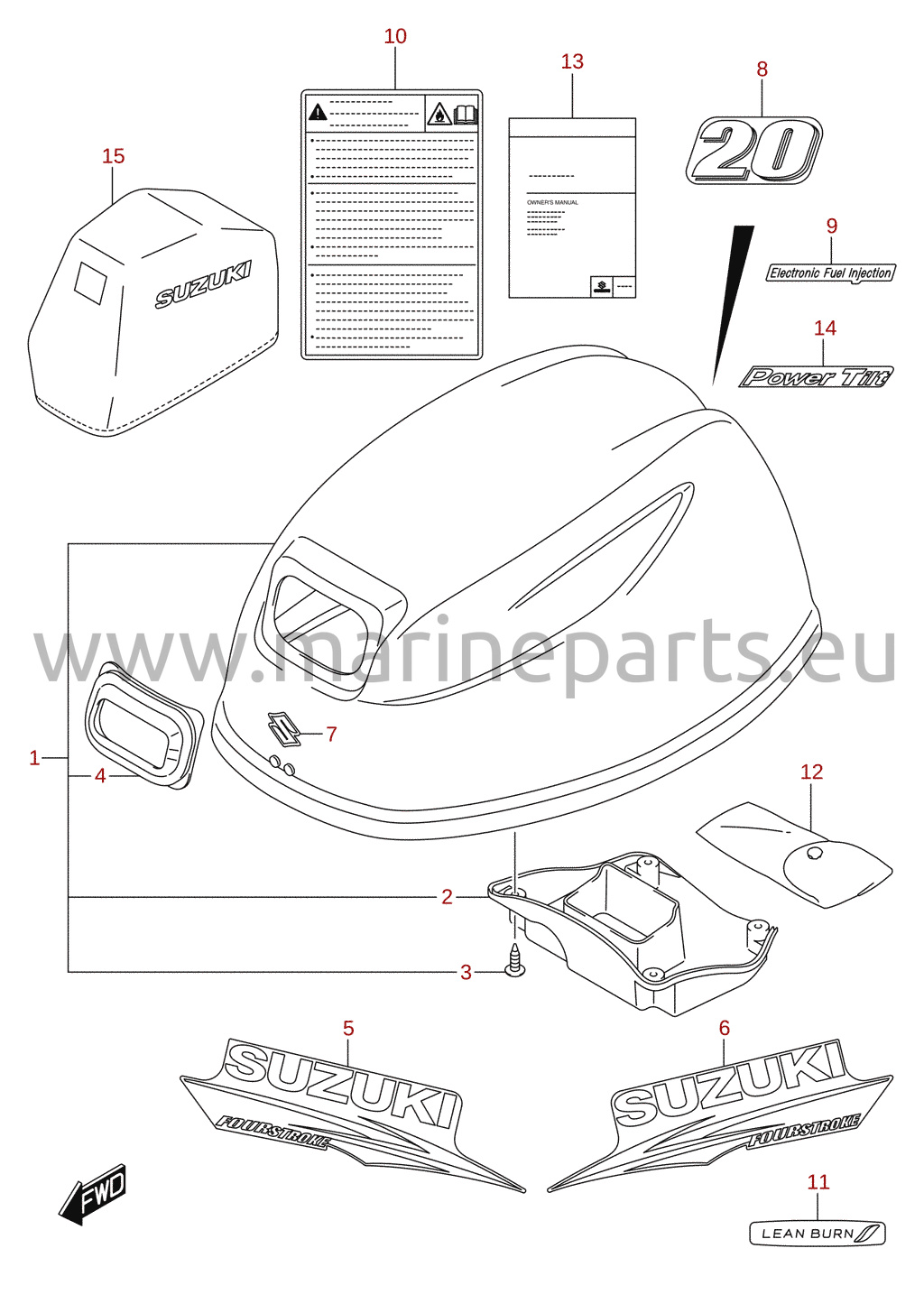

Motorkåpa (DF20AT, DF20ATH)
Referensnr. DF20A_P01_014 73

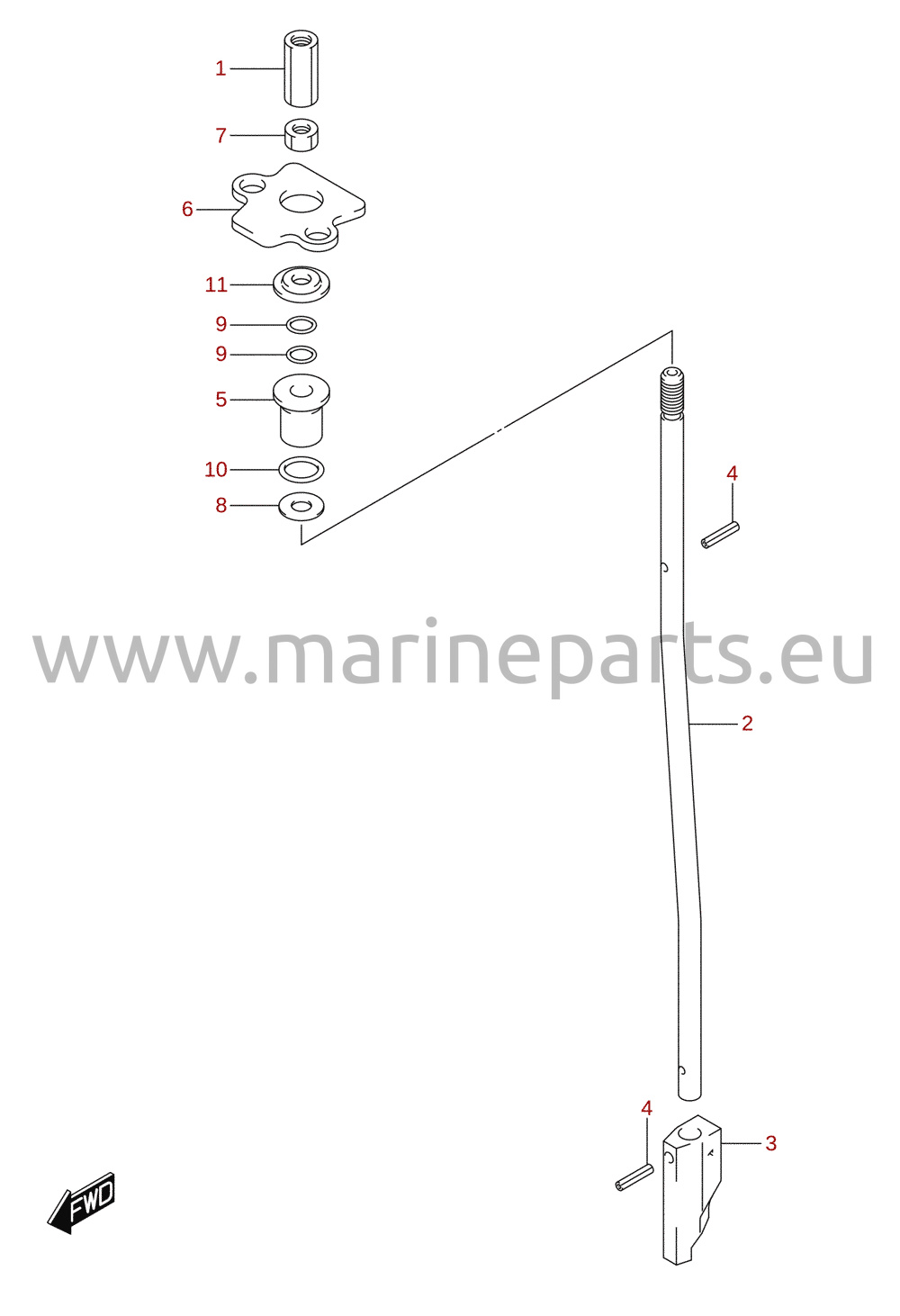

Växelstång
Referensnr. DF20A_P01_014 26

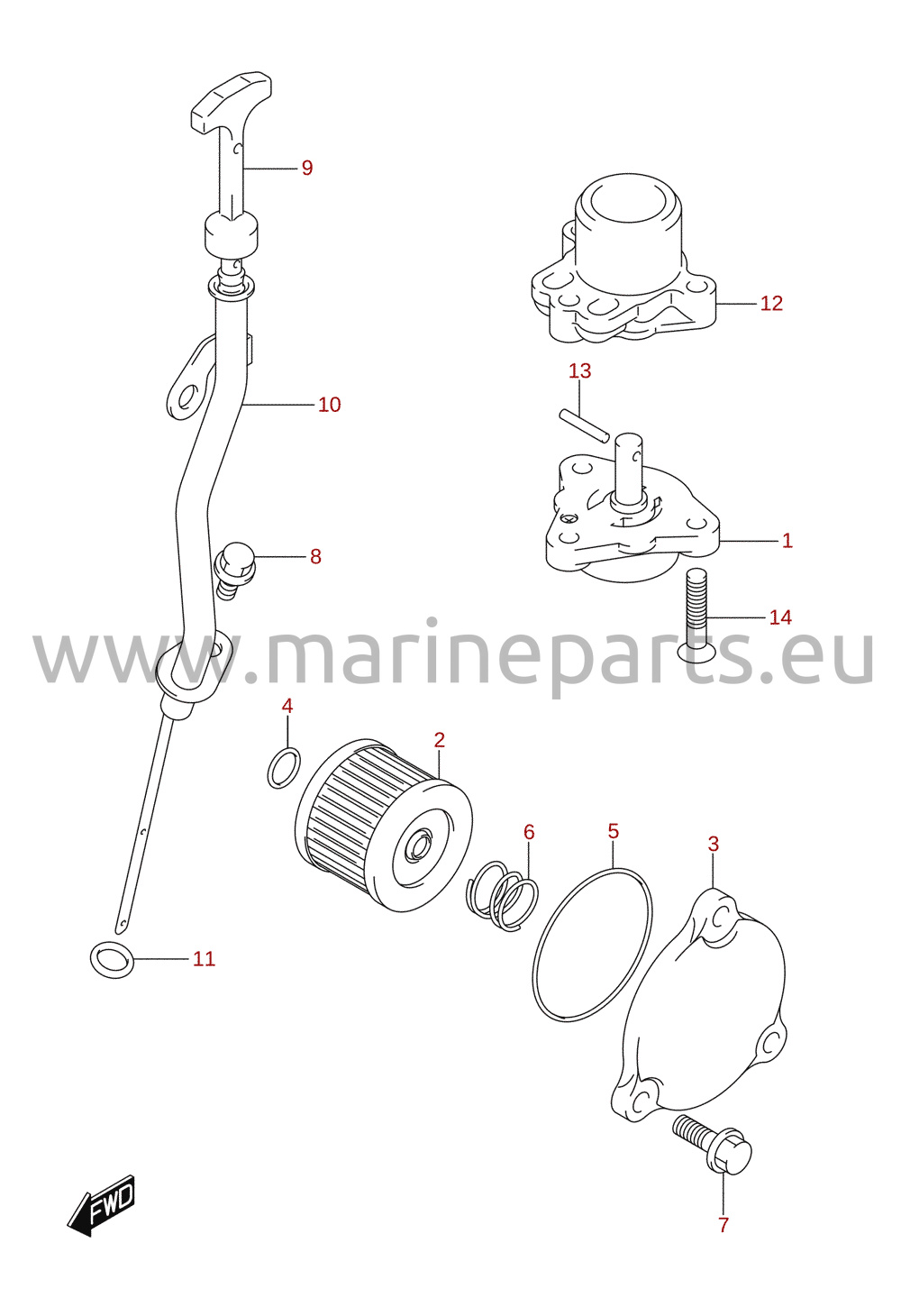

Oljepump
Referensnr. DF20A_P01_014 23

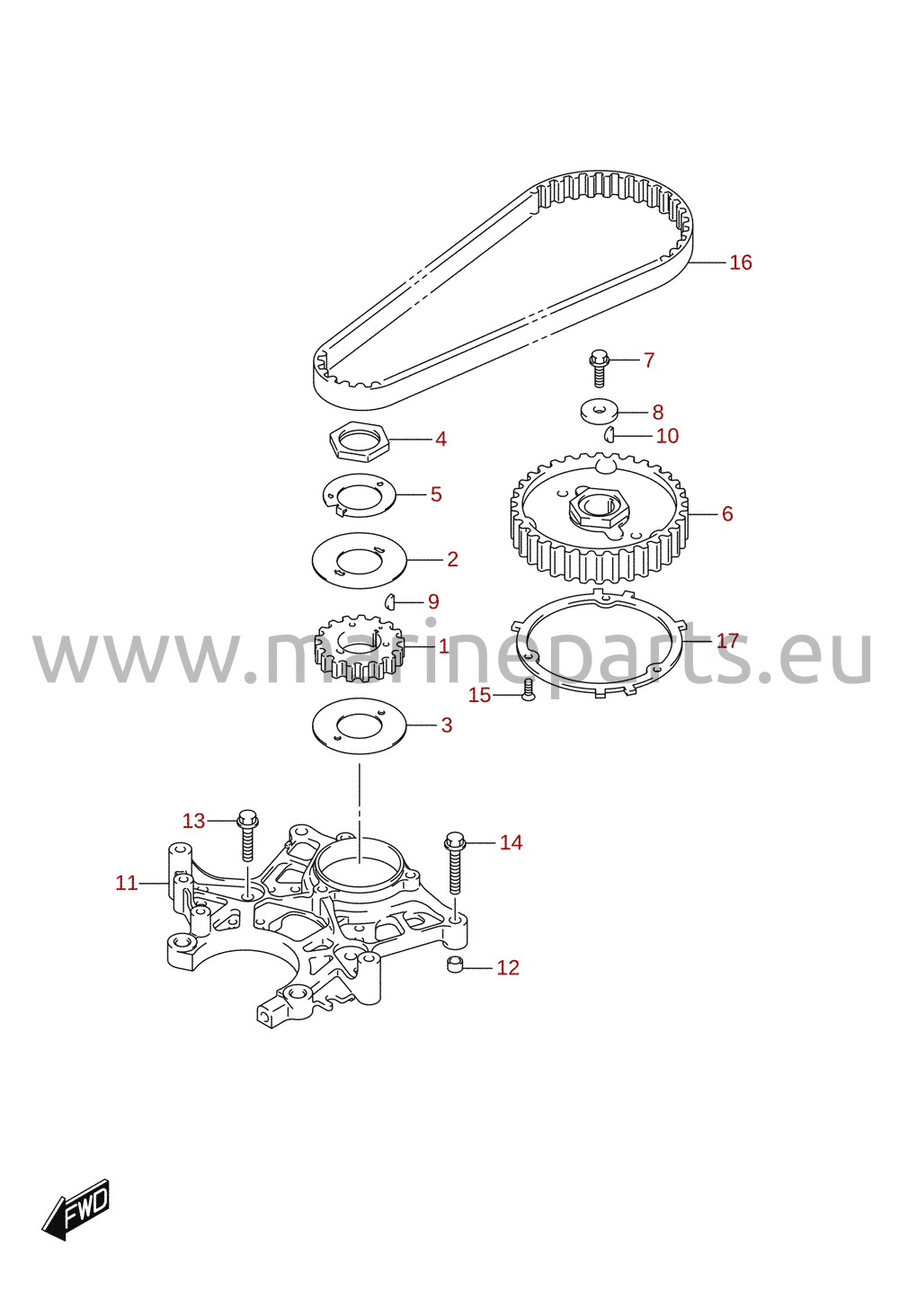

Kamrem
Referensnr. DF20A_P01_014 4

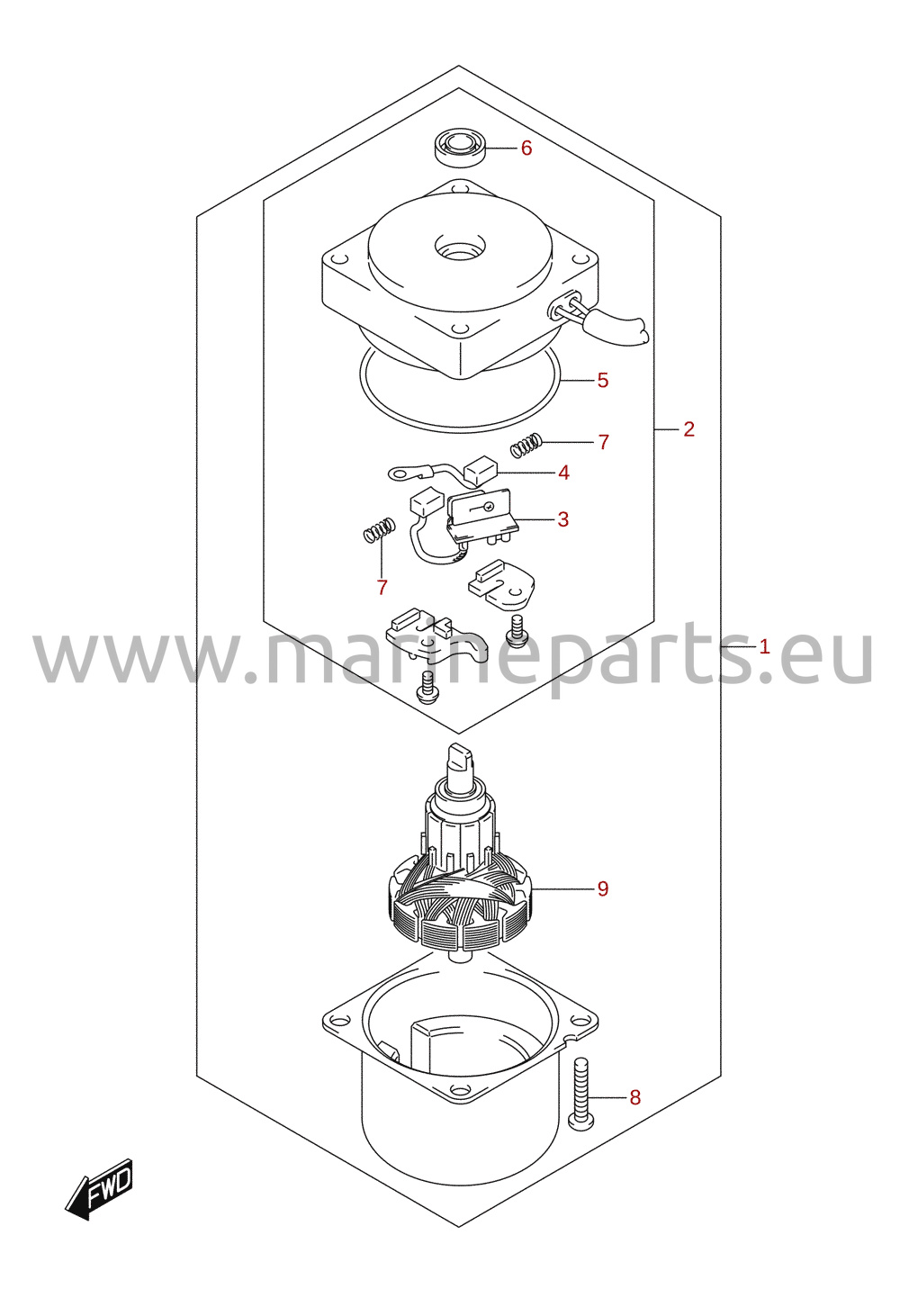

PTT-motor (DF15ATH, DF20AT, DF20ATH, DF9.9BT)
Referensnr. DF20A_P01_014 60
Sidokåpa (DF15AR, DF20AR, DF9.9BR)
Referensnr. DF20A_P01_014 65

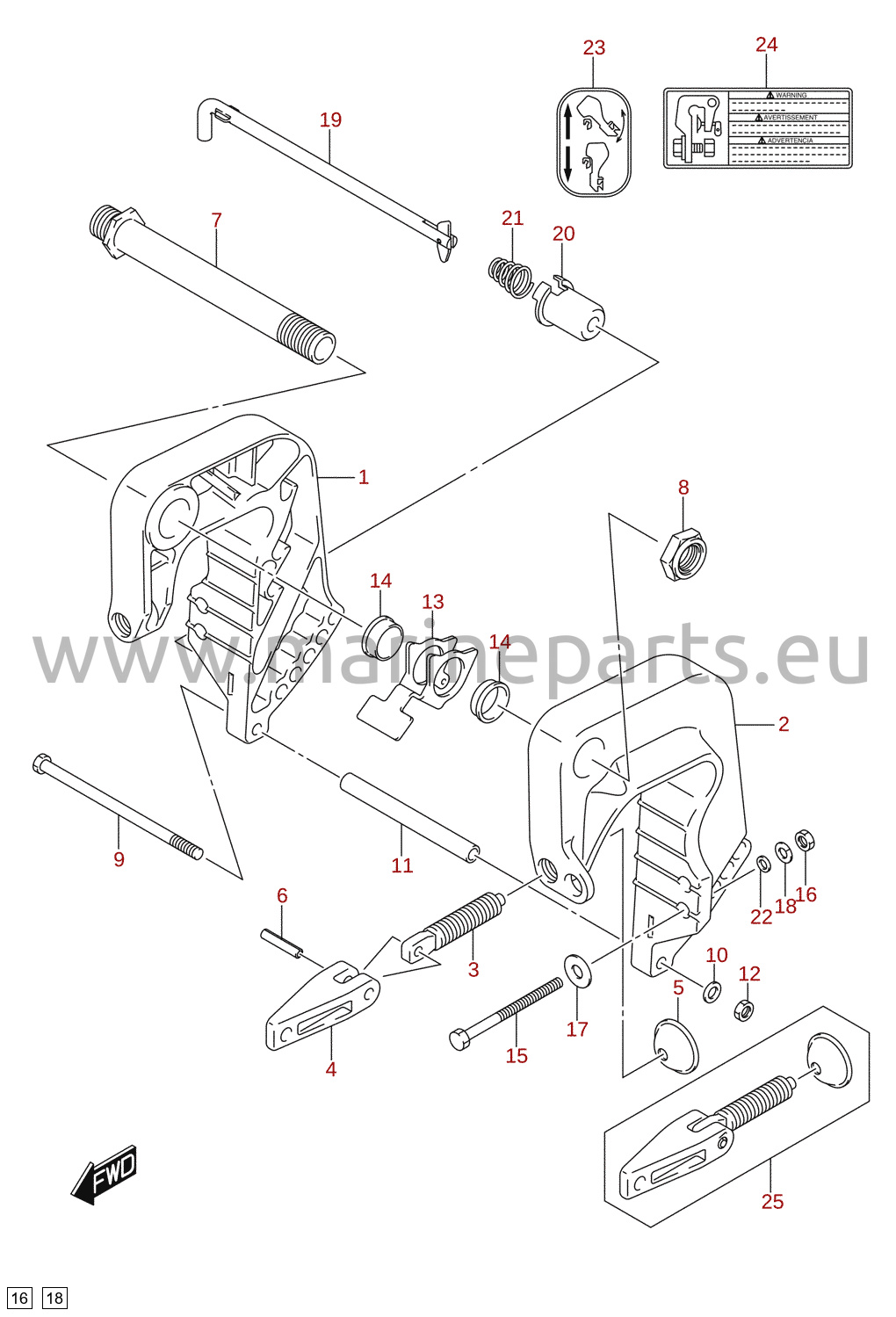

Akterspegelsfäste (DF20A)
Referensnr. DF20A_P01_014 54
Motorkåpa (DF9.9B, DF9.9BR)
Referensnr. DF20A_P01_014 68
Motorkåpa (DF15A, DF15AR)
Referensnr. DF20A_P01_014 70

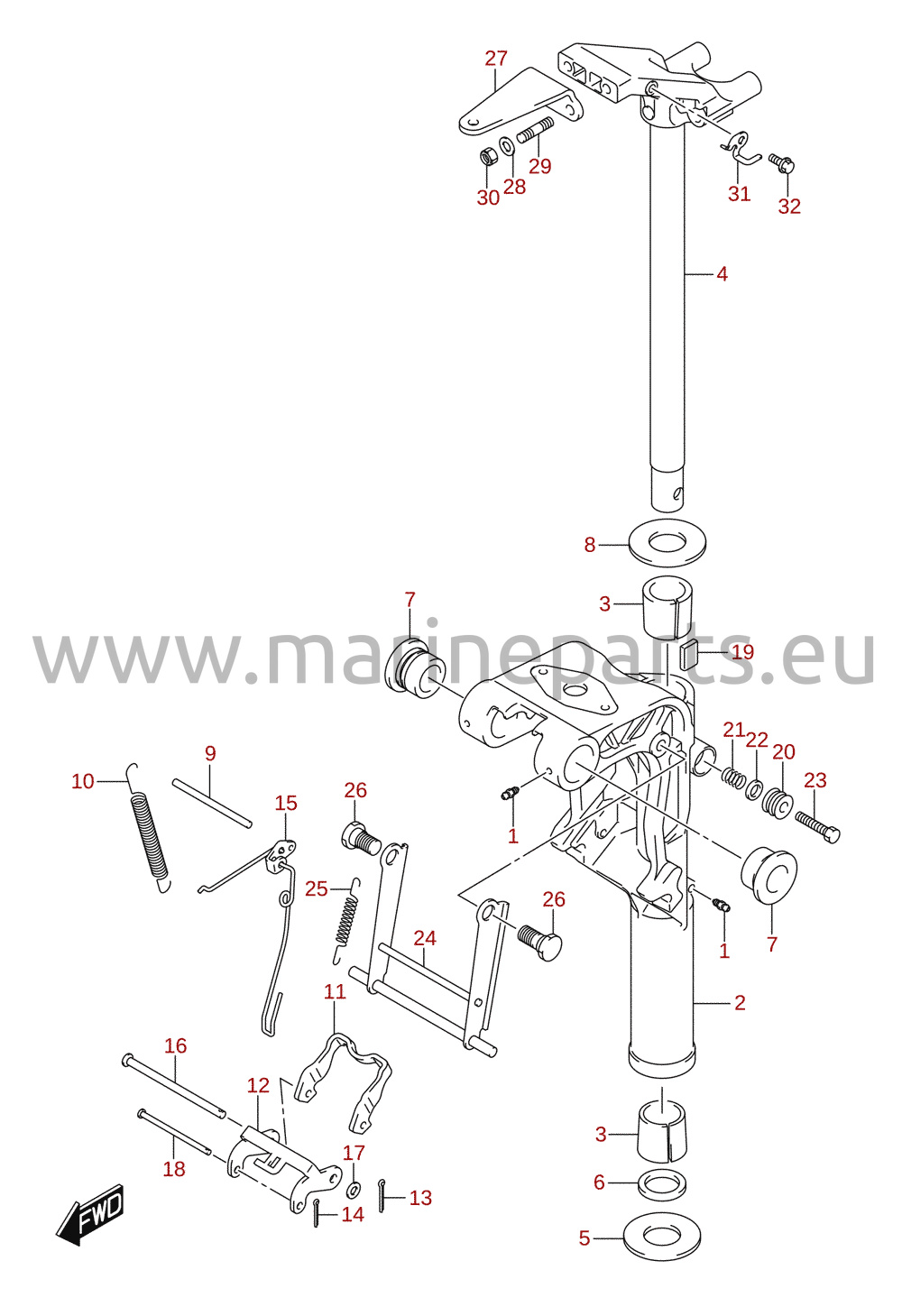

Svängfäste (DF15AR, DF20AR, DF9.9BR)
Referensnr. DF20A_P01_014 56

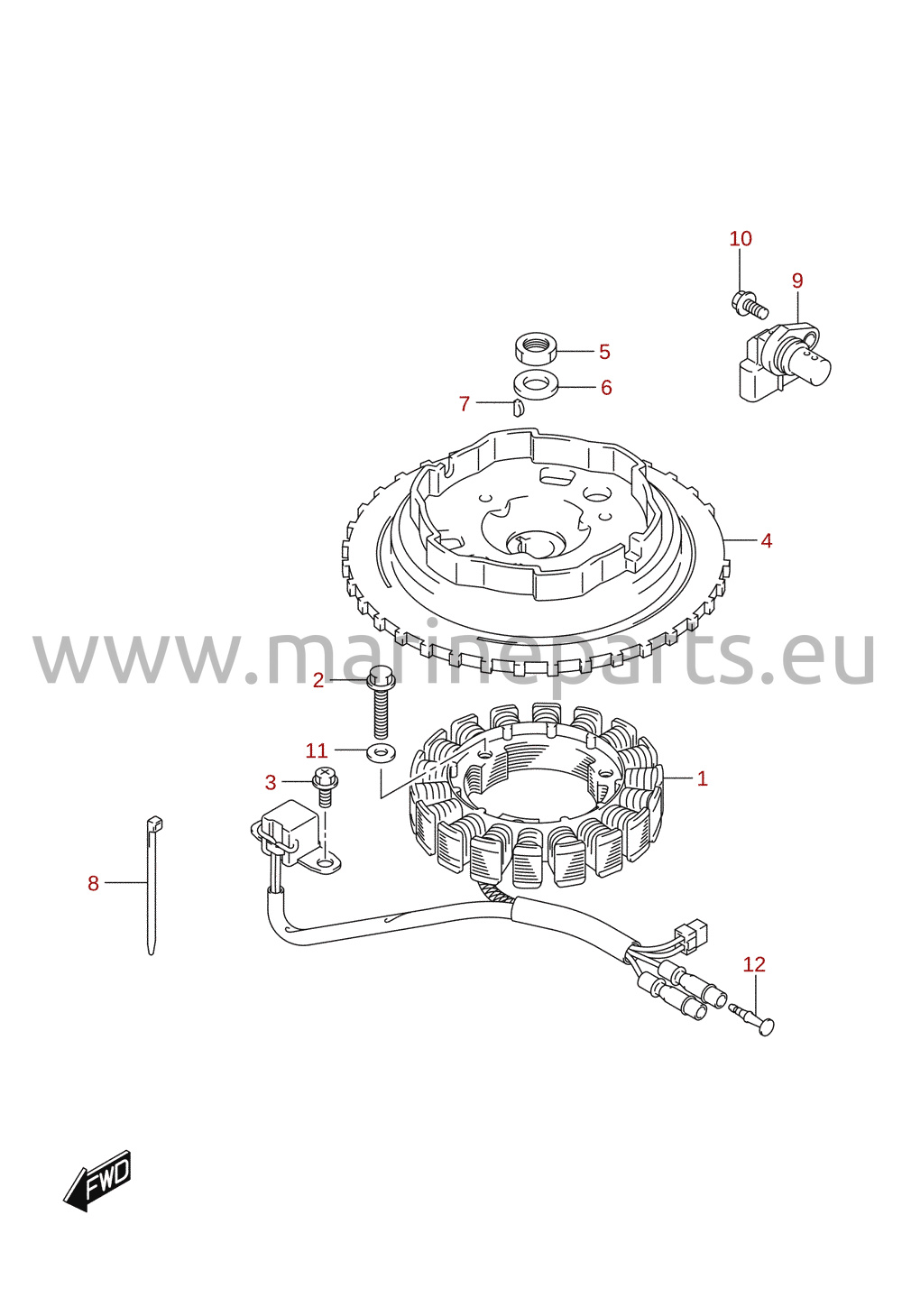

Magnet / generator (M-starter) (DF20A) 2/2
Referensnr. DF20A_P01_014 33
Styrstag (DF15AR, DF20AR, DF20AT, DF9.9BR, DF9.9BT)
Referensnr. DF20A_P01_014 75

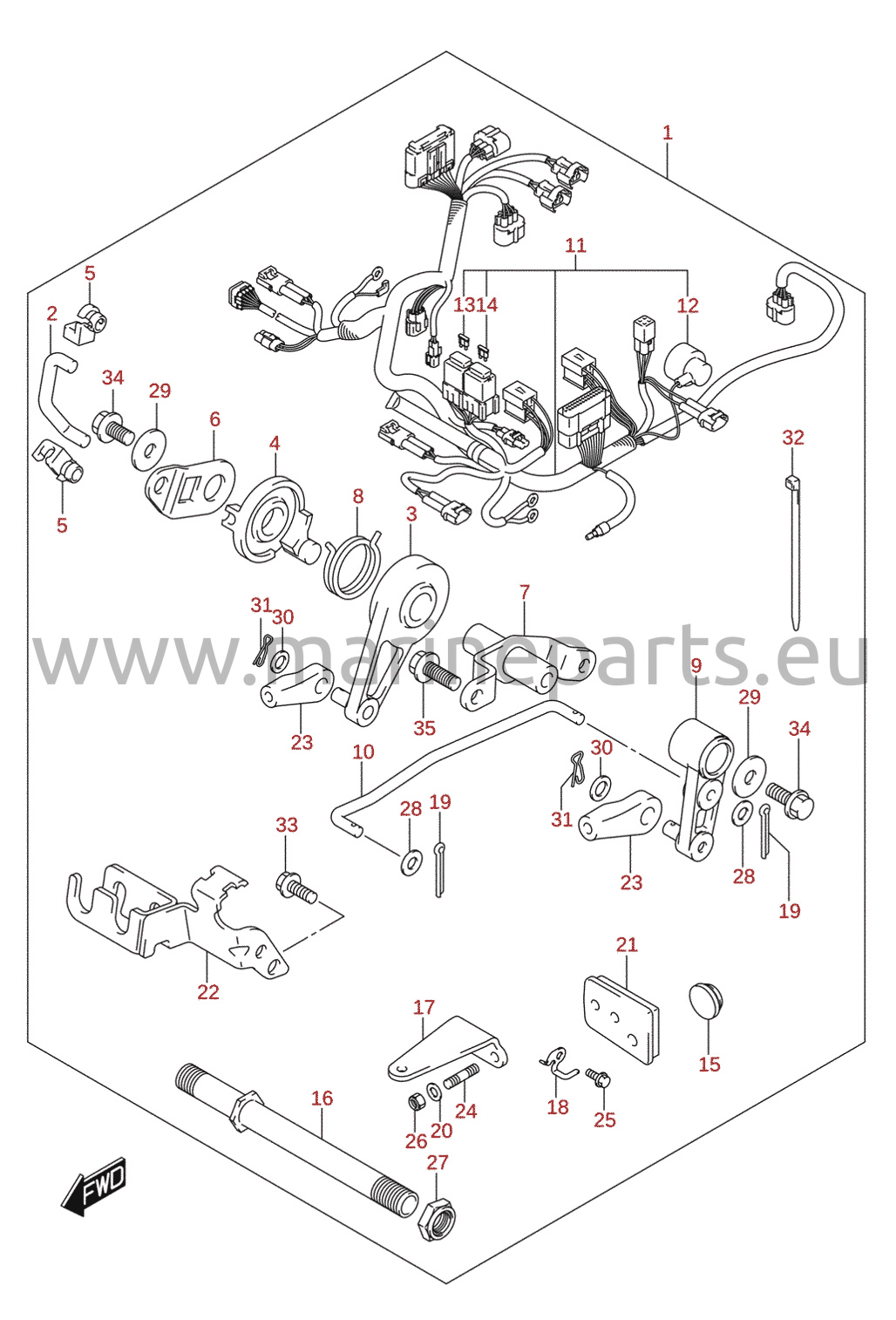

Reglagedelar (DF15A, DF20A, DF9.9B) (tillval)
Referensnr. DF20A_P01_014 81

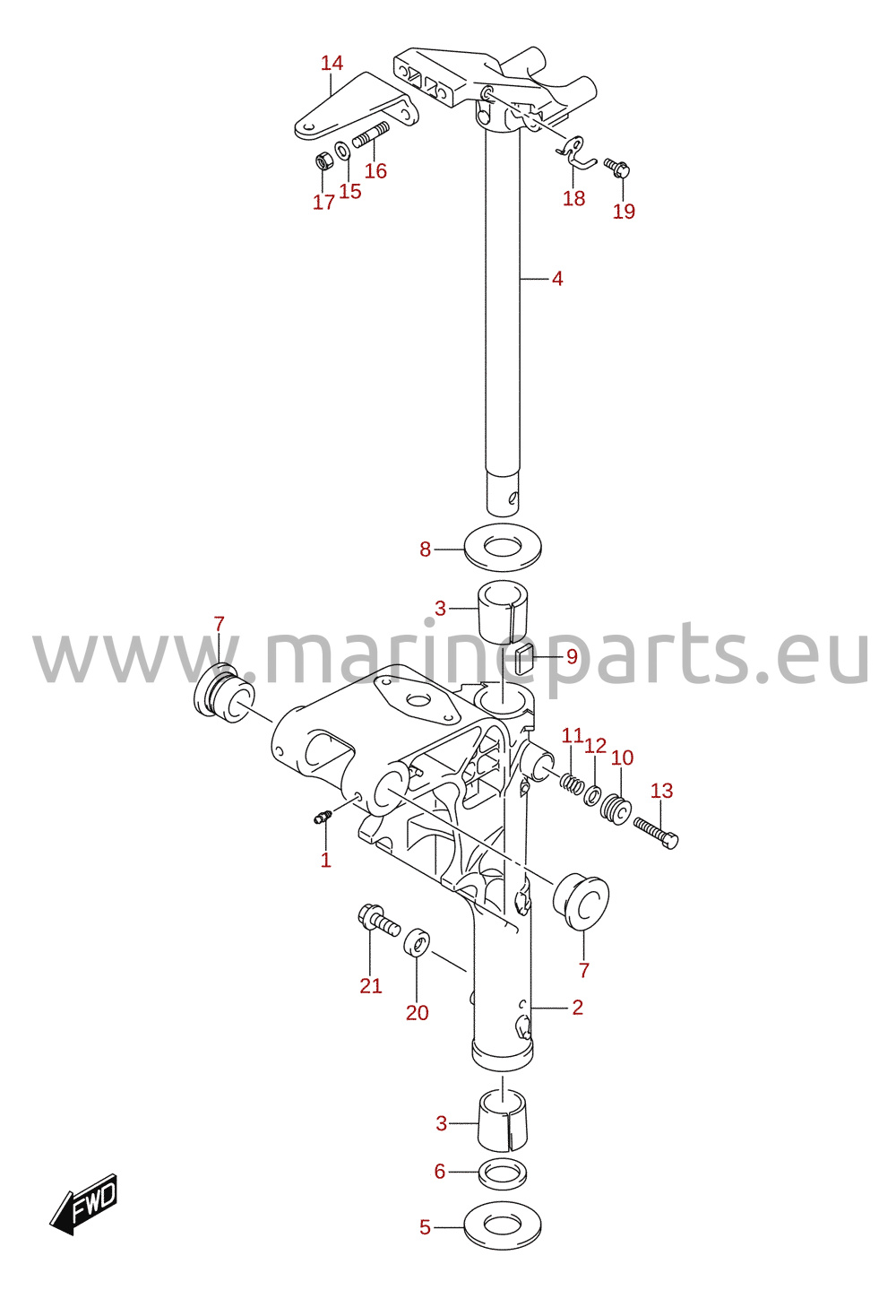

Svängfäste (DF20AT, DF9.9BT)
Referensnr. DF20A_P01_014 57

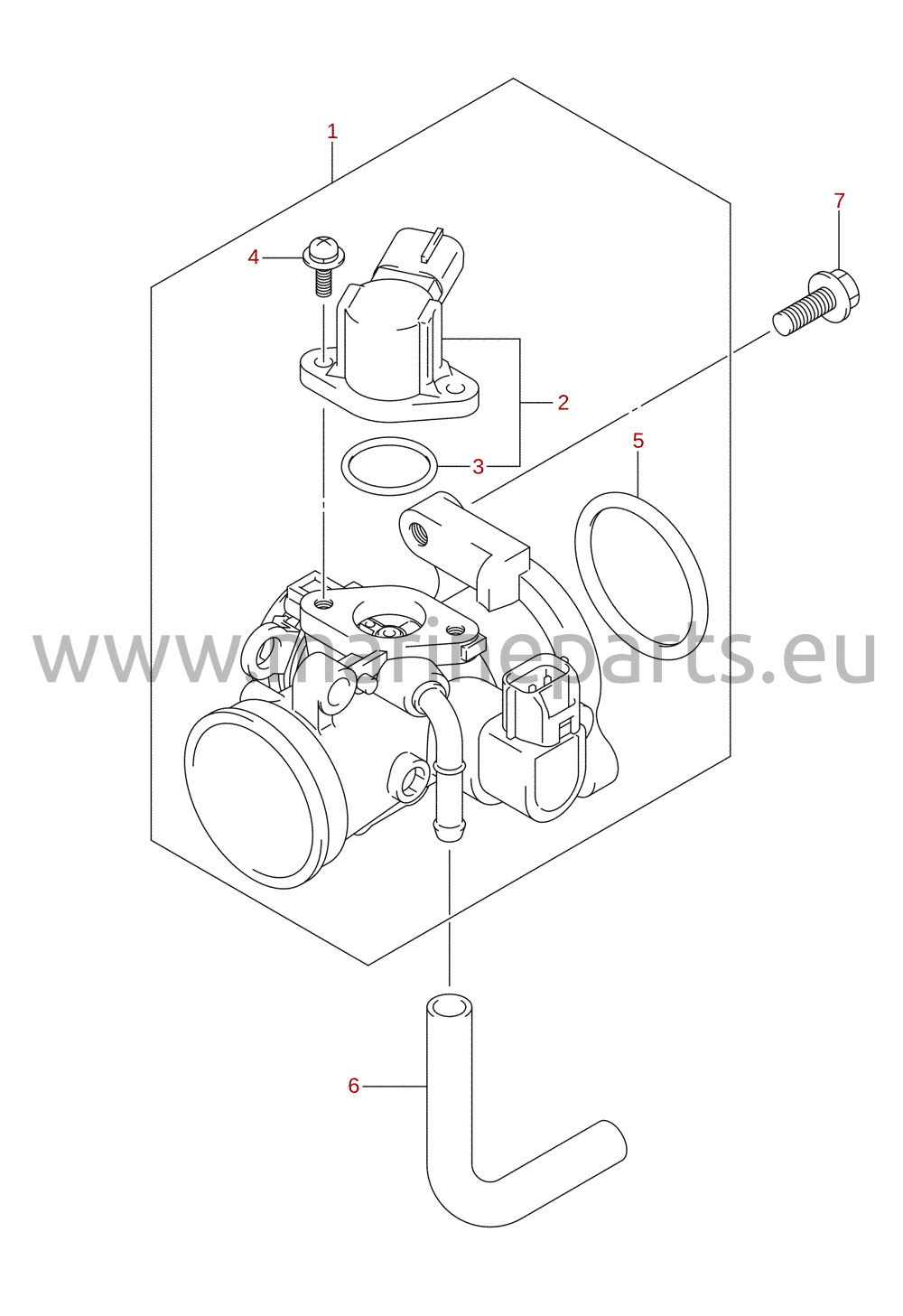

Gasspjällhus (DF15AR, DF20AR, DF20AT, DF9.9BR, DF9.9BT)
Referensnr. DF20A_P01_014 16

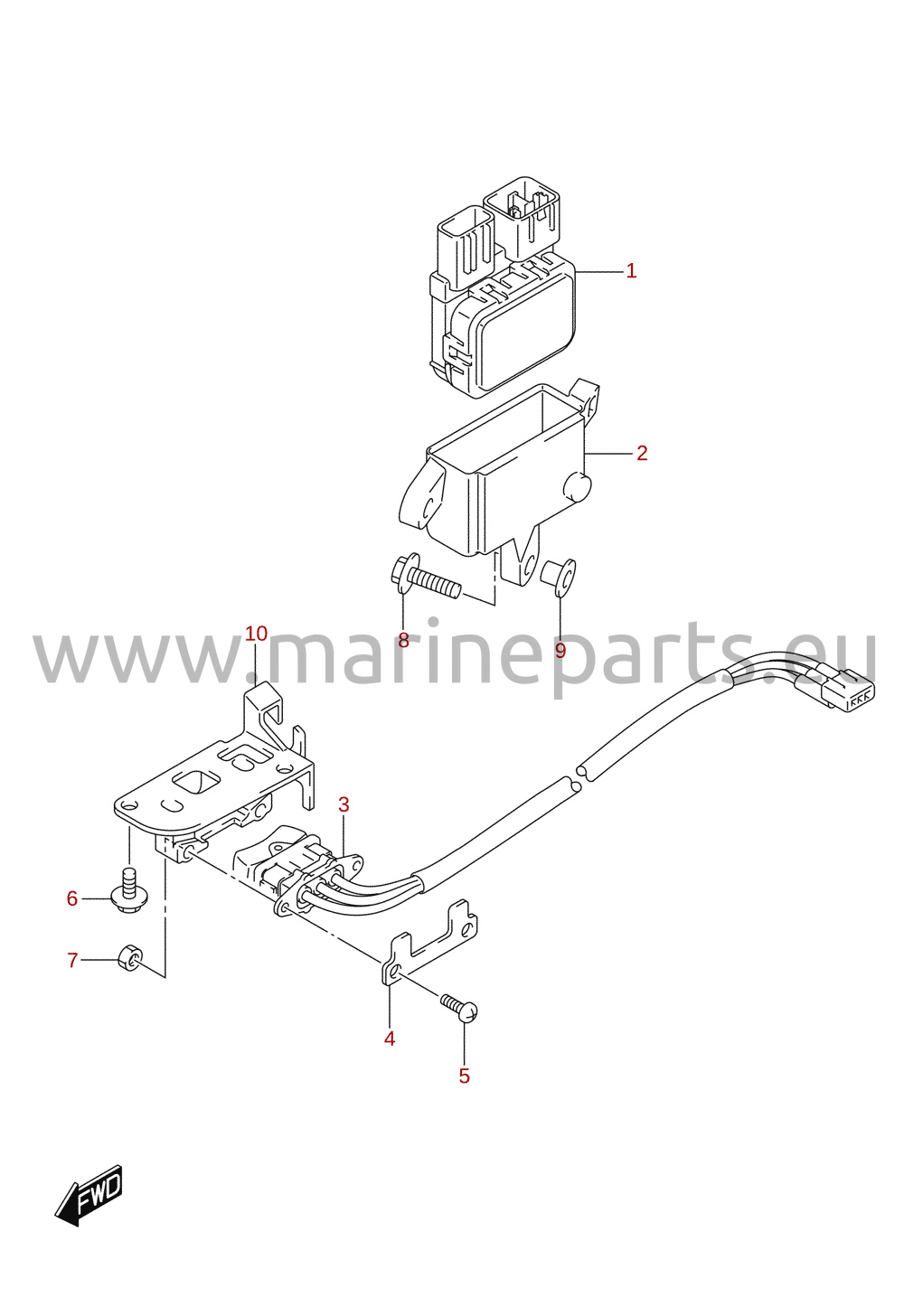

PTT-brytare (DF15ATH, DF20ATH)
Referensnr. DF20A_P01_014 47
Kamaxel (DF15A, DF20A, DF9.9B)
Referensnr. DF20A_P01_014 5

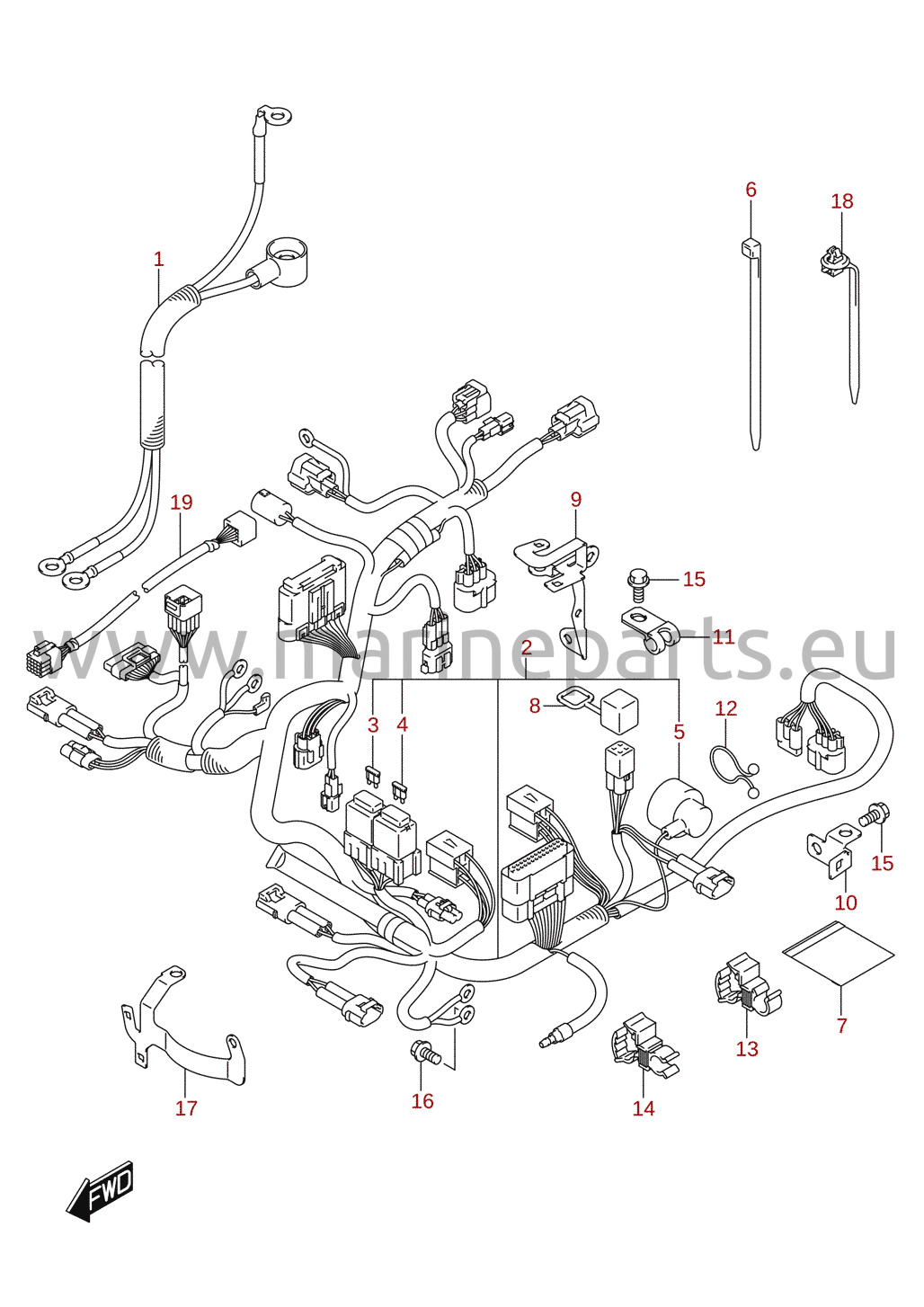

Kabelstam (DF20AT, DF9.9BT)
Referensnr. DF20A_P01_014 44

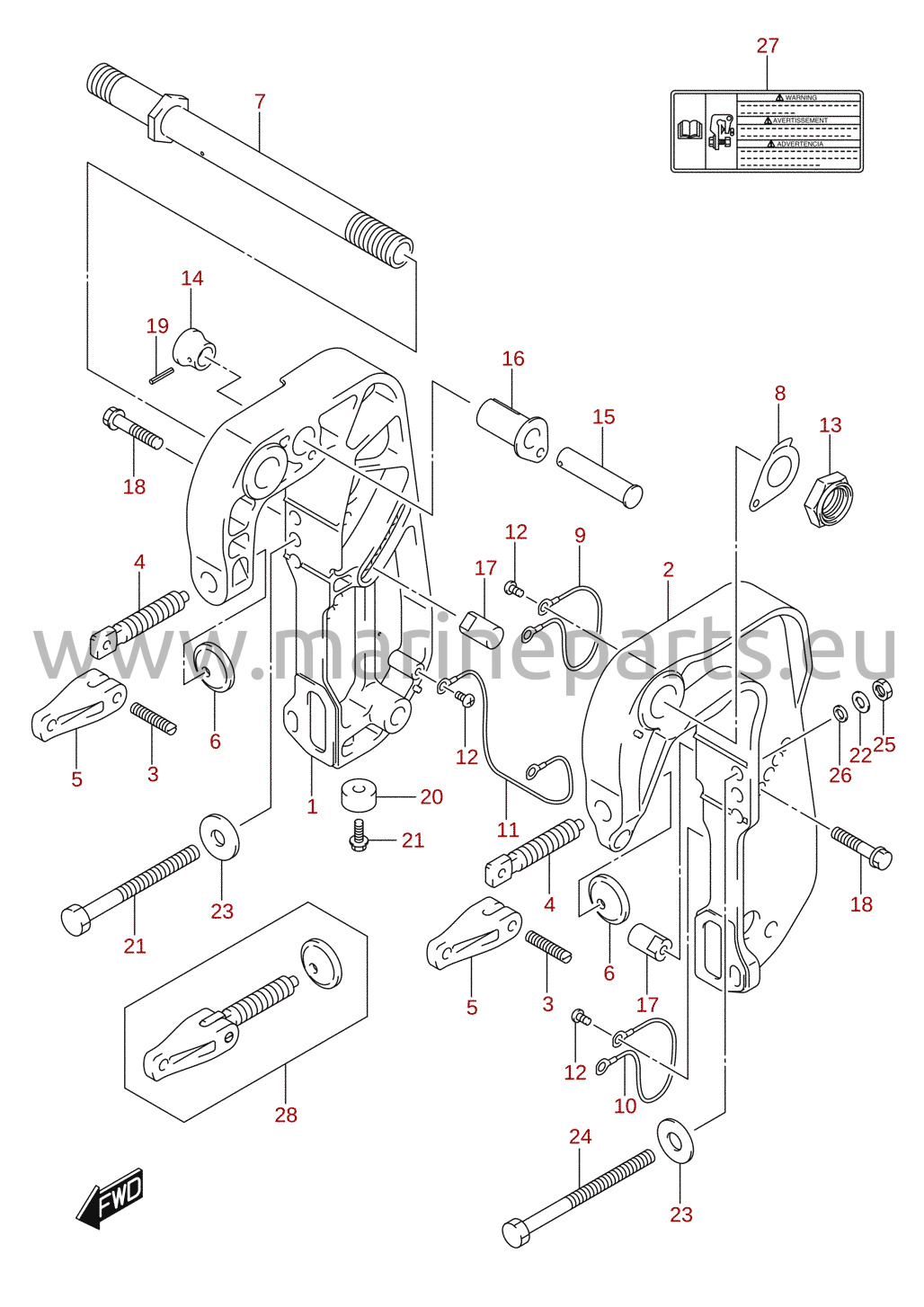

Akterspegelsfäste (DF15ATH, DF20AT, DF20ATH, DF9.9BT)
Referensnr. DF20A_P01_014 53

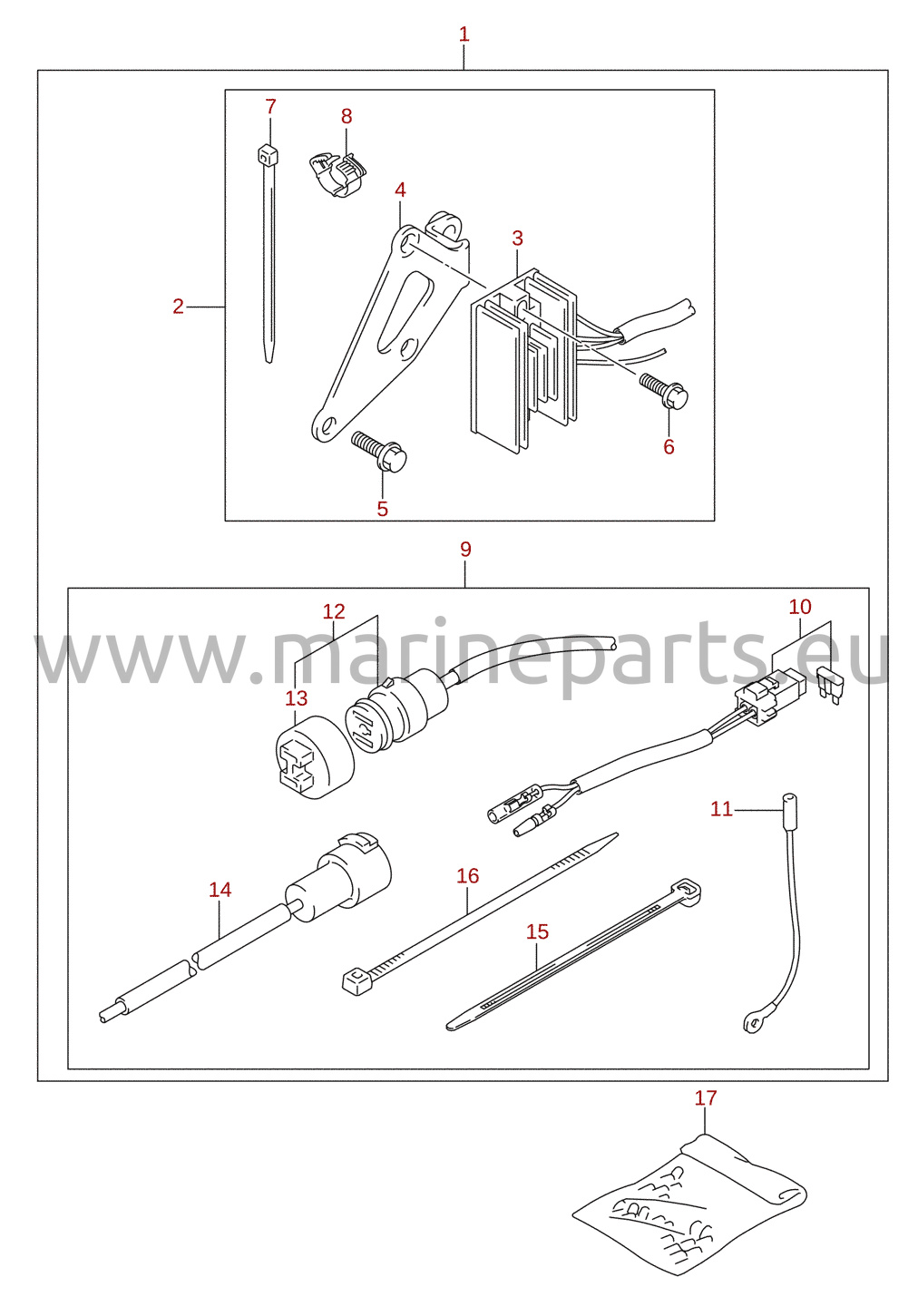

Elsystem (manuell start) (DF15A, DF20A, DF9.9B) (tillval)
Referensnr. DF20A_P01_014 87

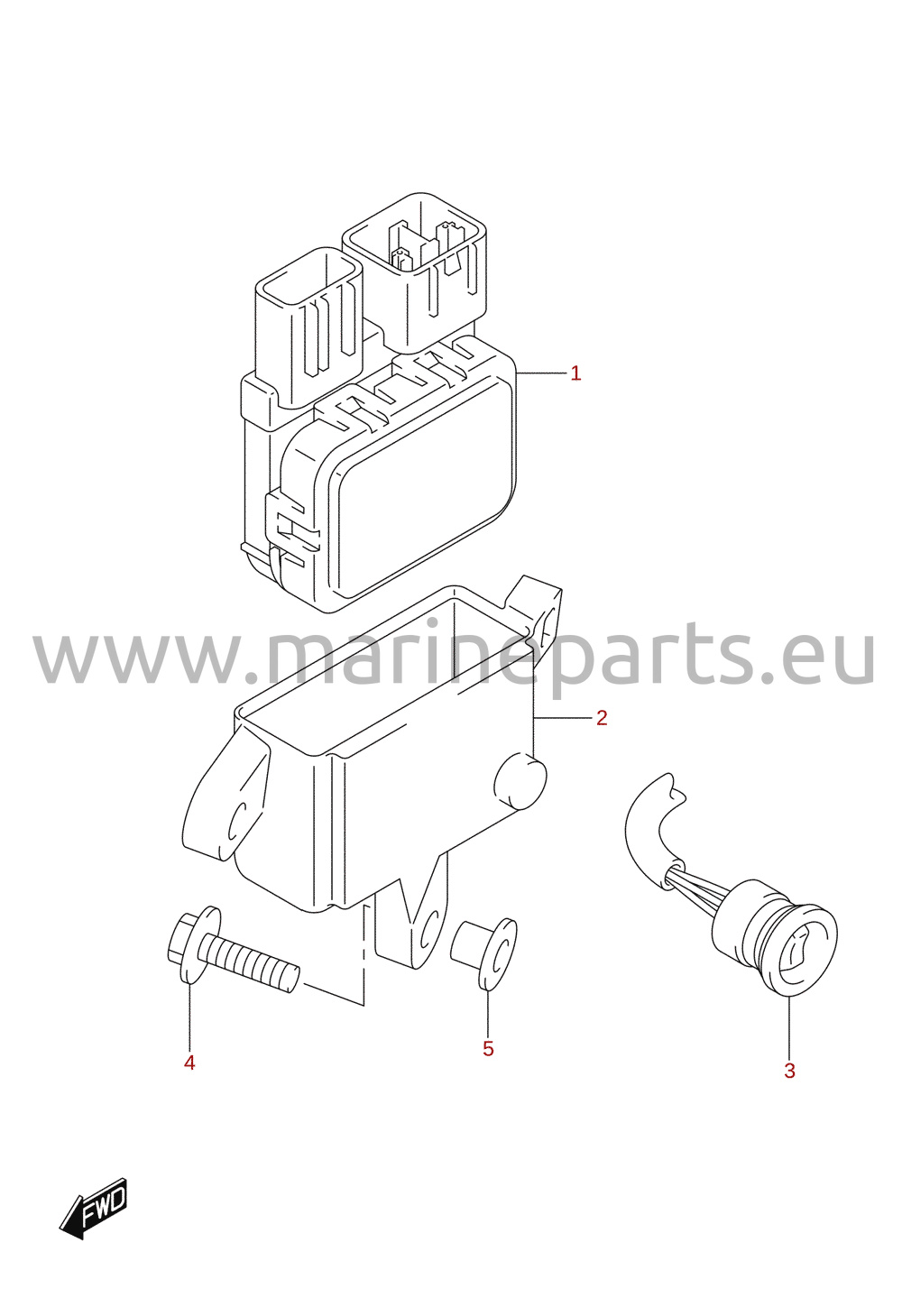

PTT-brytare (DF20AT, DF9.9BT)
Referensnr. DF20A_P01_014 46

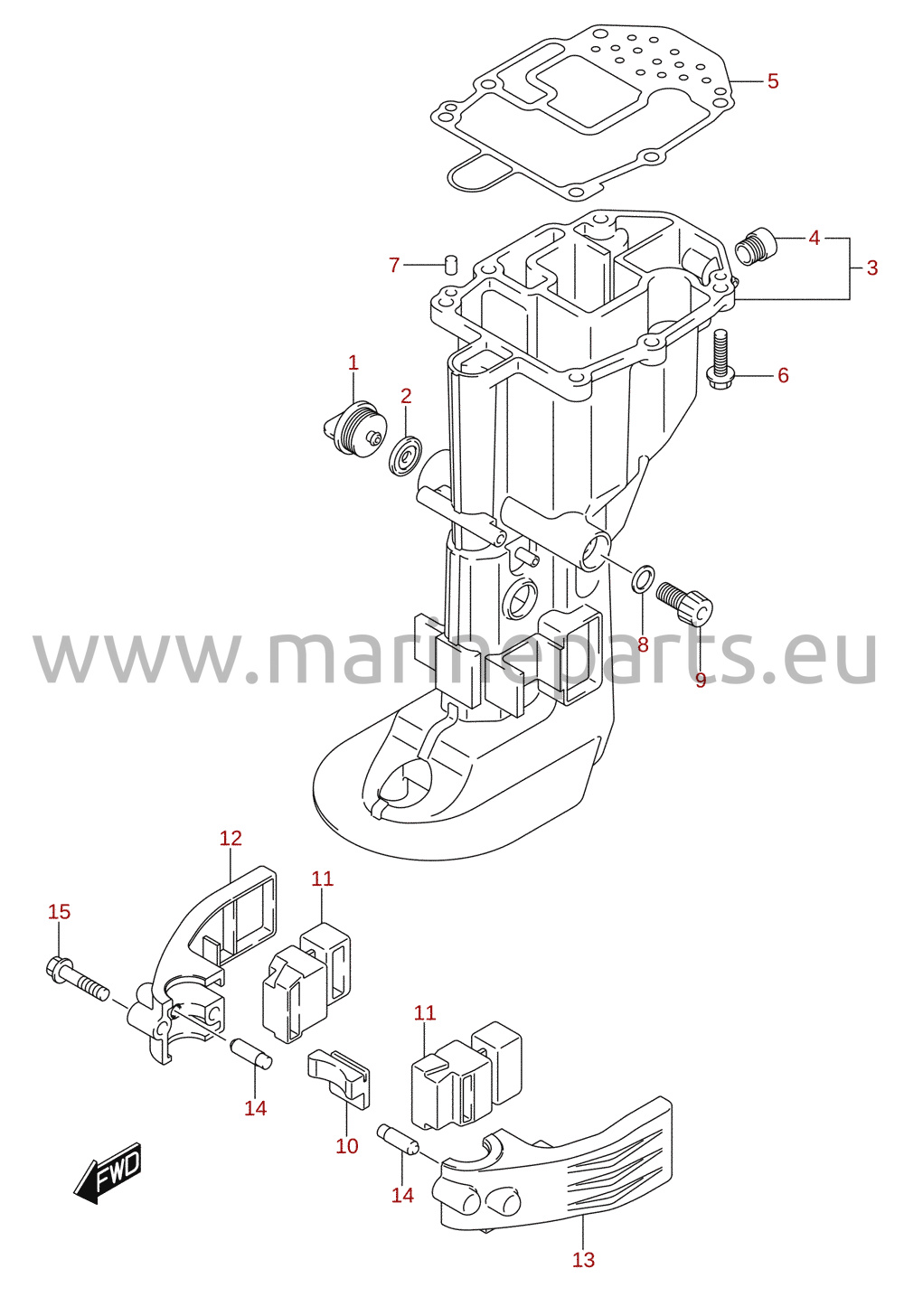

Drivaxelhus
Referensnr. DF20A_P01_014 62

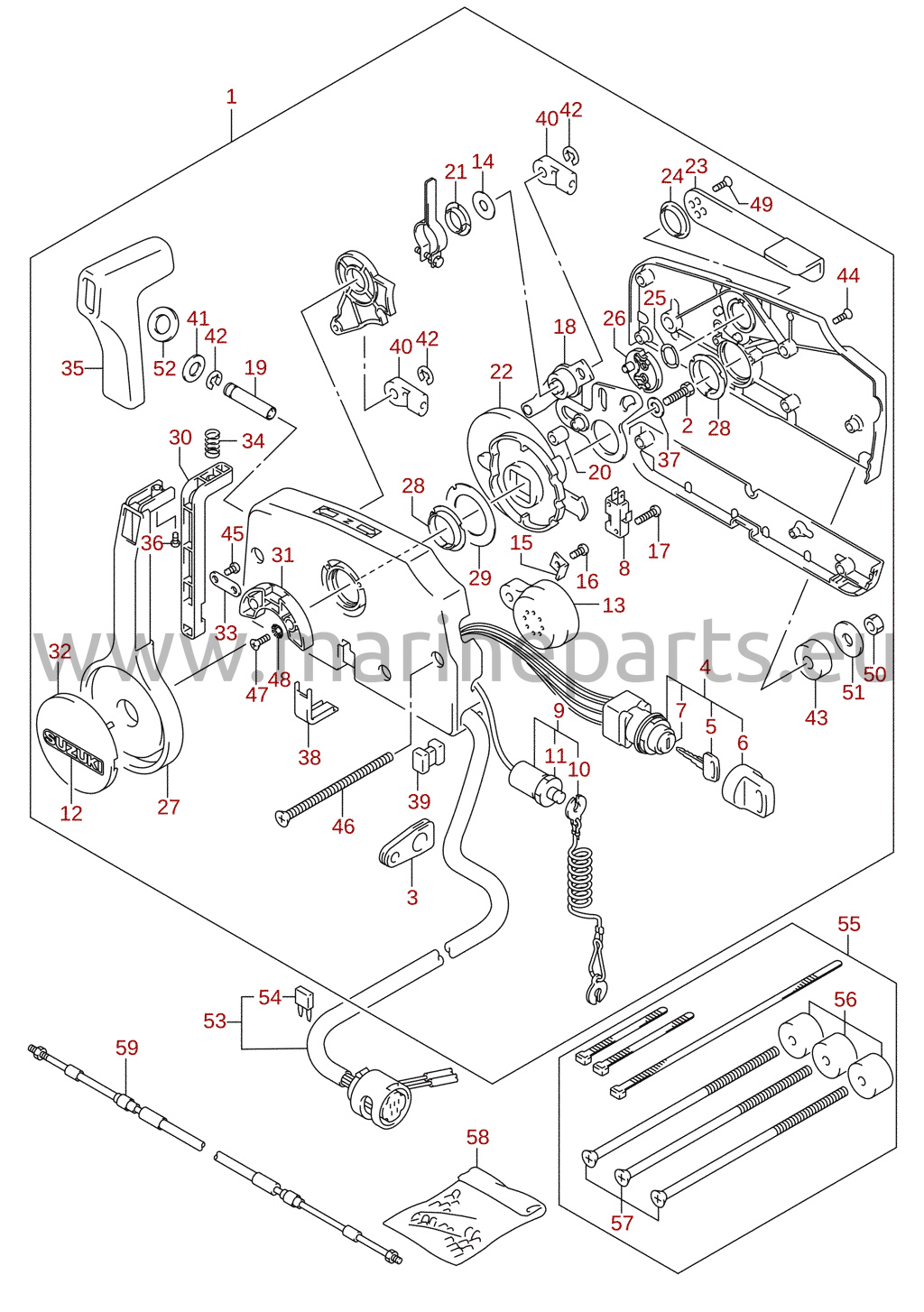

Reglage (DF15A, DF20A, DF9.9B) (tillval)
Referensnr. DF20A_P01_014 80

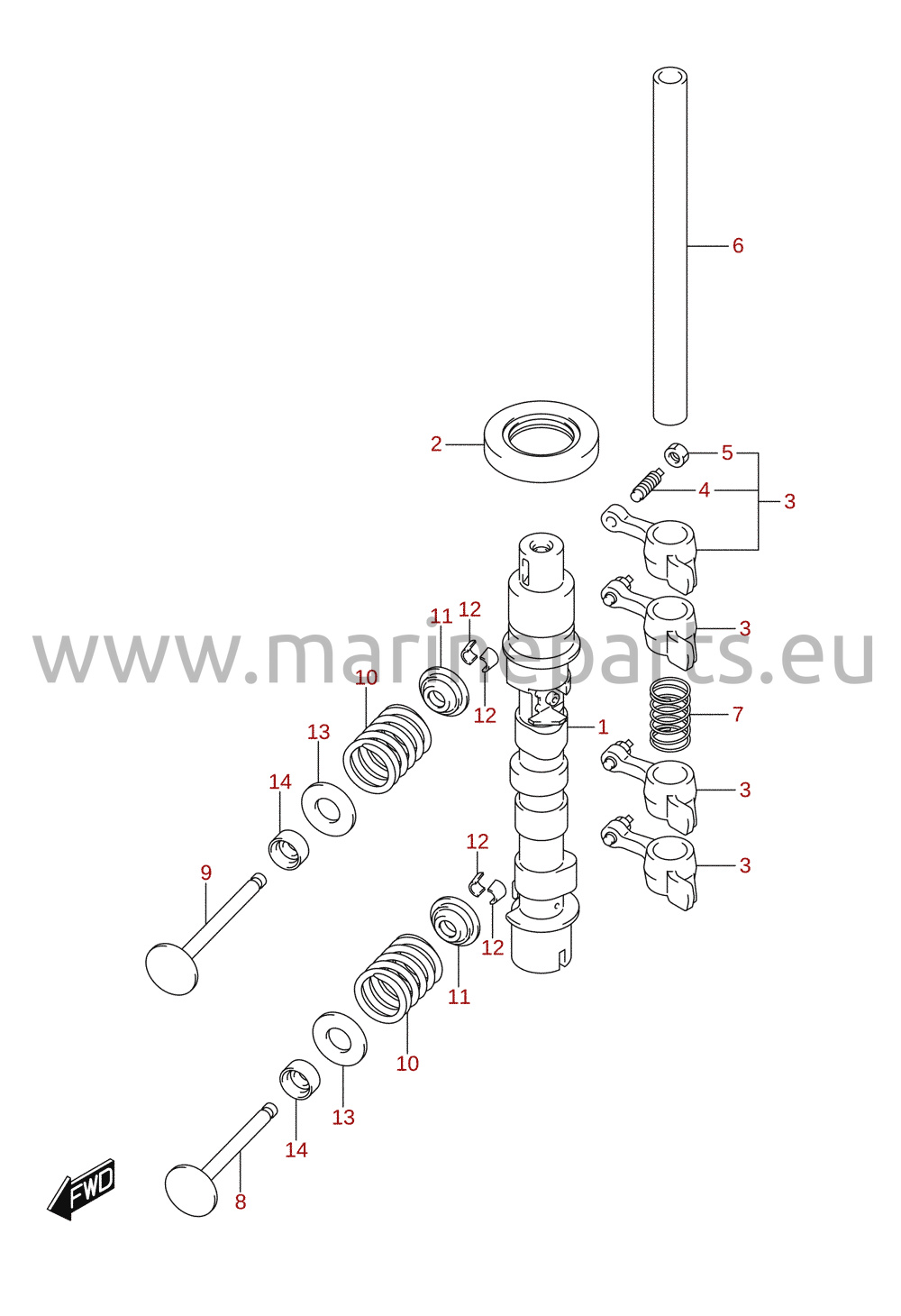

Kamaxel (DF15AR, DF15ATH, DF20AR, DF20AT, DF20ATH, DF9.9BR, DF9.9BT)
Referensnr. DF20A_P01_014 6

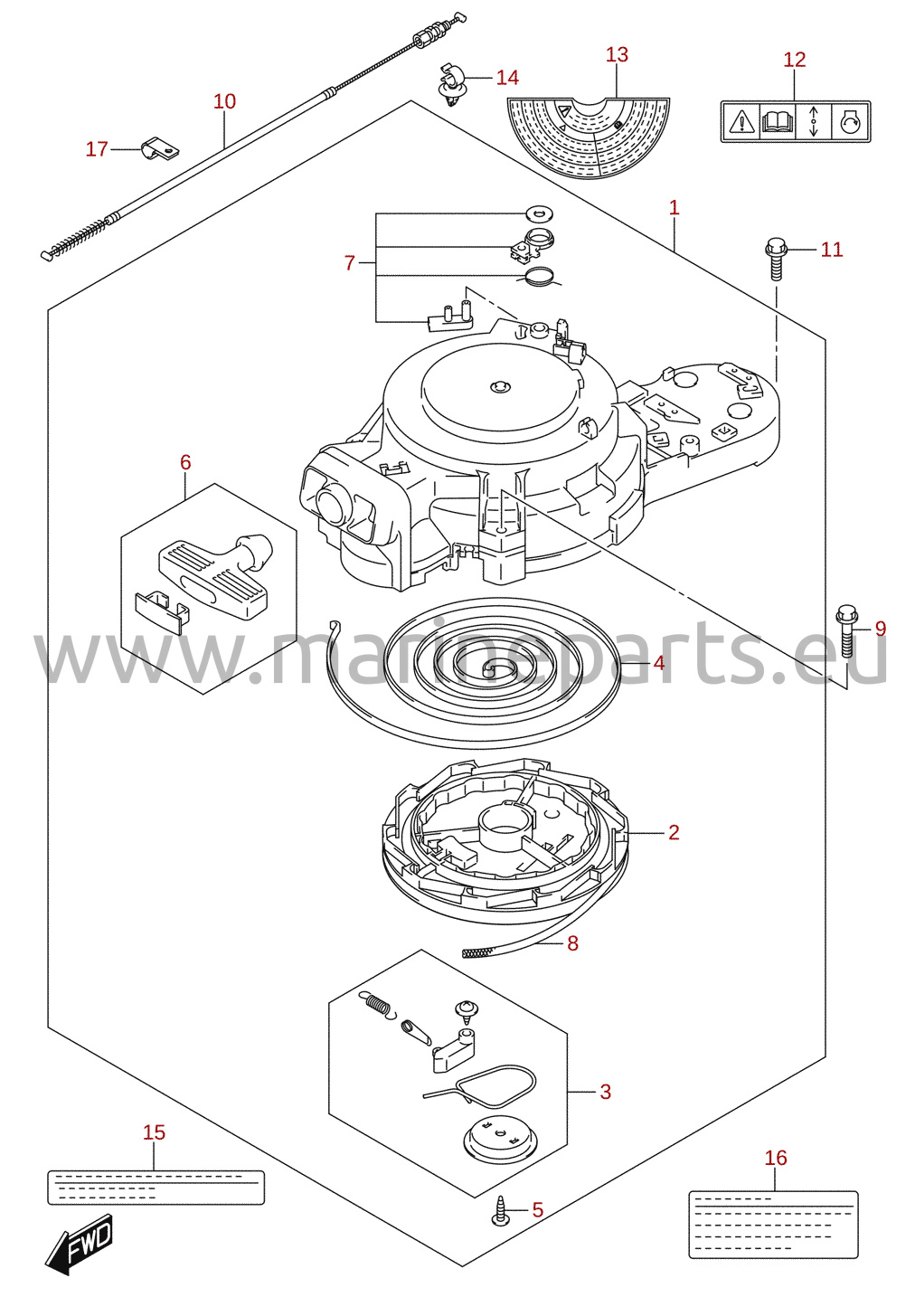

Snörstart (DF15ATH, DF20AT, DF20ATH, DF9.9BT)
Referensnr. DF20A_P01_014 21

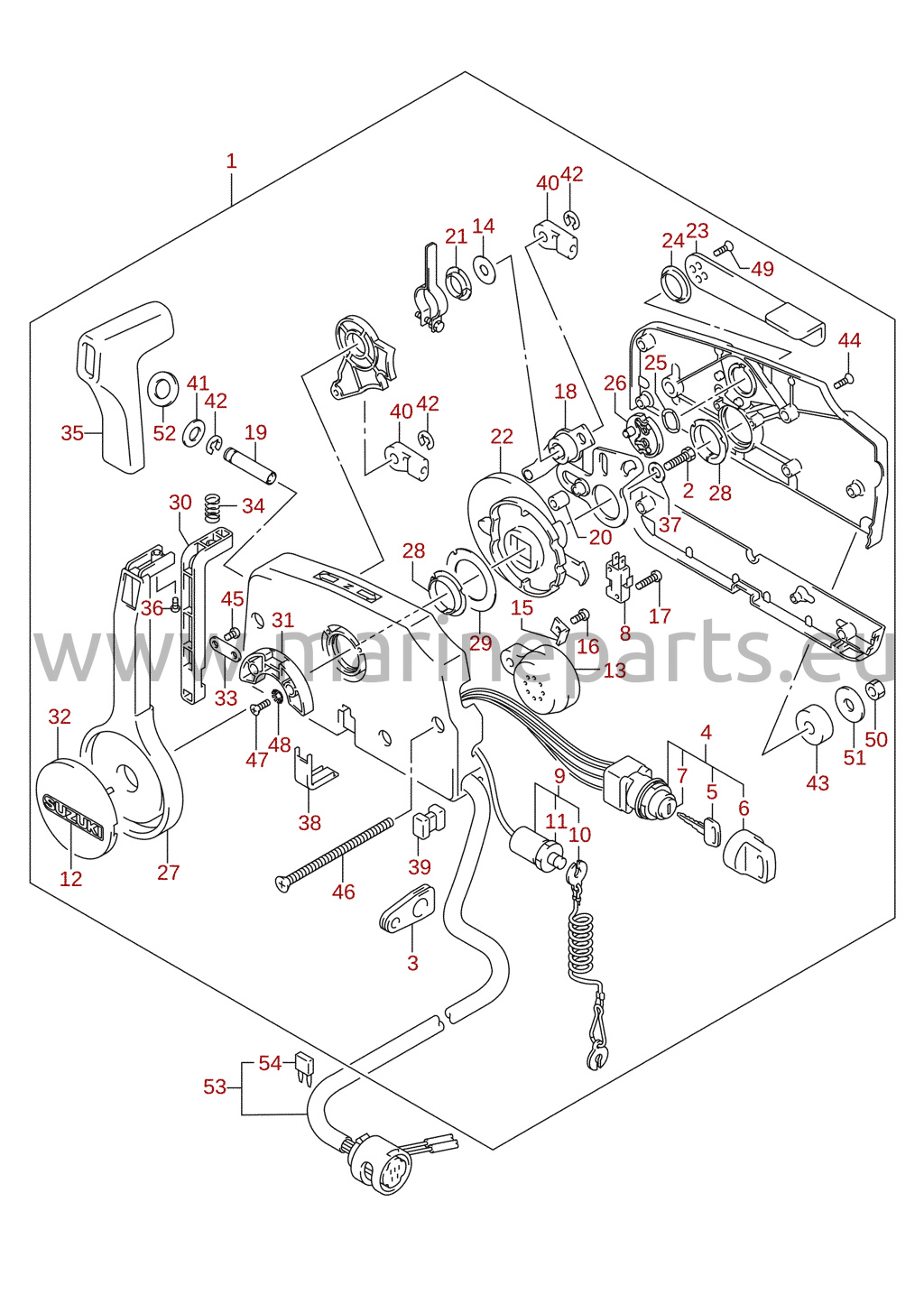

Reglage (DF15AR, DF20AR, DF9.9BR)
Referensnr. DF20A_P01_014 77

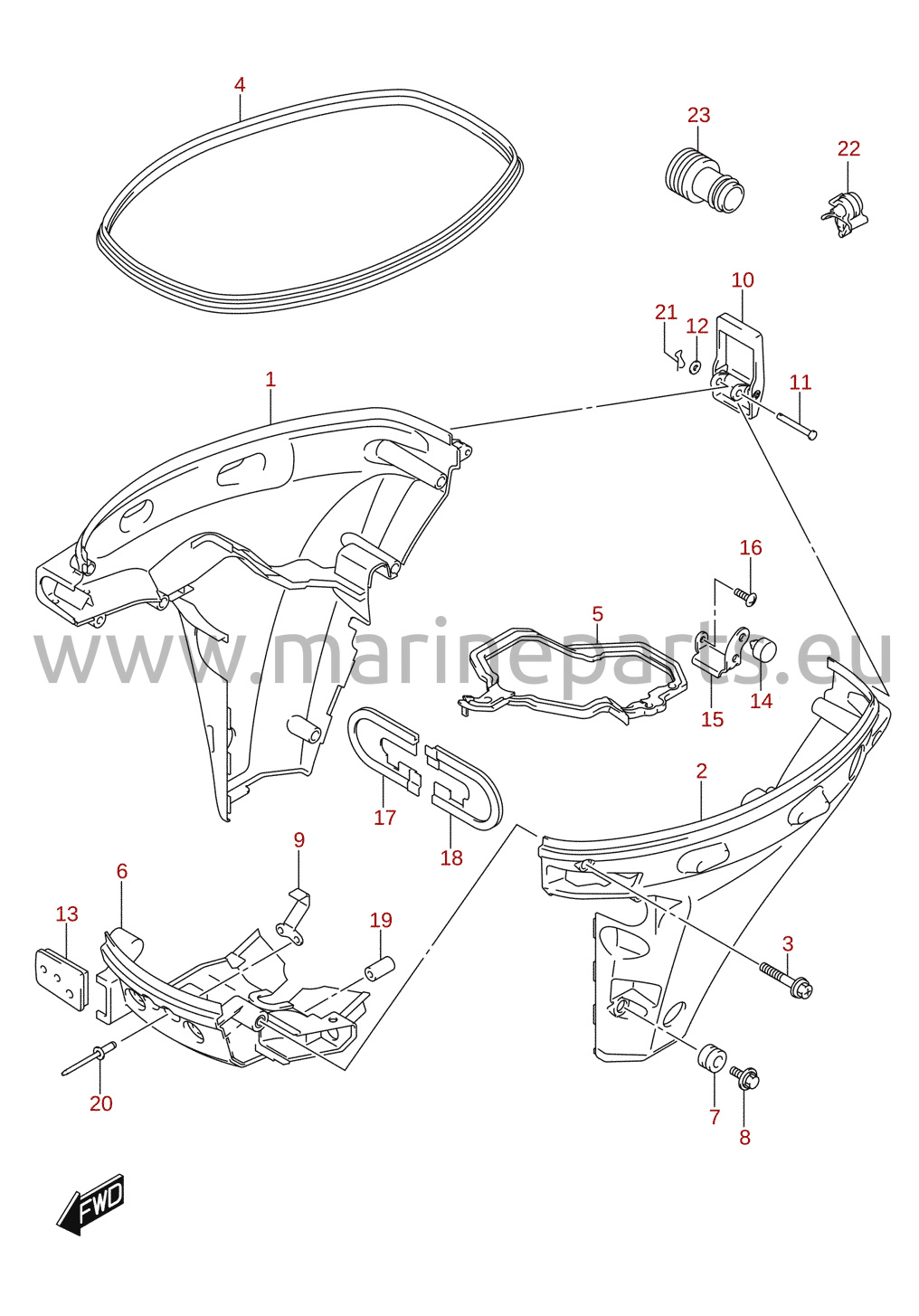

Sidokåpa (DF20AT, DF9.9BT)
Referensnr. DF20A_P01_014 66

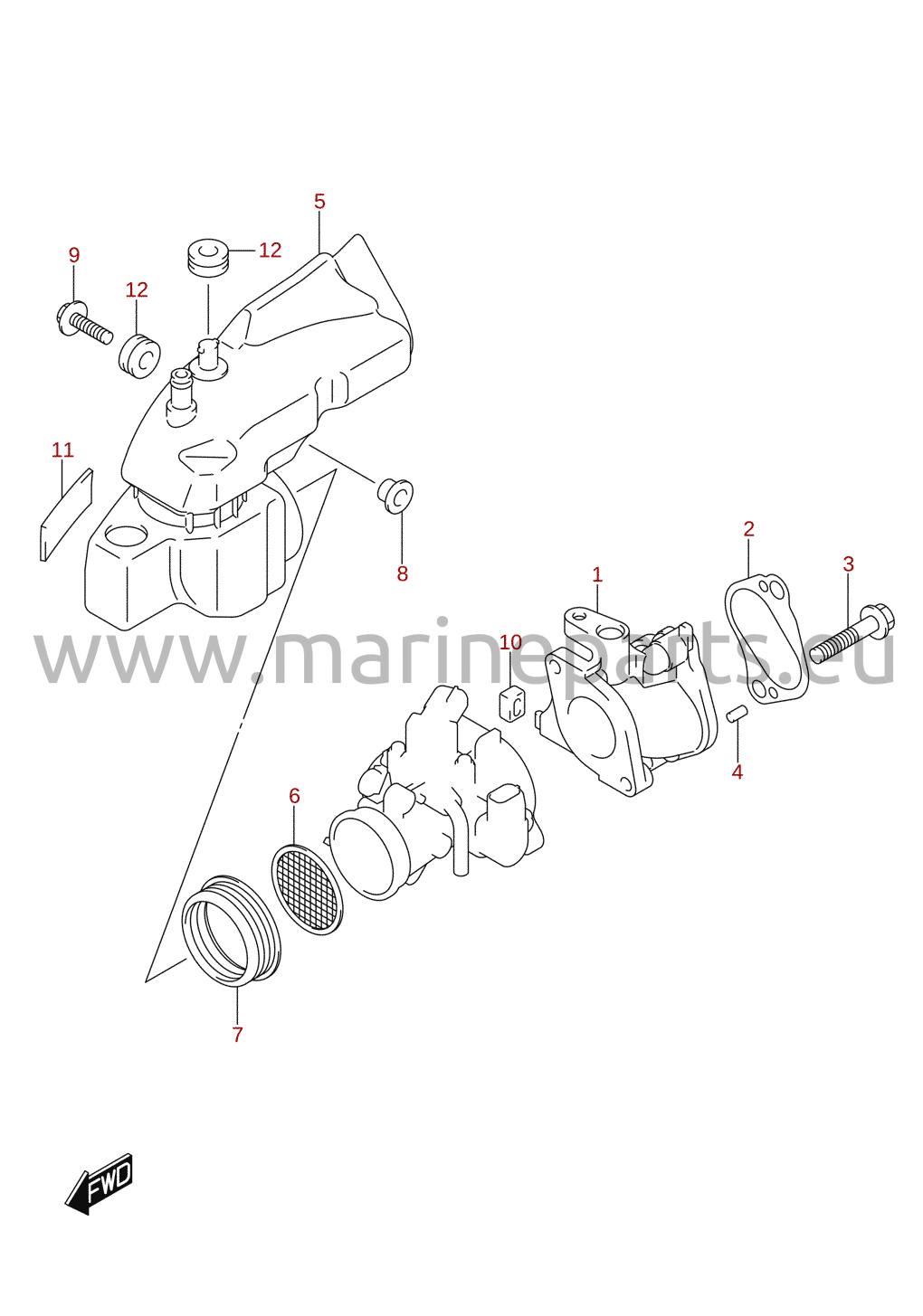

Insugningsrör (DF20)
Referensnr. DF20A_P01_014 9
Sidokåpa (DF15A, DF20A, DF9.9B)
Referensnr. DF20A_P01_014 64

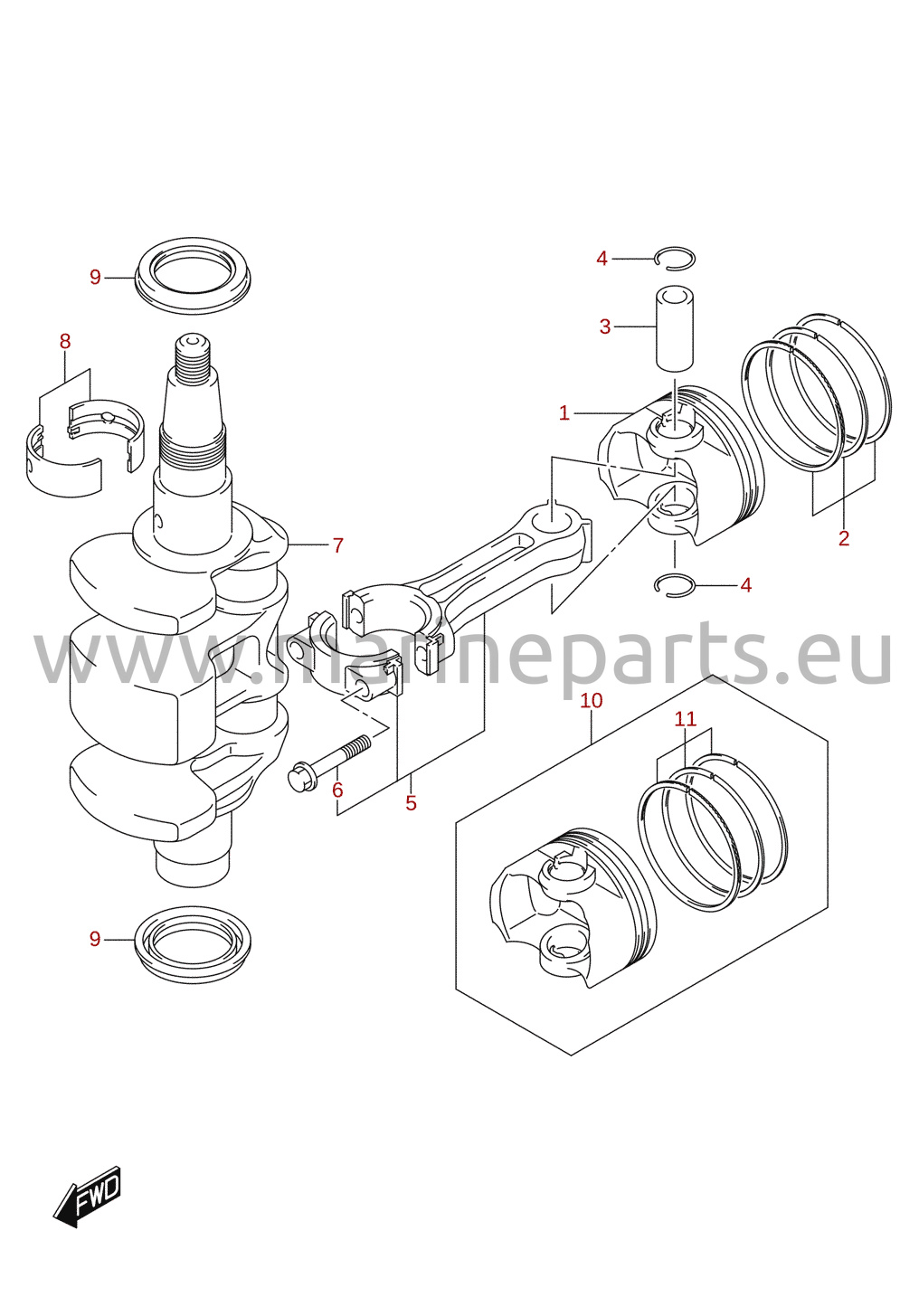

Vevaxel
Referensnr. DF20A_P01_014 3

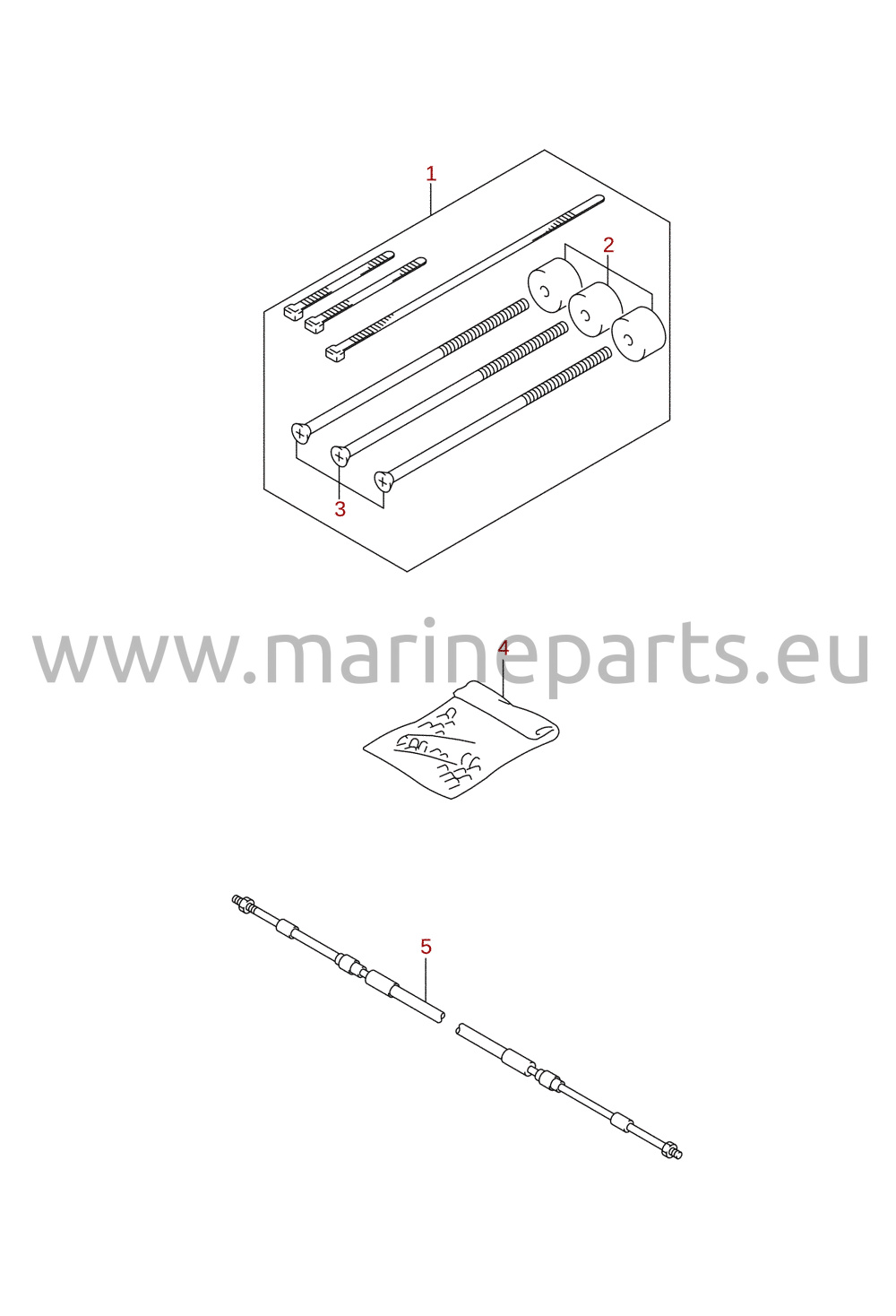

Reglagekabel (DF15AR, DF20AR, DF20AT, DF9.9BR, DF9.9BT) (tillval)
Referensnr. DF20A_P01_014 82

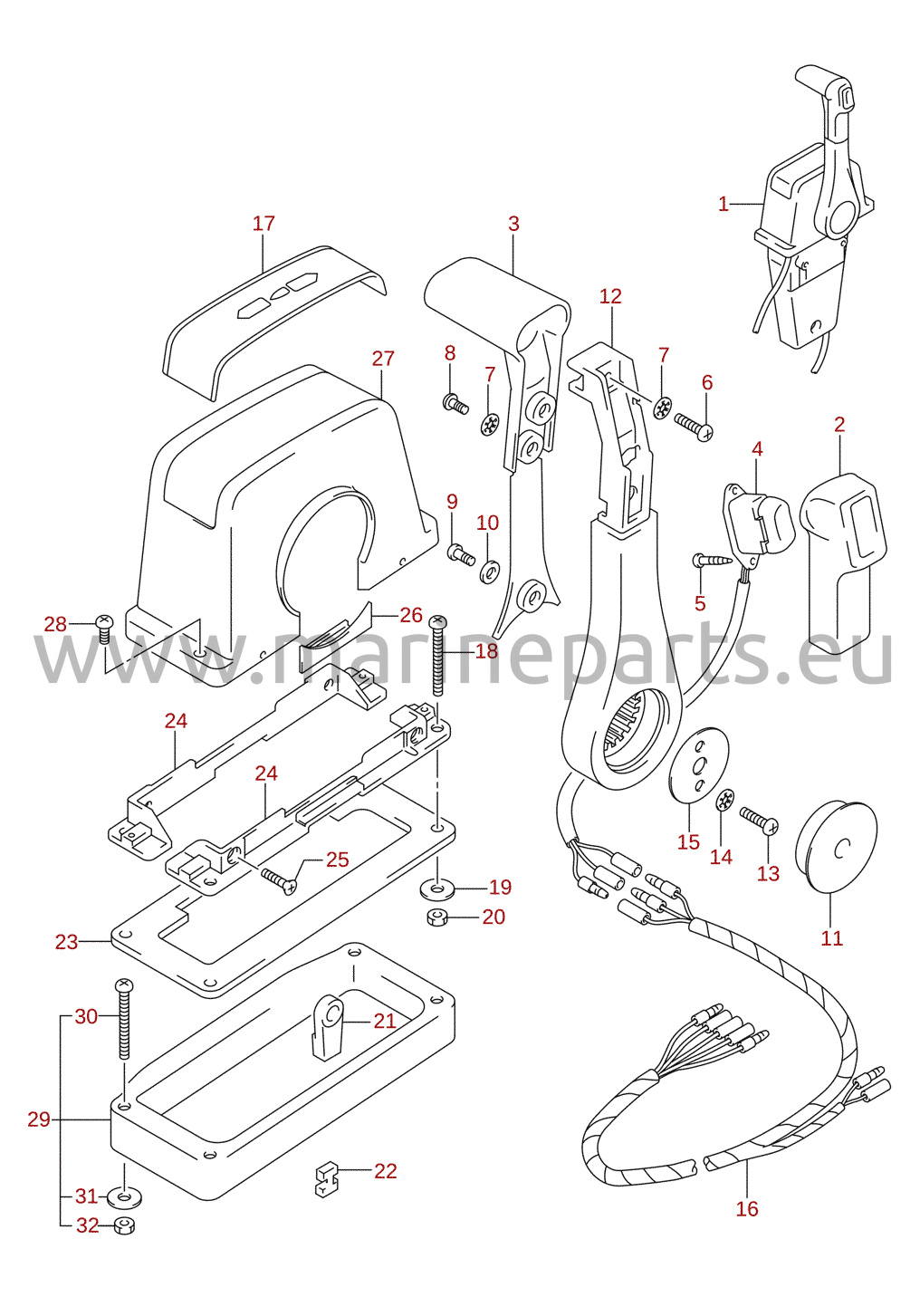

Reglage, enkelt (1) (DF15A, DF20A, DF9.9B) (tillval)
Referensnr. DF20A_P01_014 84

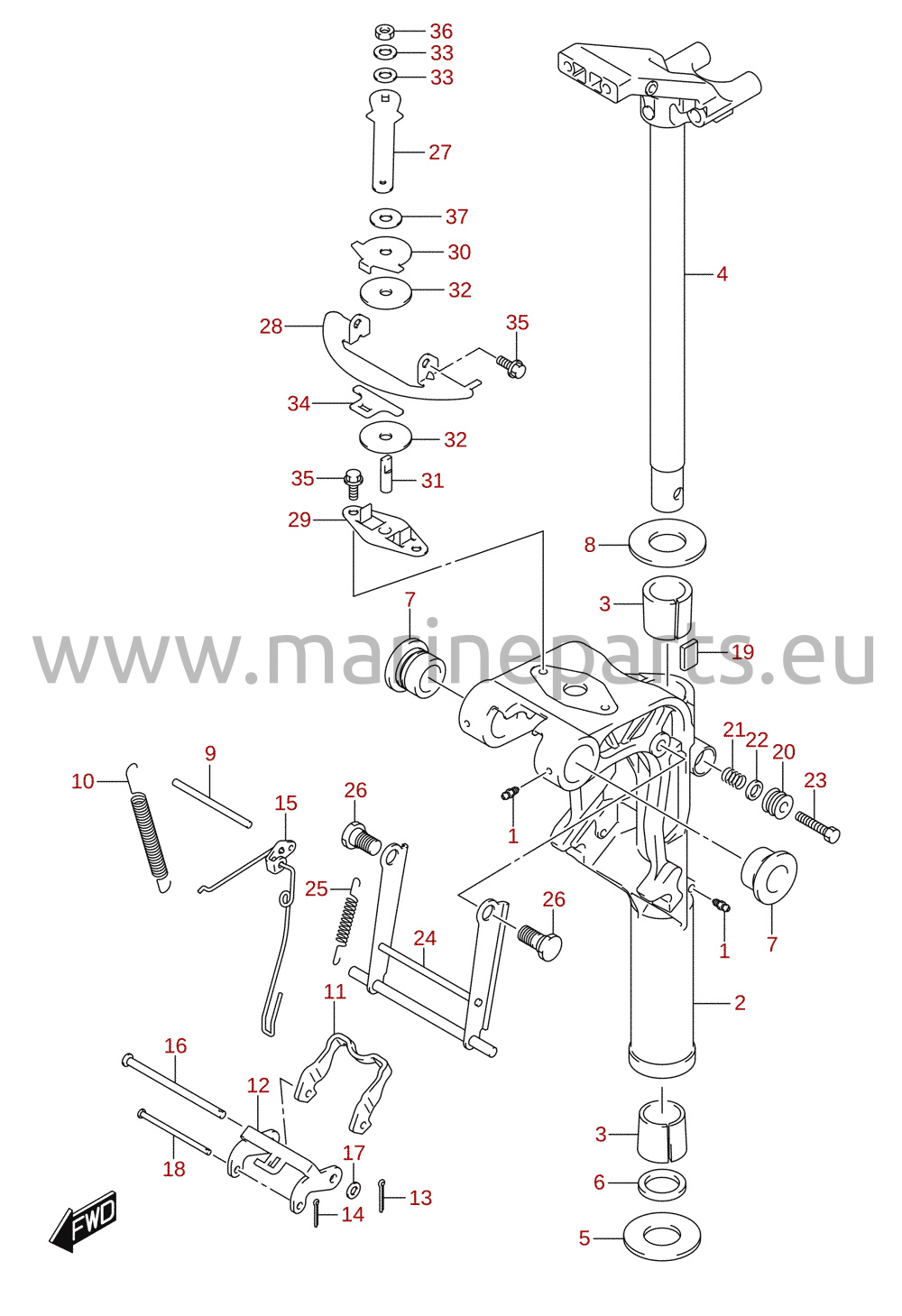

Svängfäste (DF15A, DF20A, DF9.9B)
Referensnr. DF20A_P01_014 55

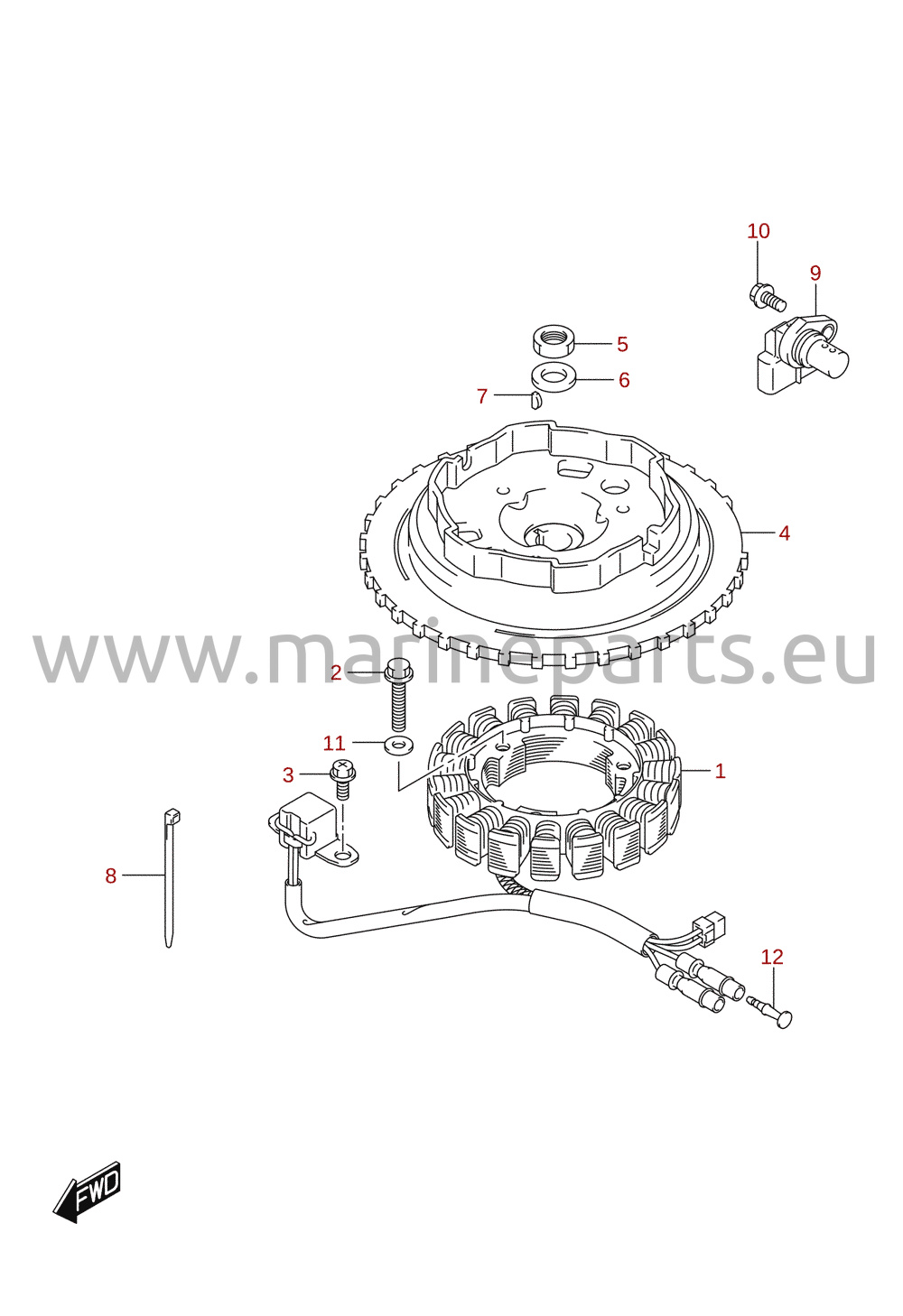

Magnet / generator (M-starter) (DF20A) 1/2
Referensnr. DF20A_P01_014 32

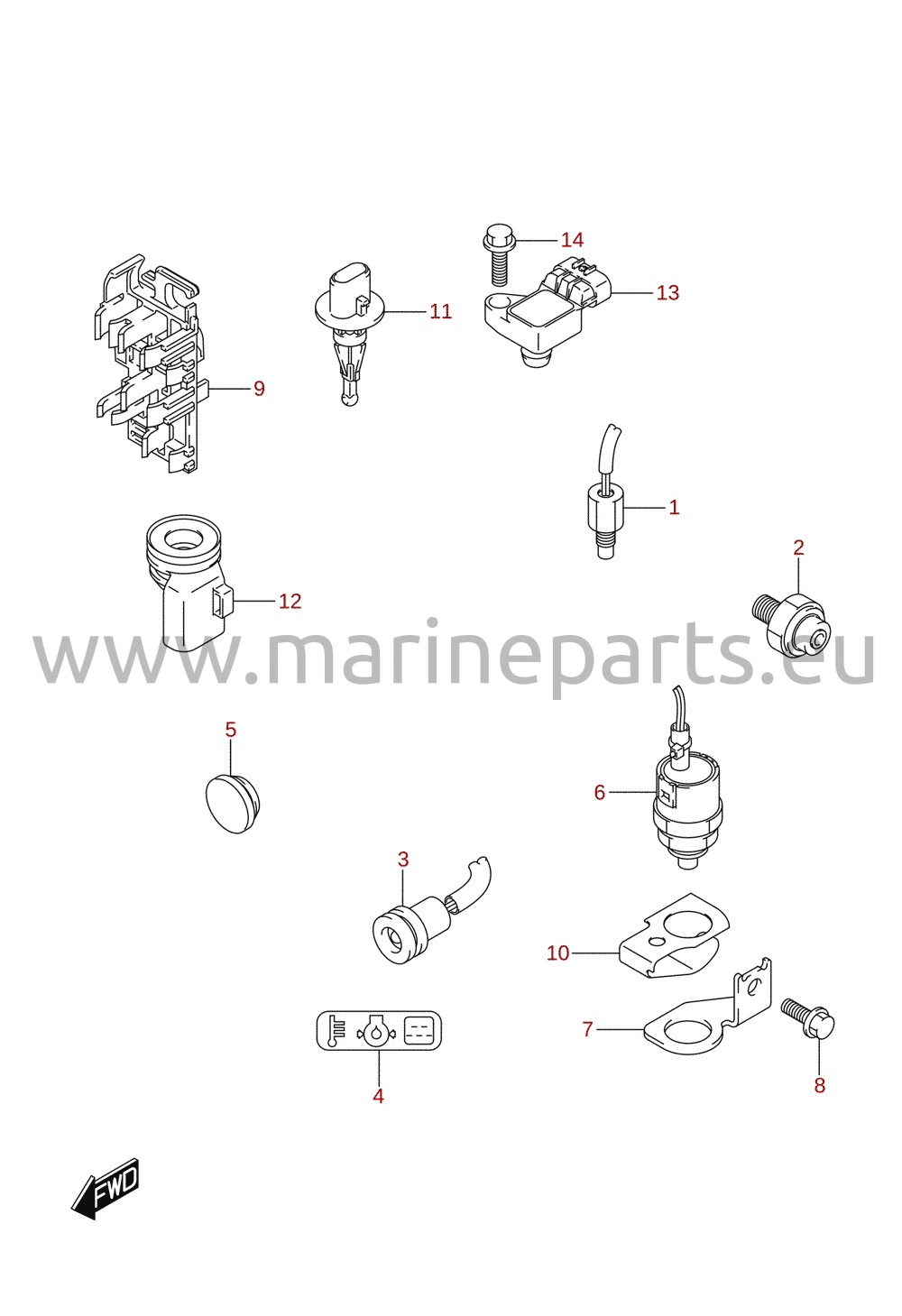

Givare / brytare (DF15AR, DF20AR, DF20AT, DF9.9BR, DF9.9BT)
Referensnr. DF20A_P01_014 49

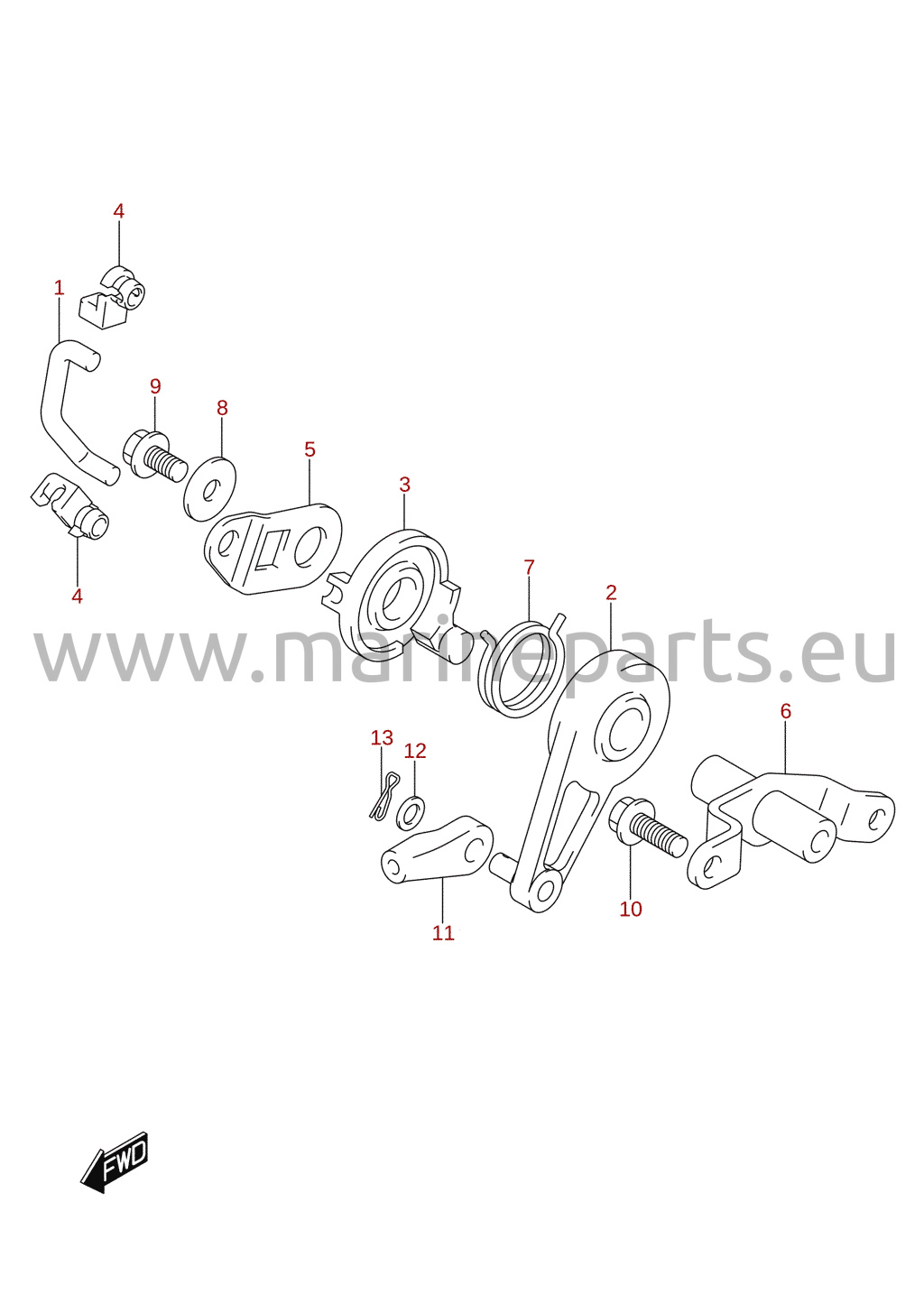

Gasreglage (DF9.9BT)
Referensnr. DF20A_P01_014 18

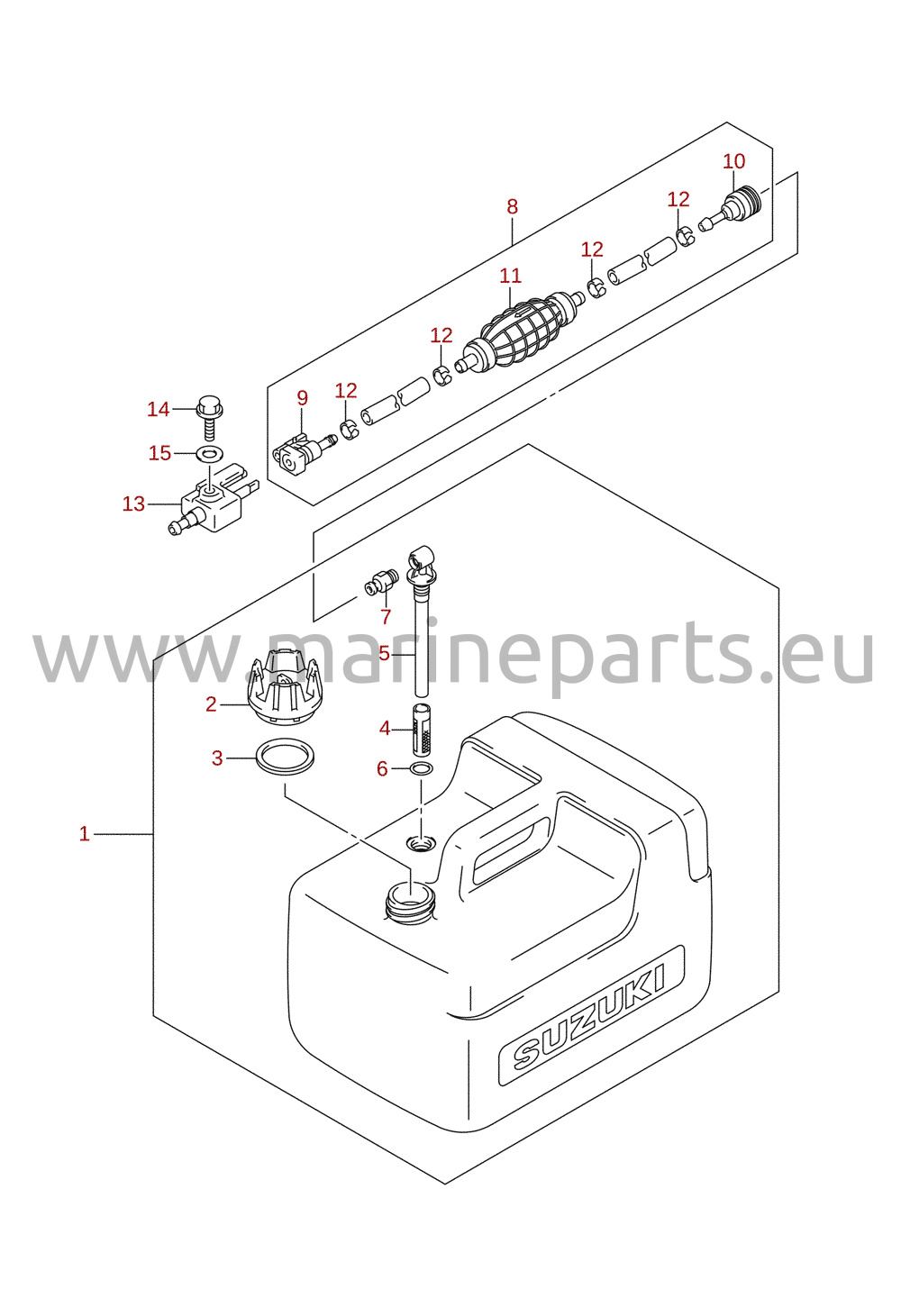

Bränsletank
Referensnr. DF20A_P01_014 74

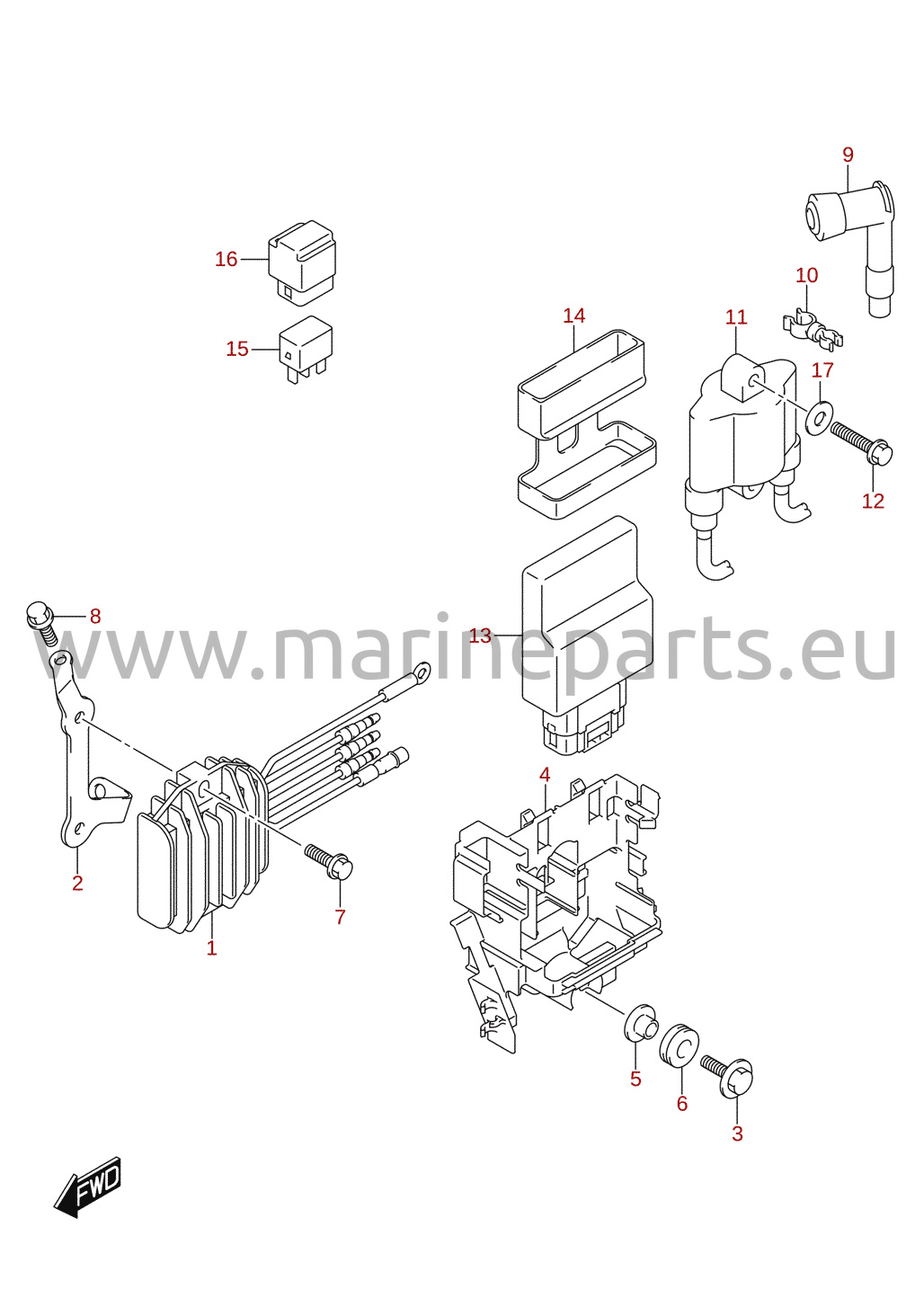

Likriktare / tändspole (DF20A) 1/2
Referensnr. DF20A_P01_014 39

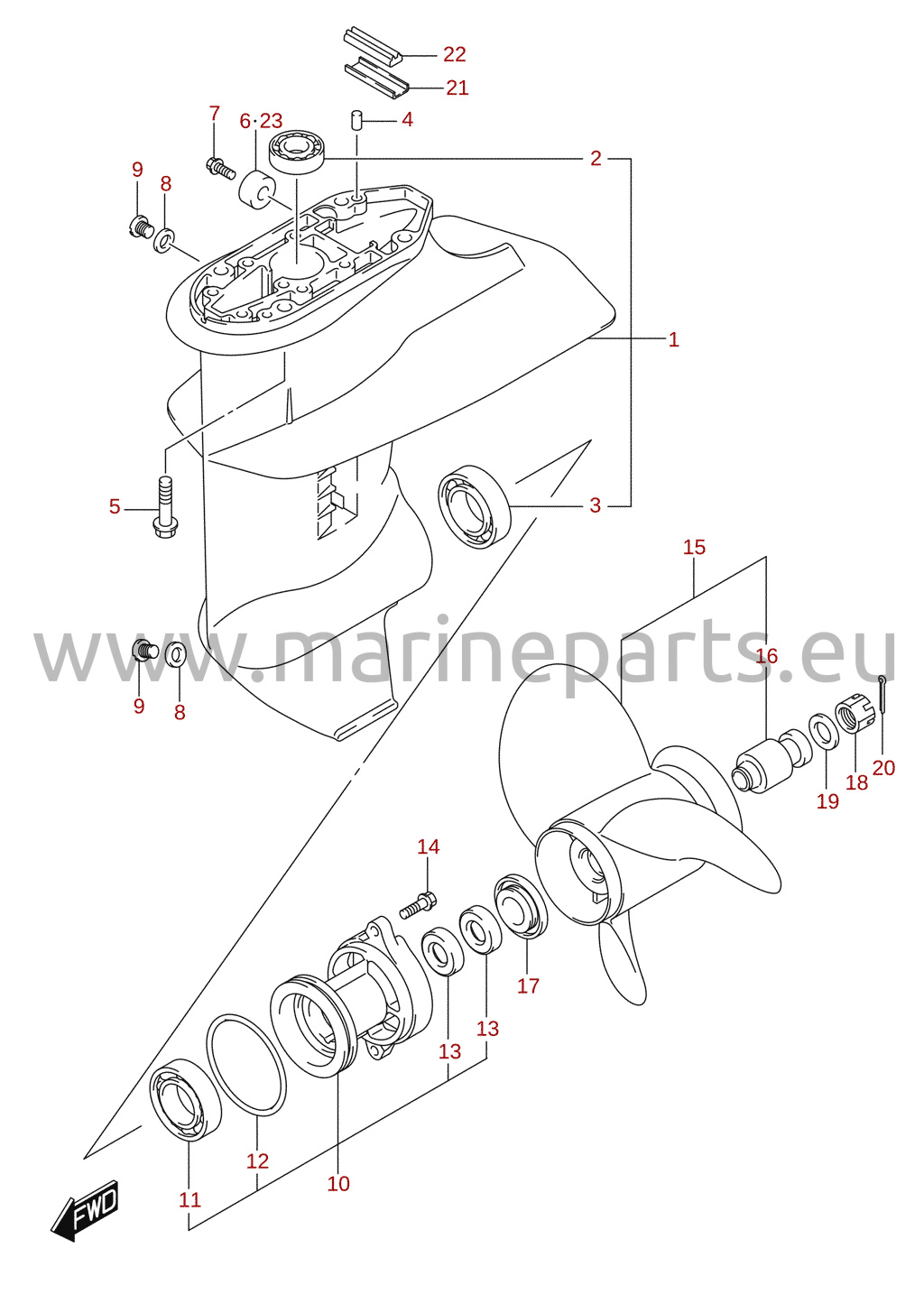

Växelhus
Referensnr. DF20A_P01_014 63

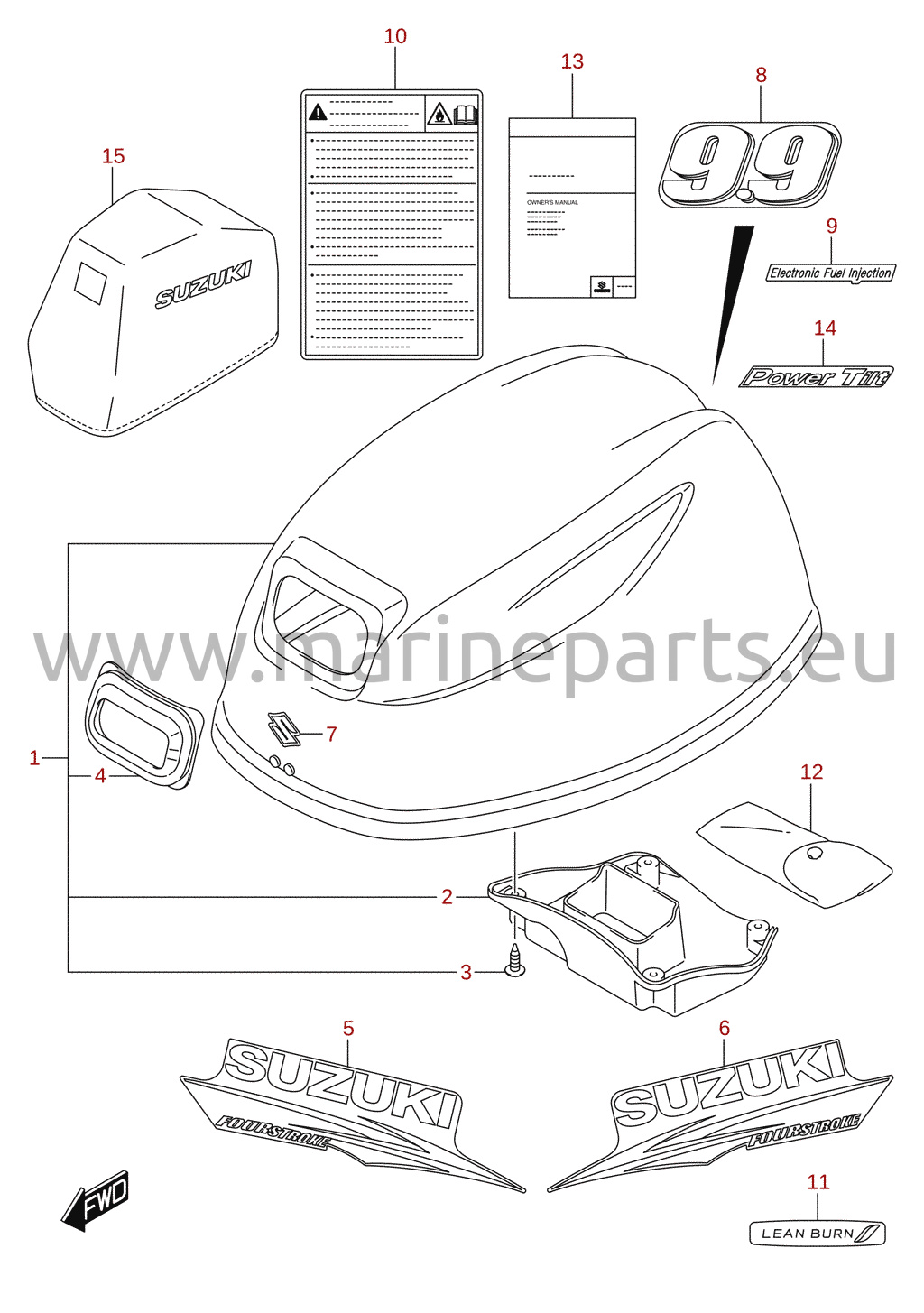

Motorkåpa (DF9.9BT)
Referensnr. DF20A_P01_014 69
